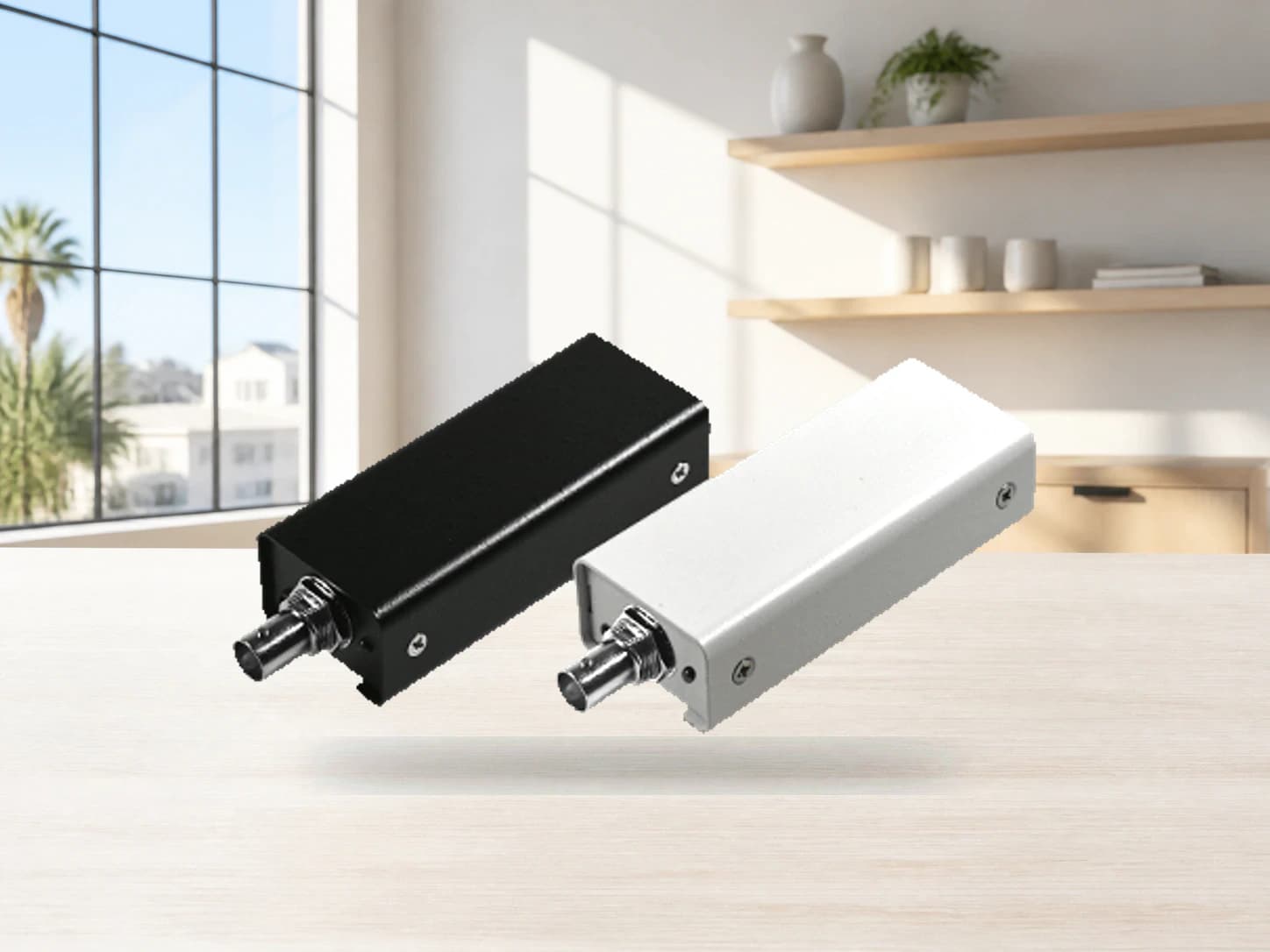

PD570 PRO SDI
1 CH 1080P60 SDI with ProAV Scaler
Checking the host connection first? Review the USB selection guide.
Technical specifications
| Main | |
|---|---|
| Max. Input Resolution | 1920x1080p @ 60/50fps |
| Video Input | 1 × SDI |
| Dimension | N/A |
| Interface | USB3.0 Type B (SuperSpeed) UVC |
| Feature | N/A |
| Video | |
| Video Input Detail | 1 × SDI |
| Video Output | N/A |
| Color Format | YUY2 |
| Built-in Hardware Encoding | N/A |
| Video Processing | N/A |
| Video Resolutions | USB3.0 Support Resolution 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 720×480i@60fps 720×576i@50fps |
| UVC Video Output Resolution | USB3.0 Support Resolution 1920×1080p@60/50/30/25/24fps 1280×1024p@60/50/30/25/24fps 1280×720p@60/50/30/25/24fps 1024×768p@60/50/30/25/24fps 800×600p@60/50/30/25/24fps 640×480p@60/50/30/25/24fps 720×576p@60/50/30/25/24fps 720×480p@60/50/30/25/24fps |
| Audio | |
| Audio Input | SDI Embedded Audio 3.5mm Analog Stereo Audio |
| Audio Format | Stereo / 16-bit / 48000Hz |
| Misc | |
| GPIO | N/A |
| Watchdog | N/A |
| Software | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) Linux / MAC OS / Android |
