Capture I/O
Capture I/O includes more than 180 capture cards and modules for raw ProAV video, H.26X hardware compression, USB capture, NVIDIA Holoscan Sensor Bridge, and legacy buses. Models cover 1 to 16 channels and resolutions from SD through 8K60, with NexVDO SDK support across the line.
Choose before you browse
PCIe, M.2, MiniPCIe, or USB?
Start with the host and installation, then narrow by signal, channel count, compression, operating system, and SDK.
Capture I/O

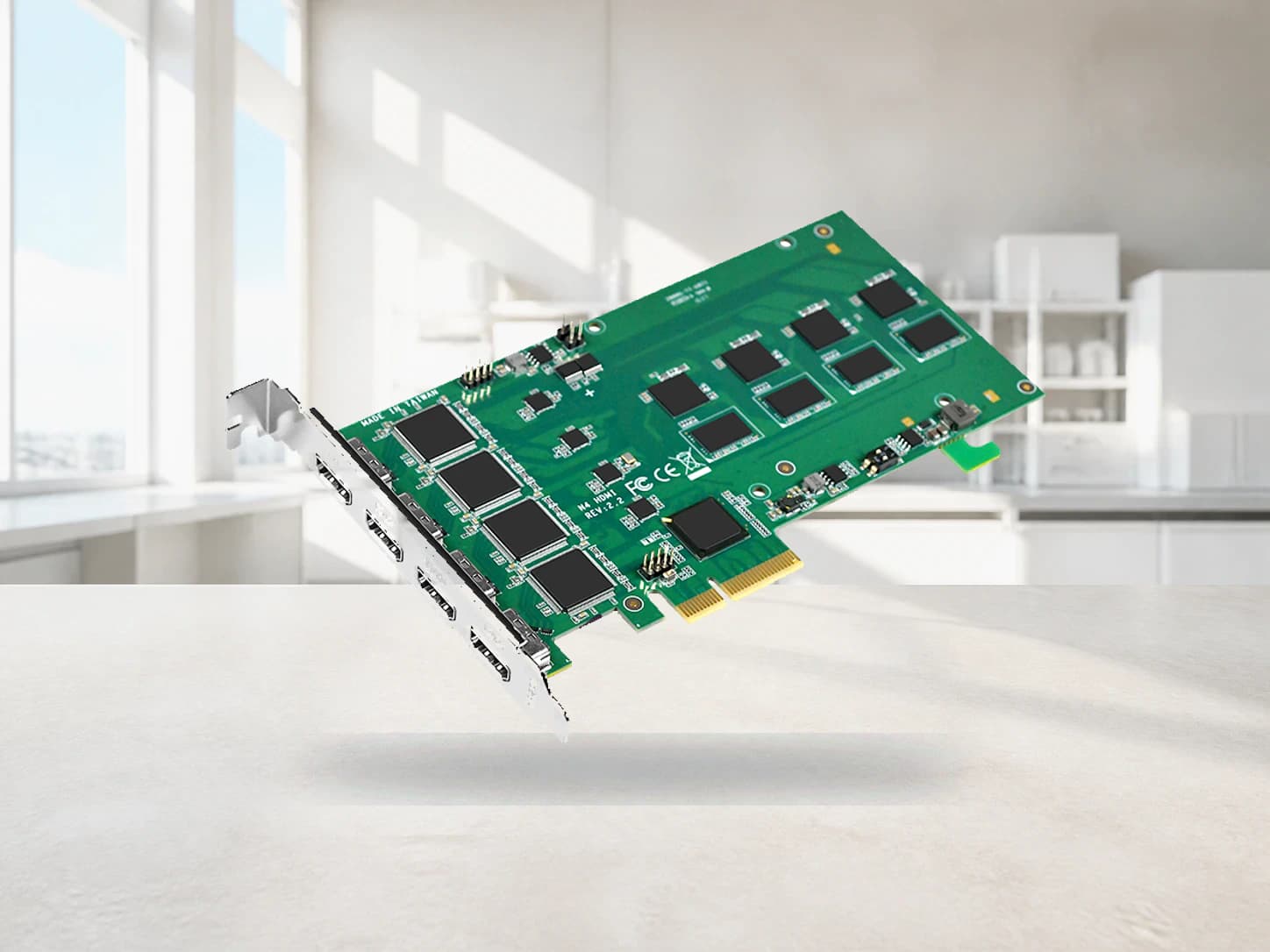

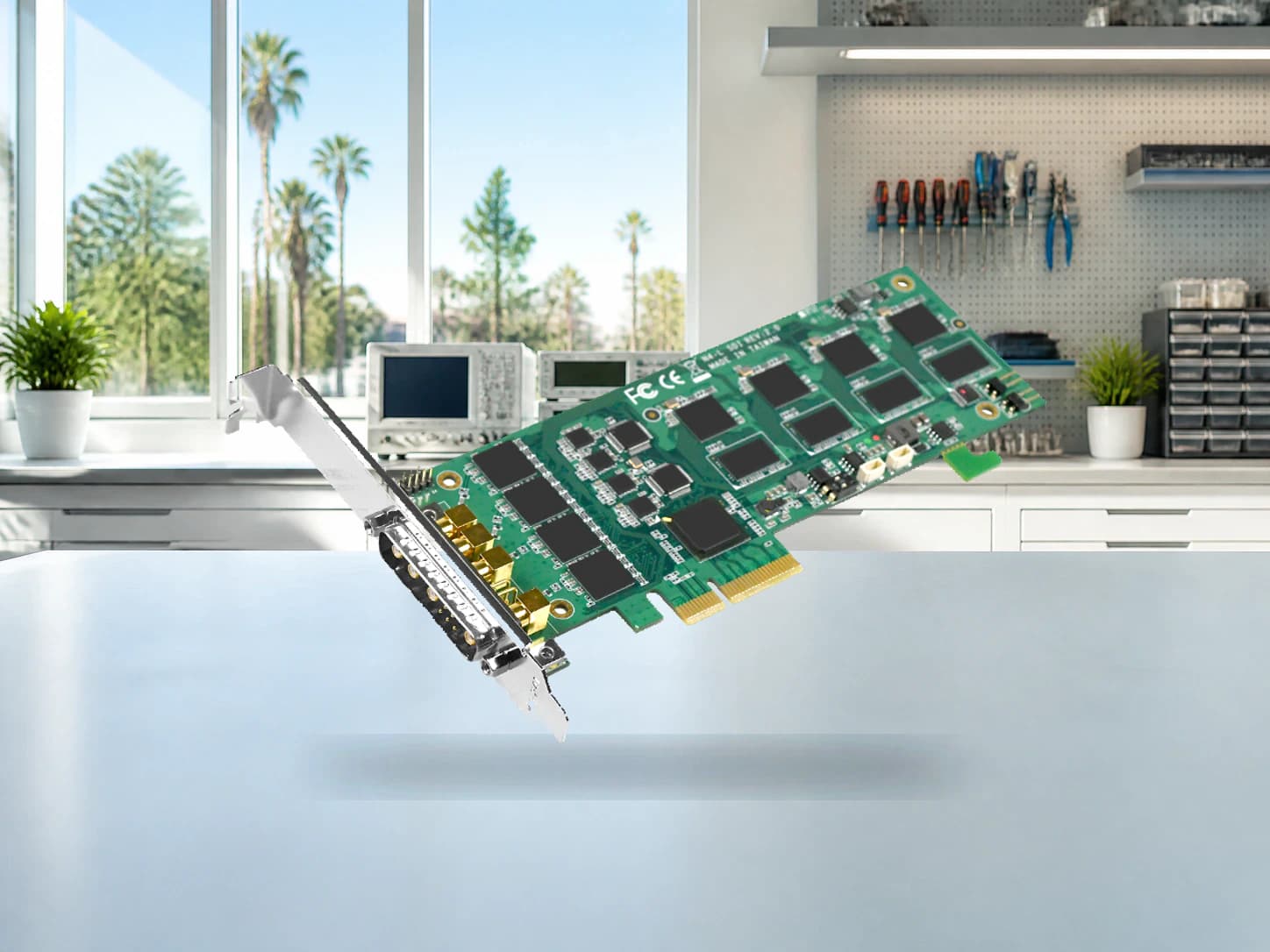

ProAV

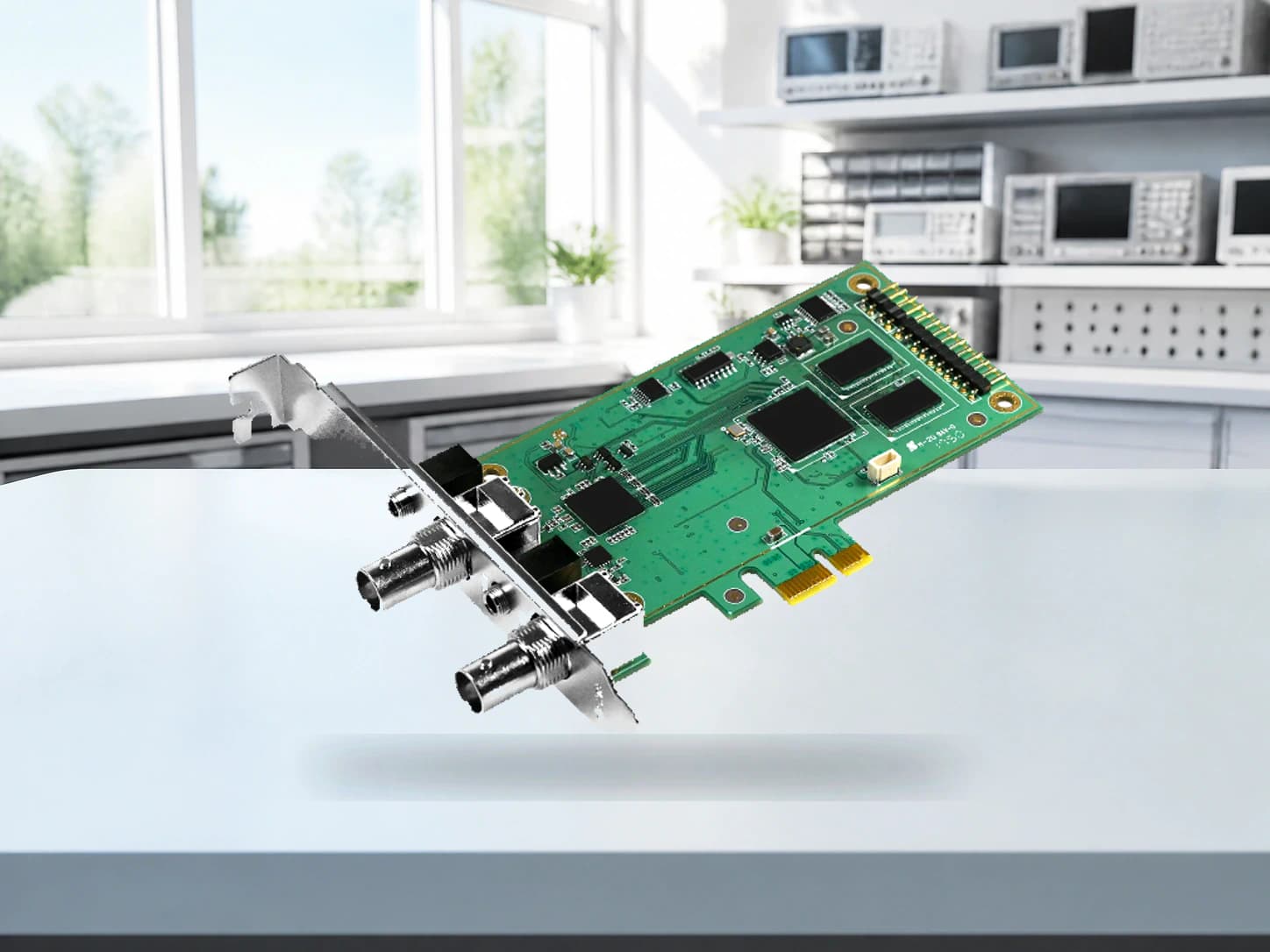

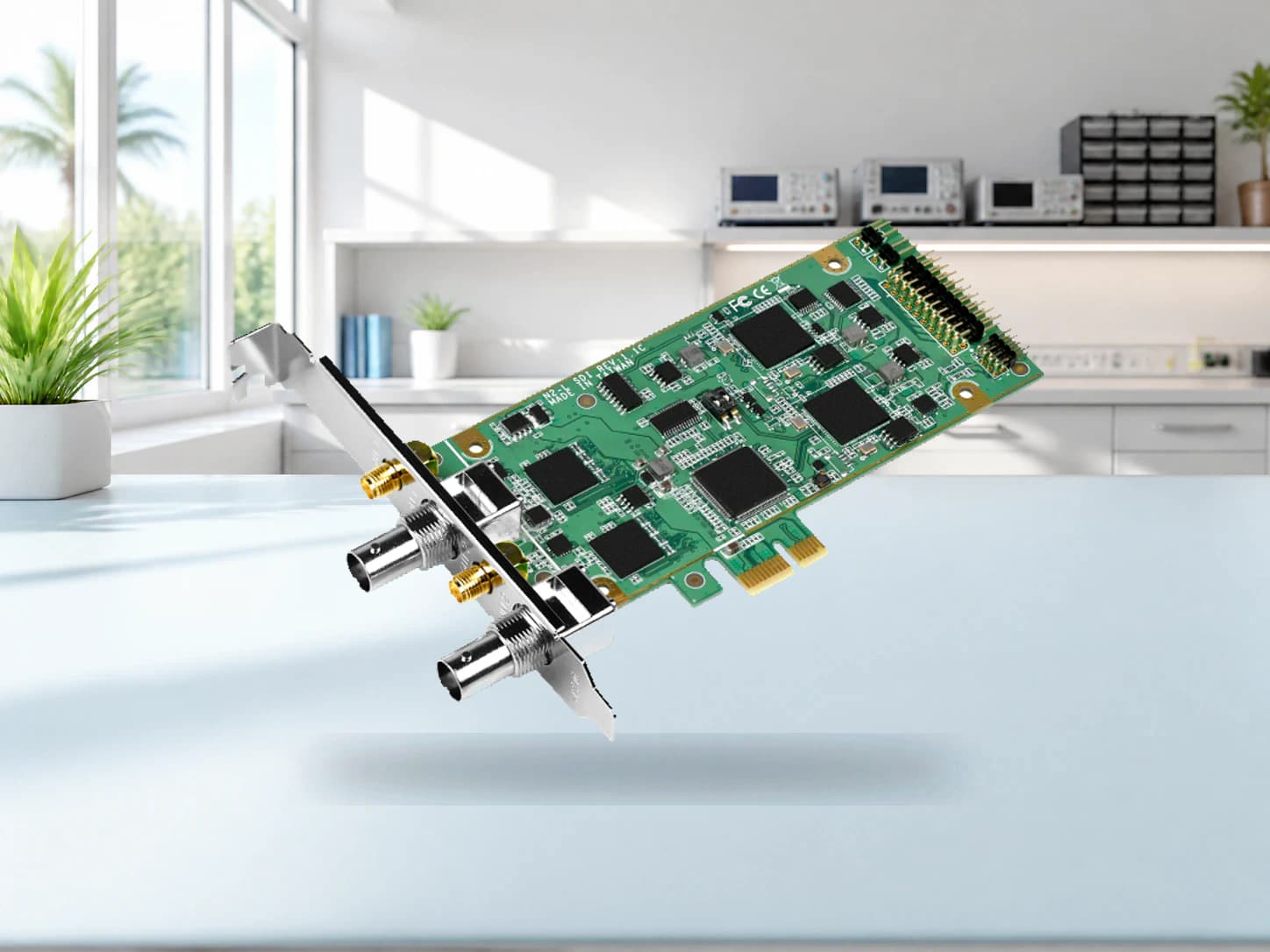

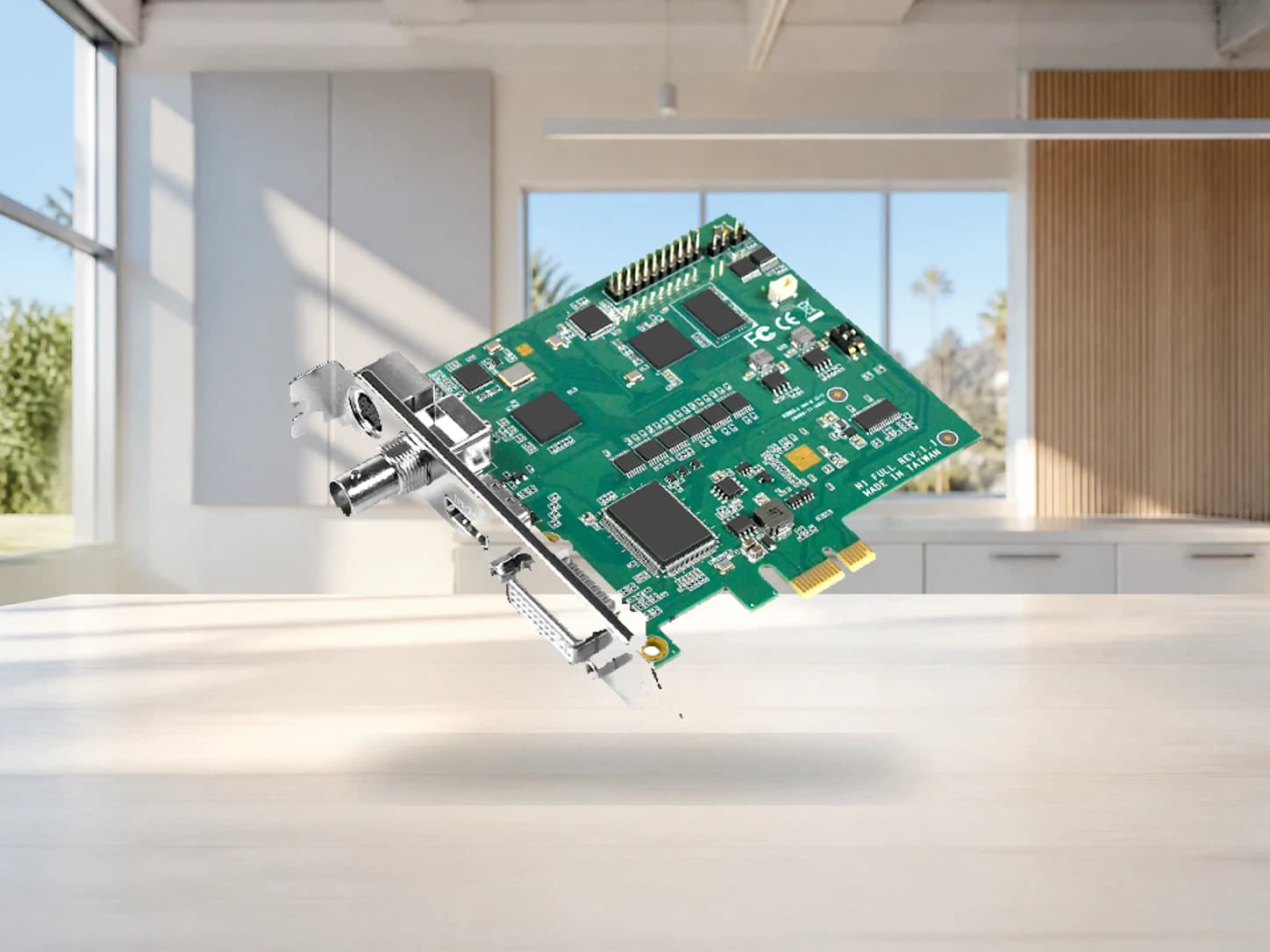

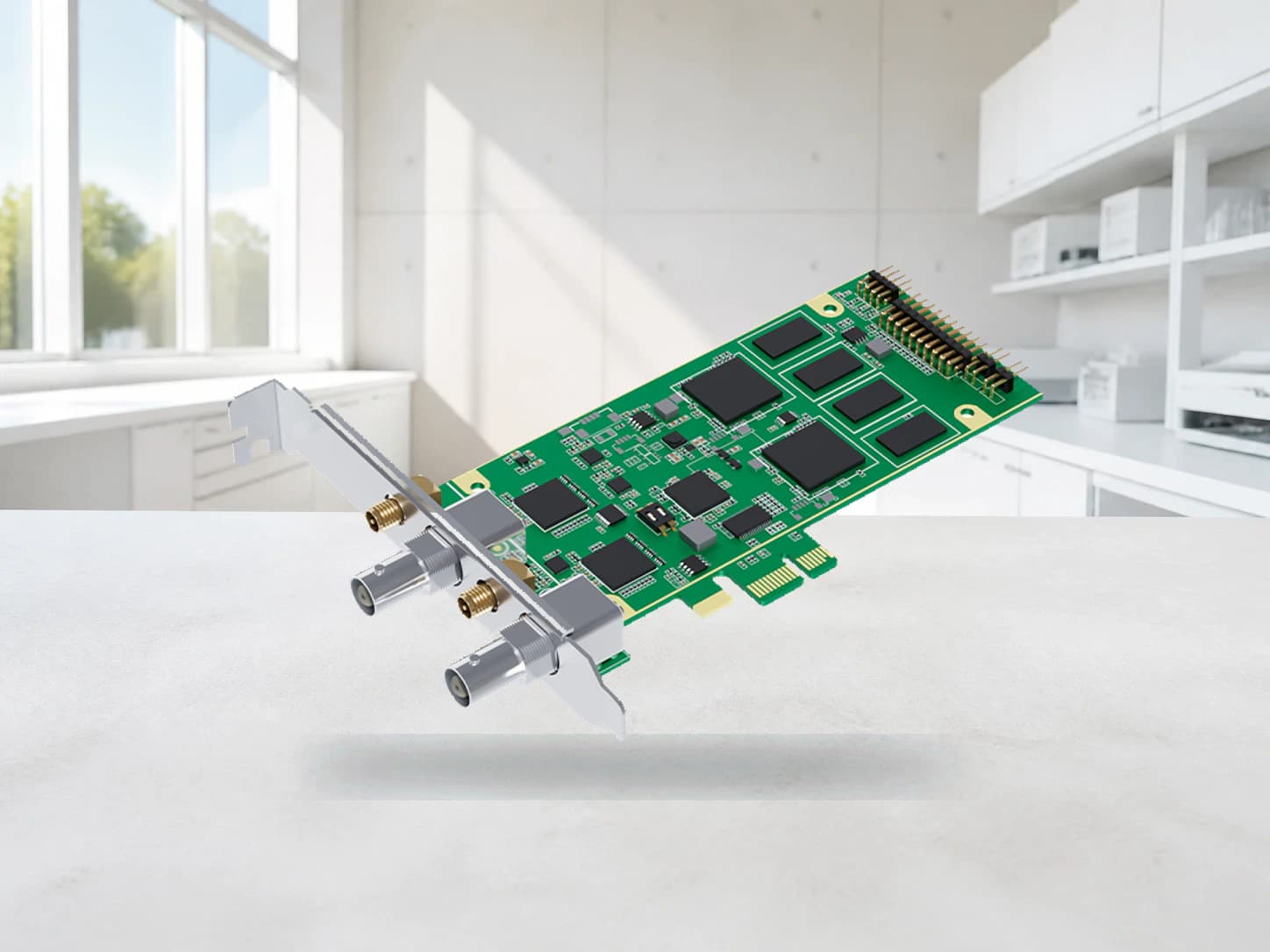

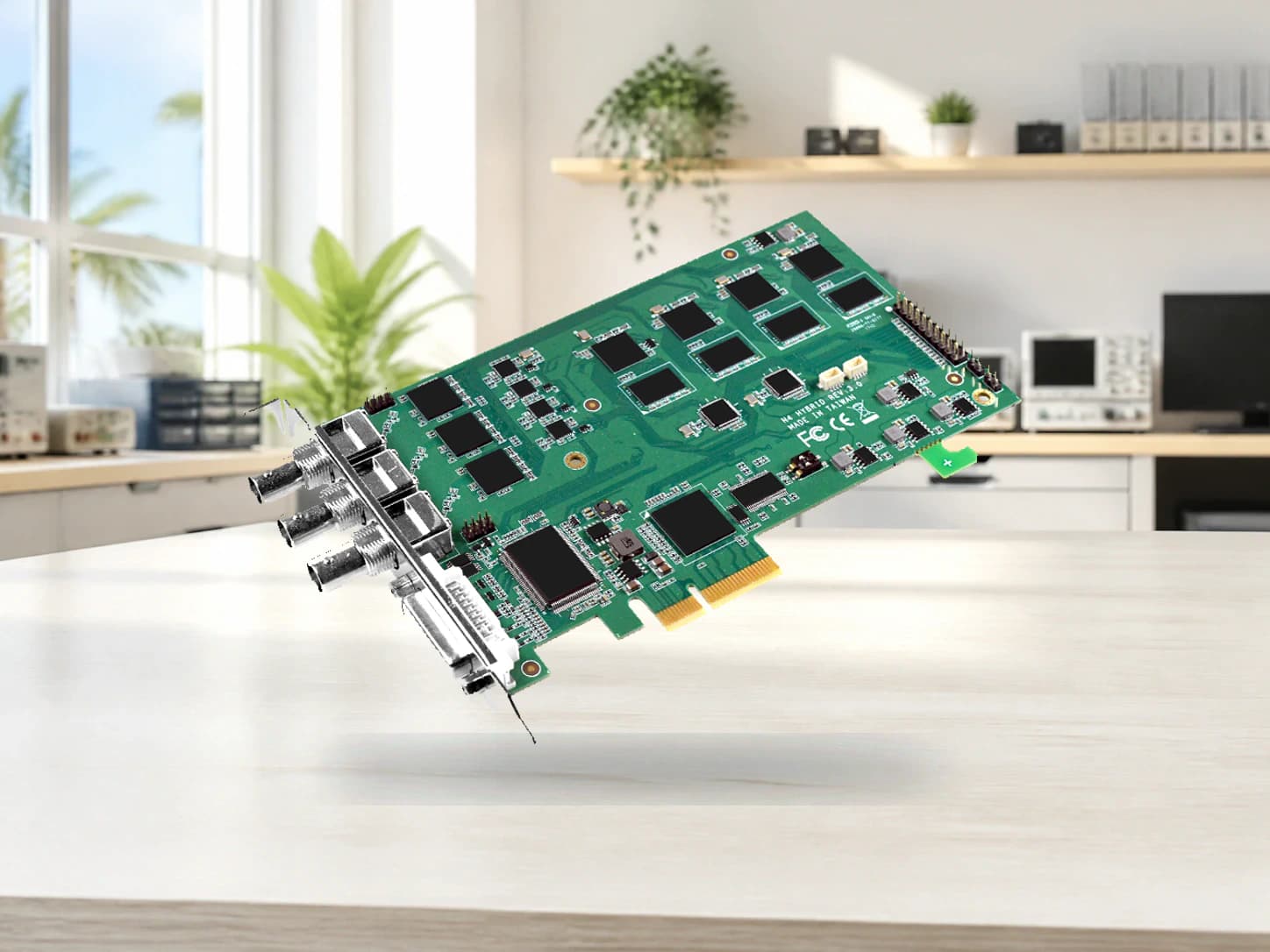

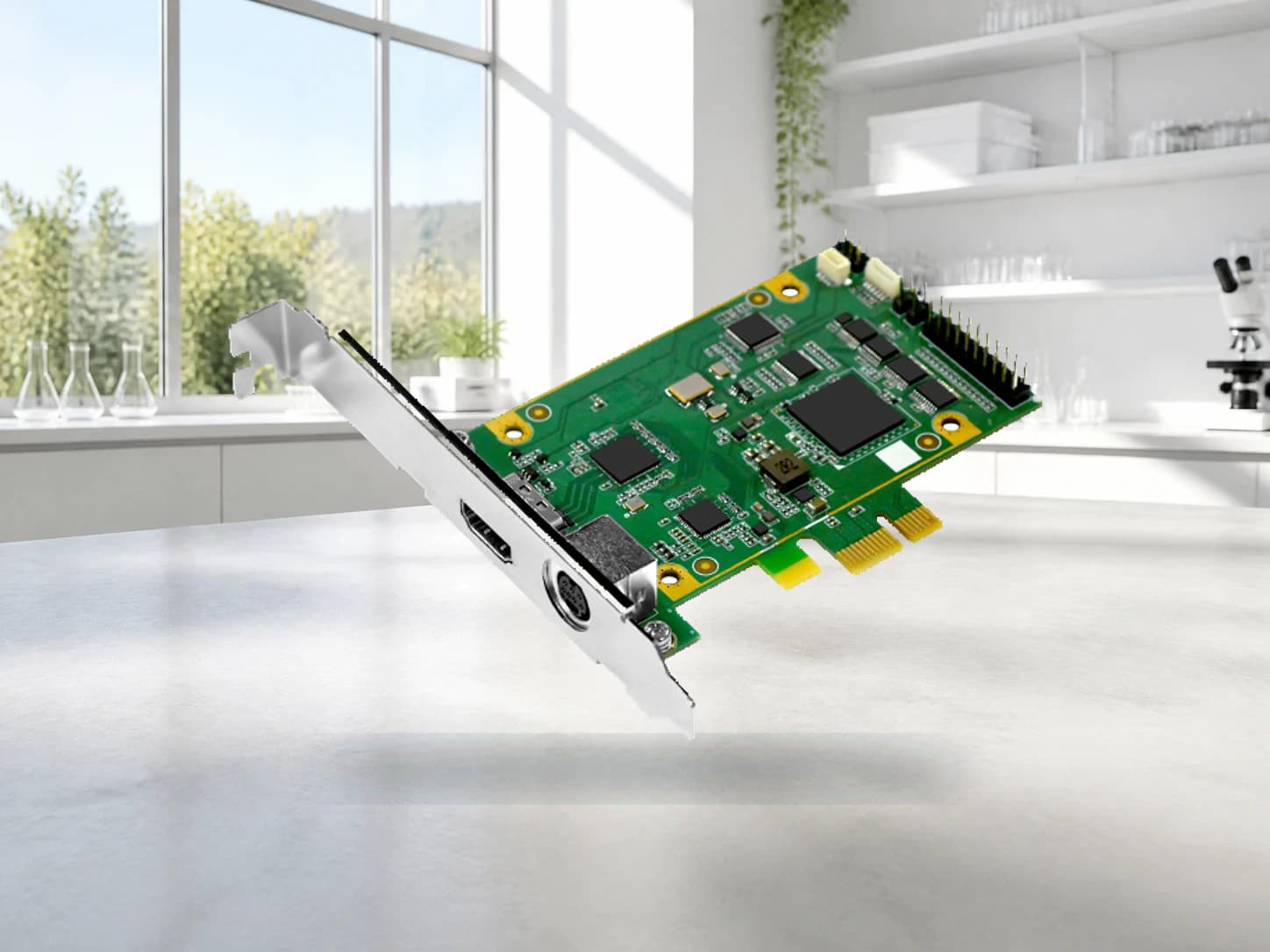

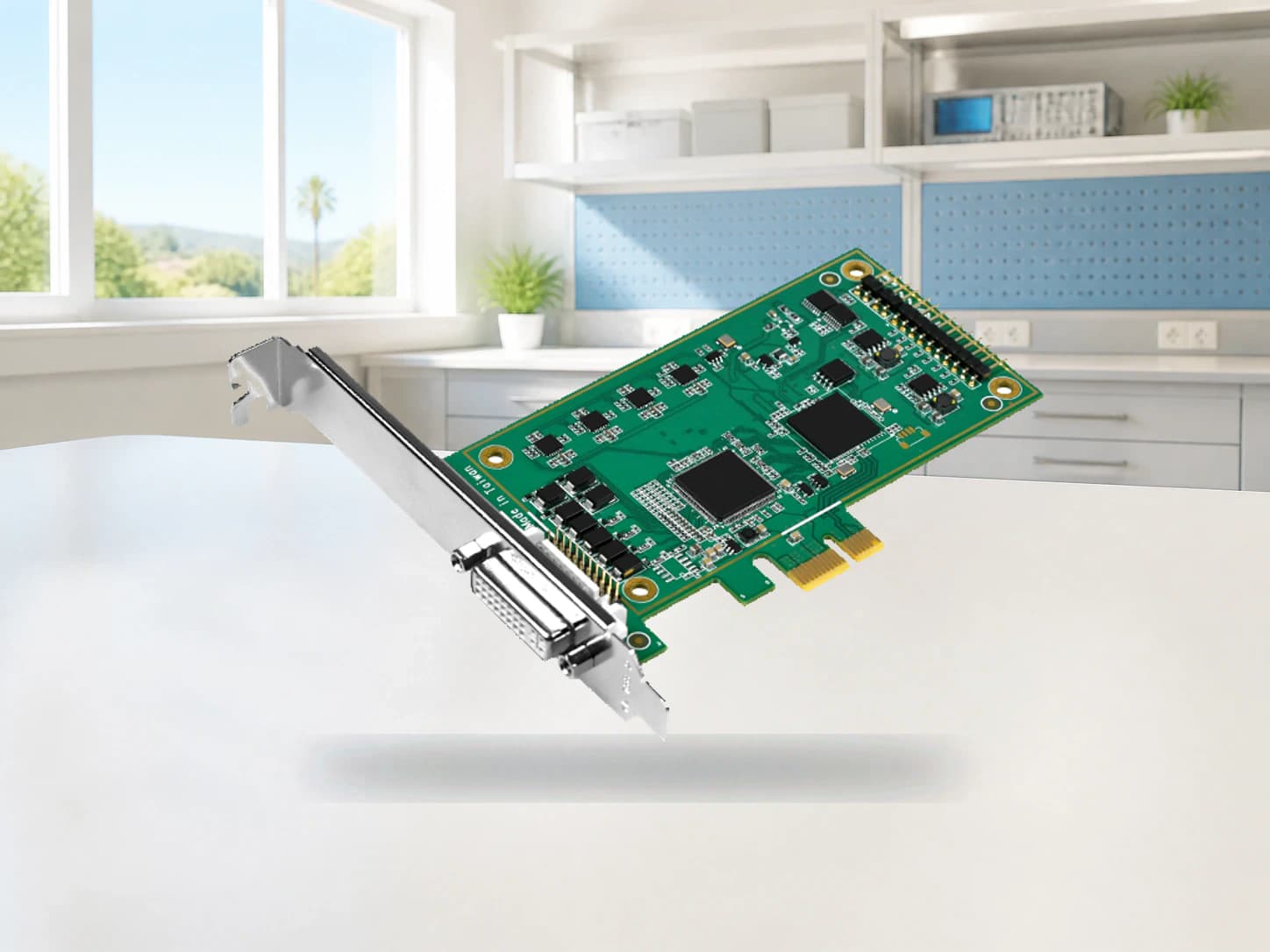

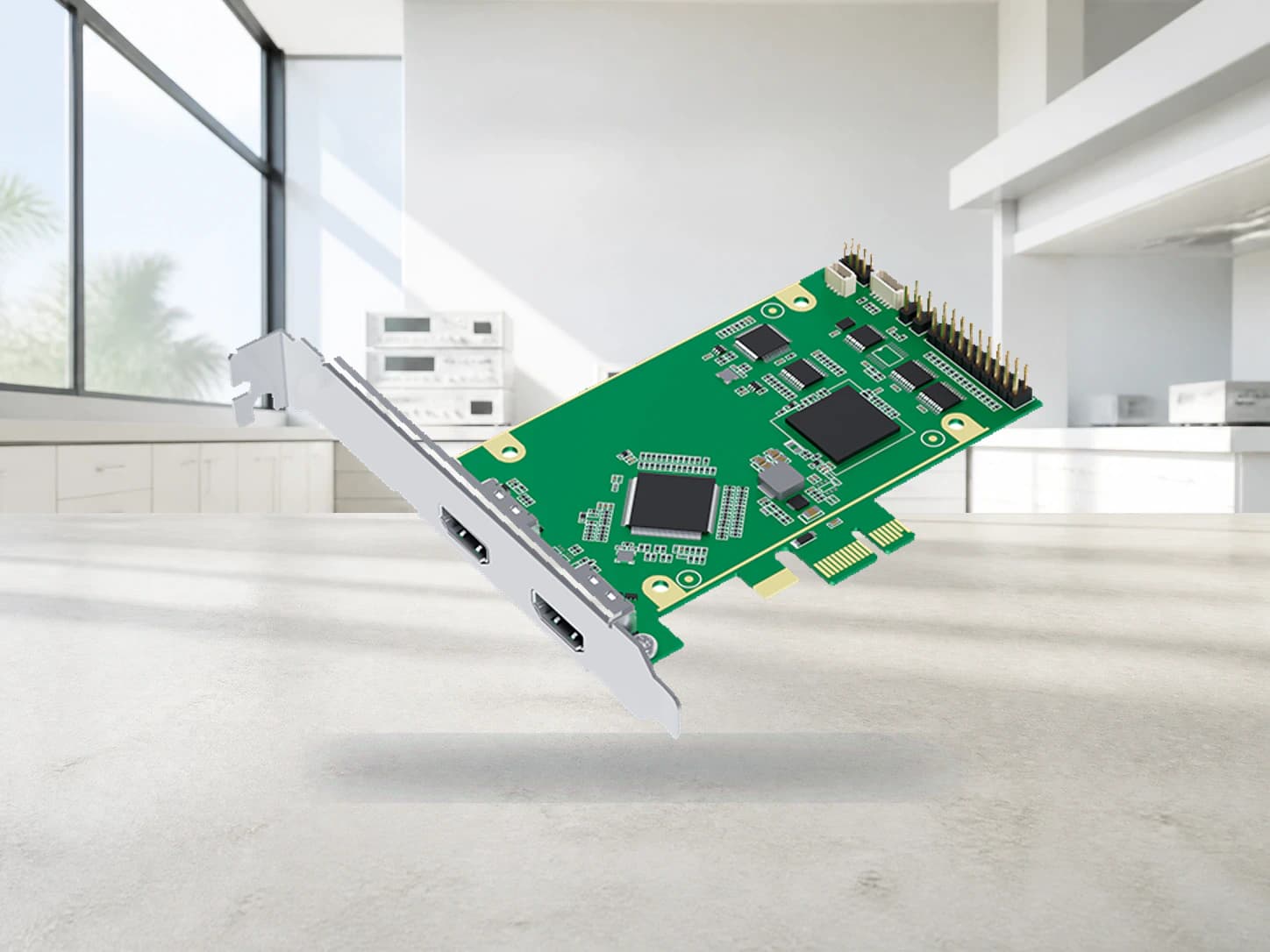

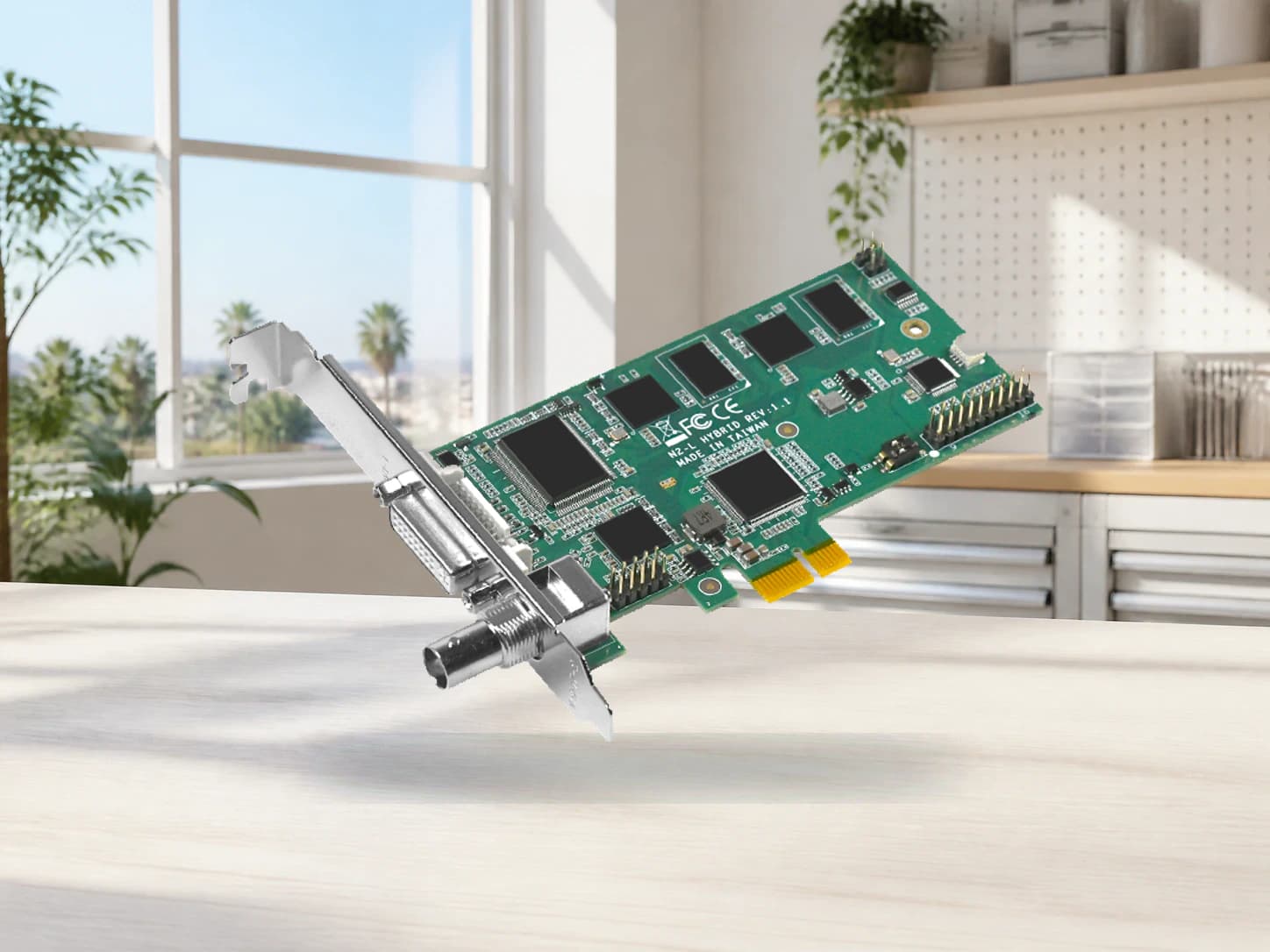

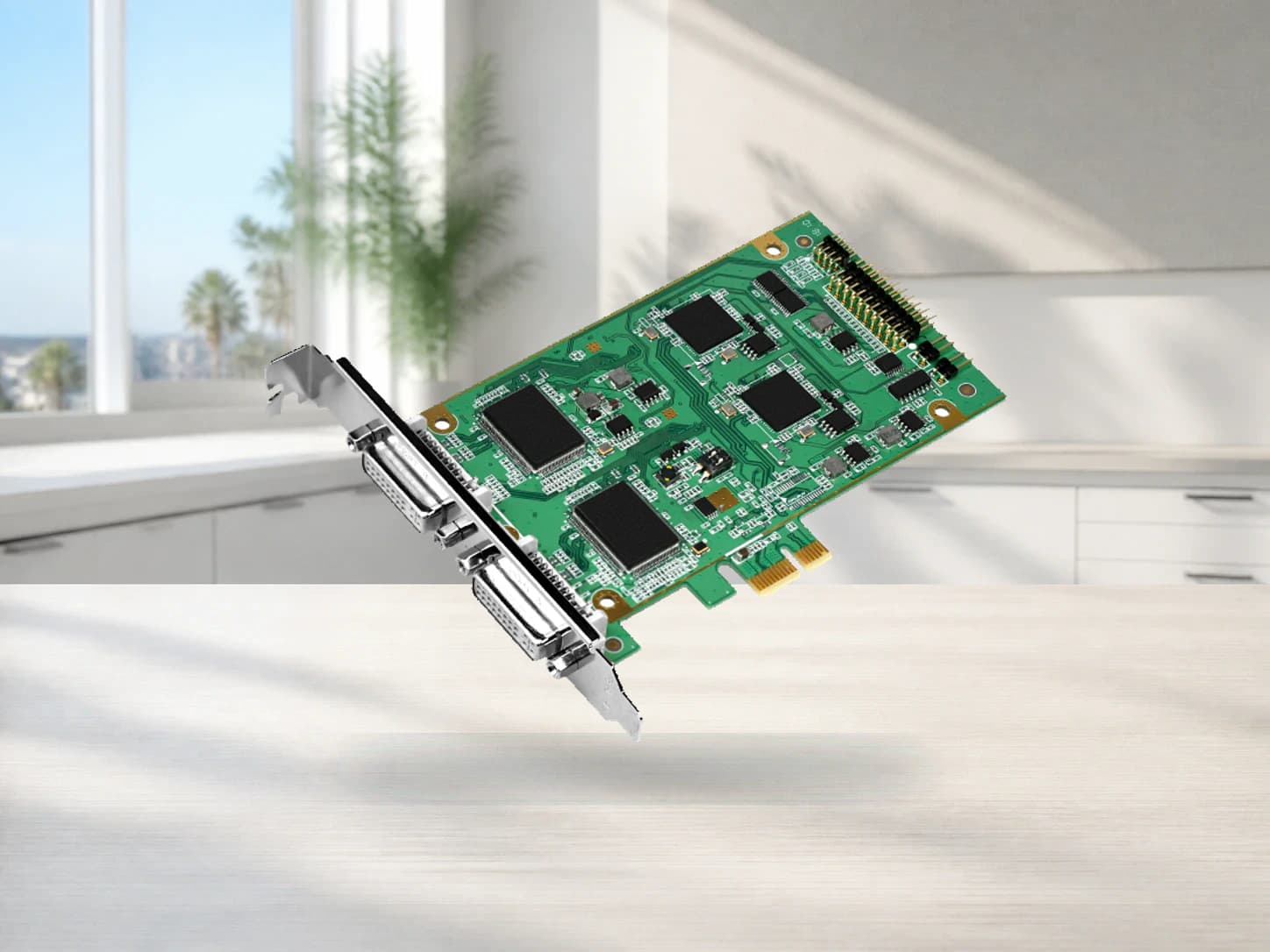

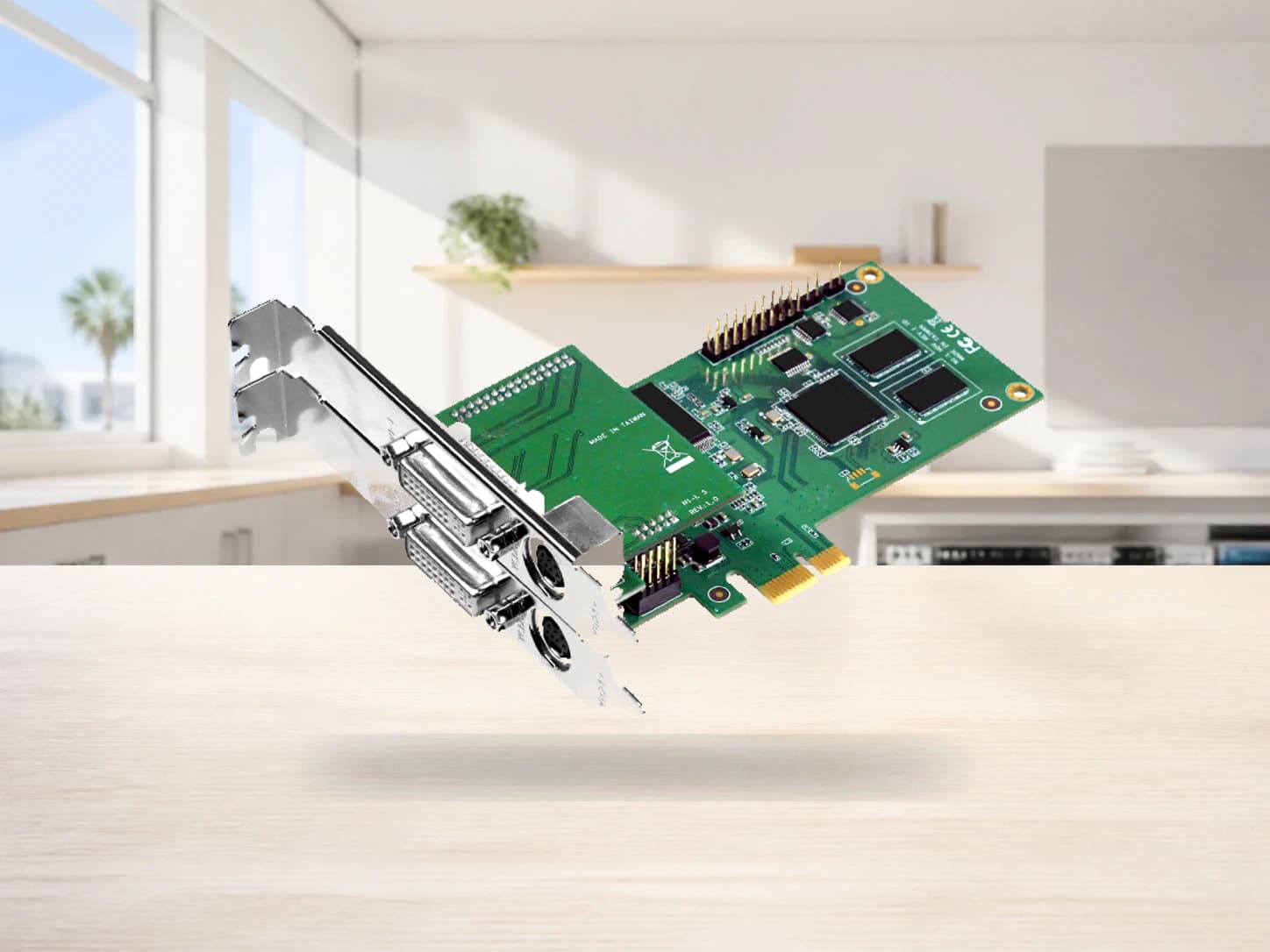

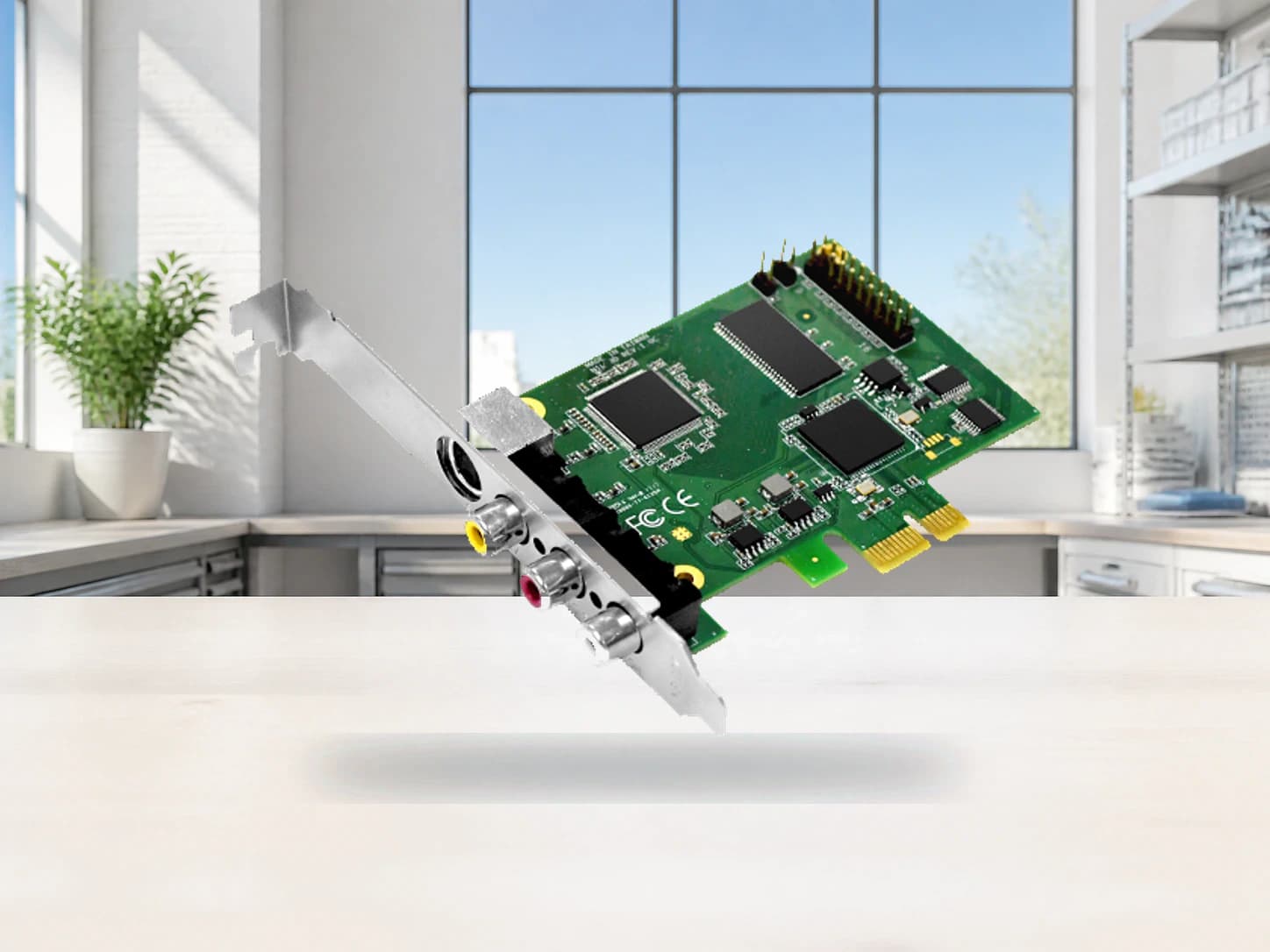

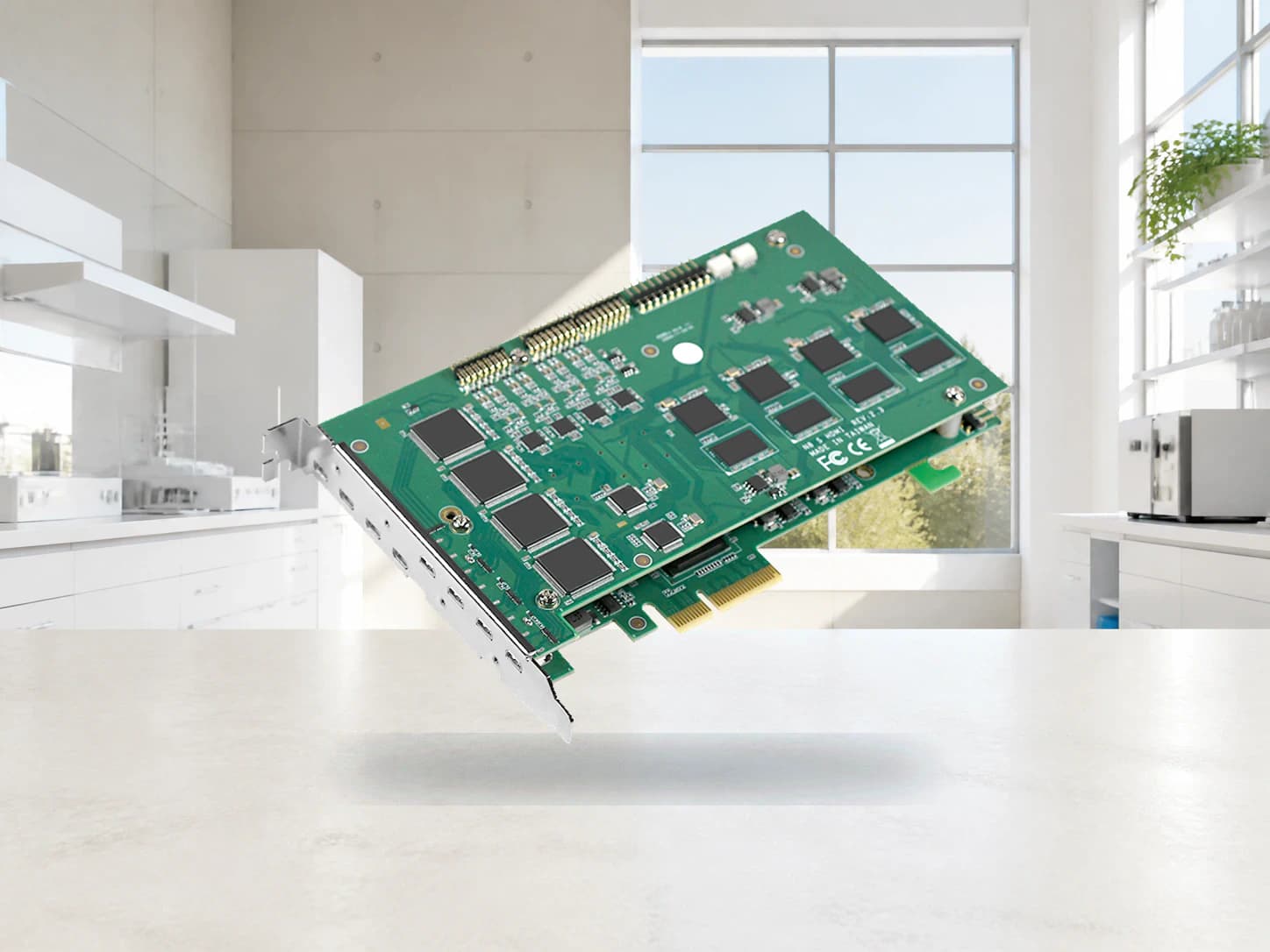

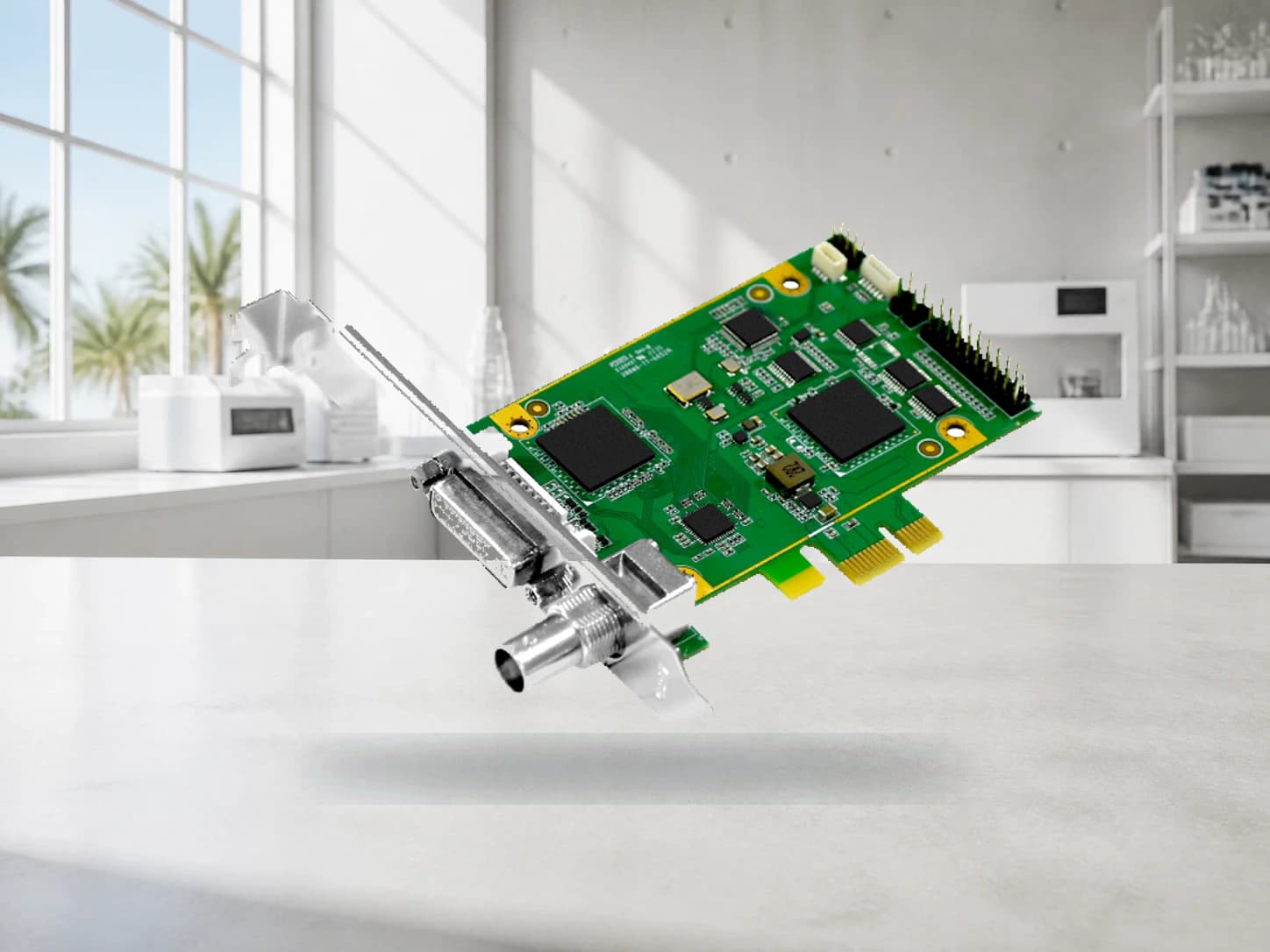

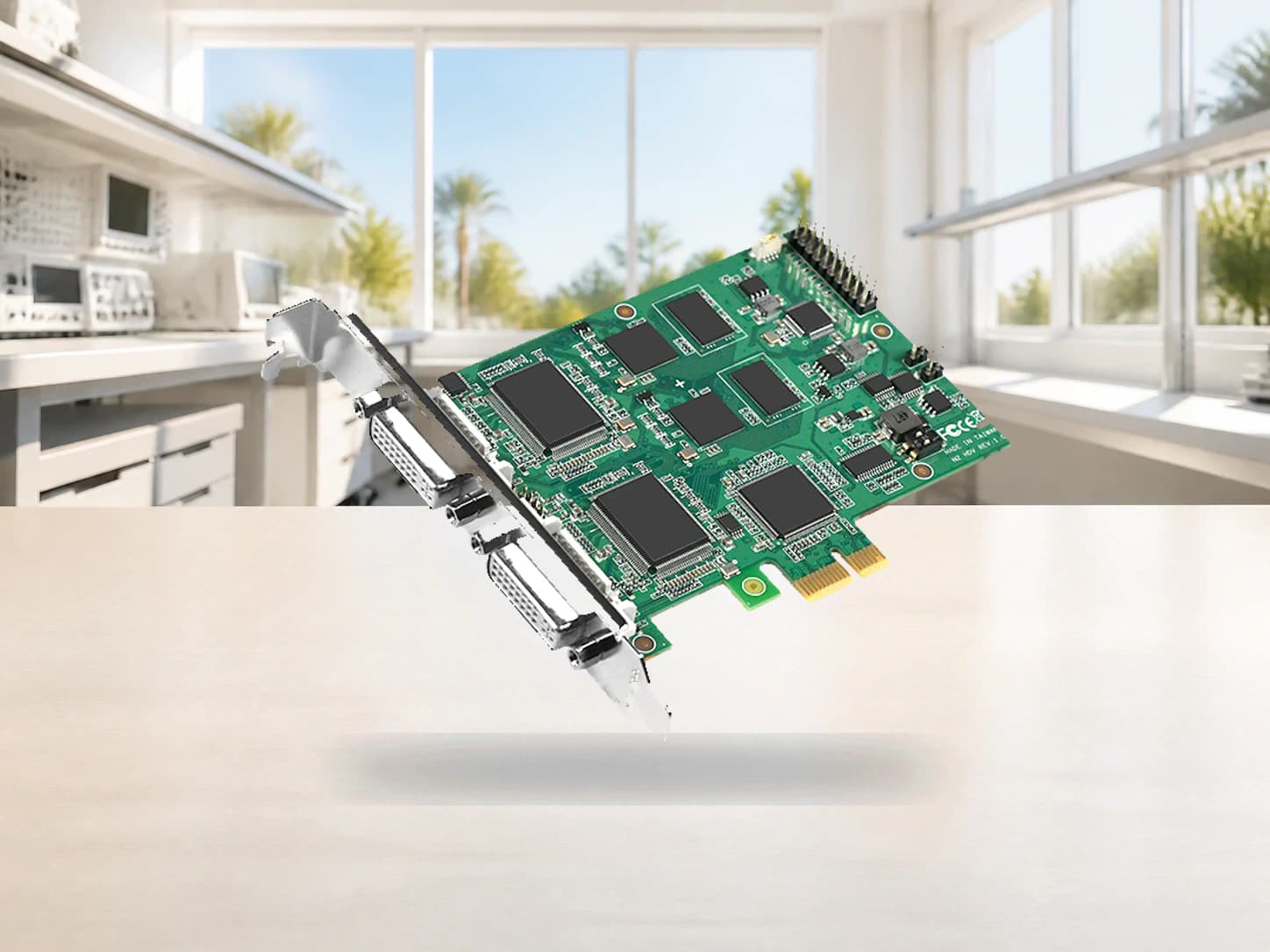

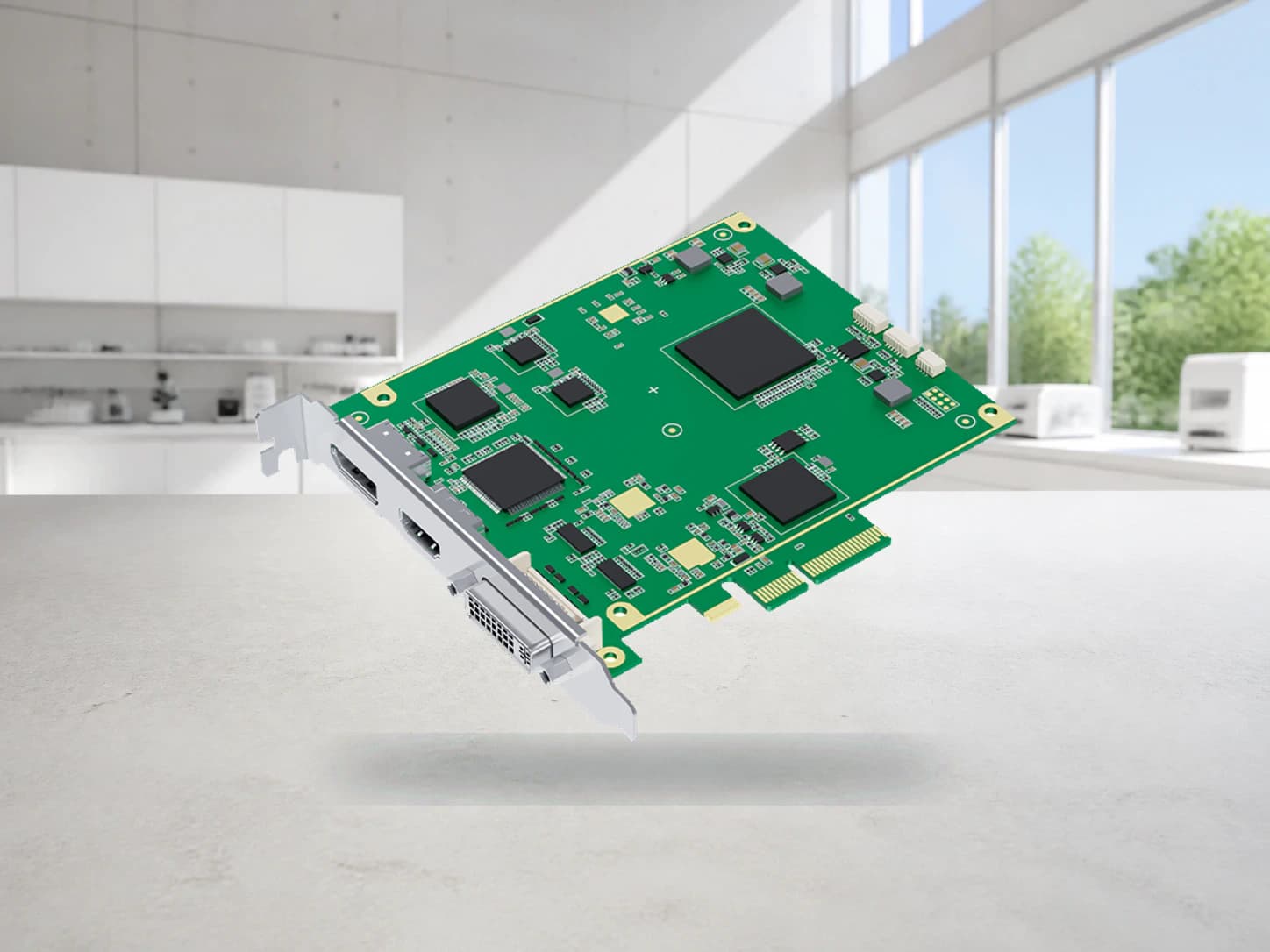

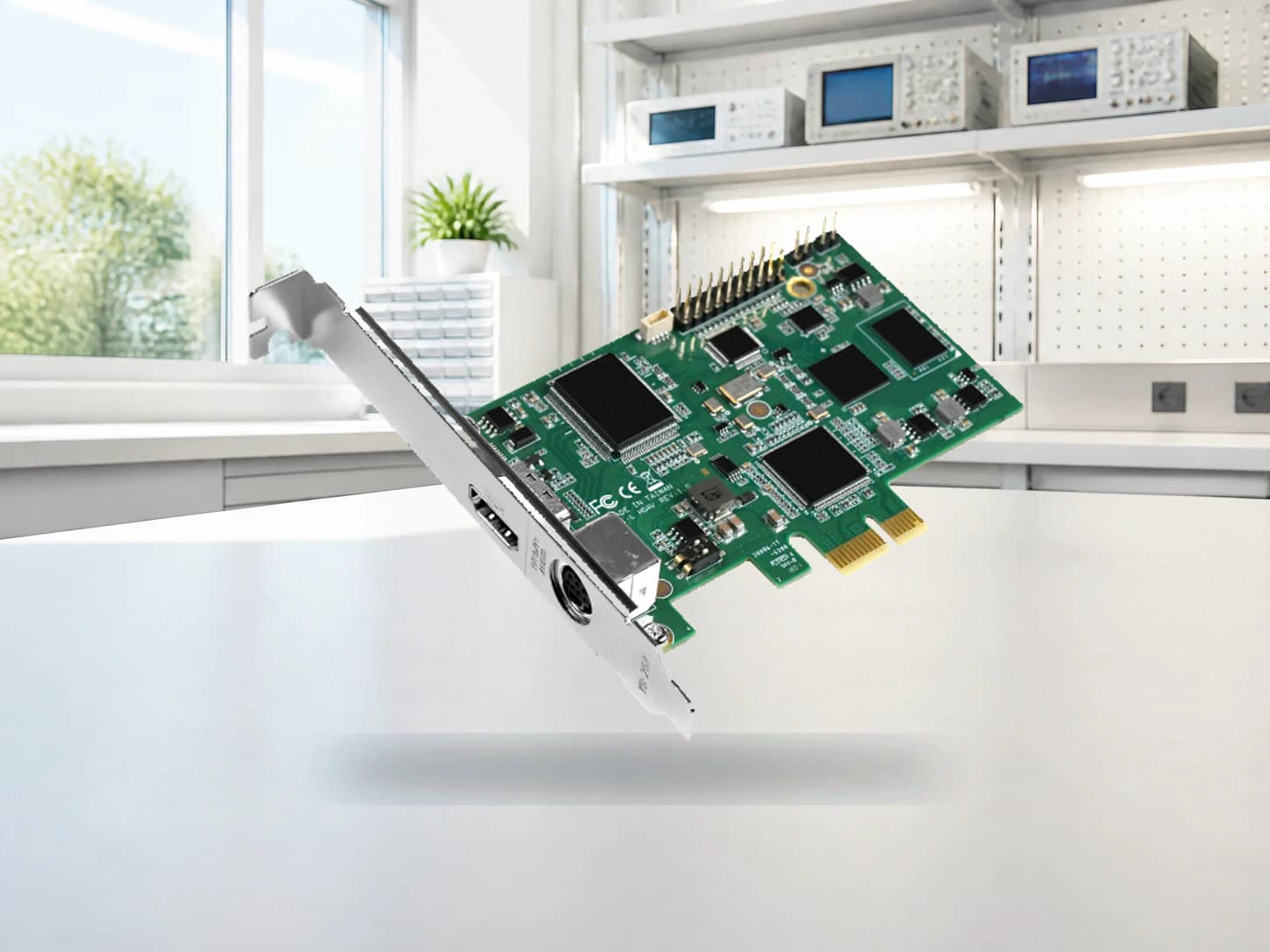

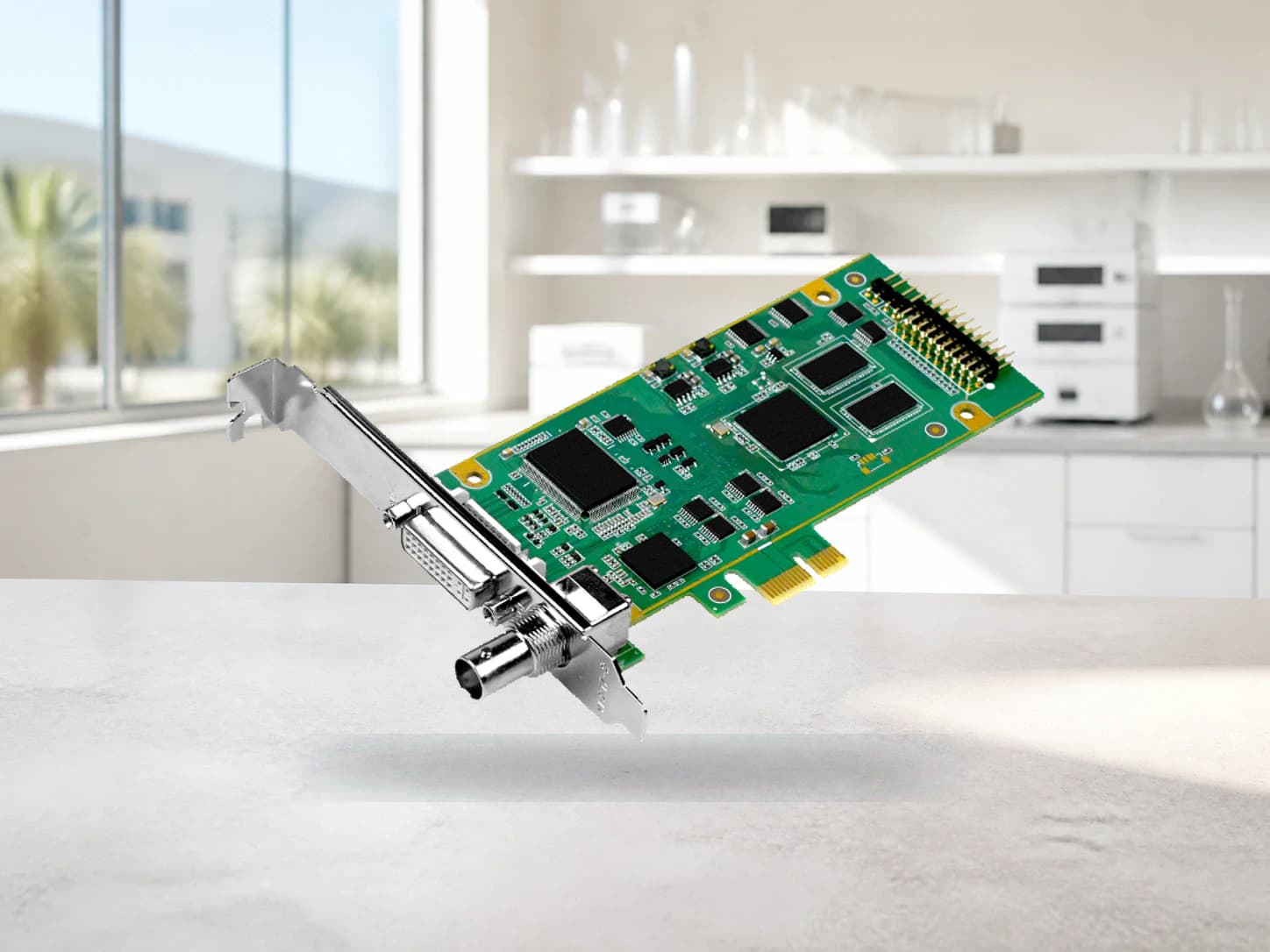

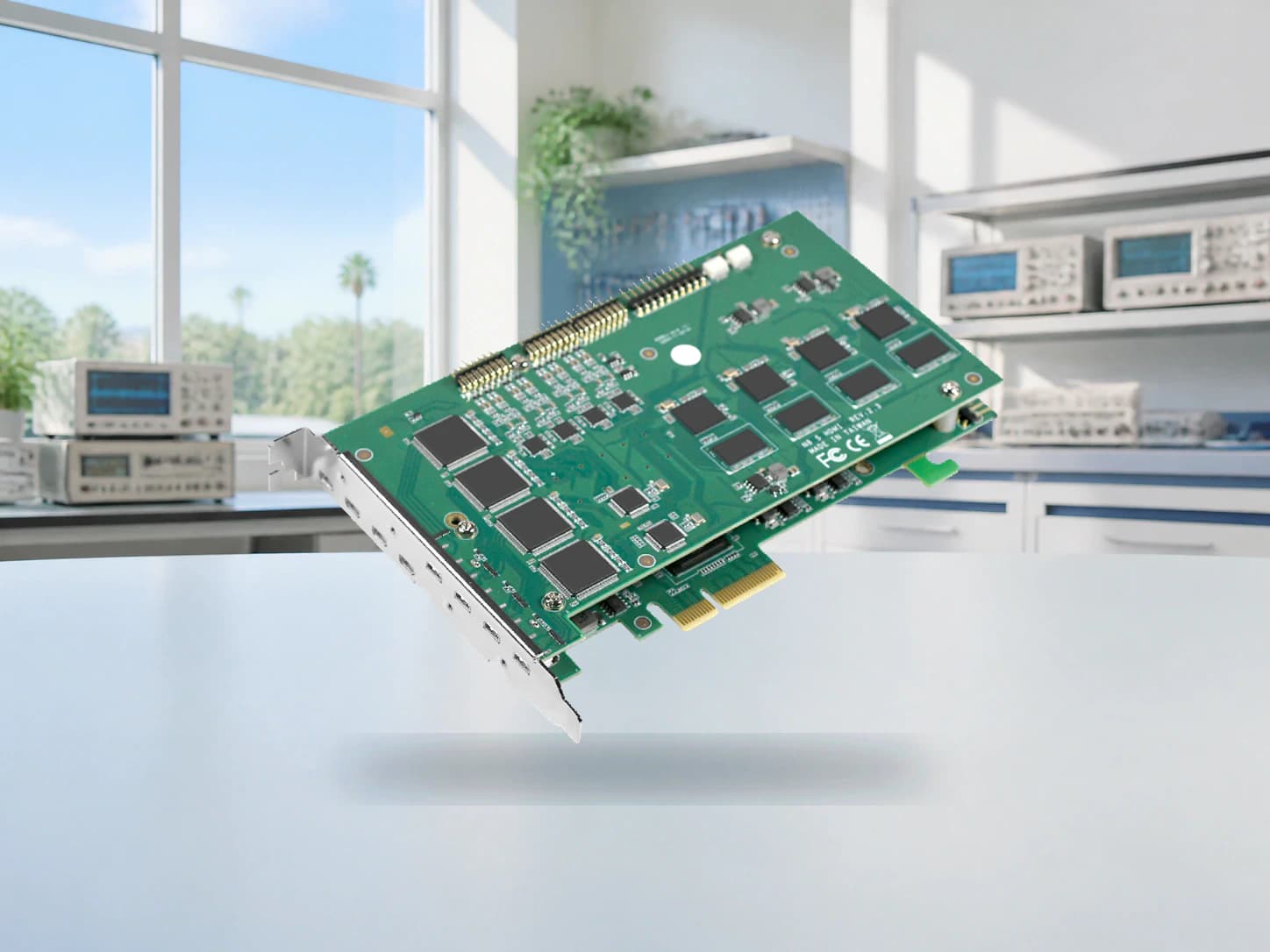

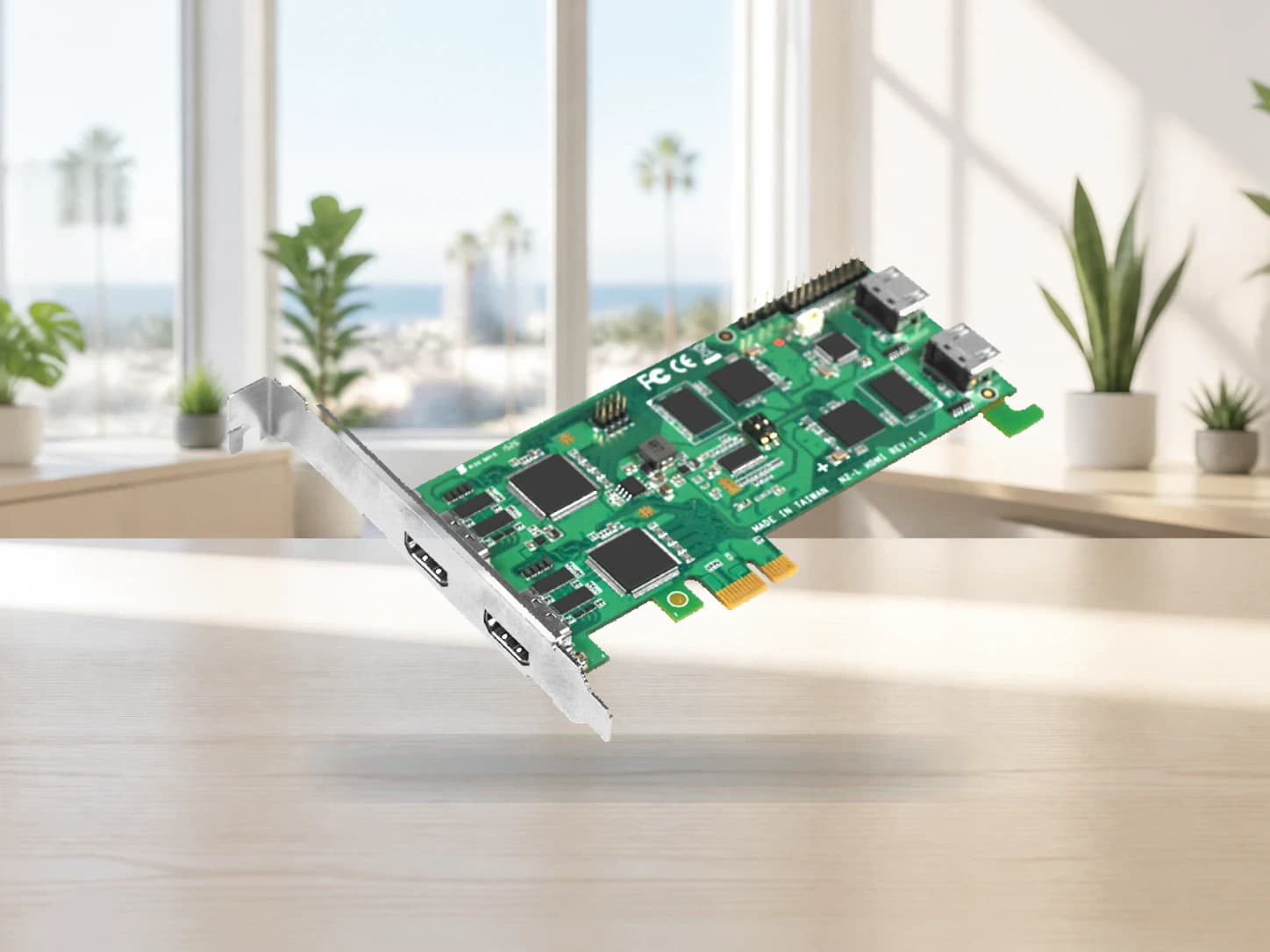

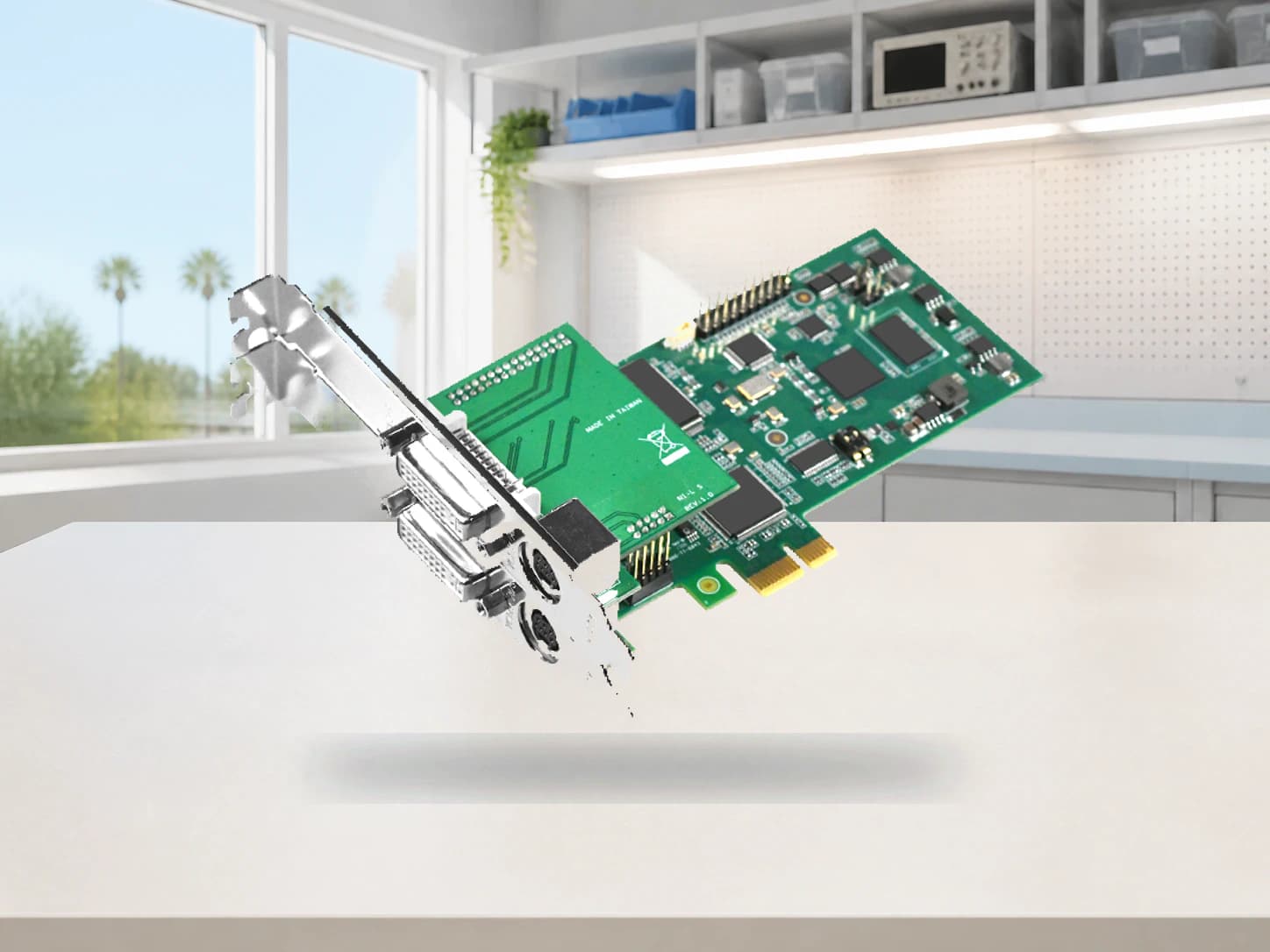

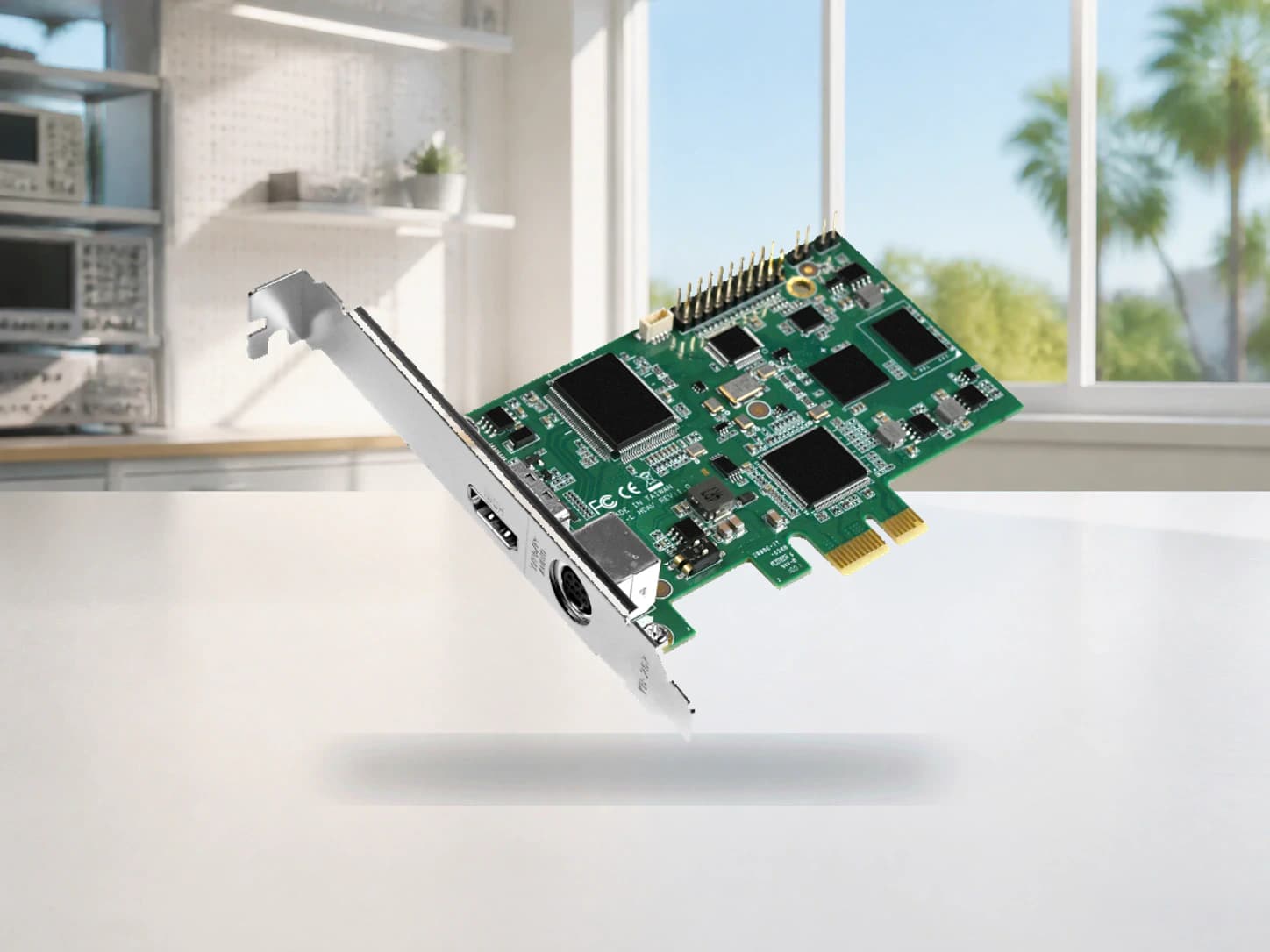

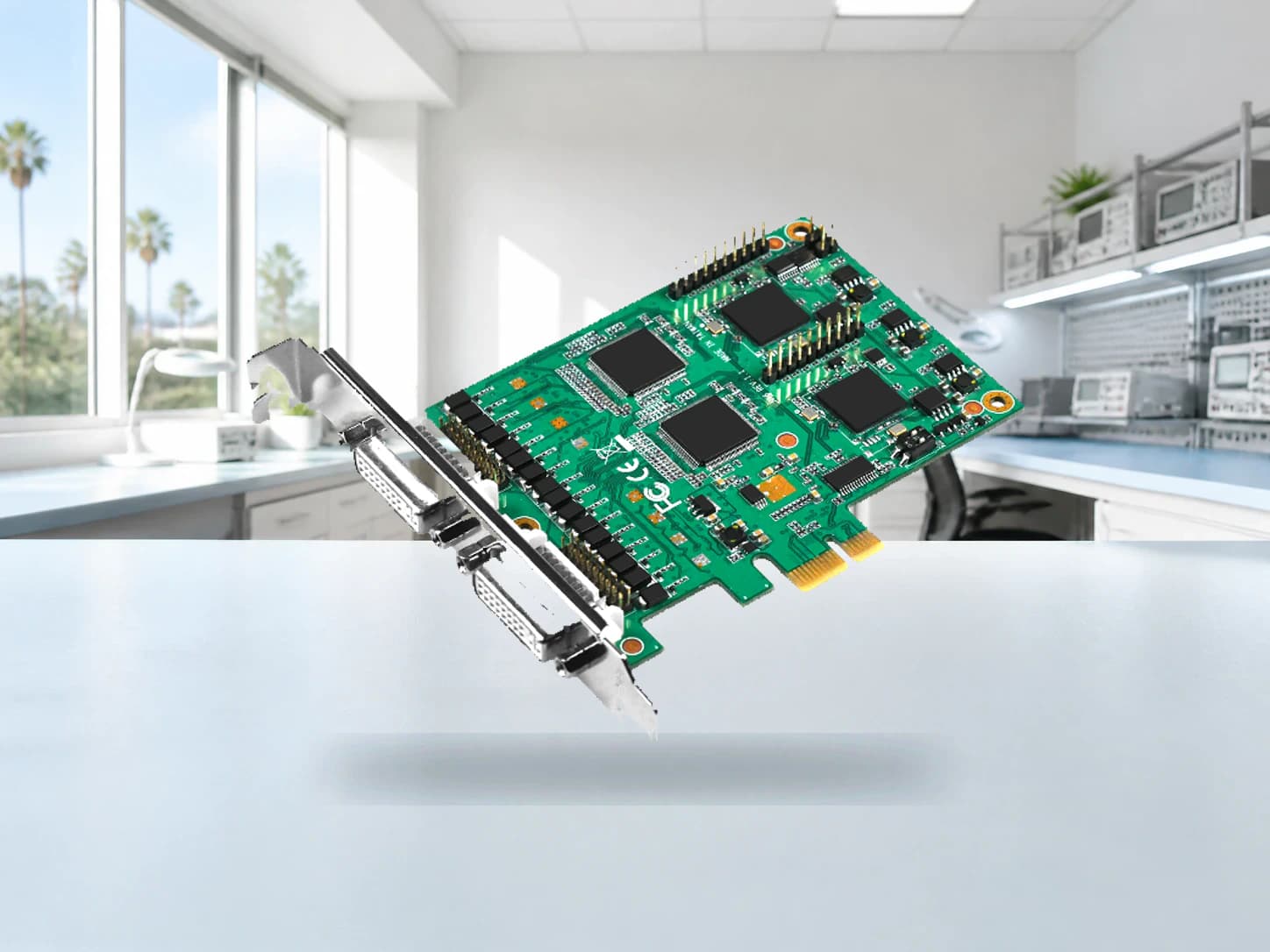

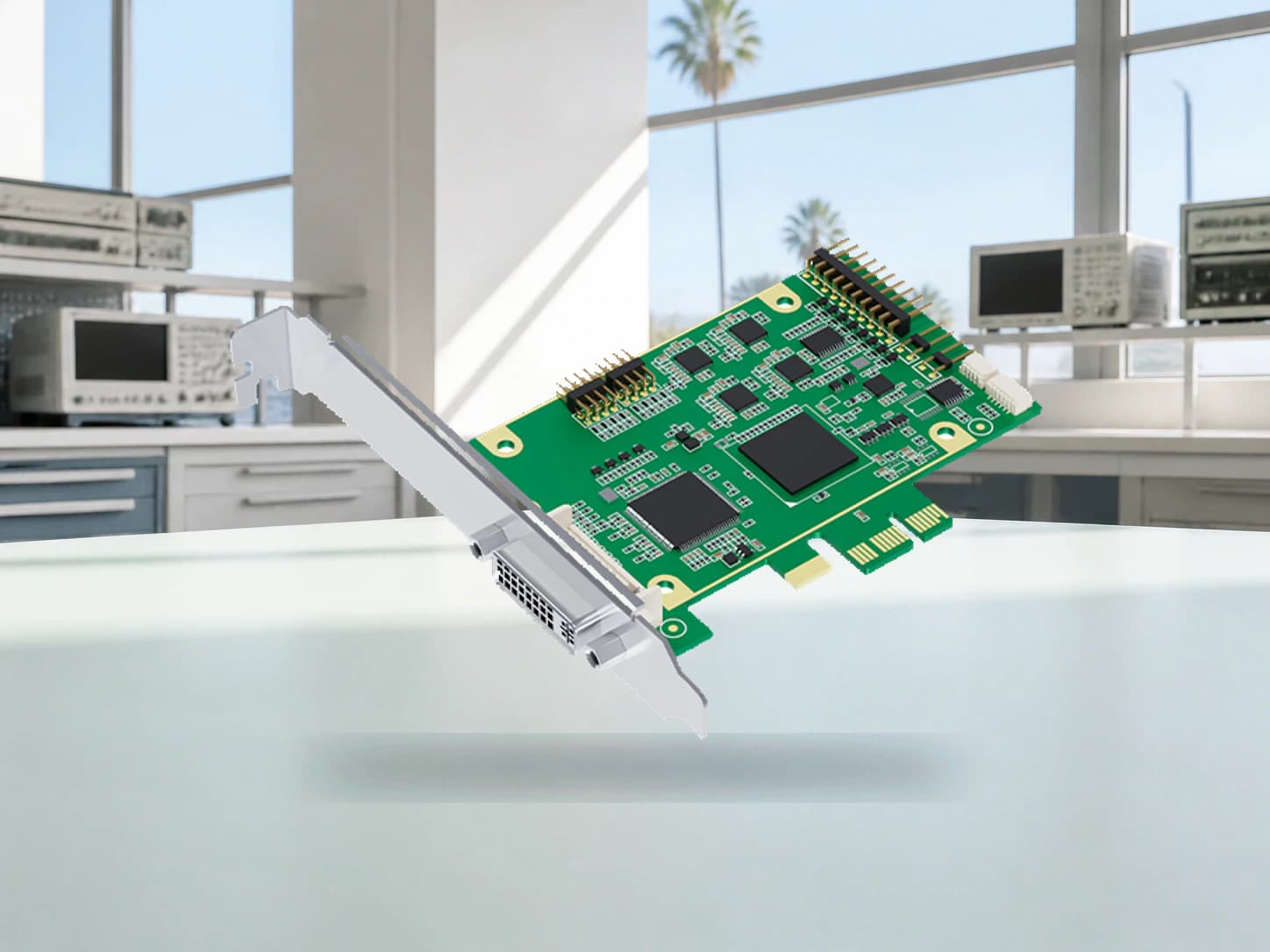

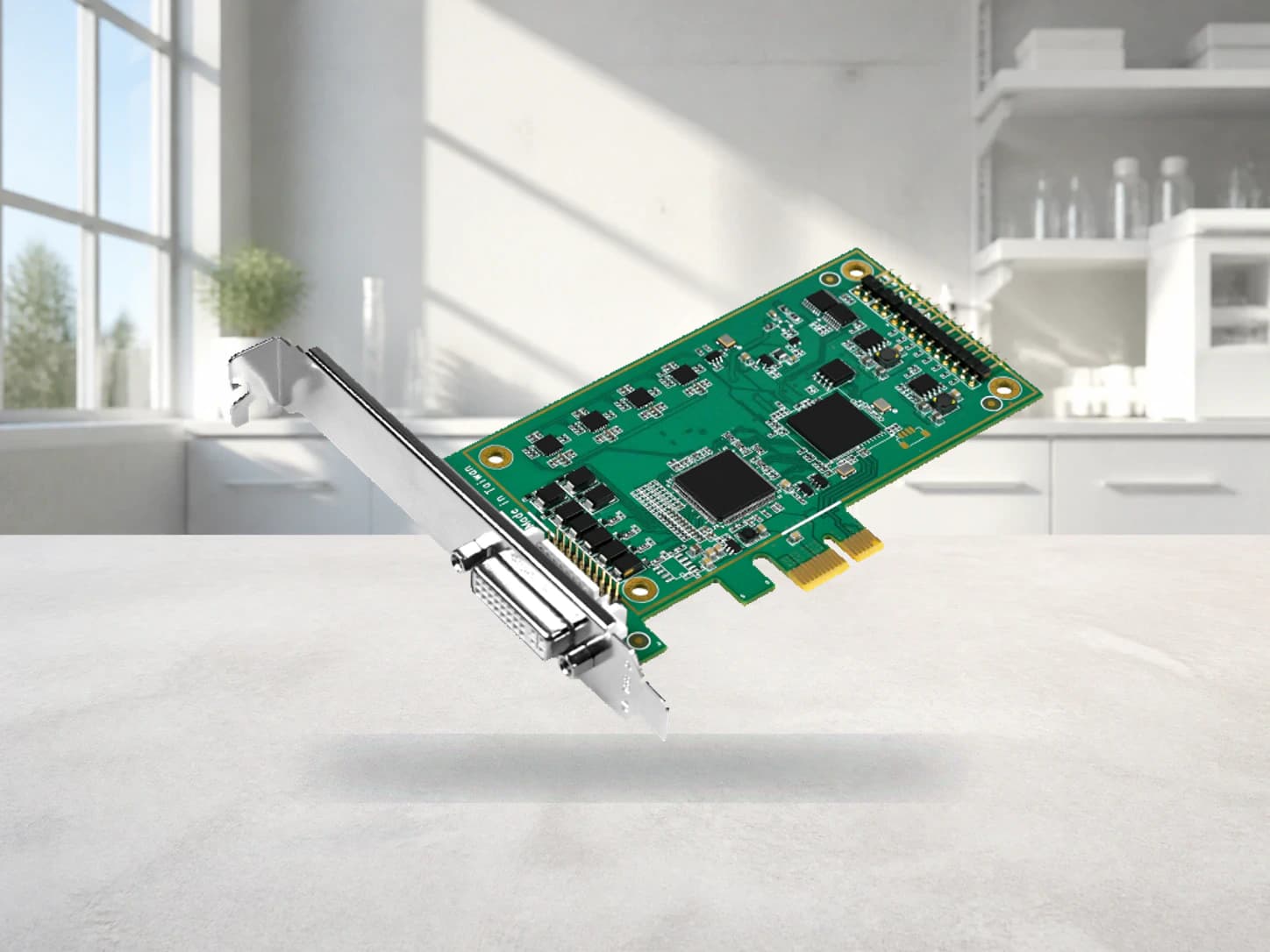

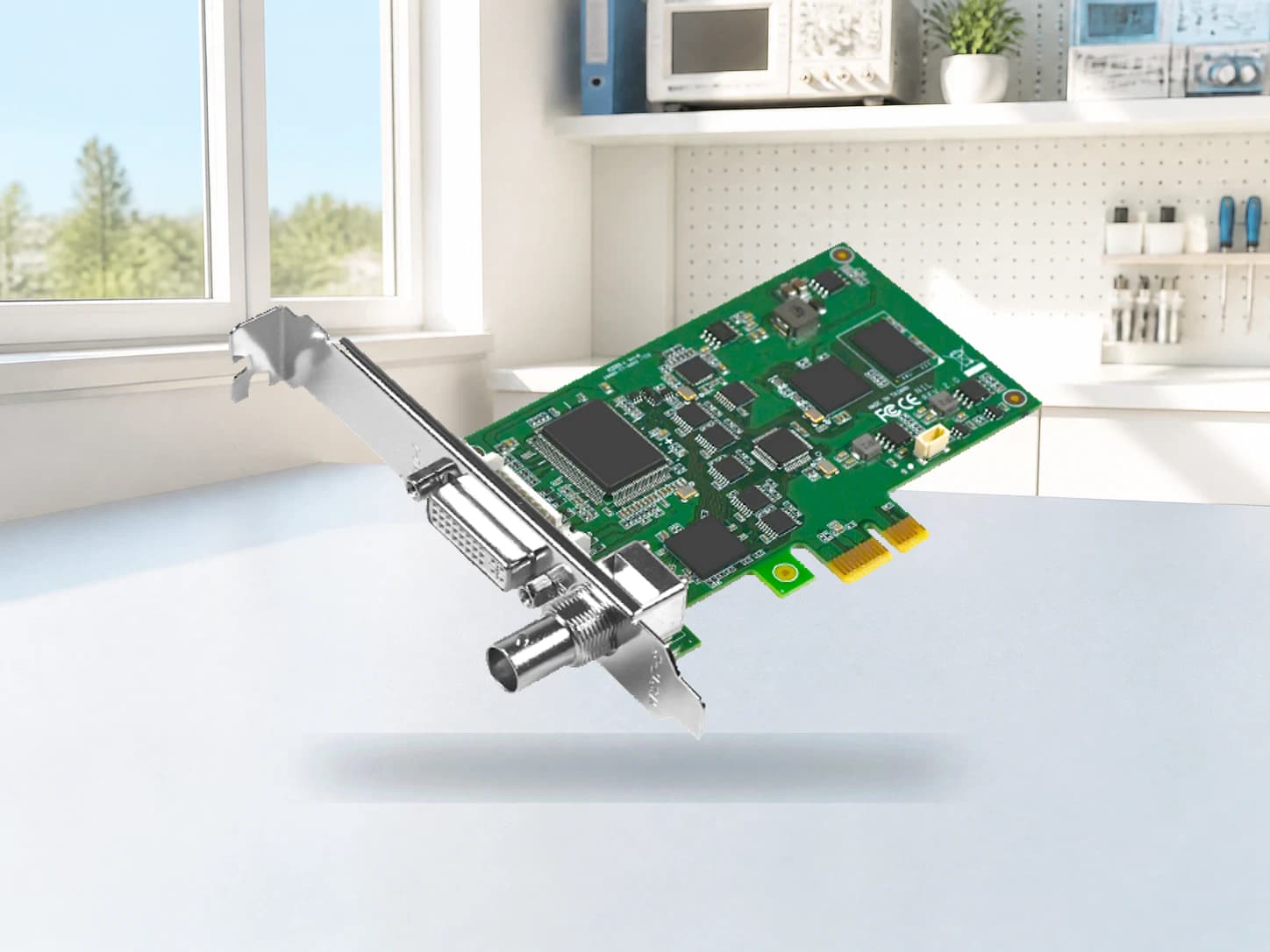

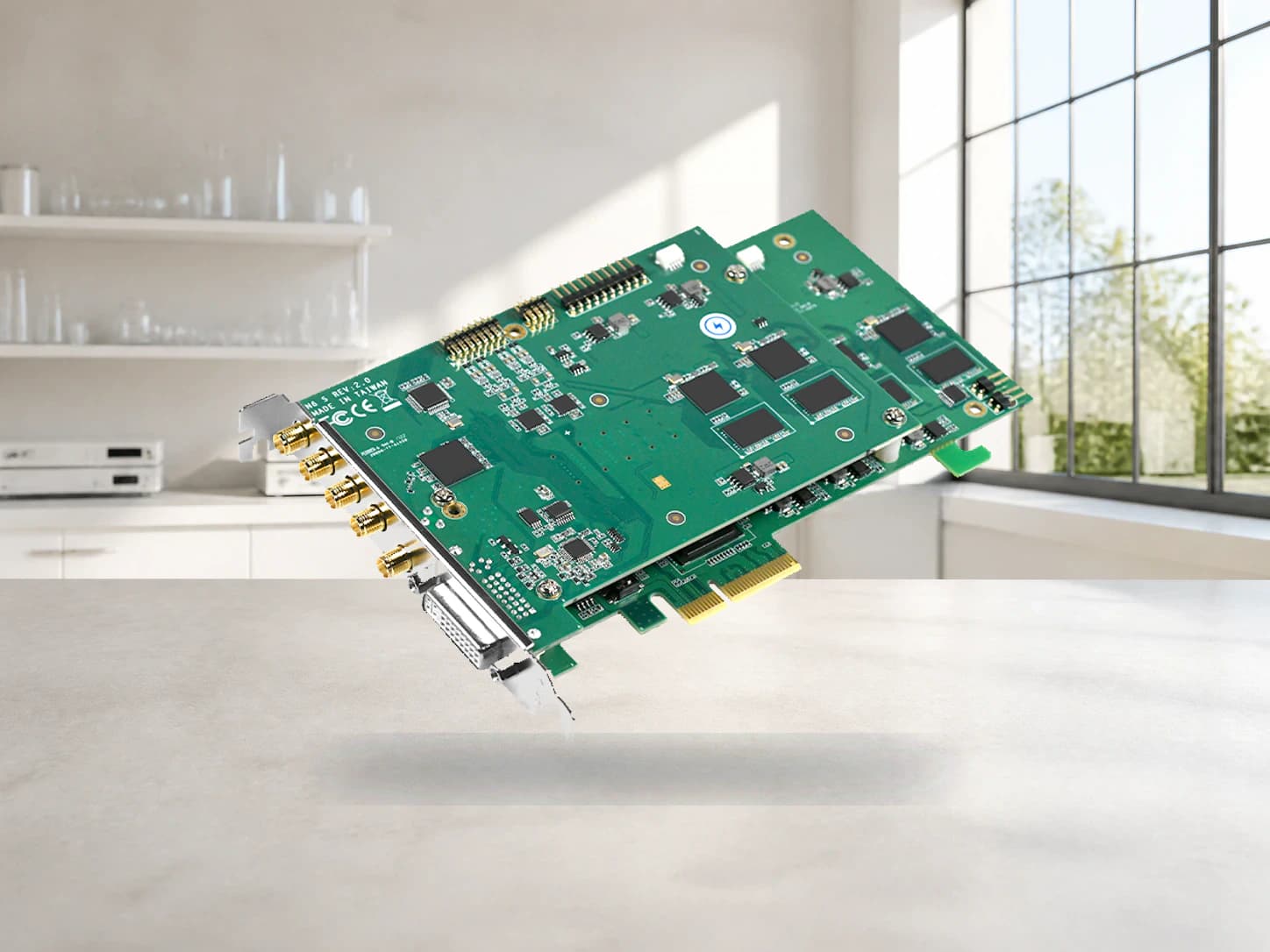

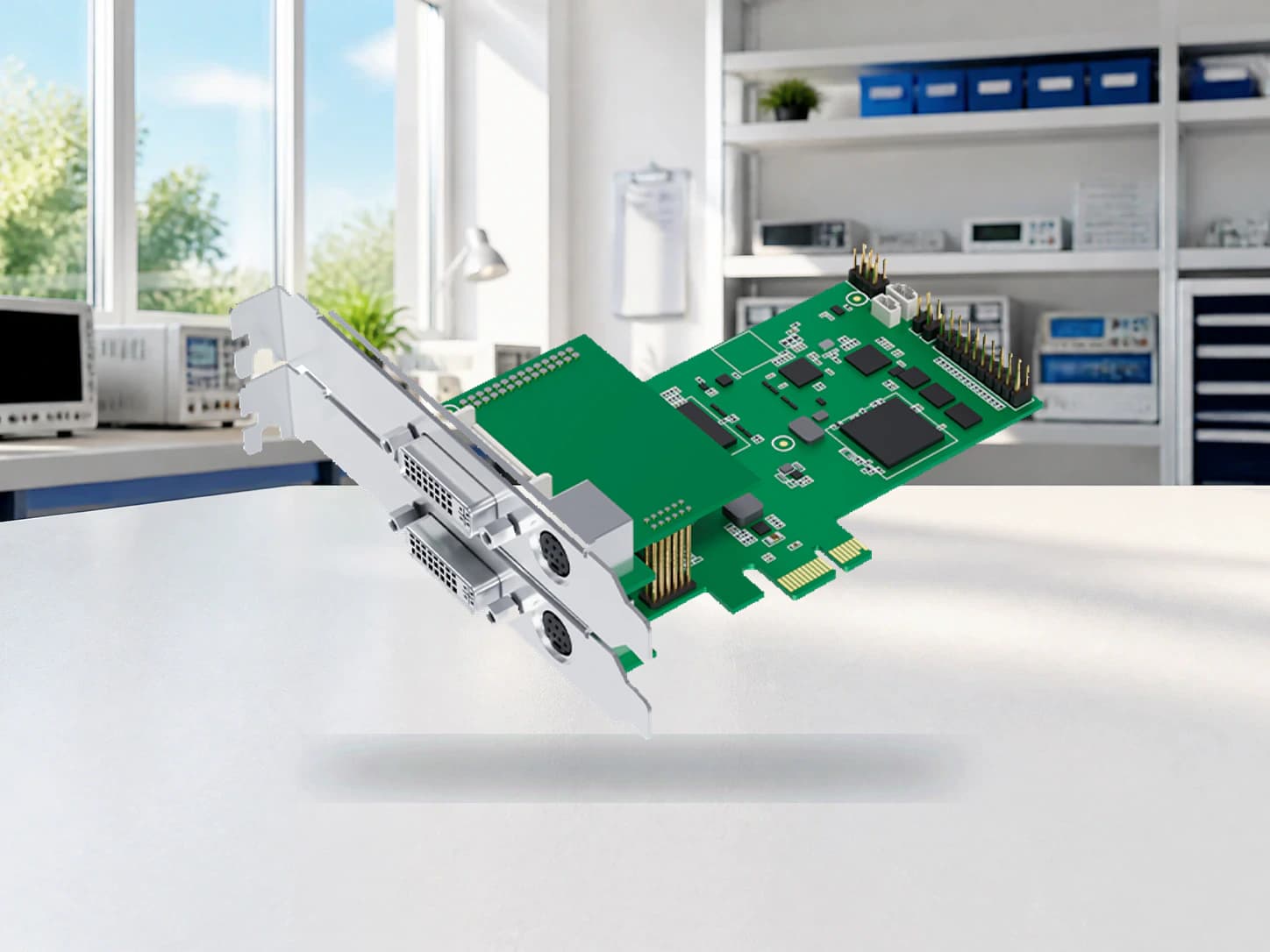

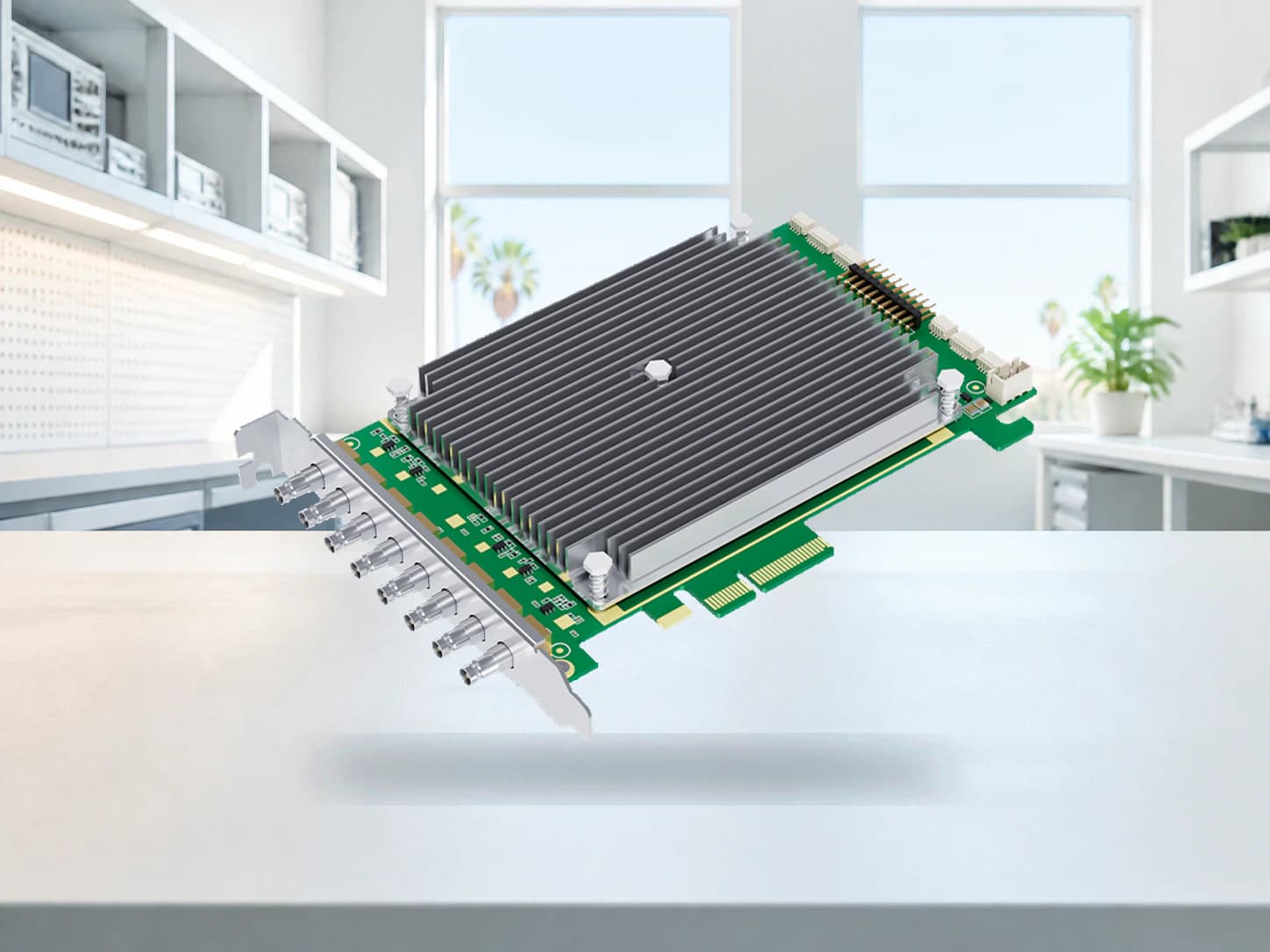

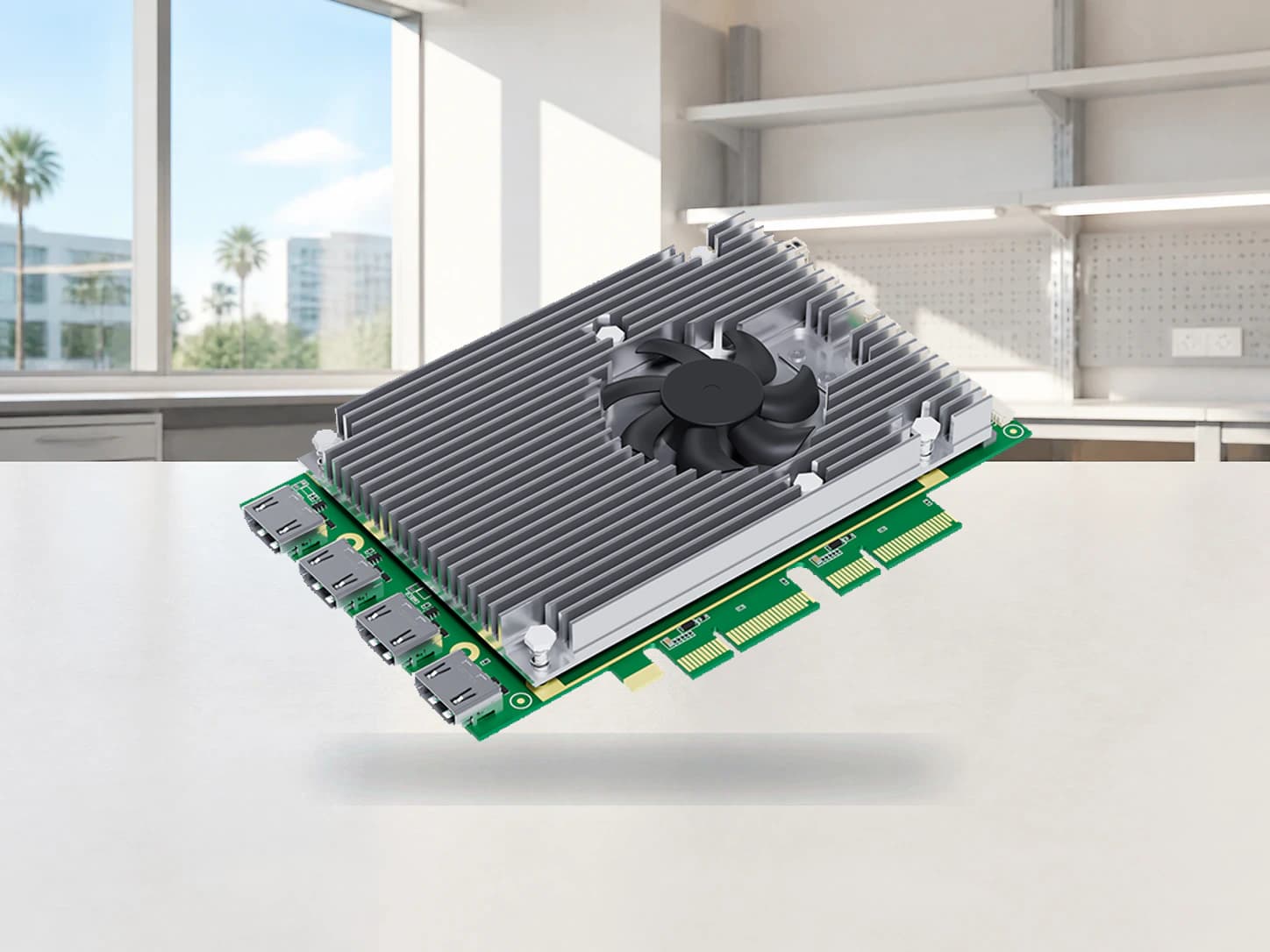

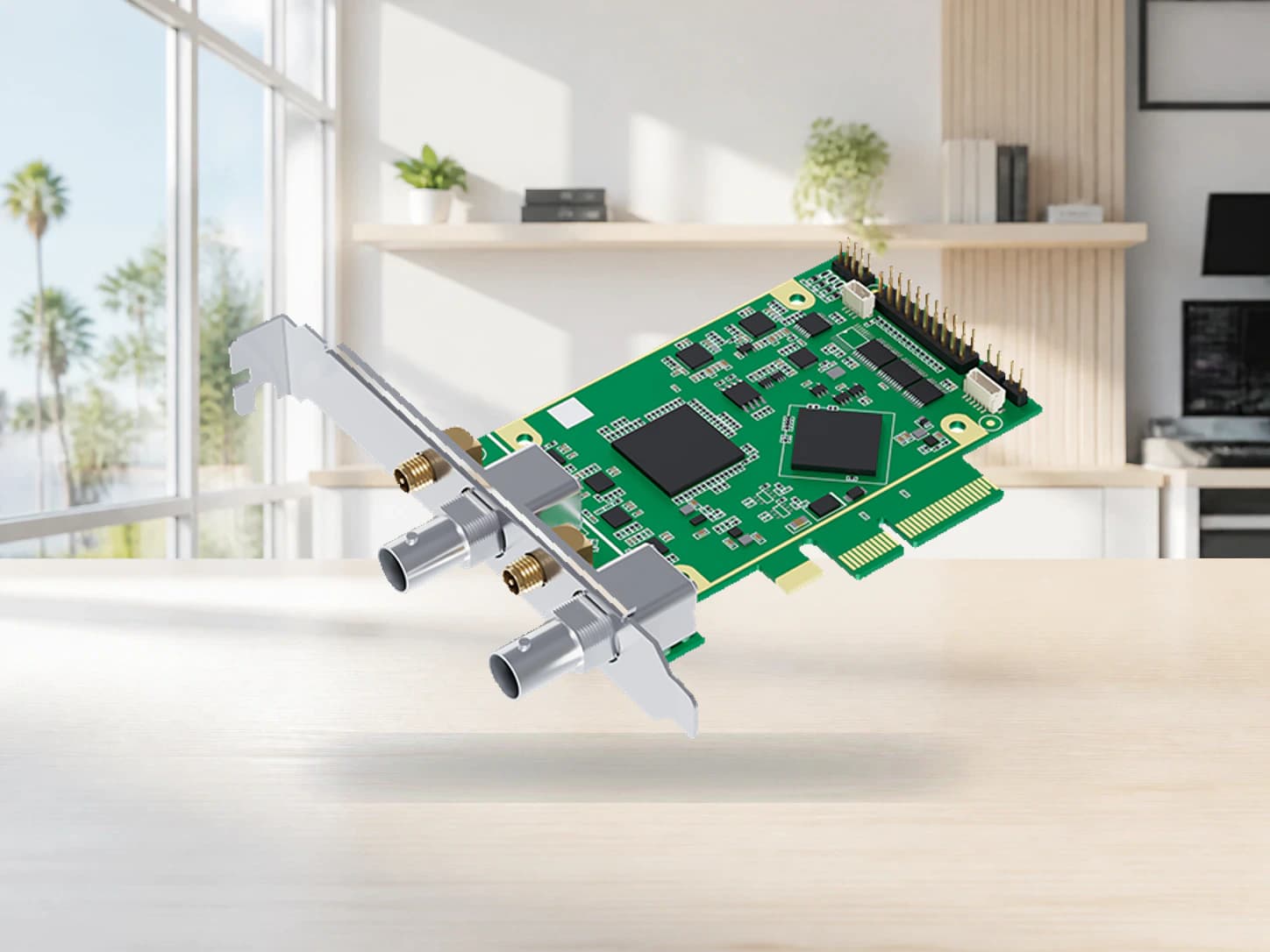

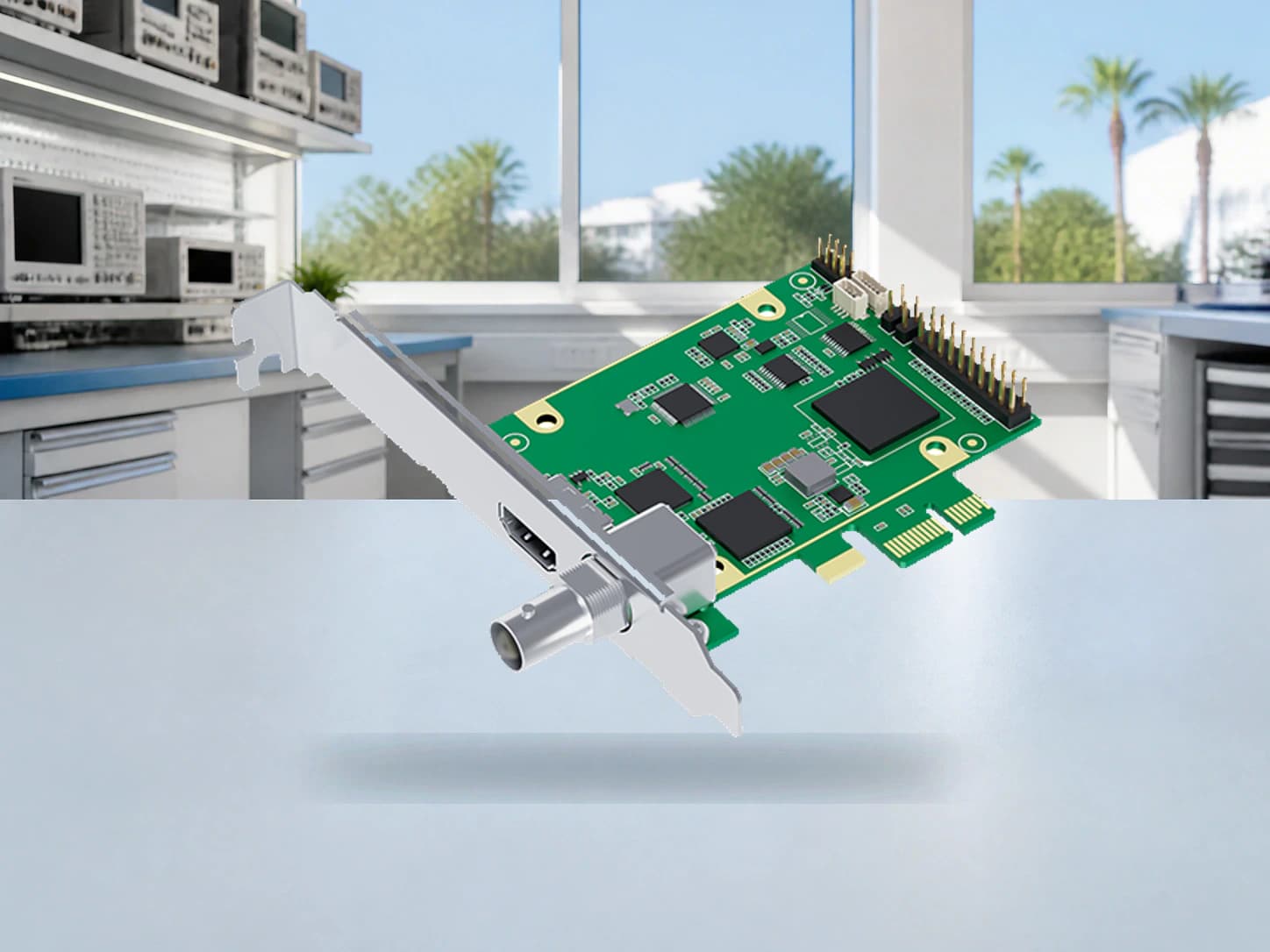

PCIe

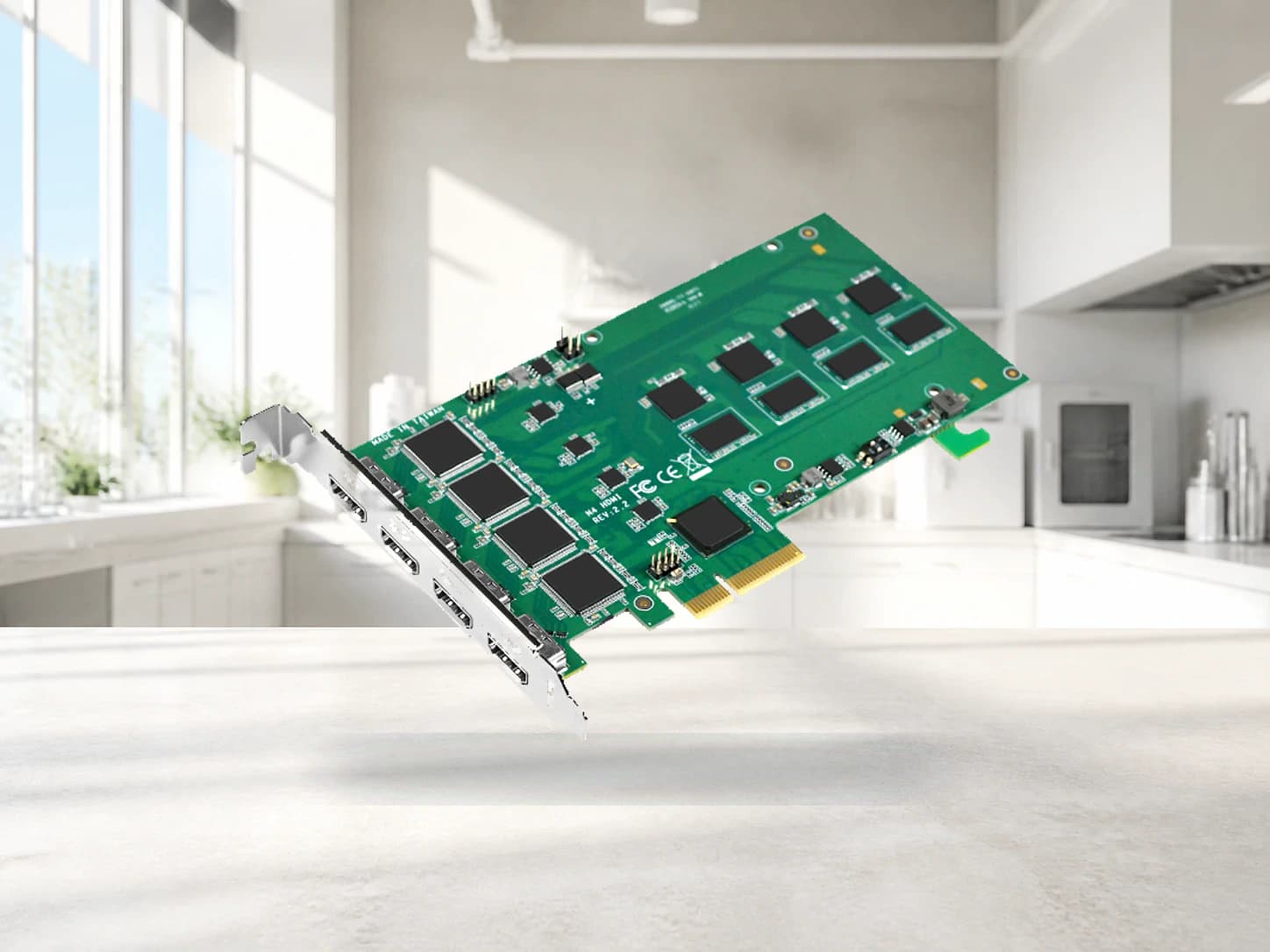

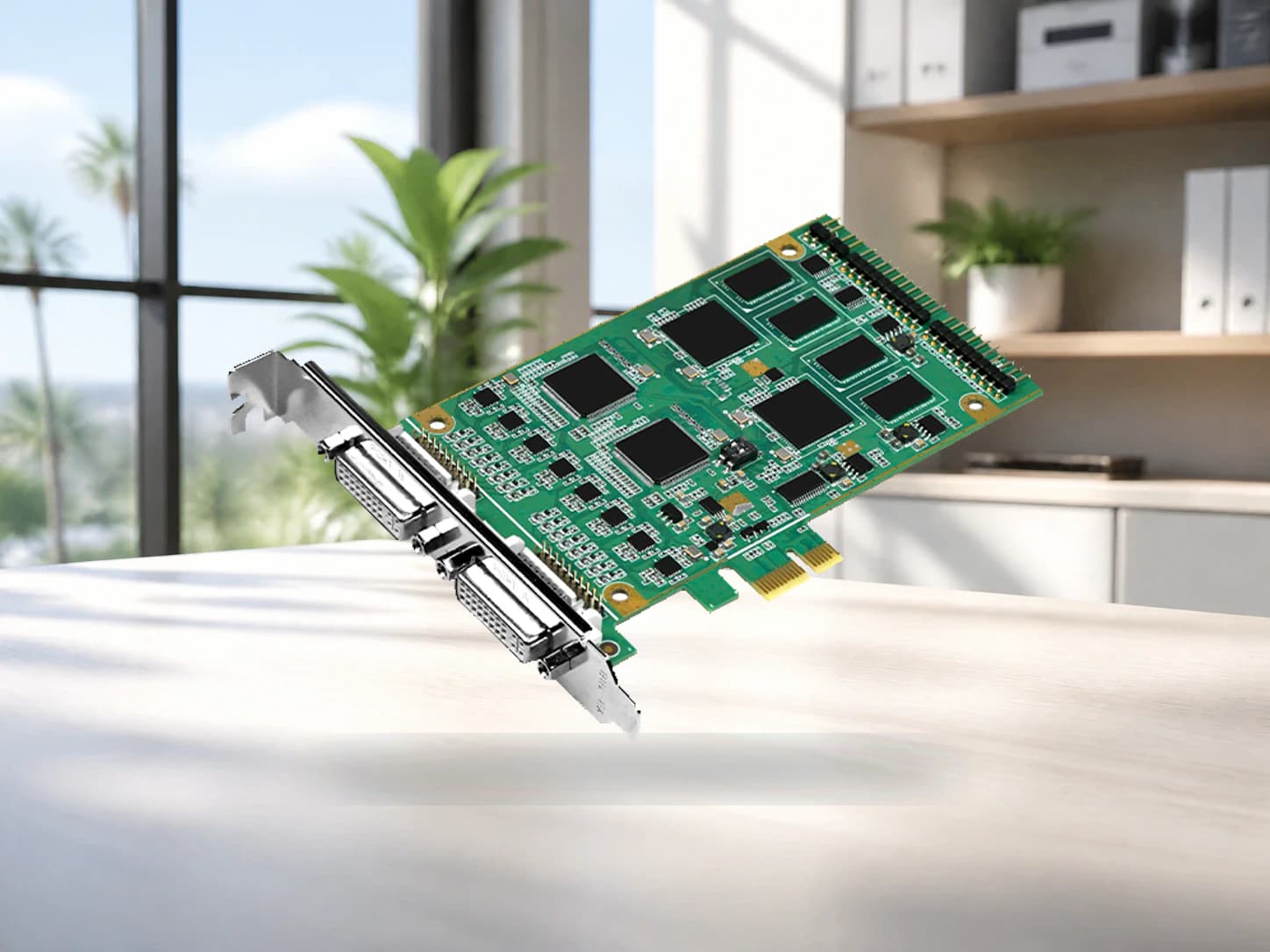

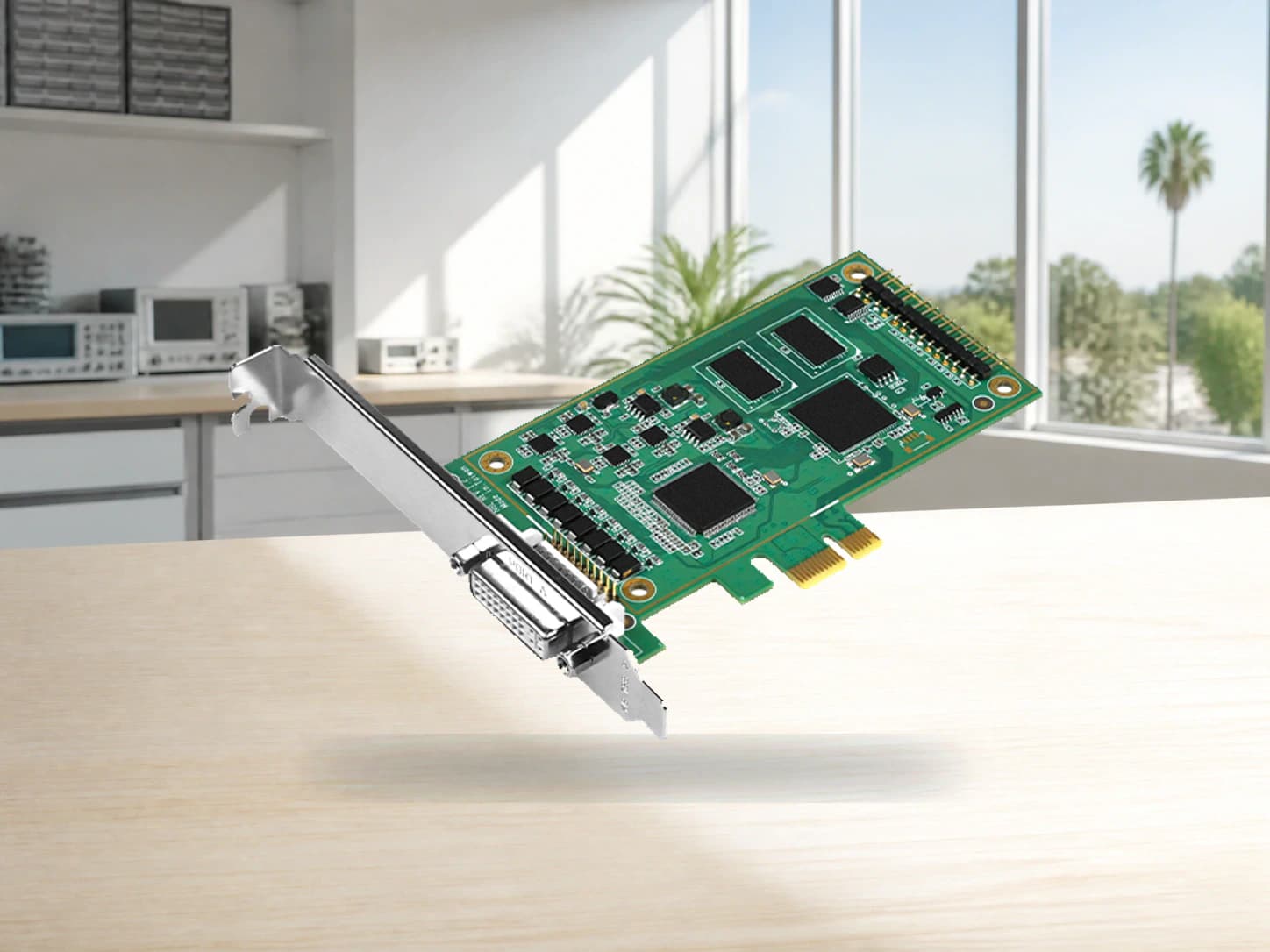

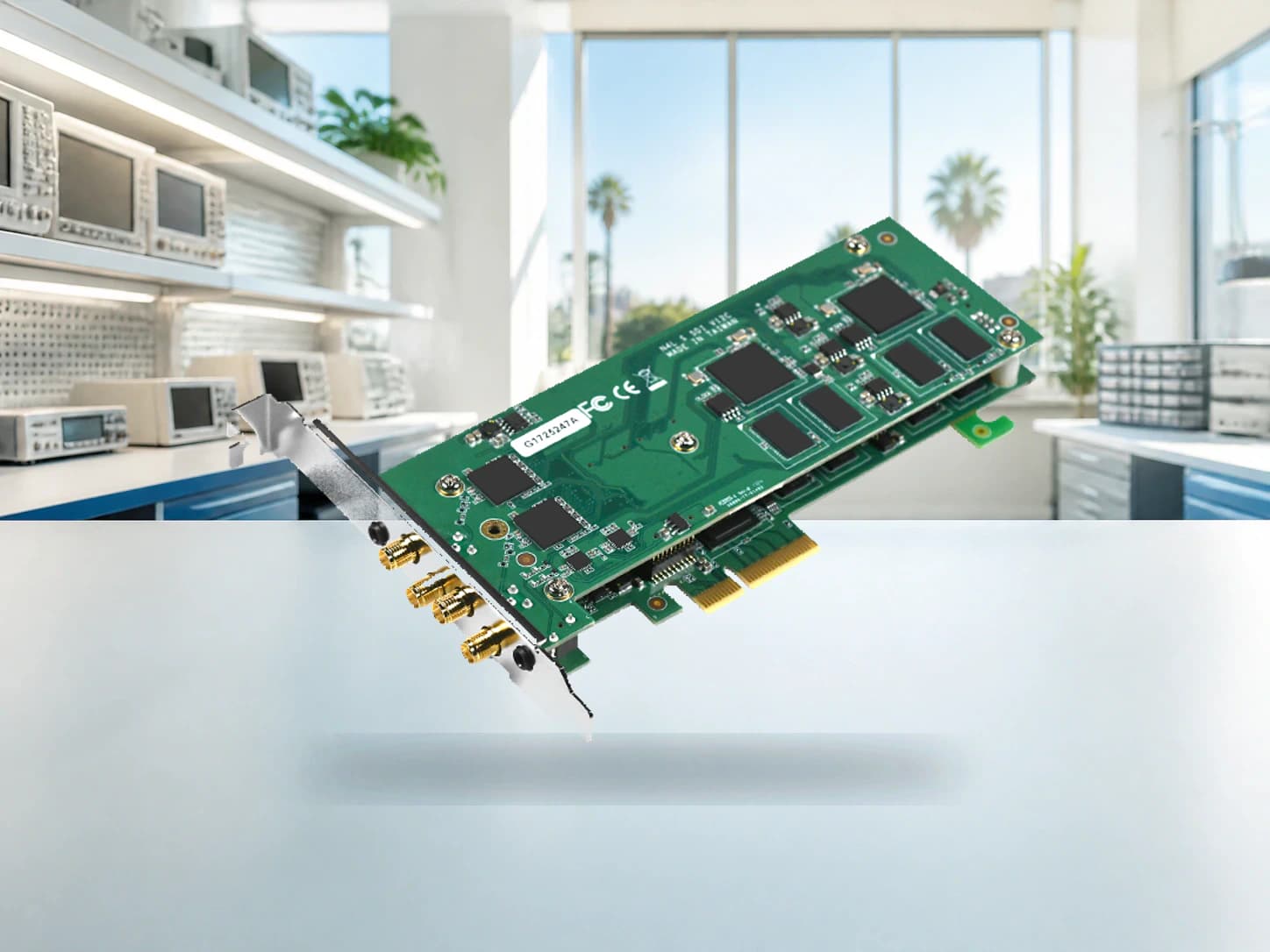

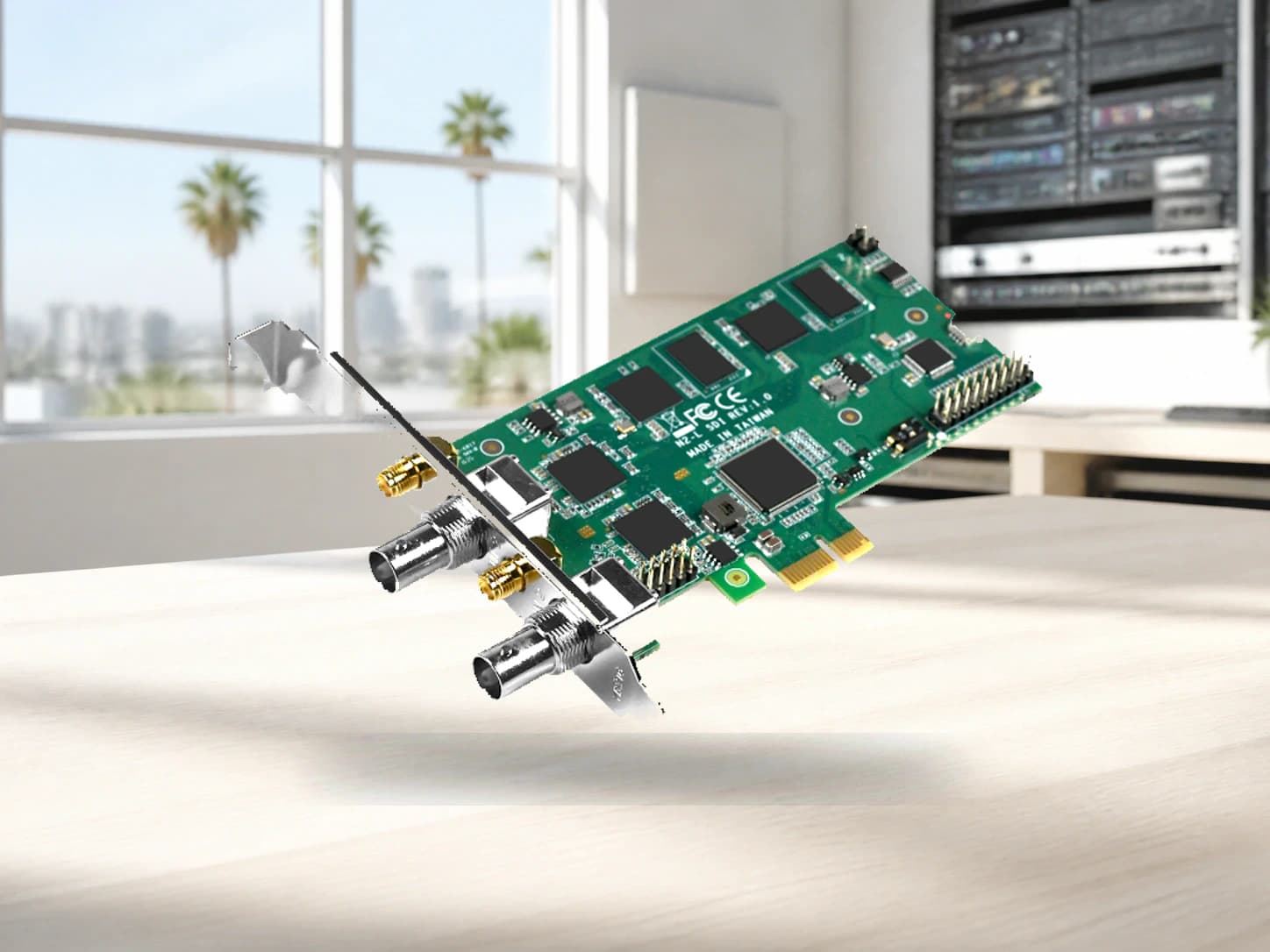

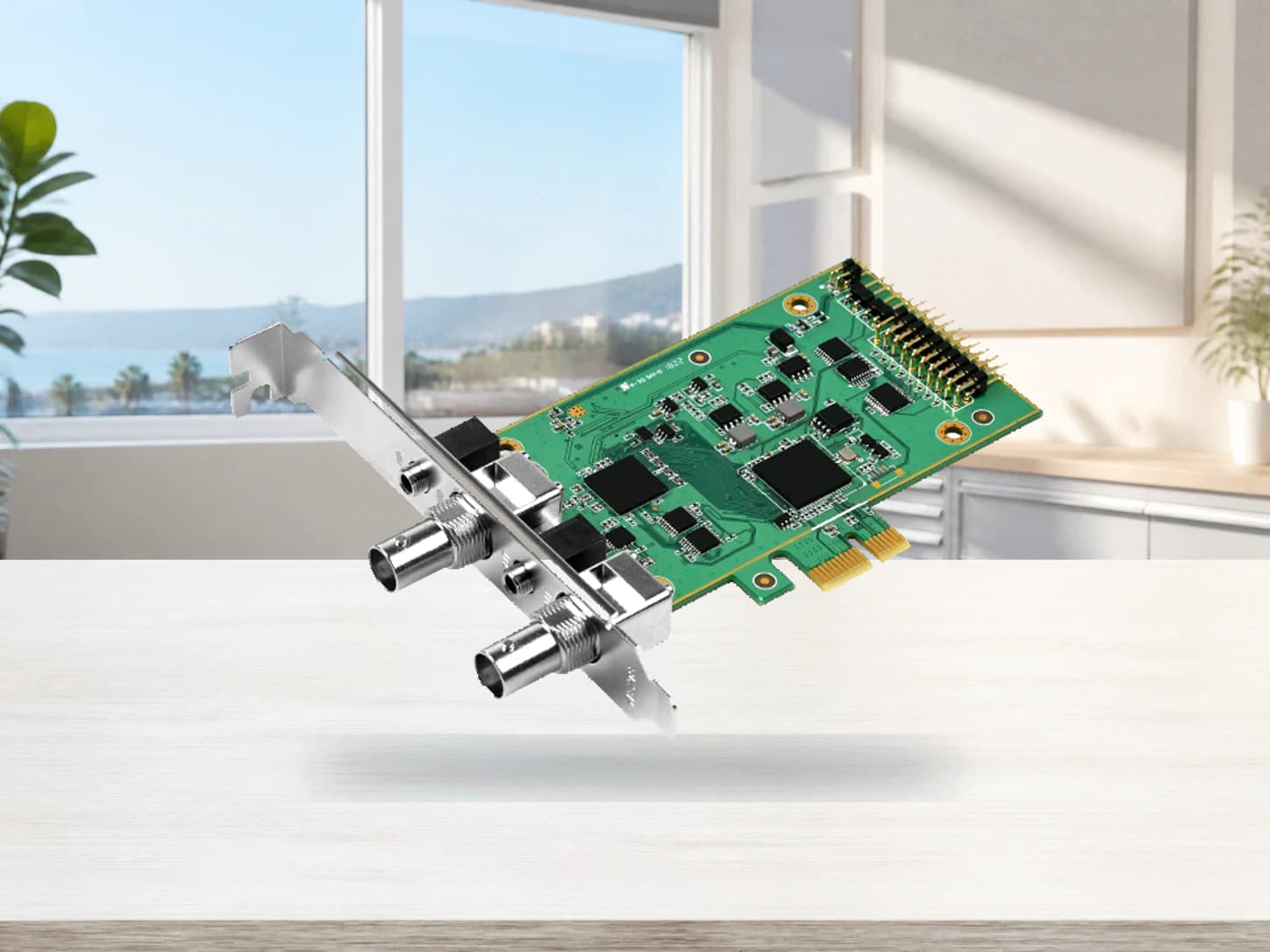

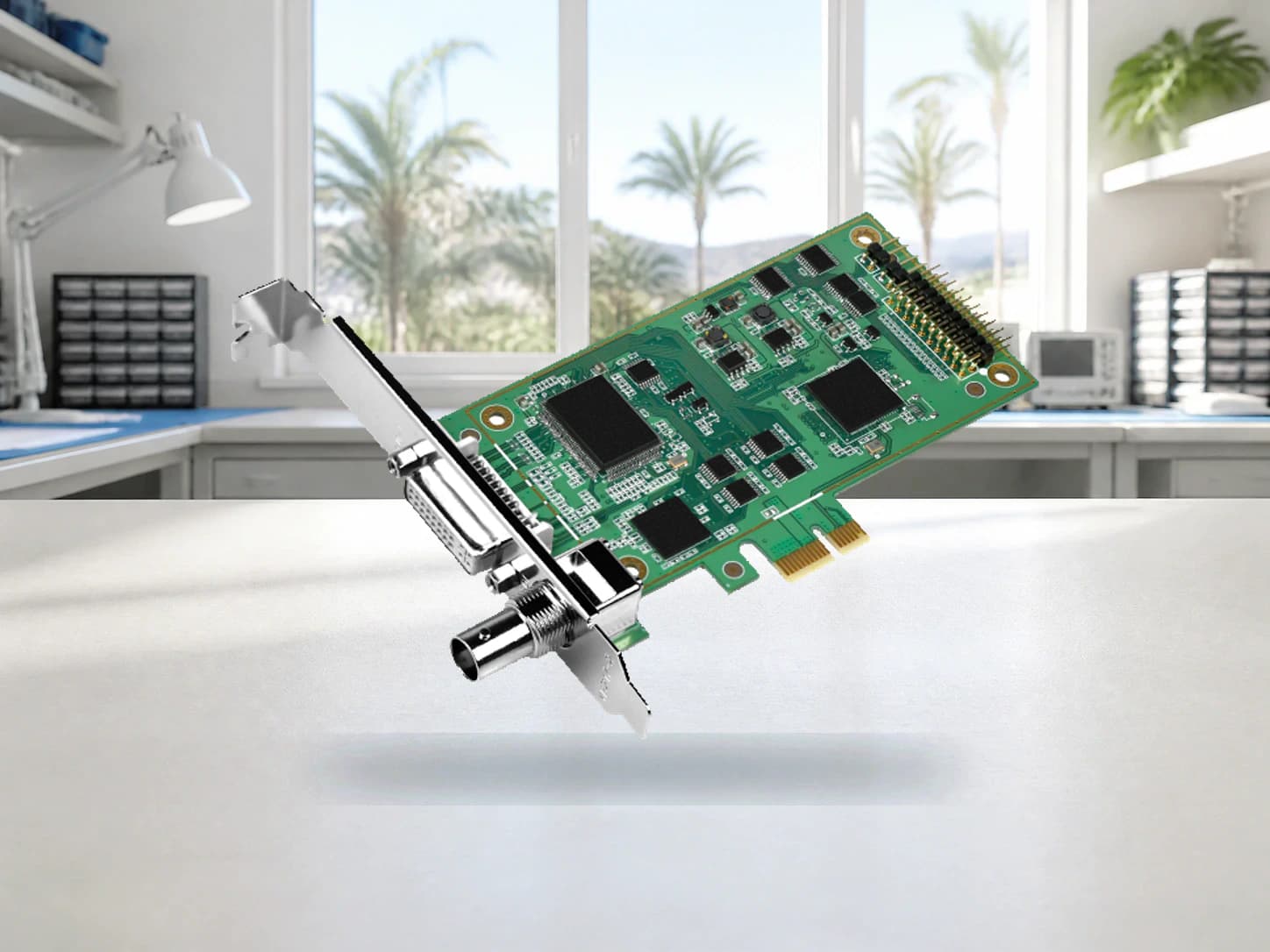

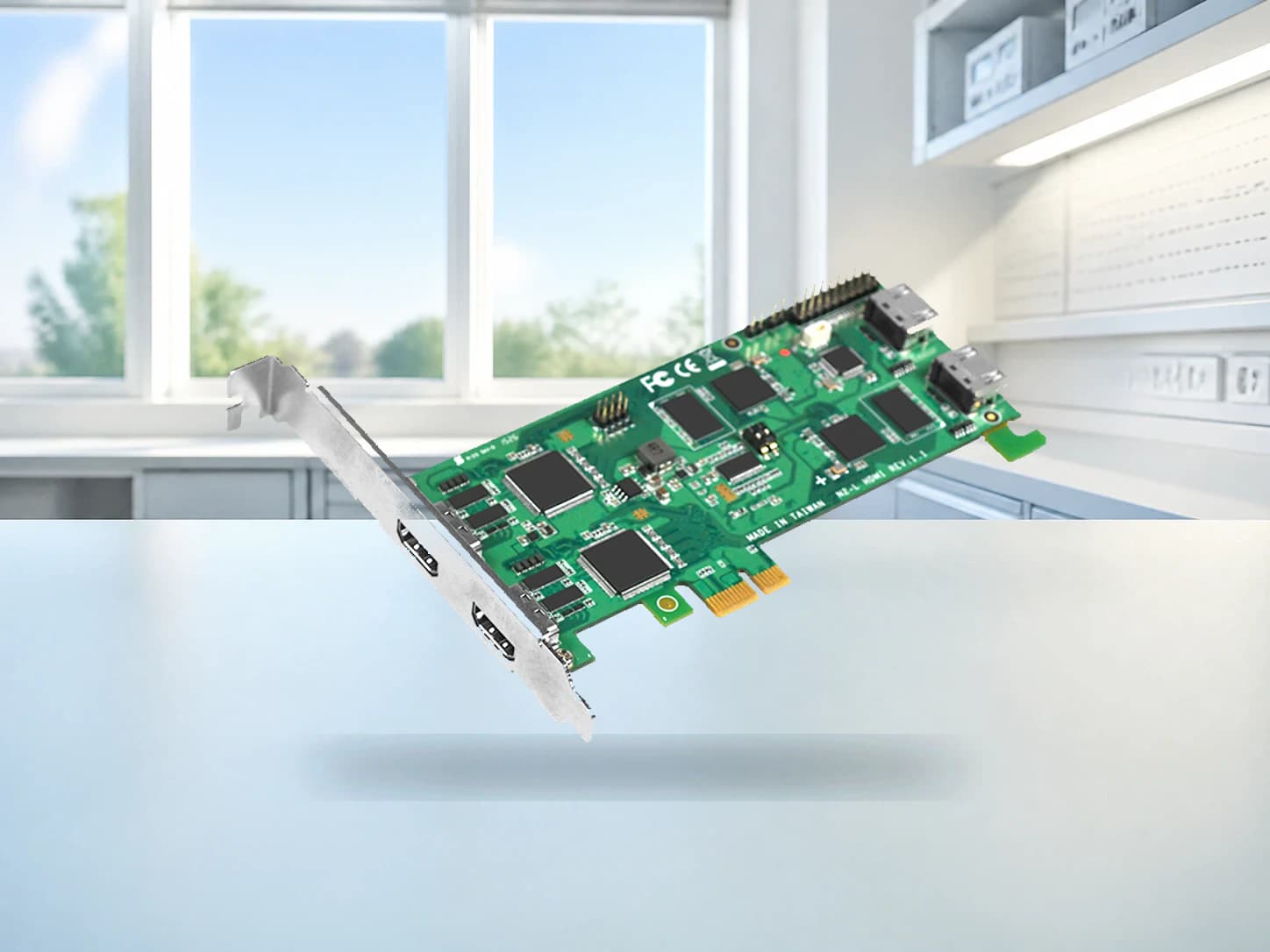

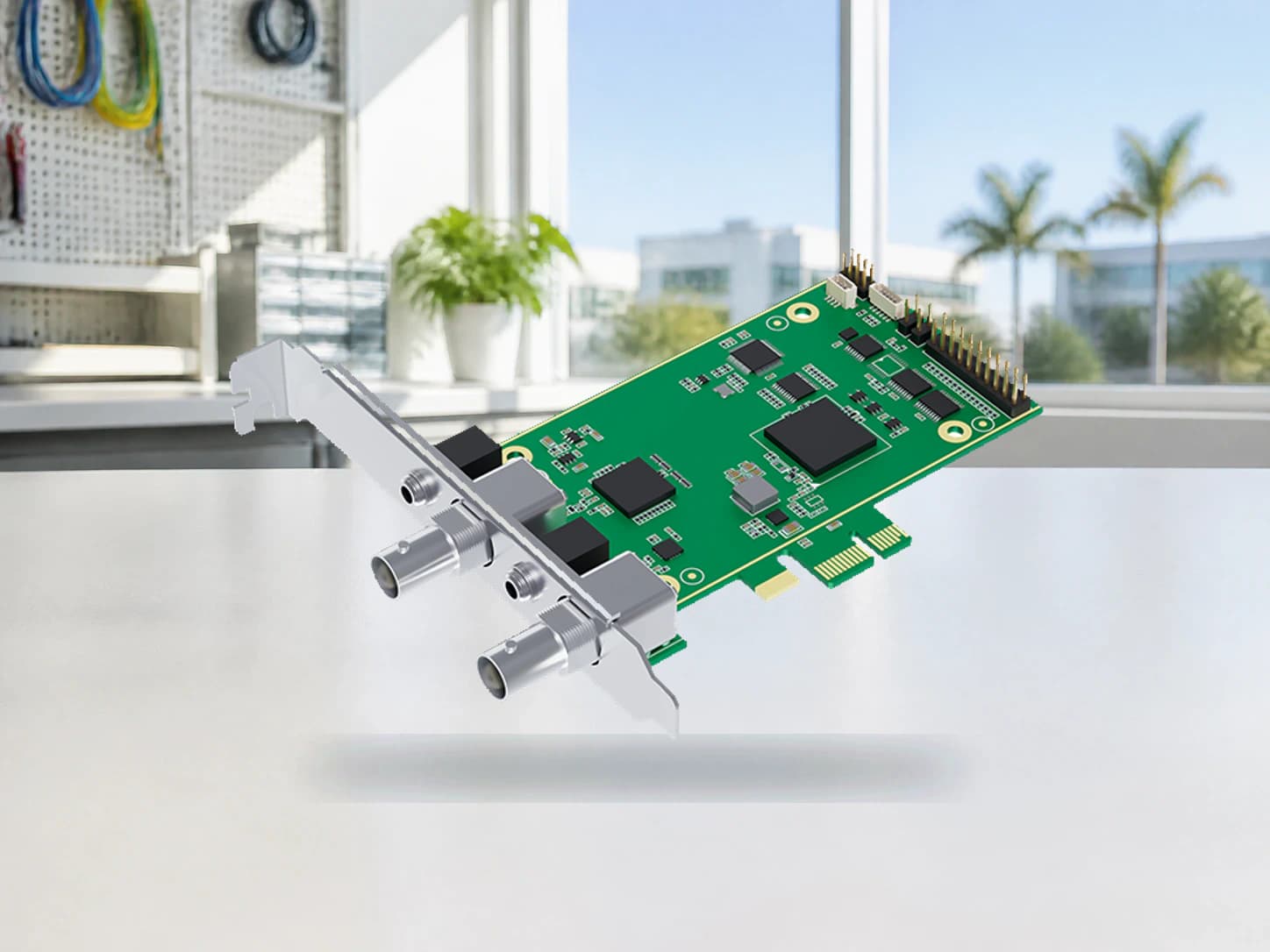

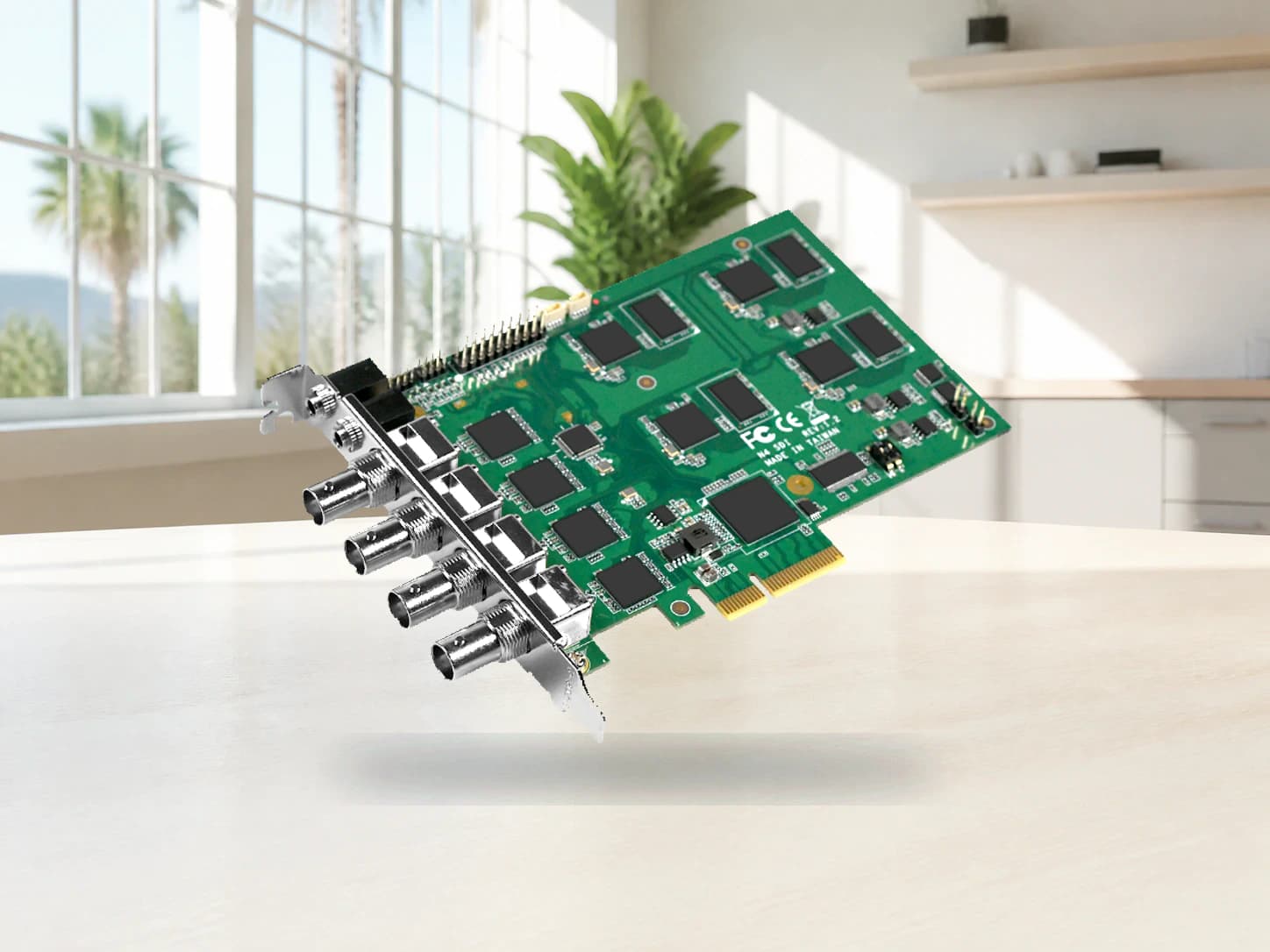

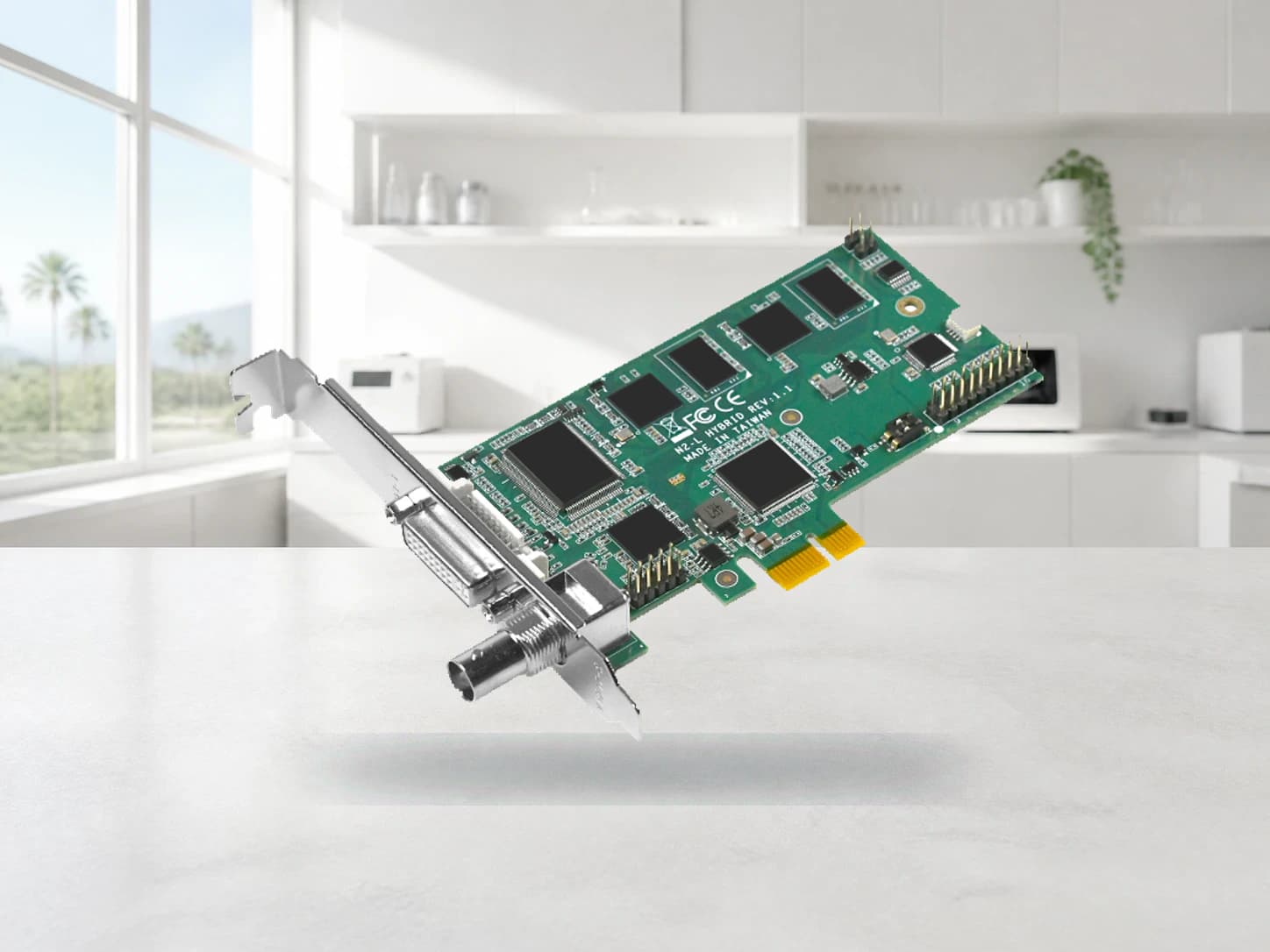

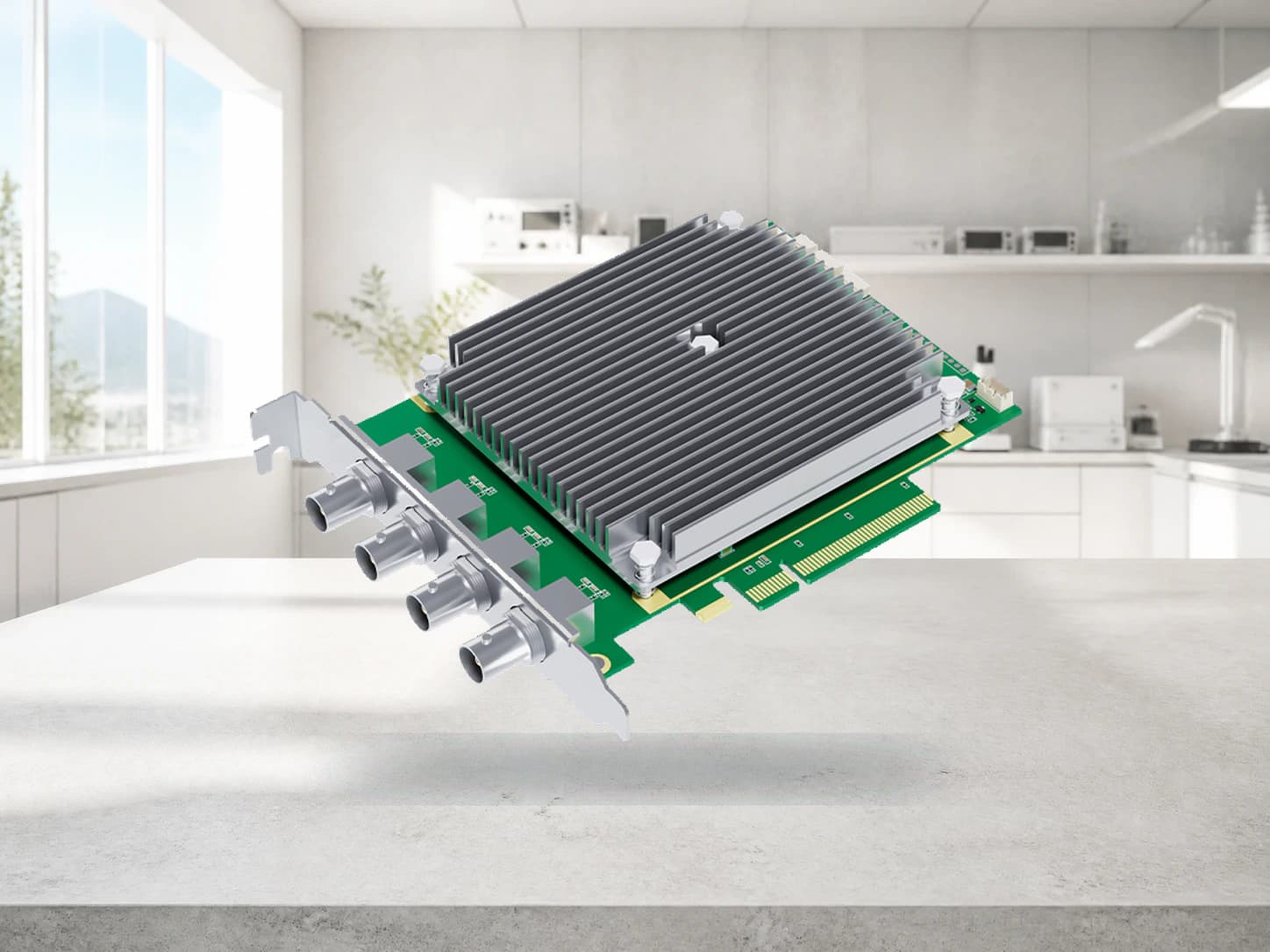

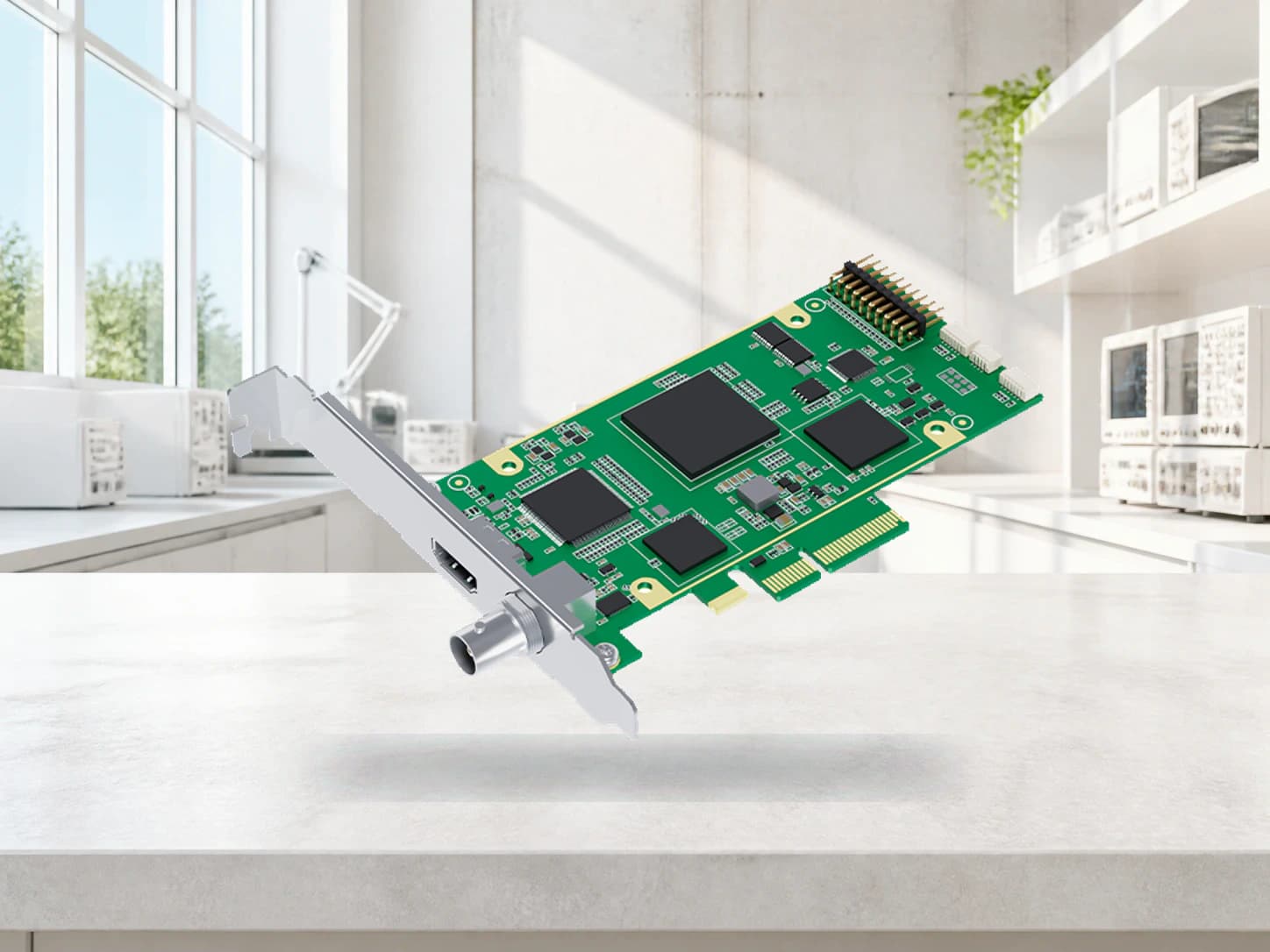

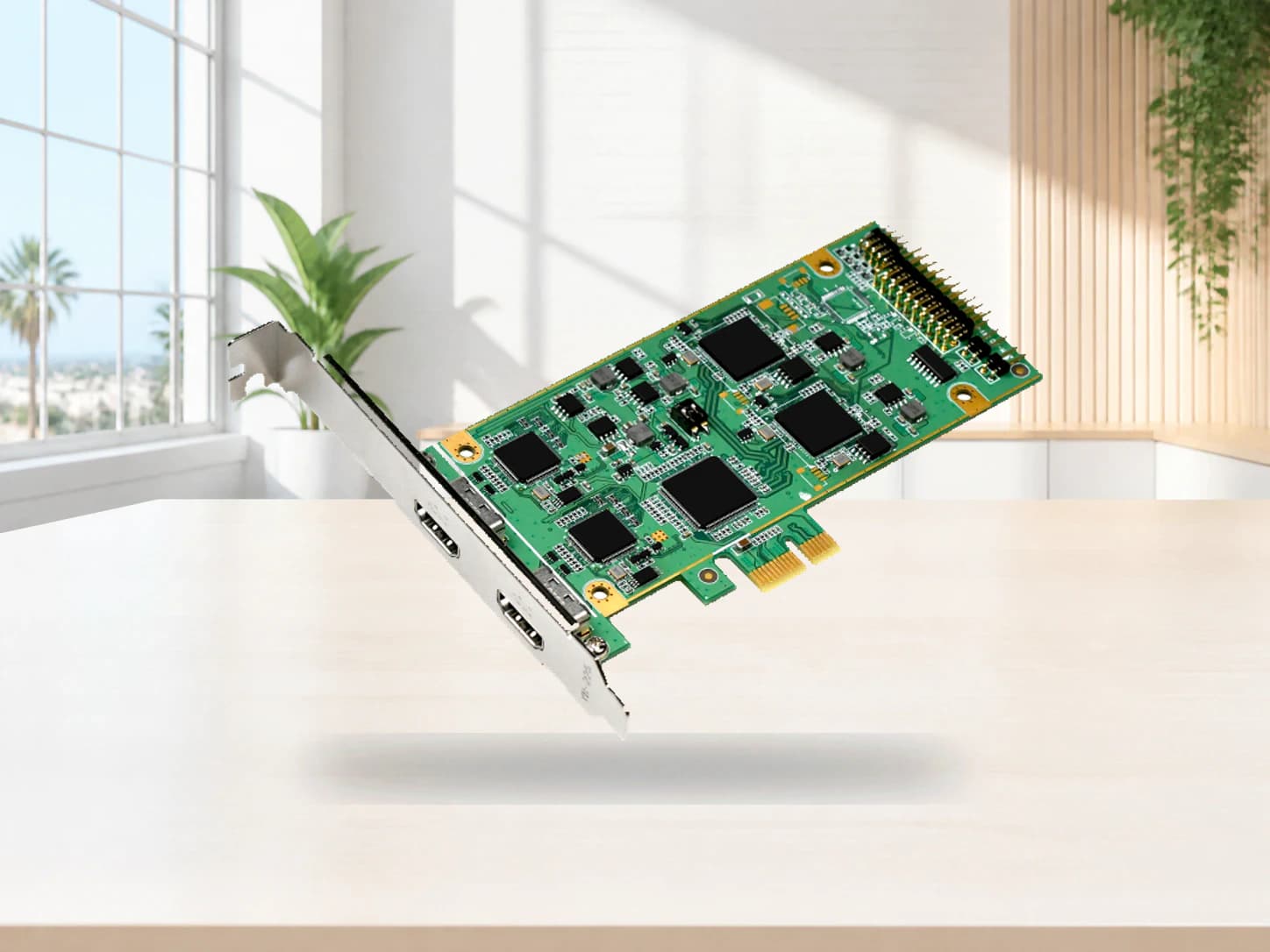

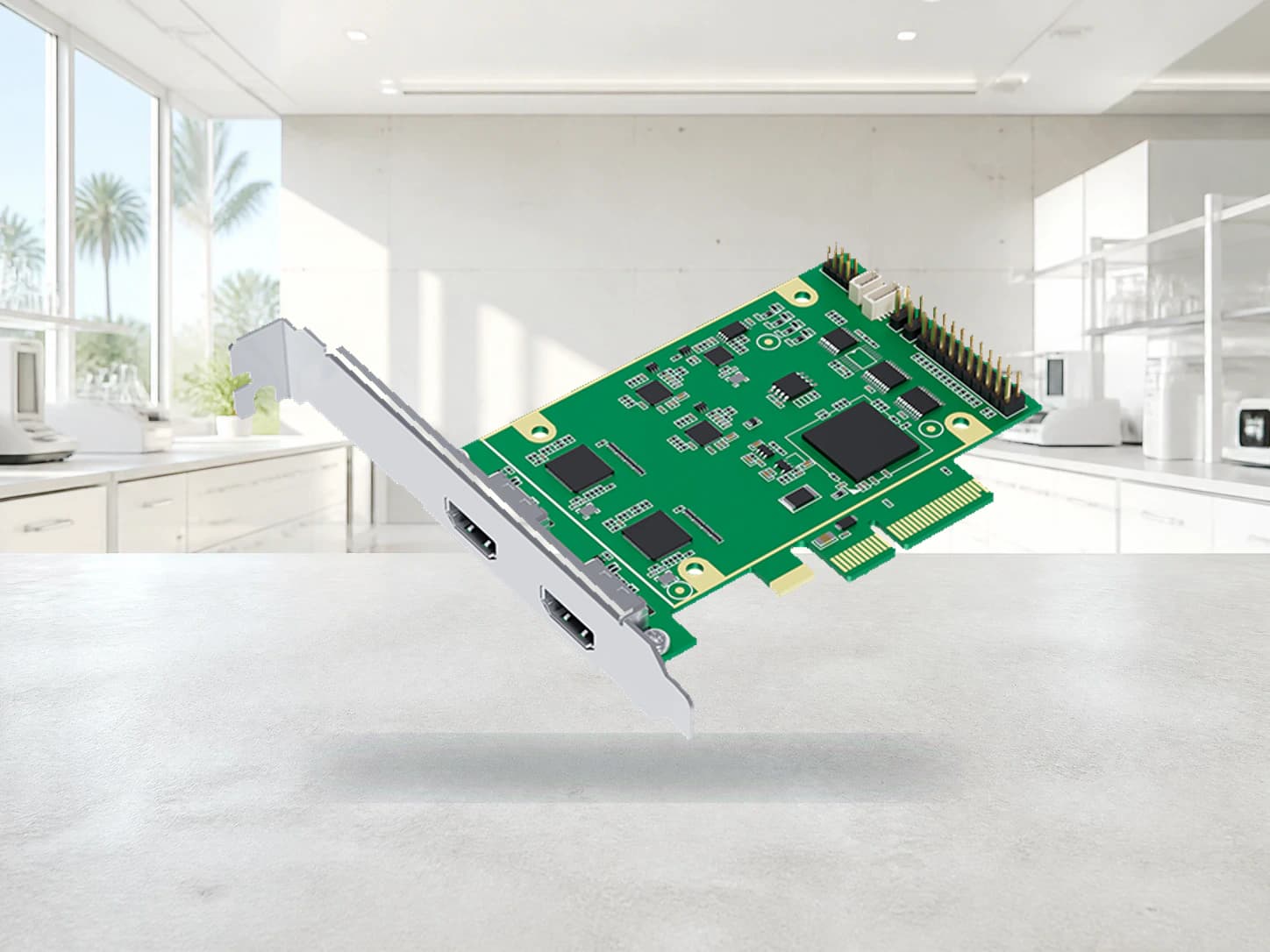

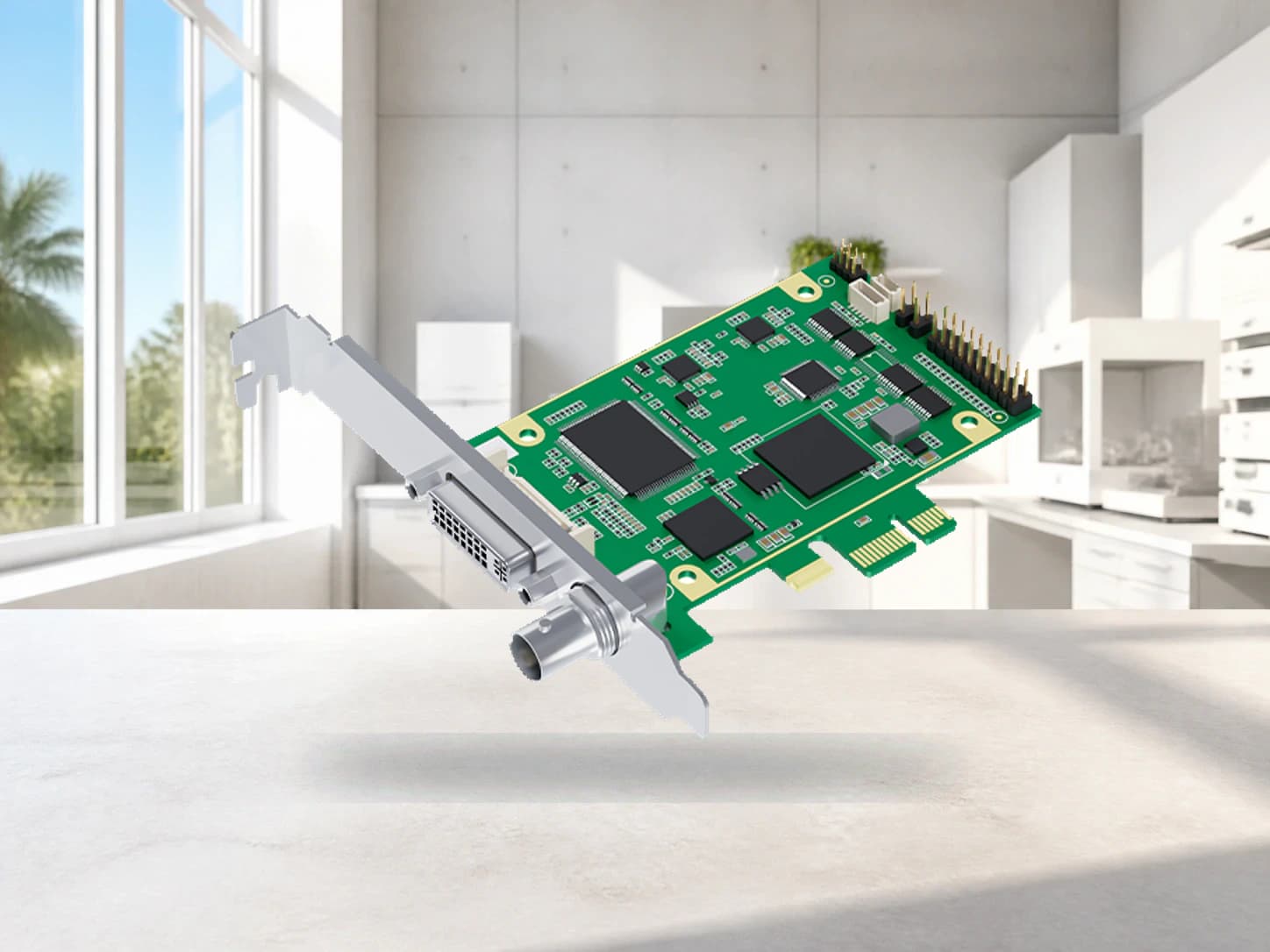

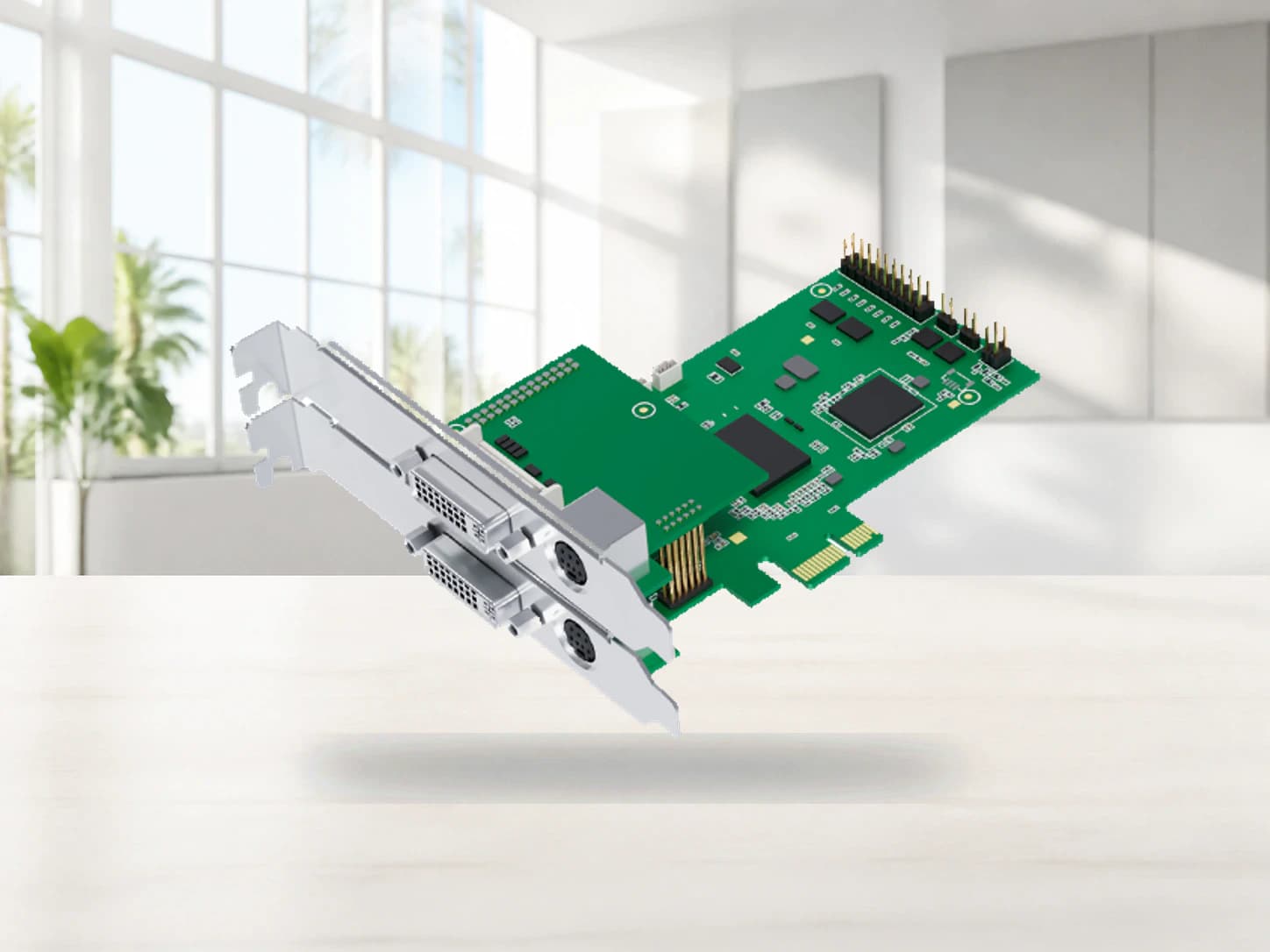

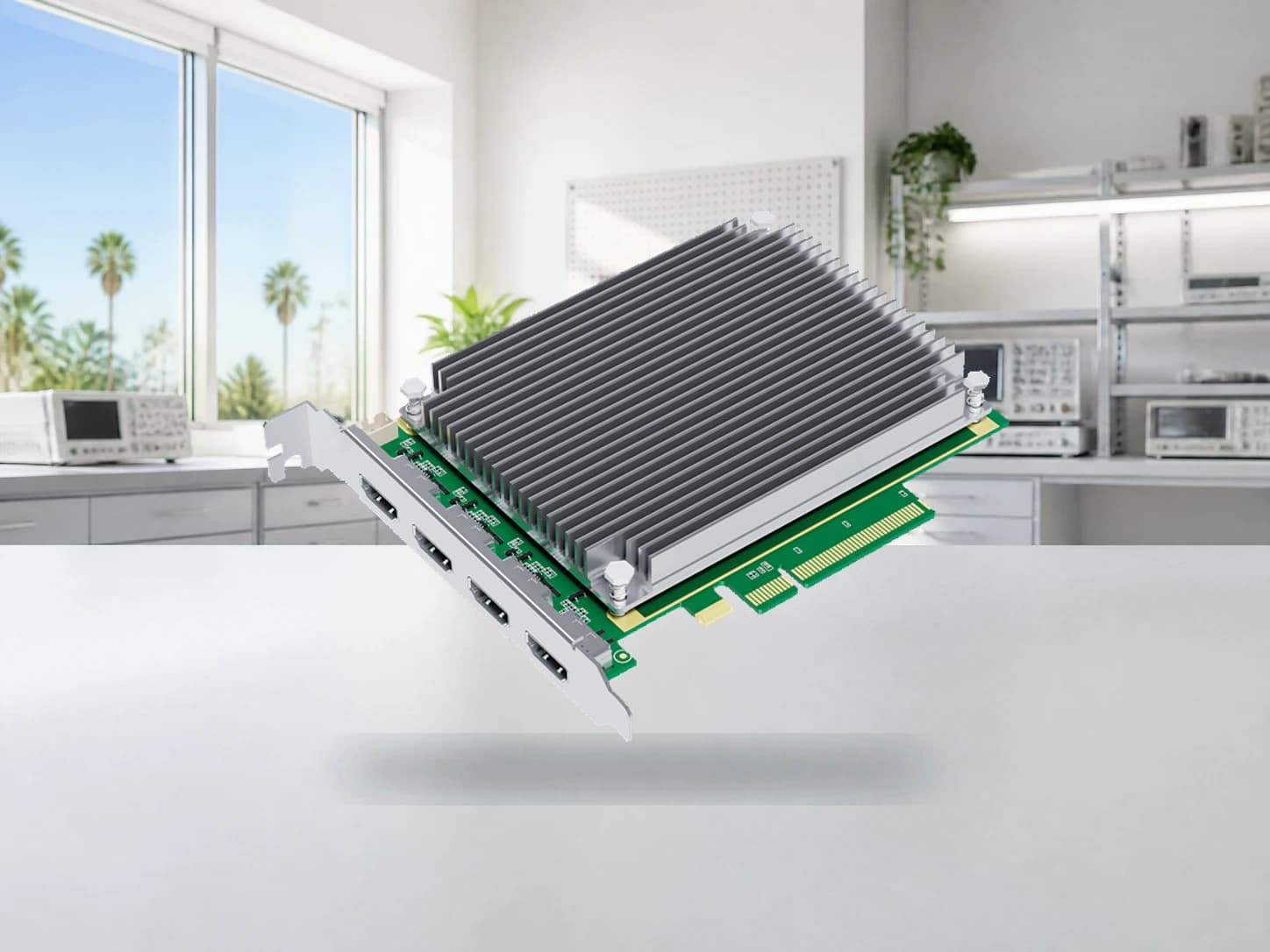

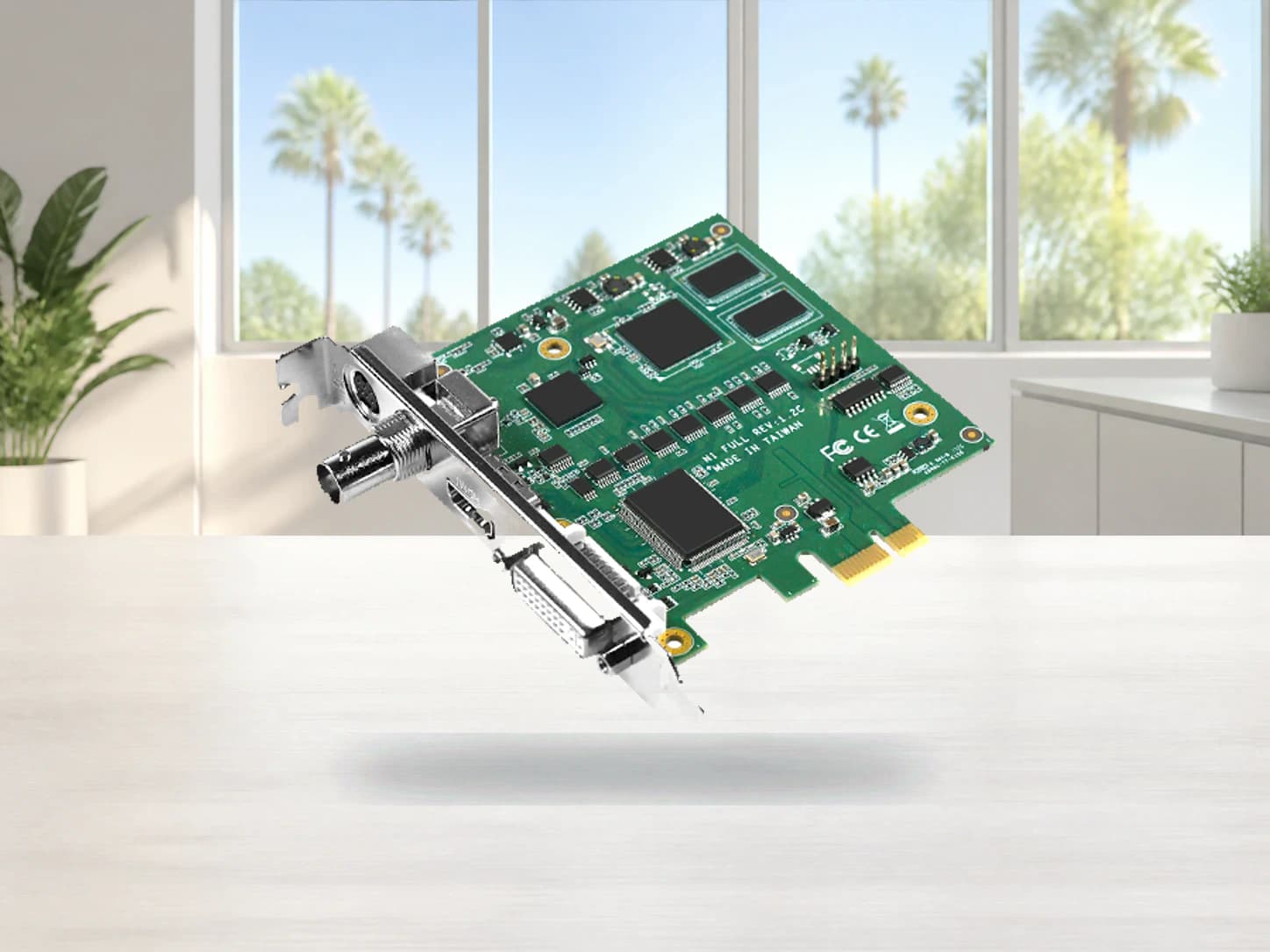

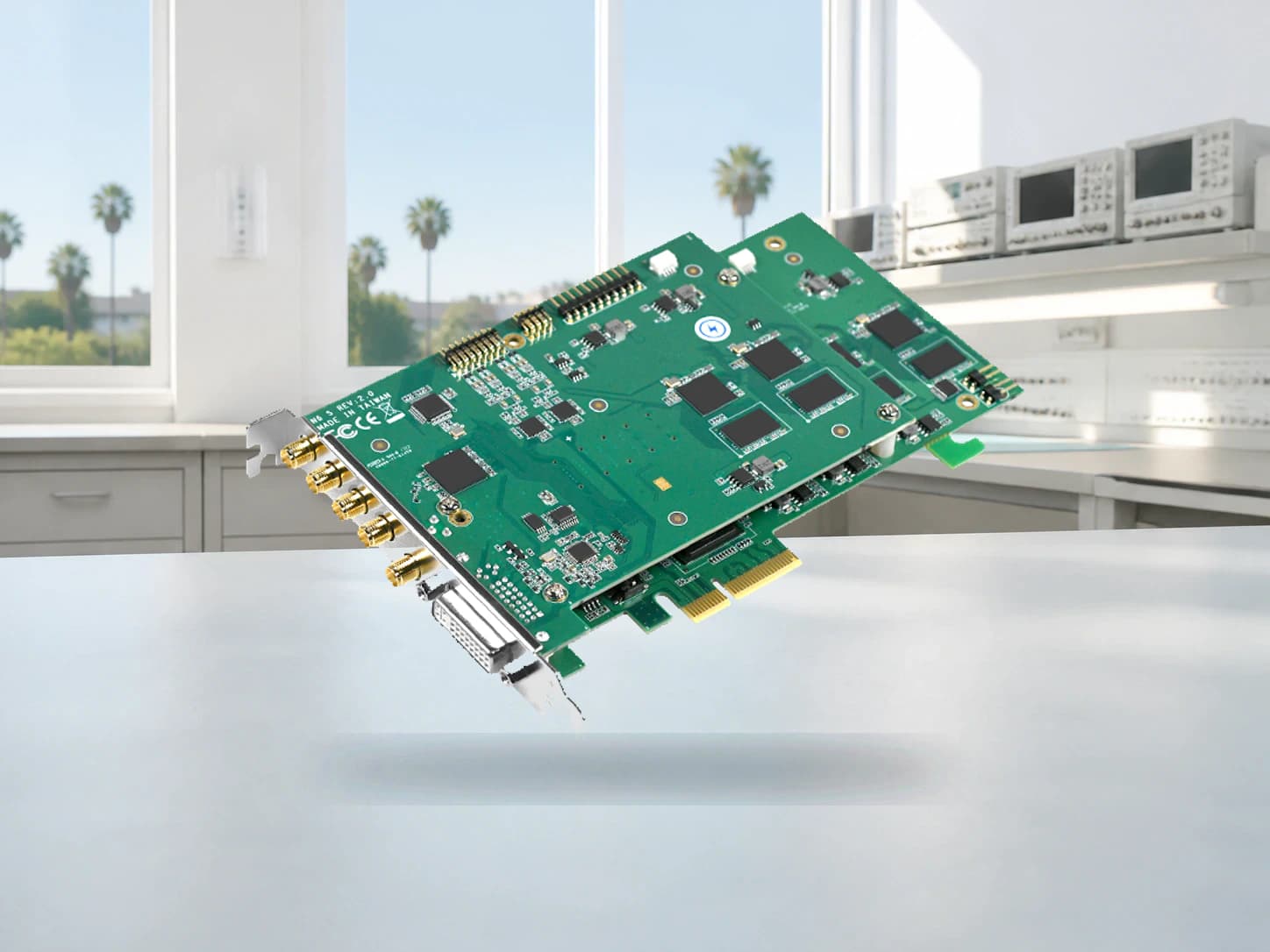

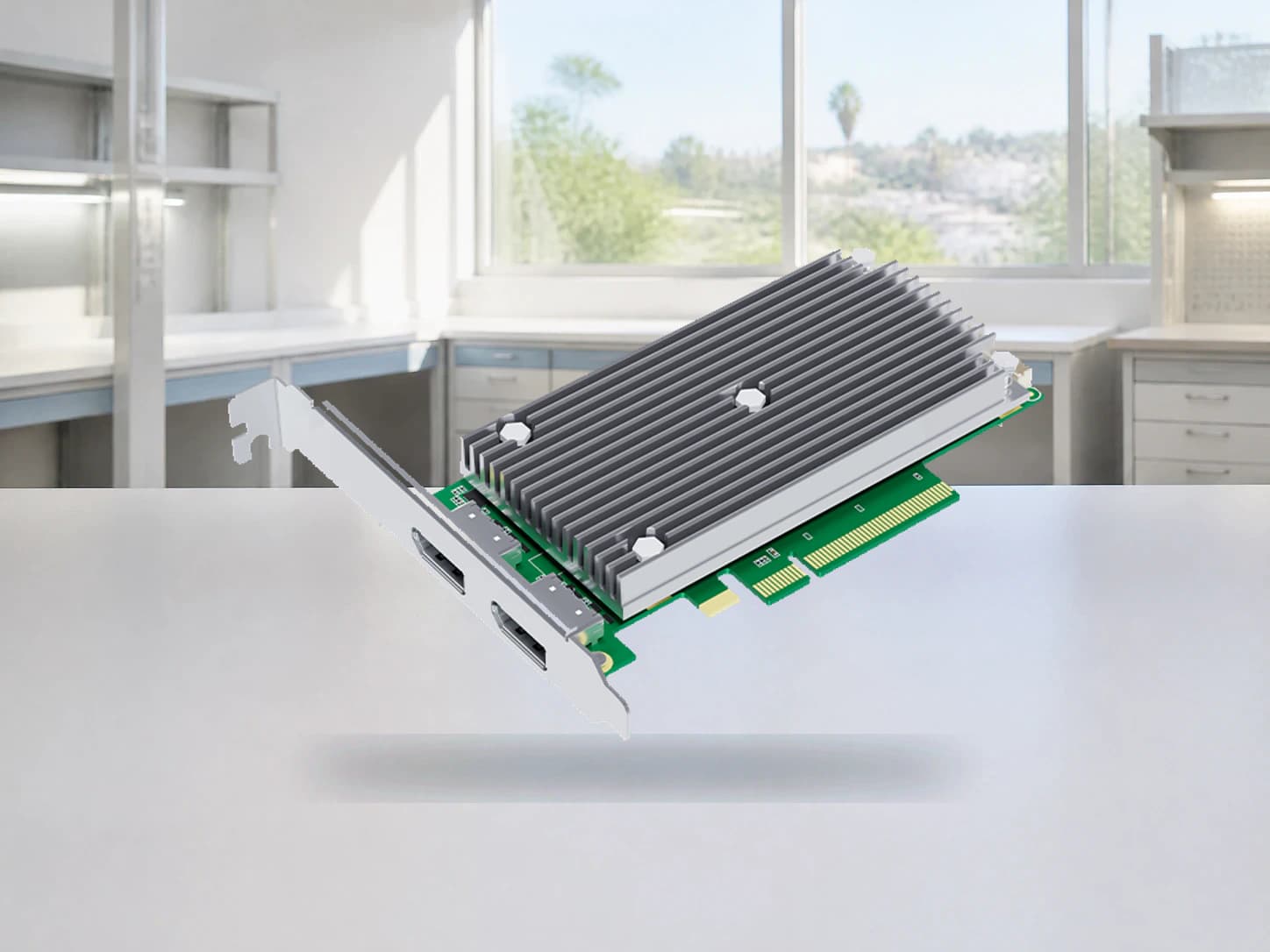

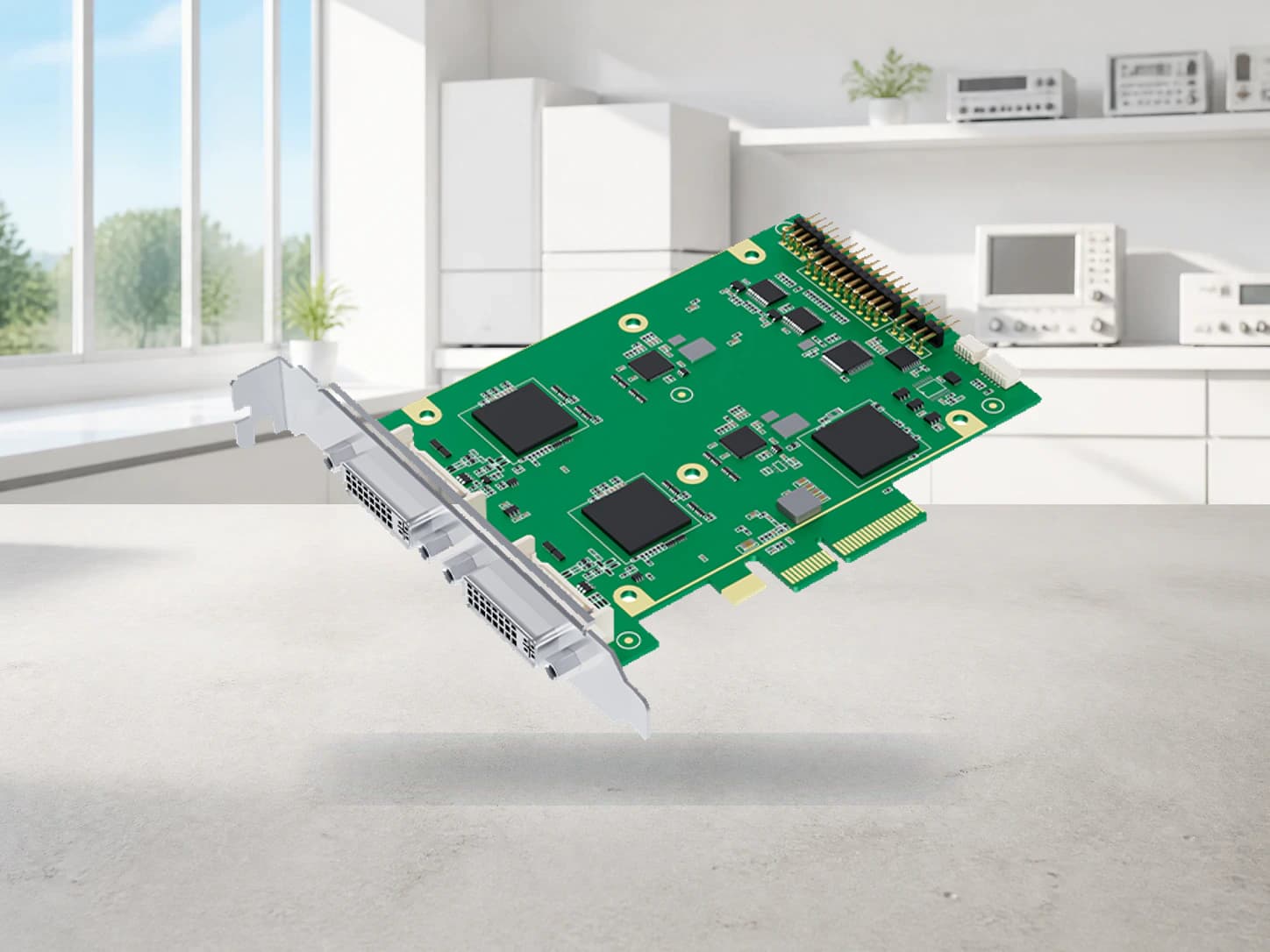

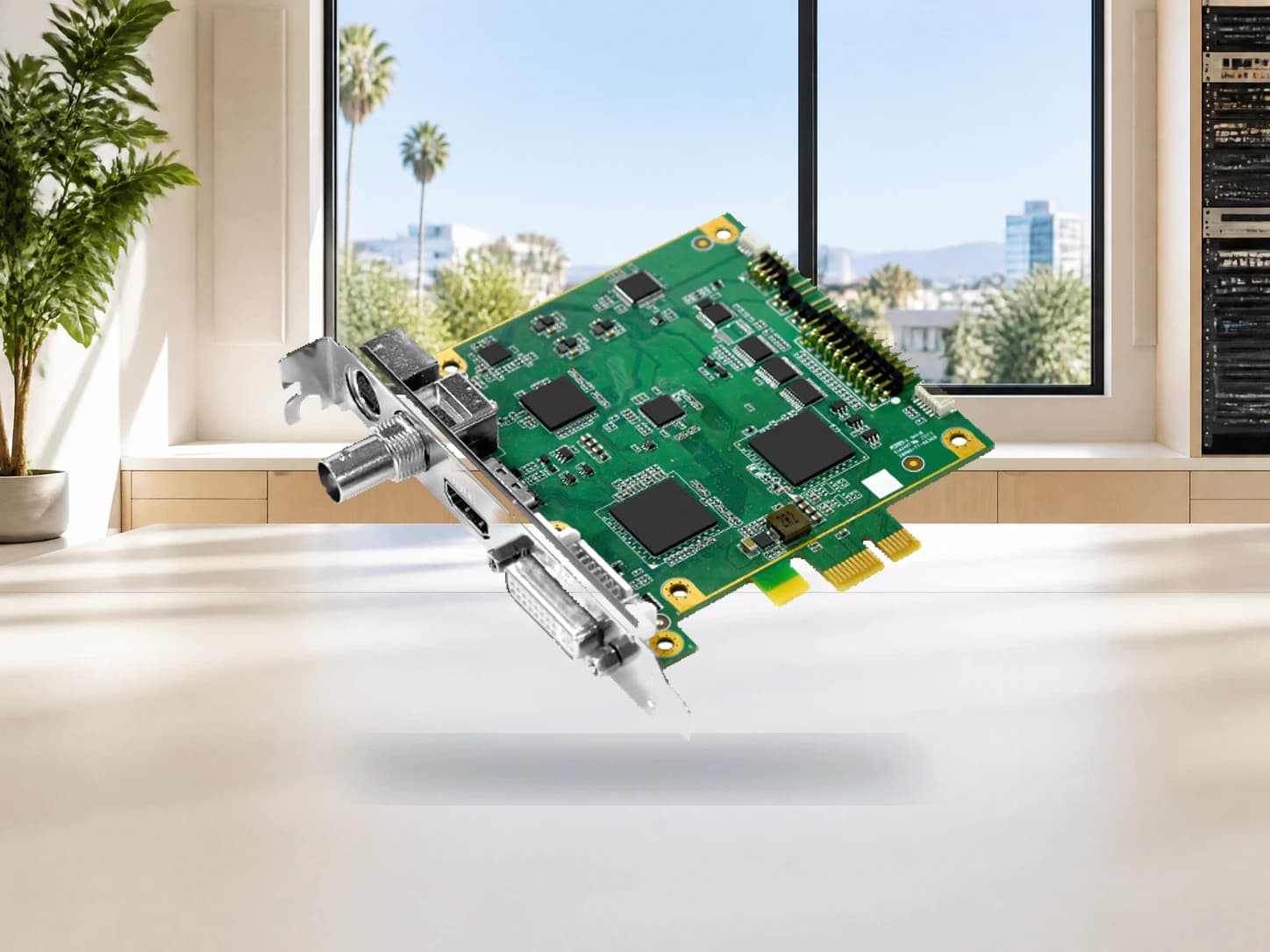

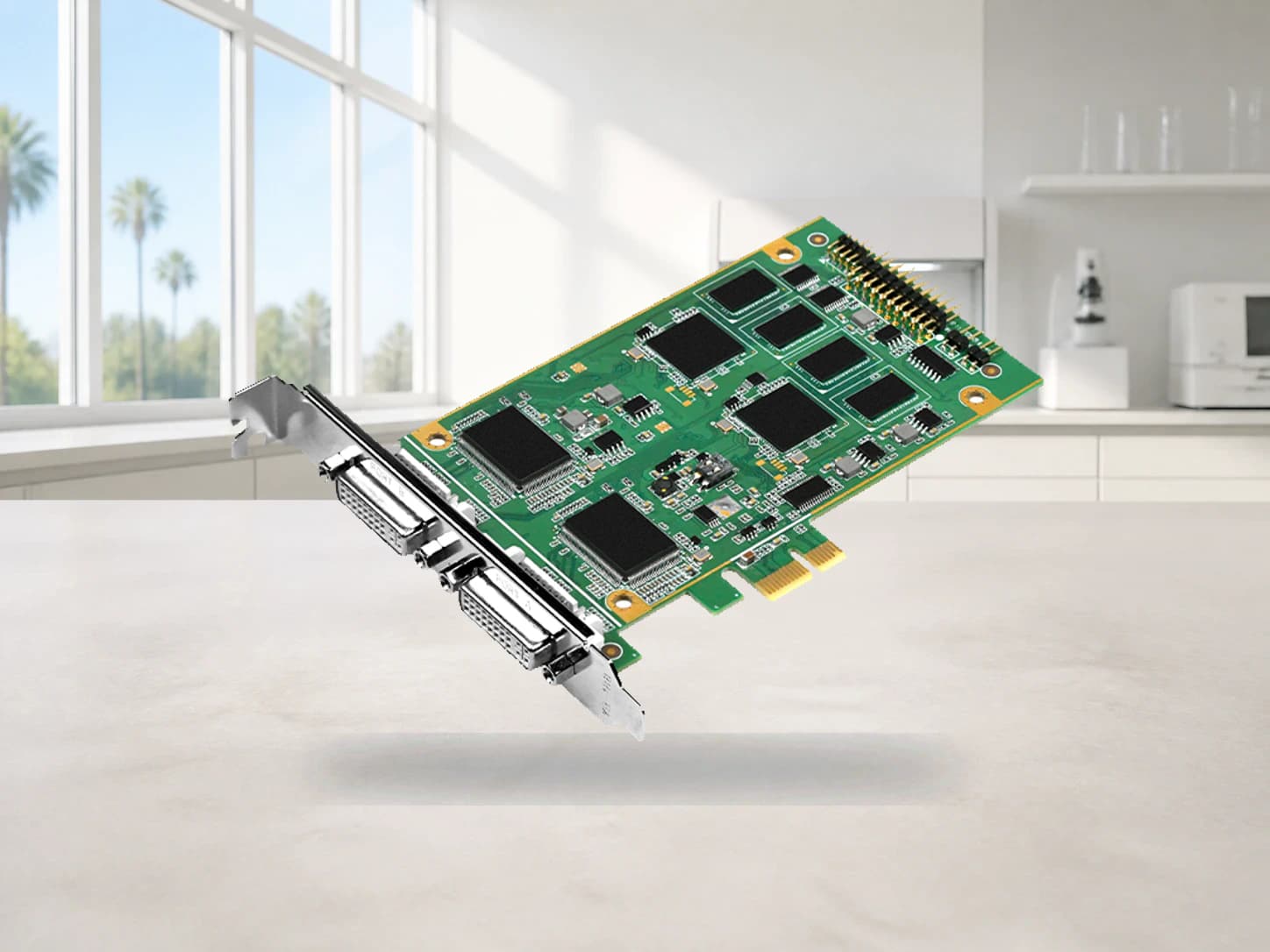

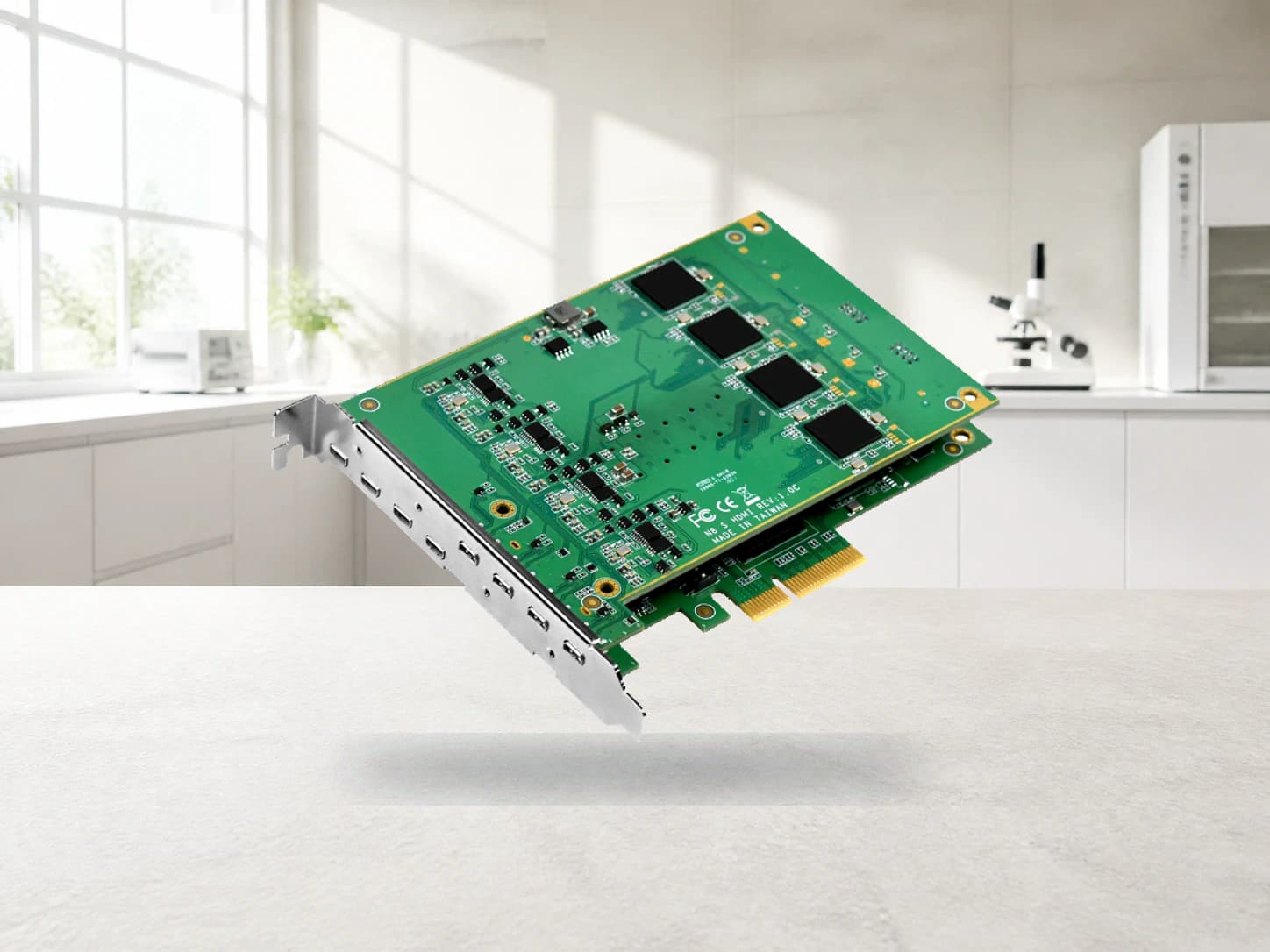

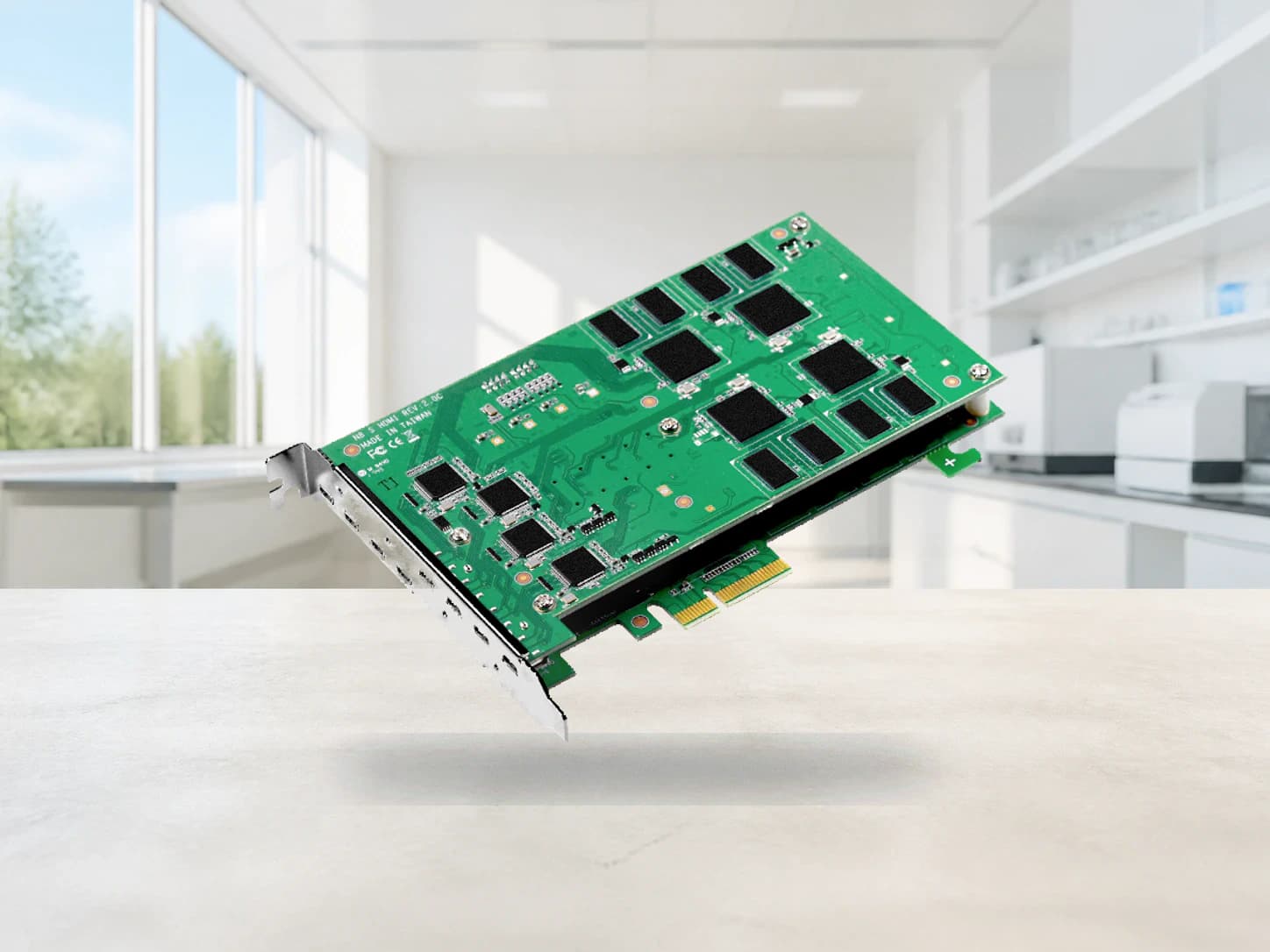

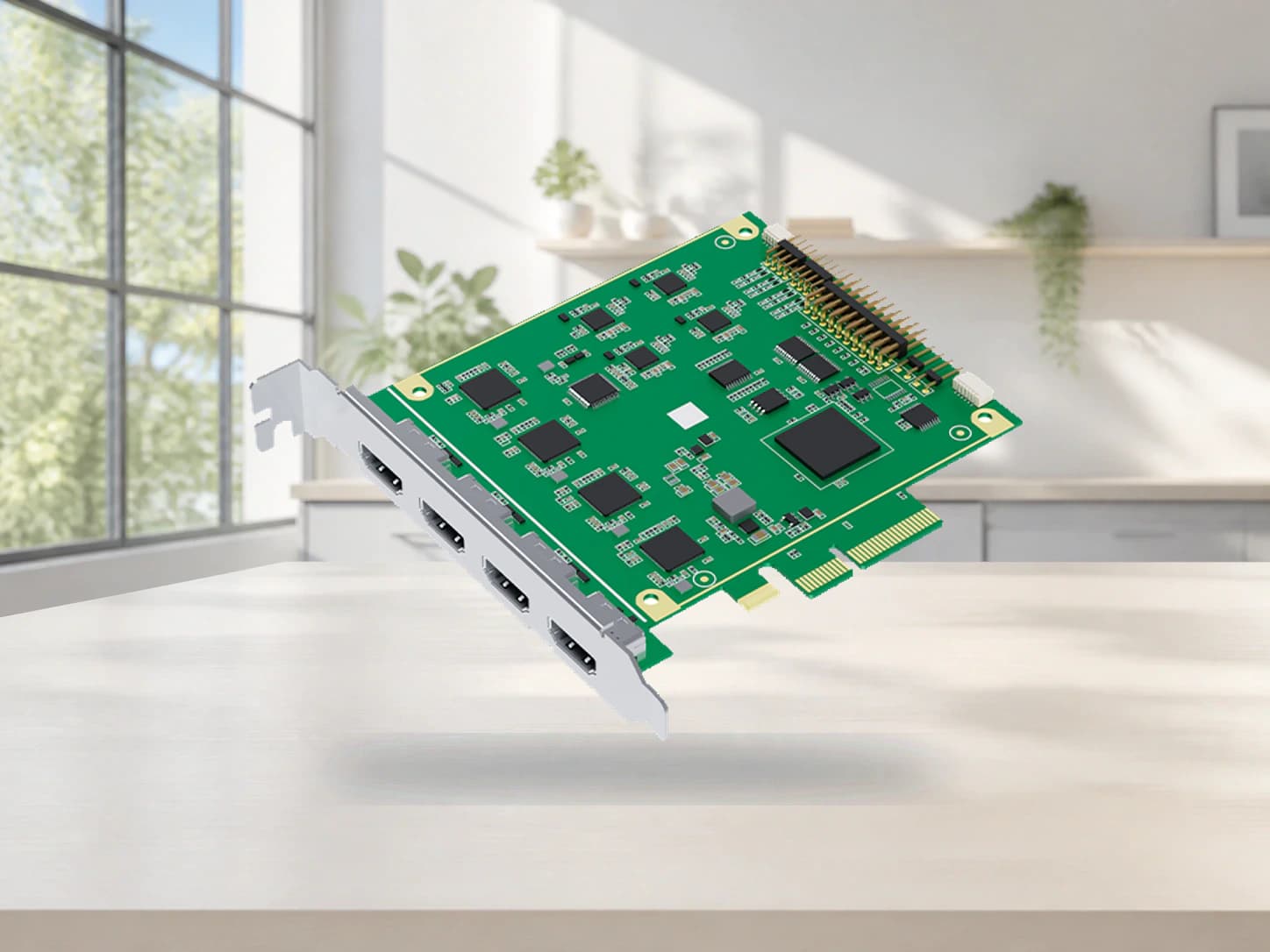

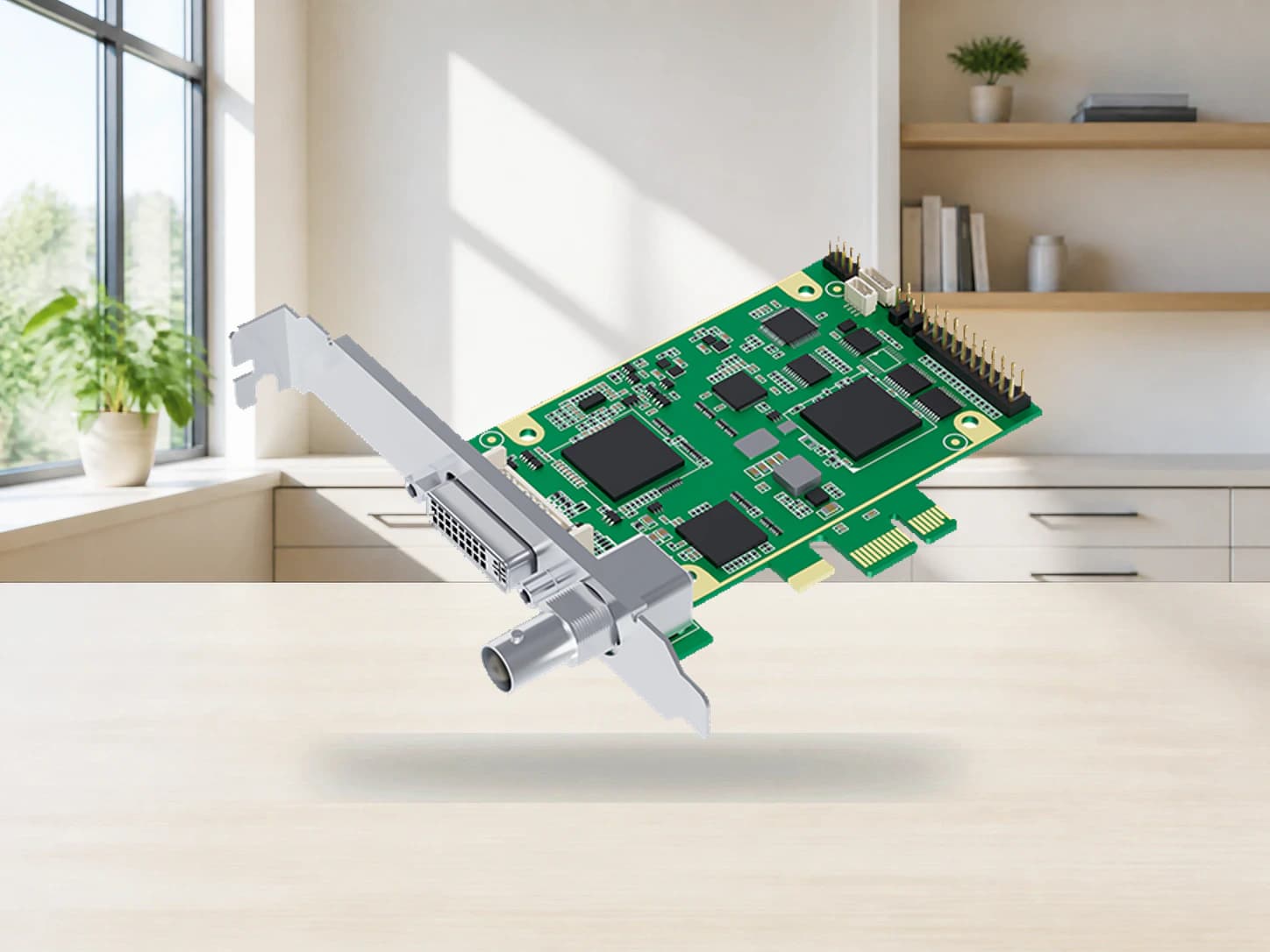

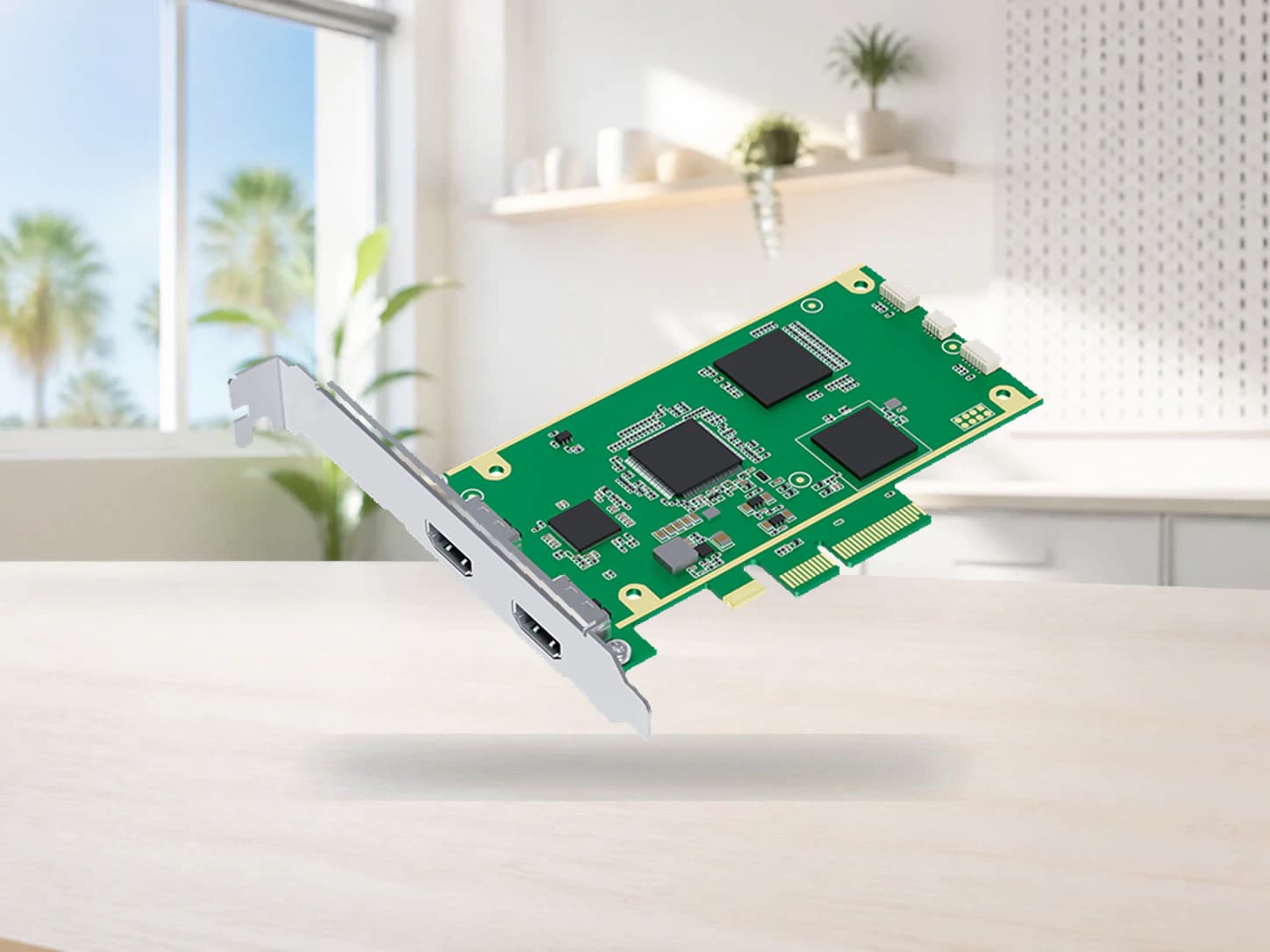

ProAV PCIe cards support multi-channel, multi-resolution capture with PCIe x1 through x8 options for standard workstations and multi-card systems. Model-specific capabilities include YUAN video processing and direct-to-GPU transfer for broadcast, vision, and medical-imaging integrations.
- PCIe×4 ( Gen2 )
- PCIe×1 ( Gen2 )
- 1920×1080p@60/50fps
- PCIe×1
- Single-Link HDMI 2.0
- 4096×2160p@60/50fps
Show all 64 ProAV PCIe products56 more

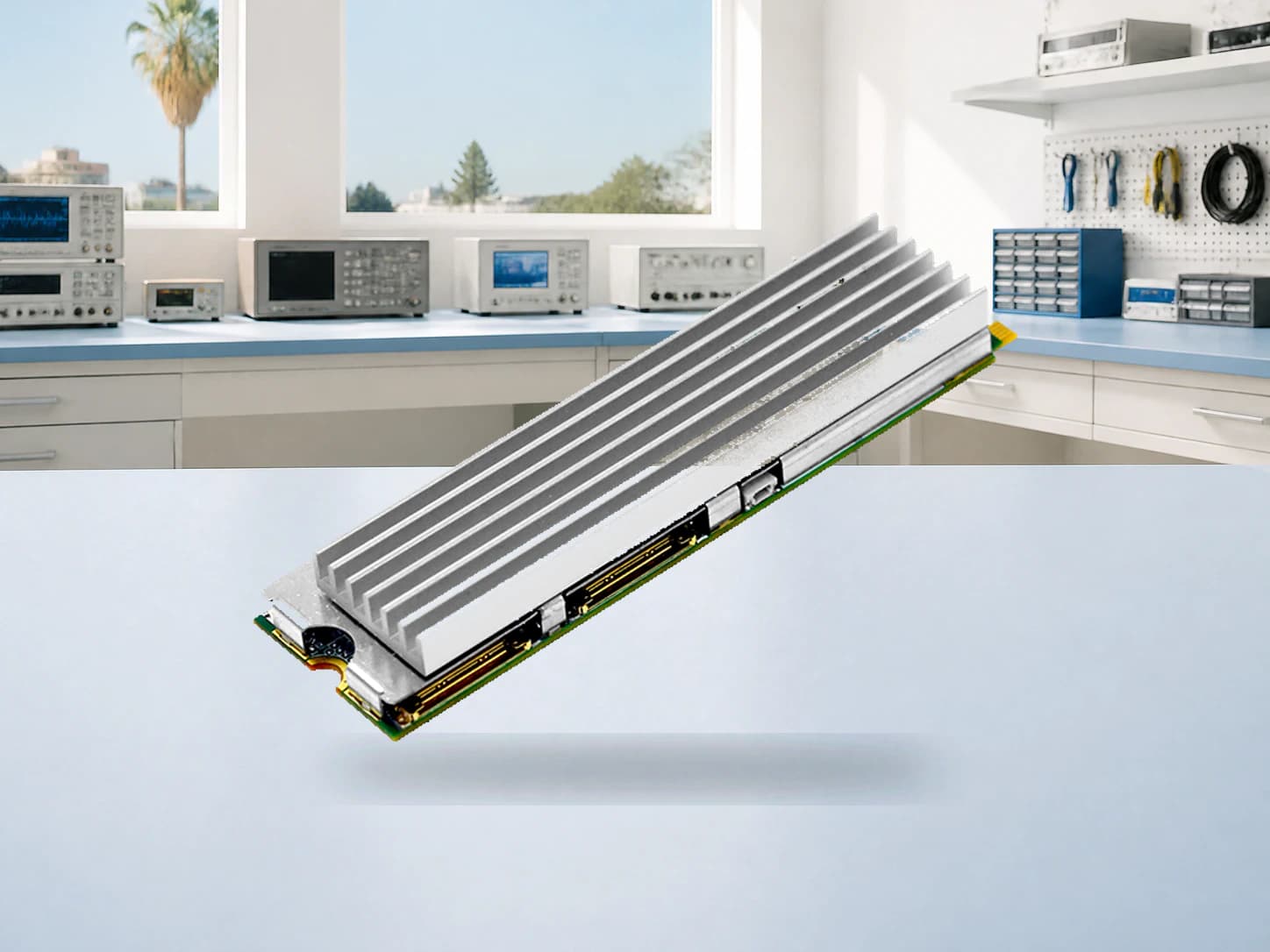

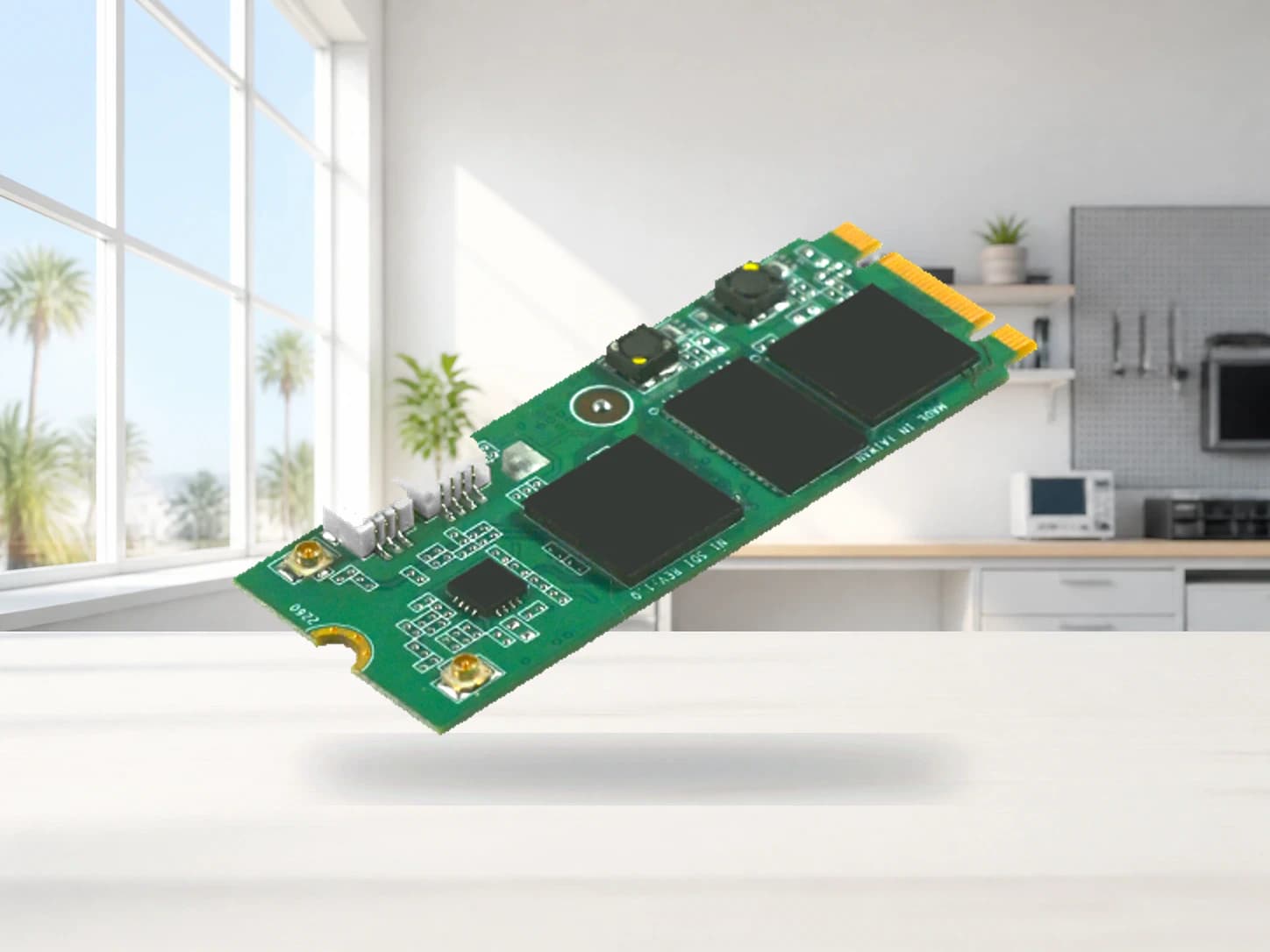

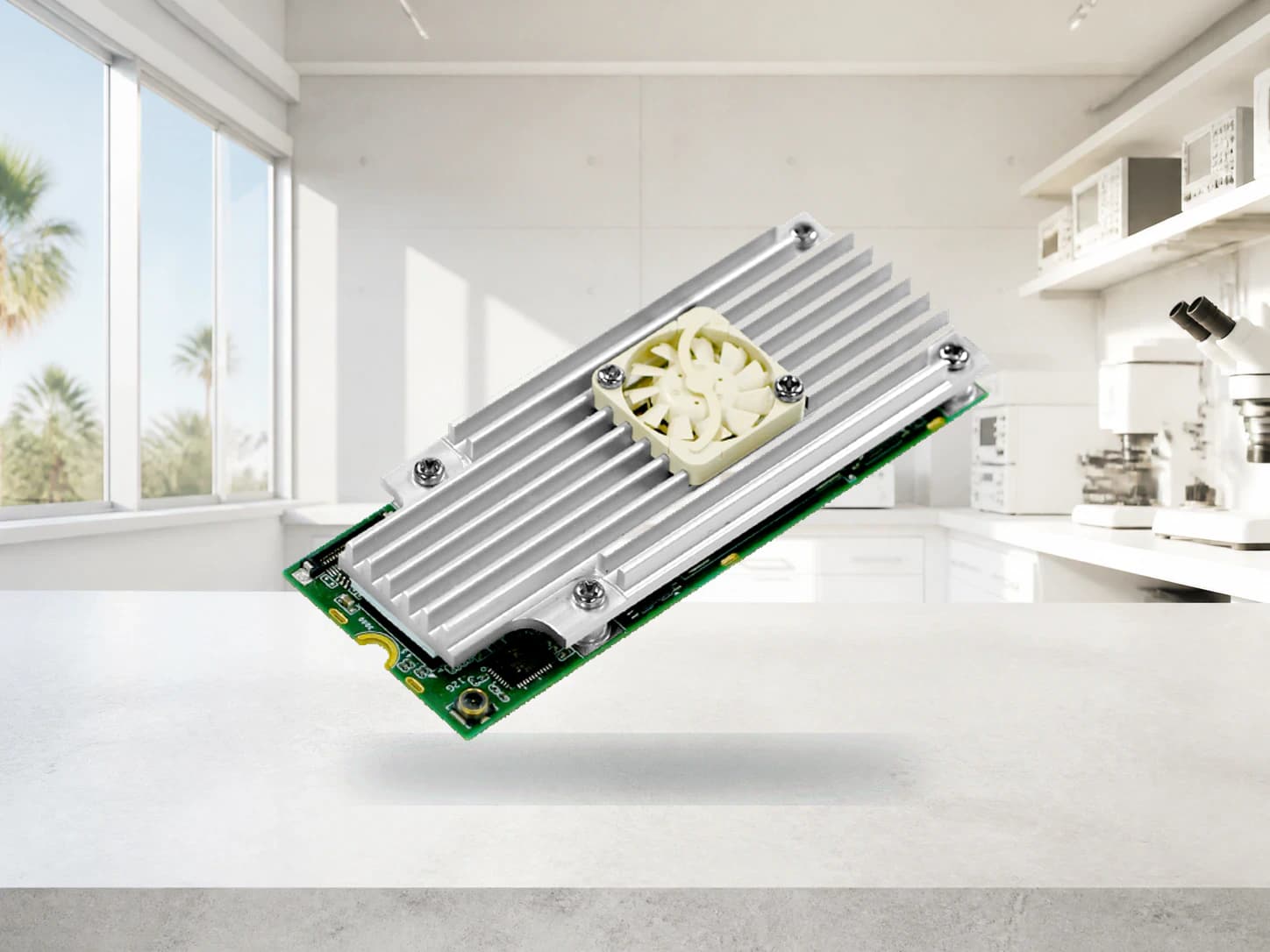

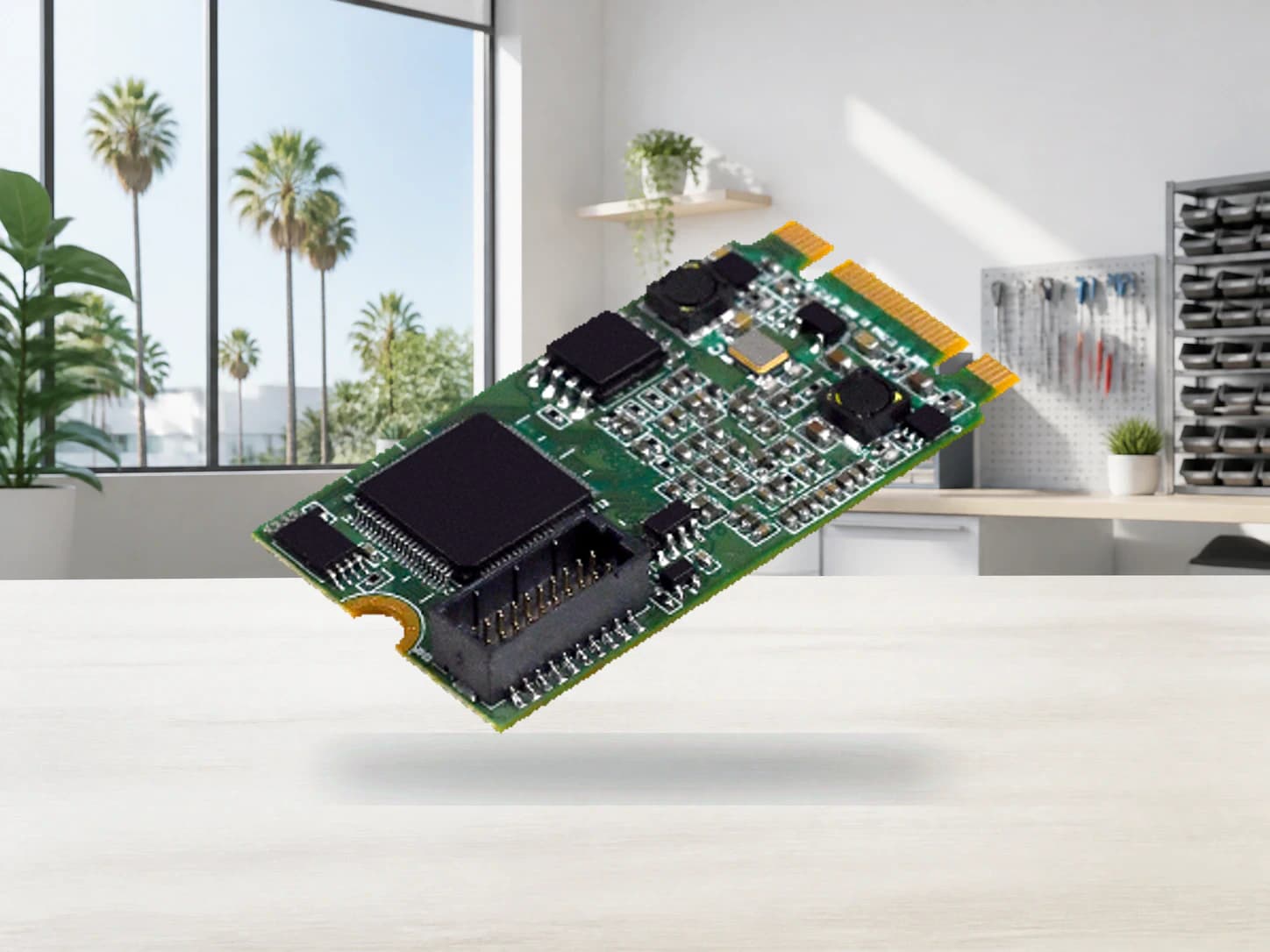

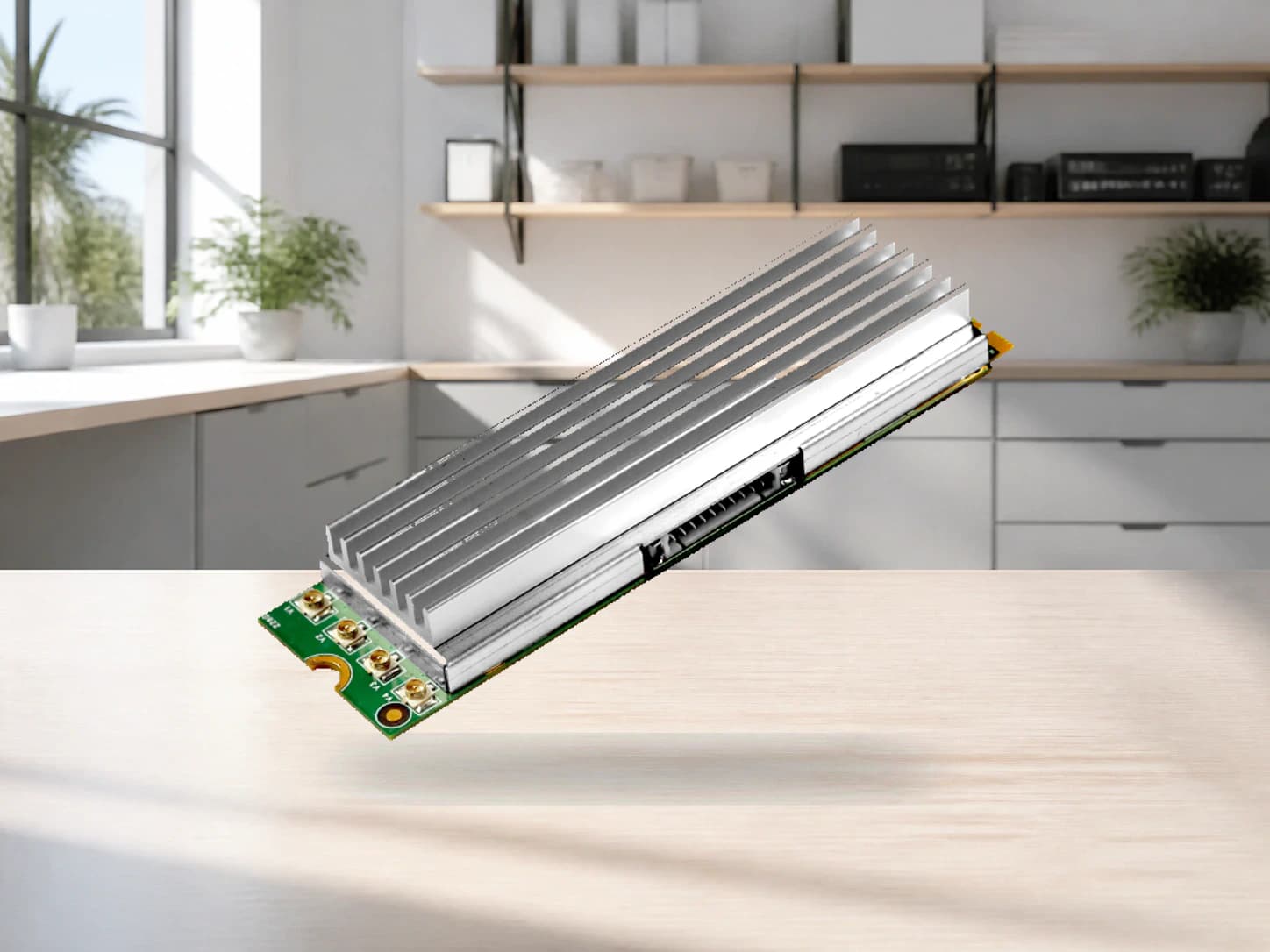

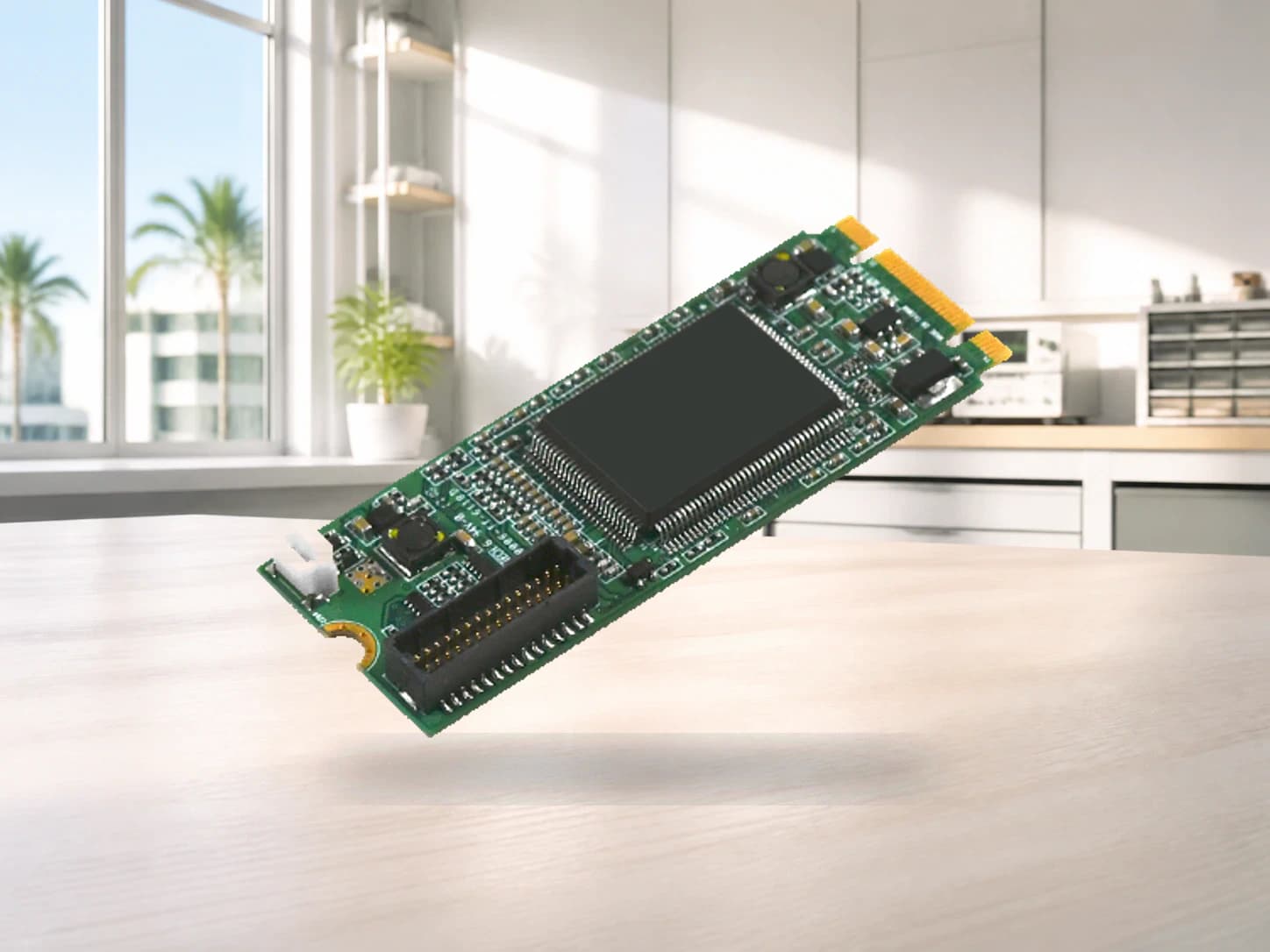

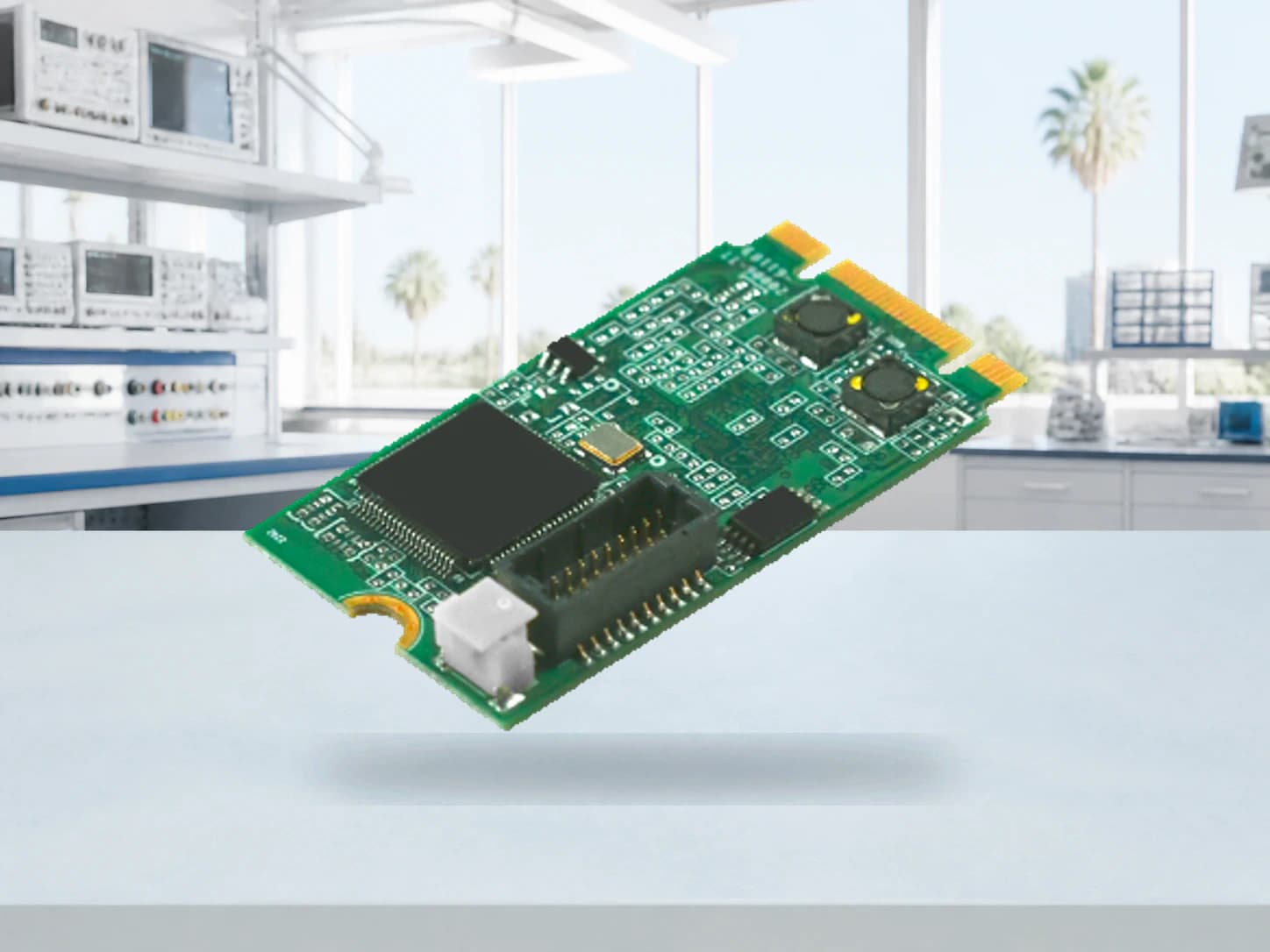

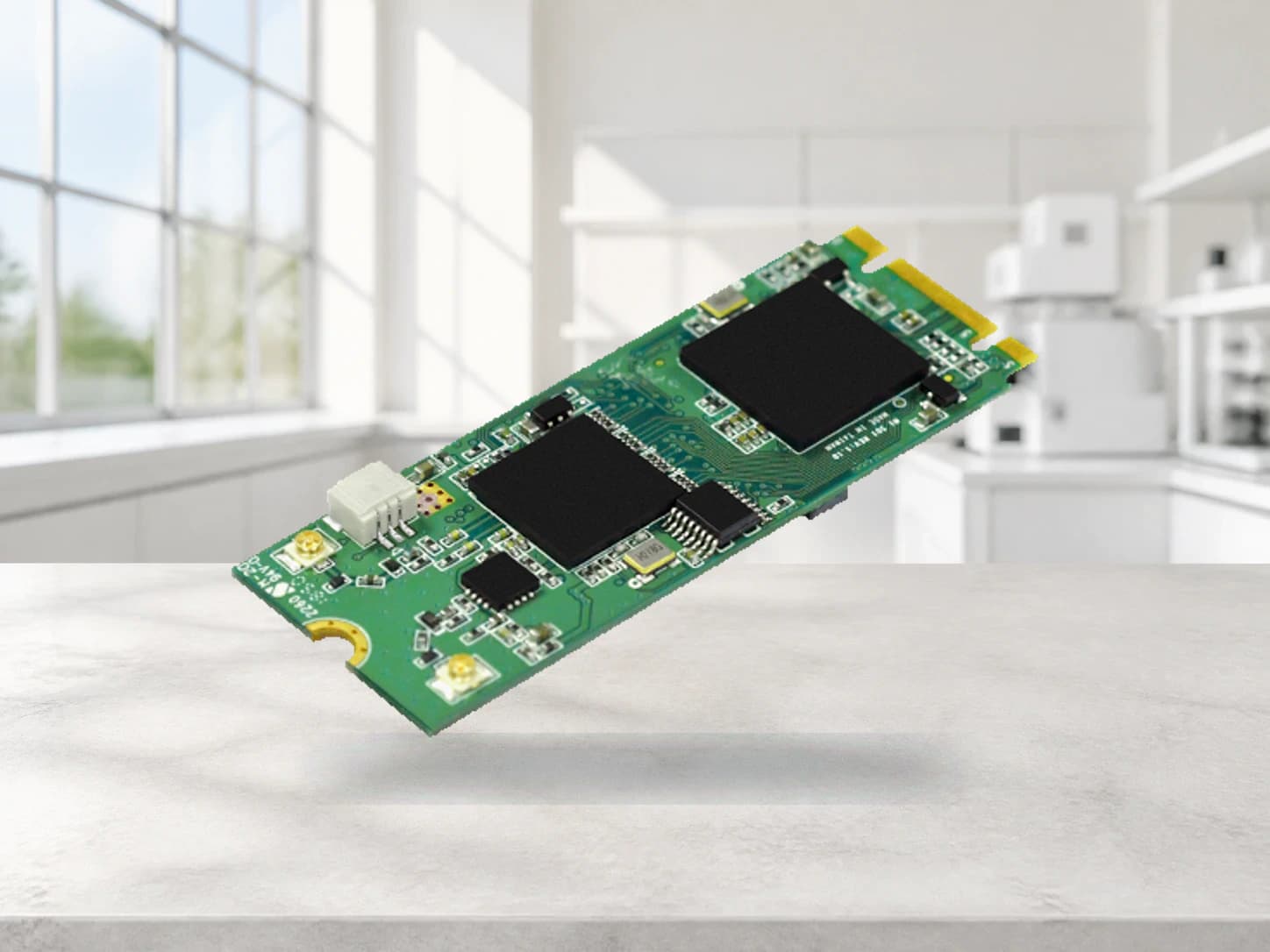

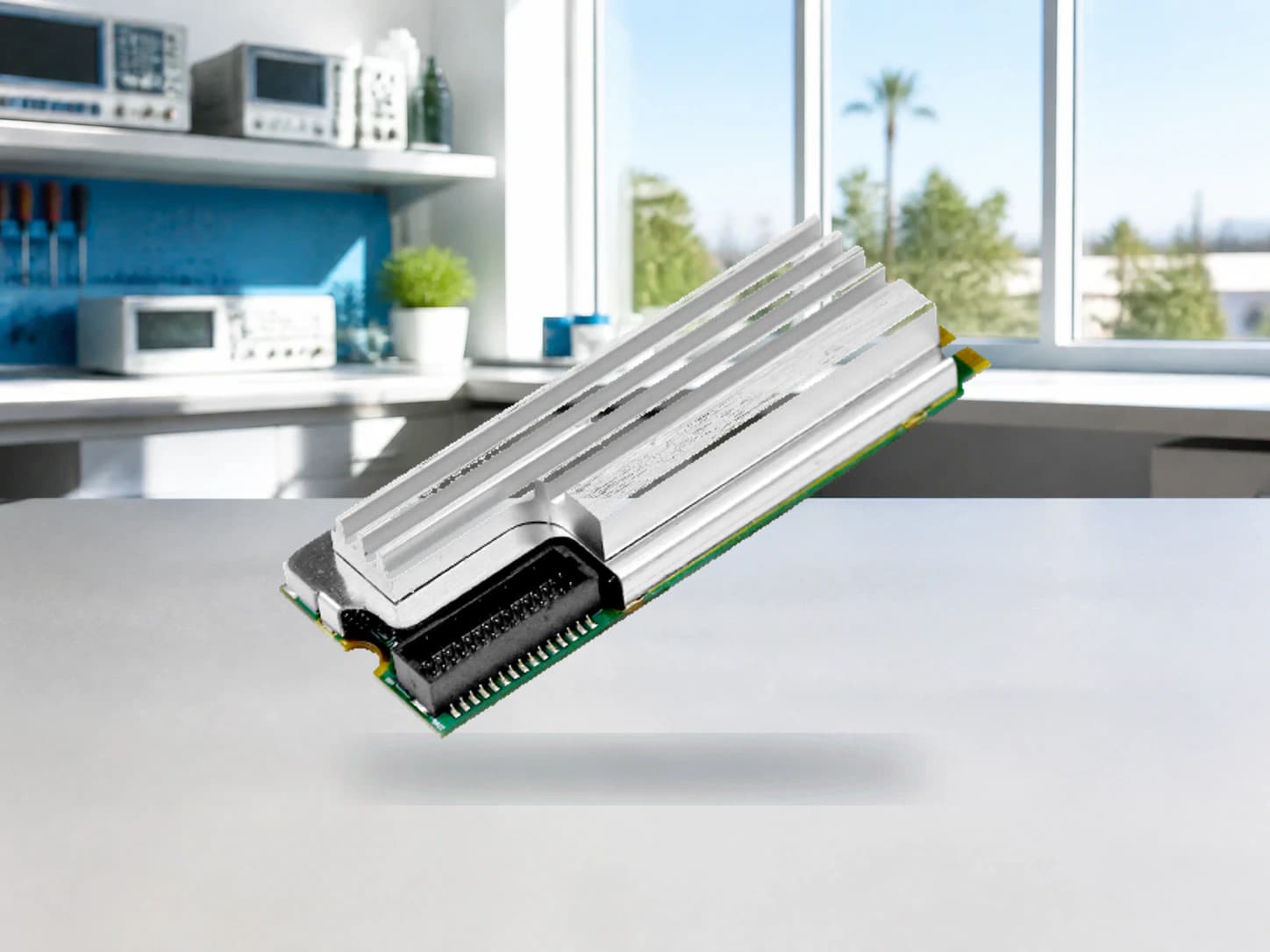

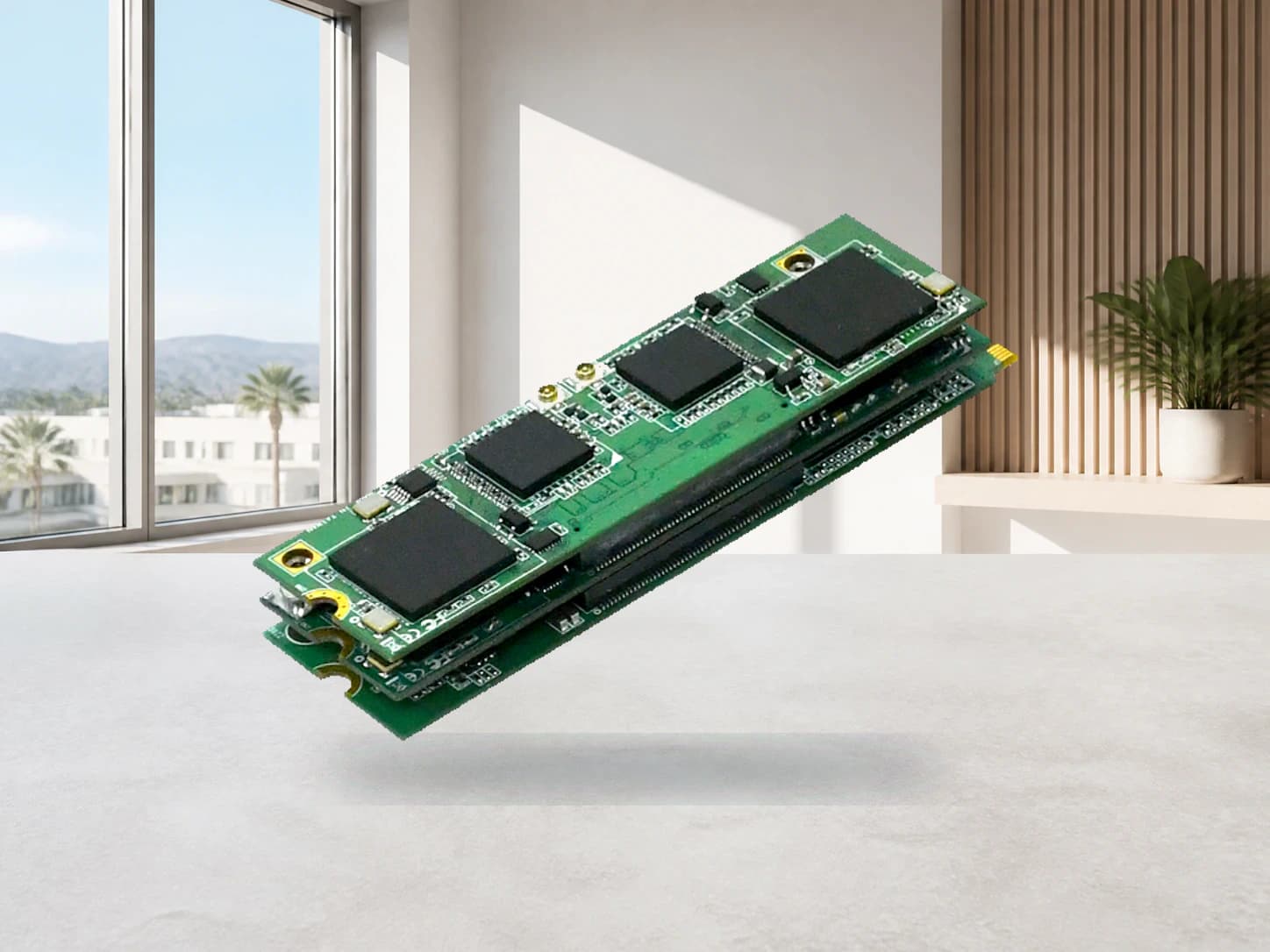

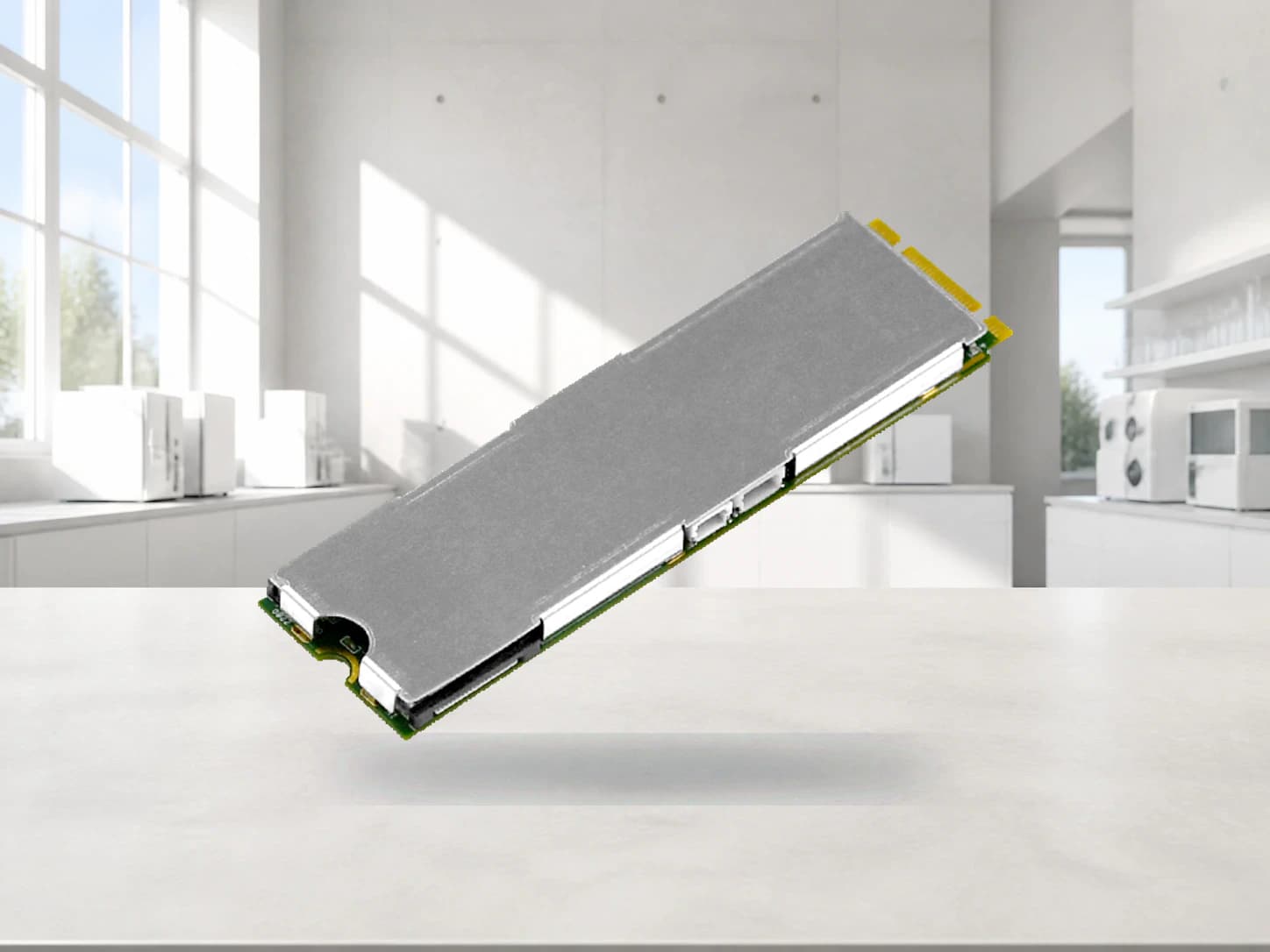

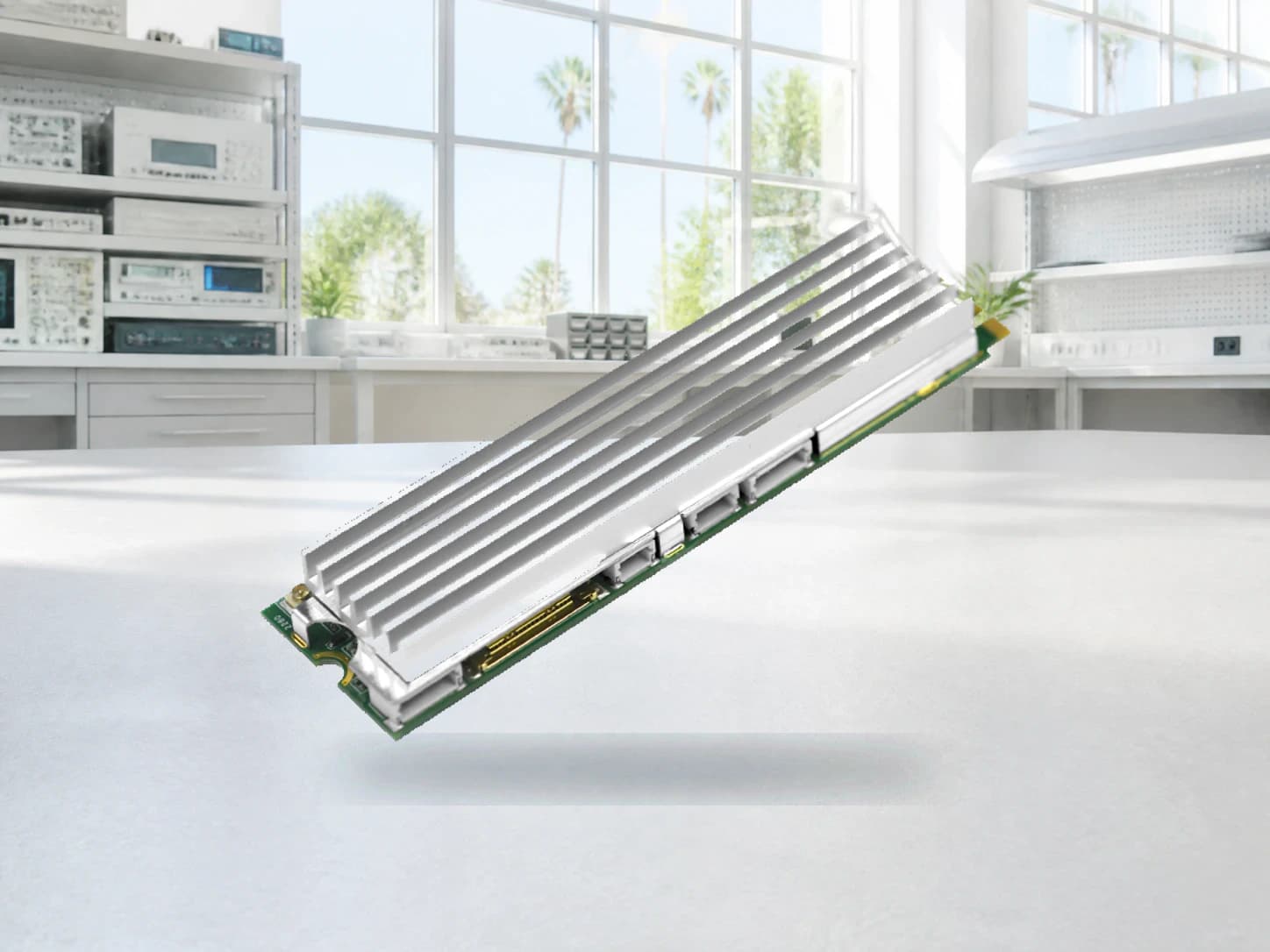

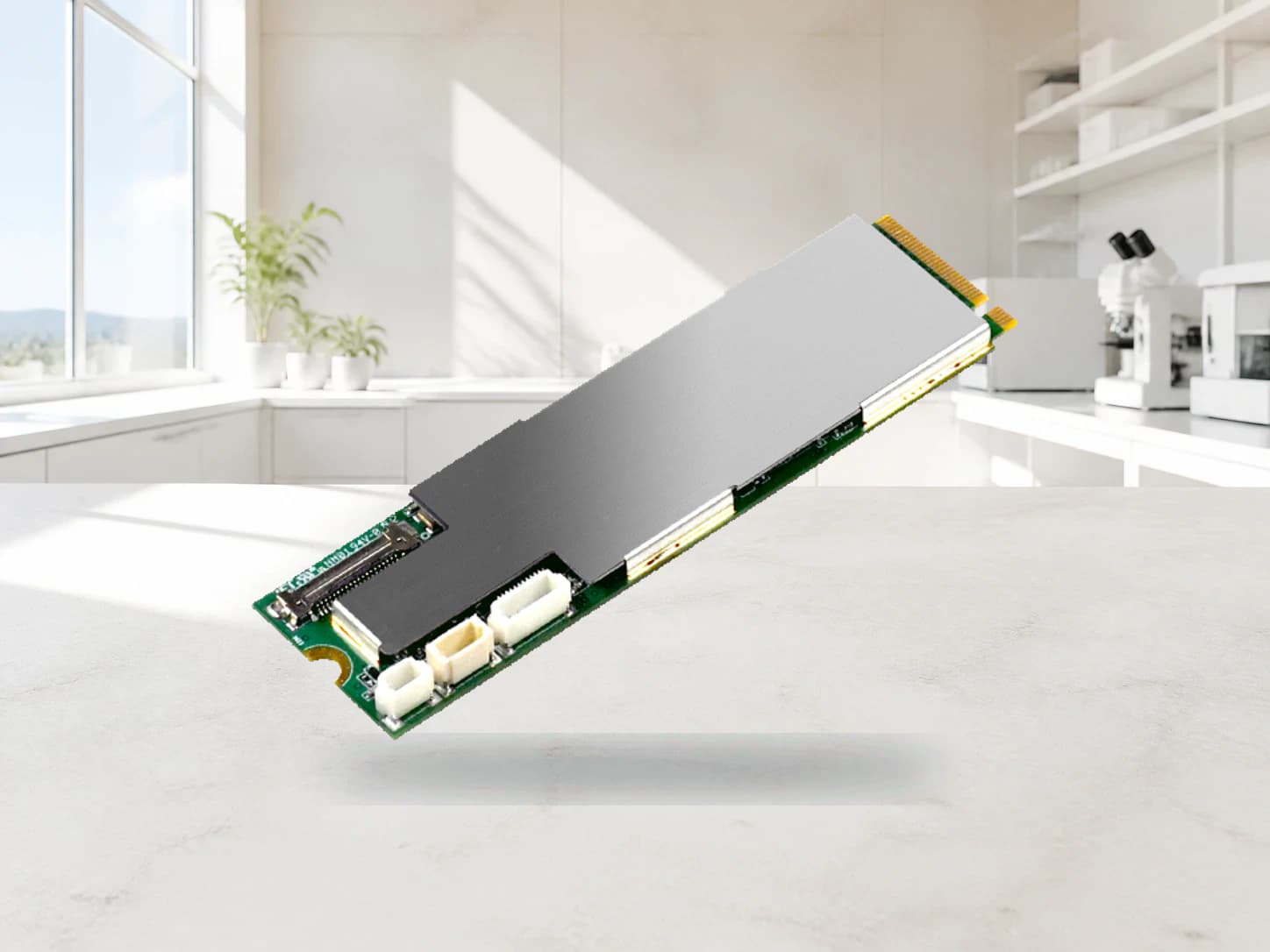

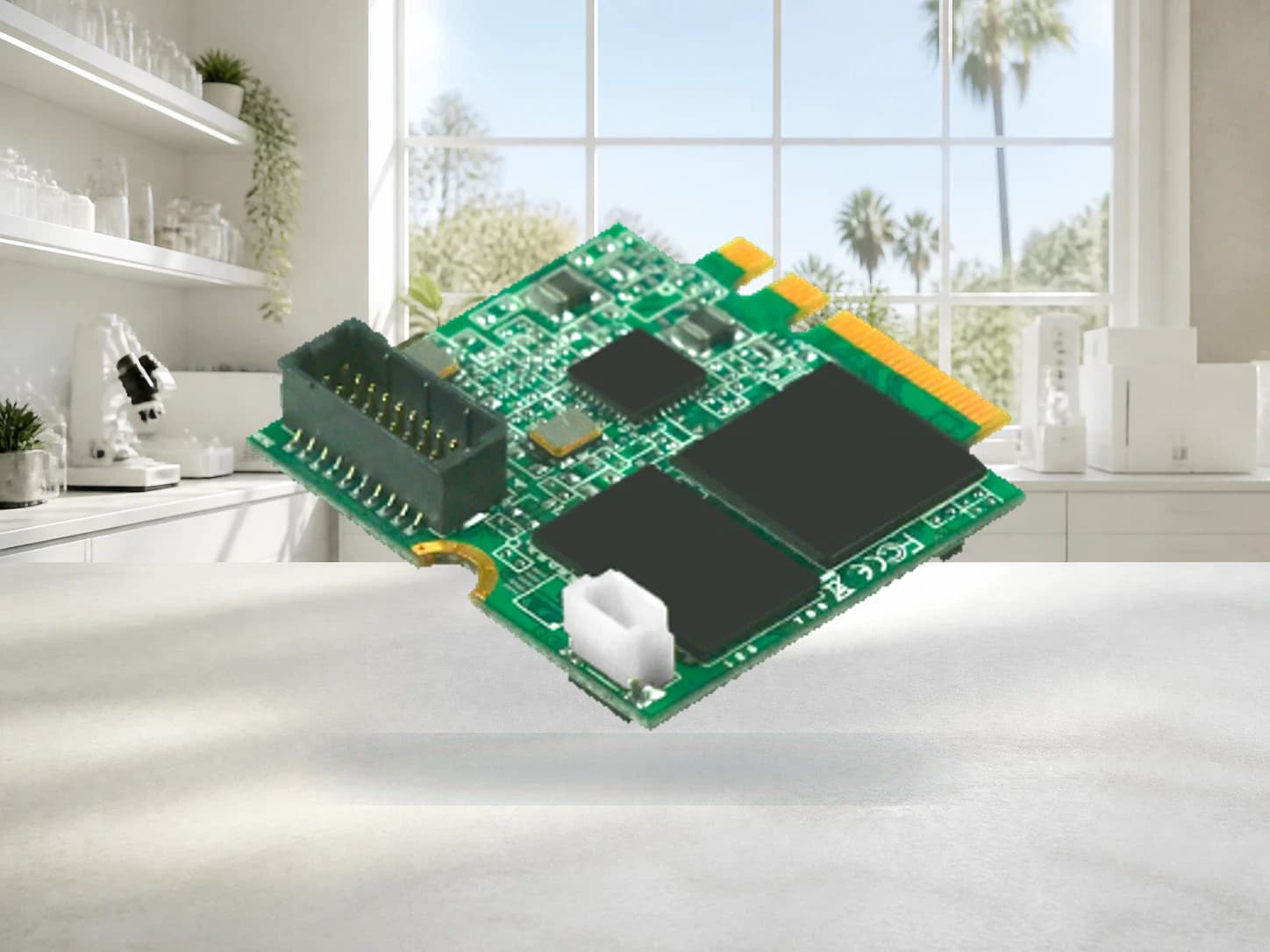

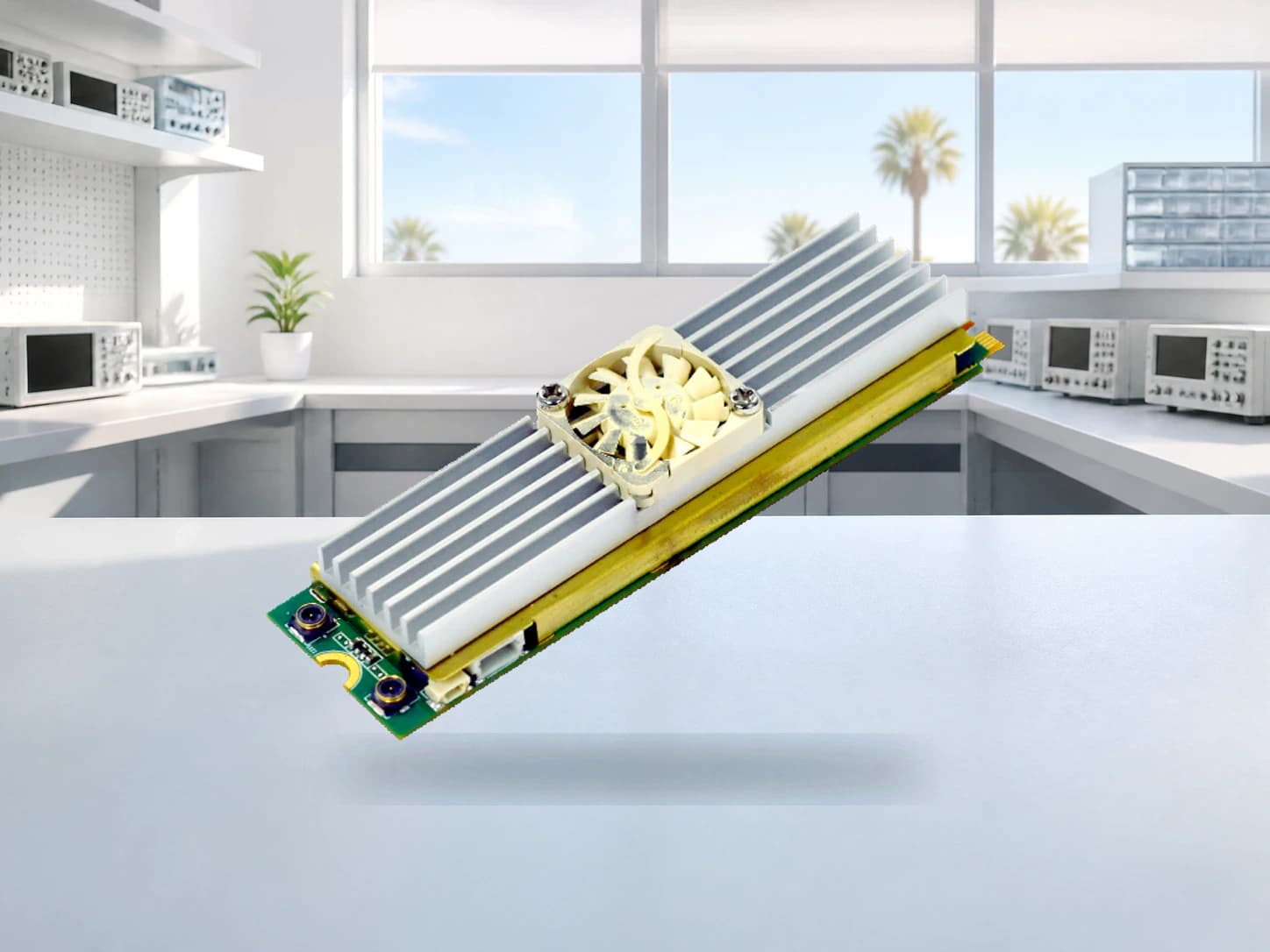

M.2

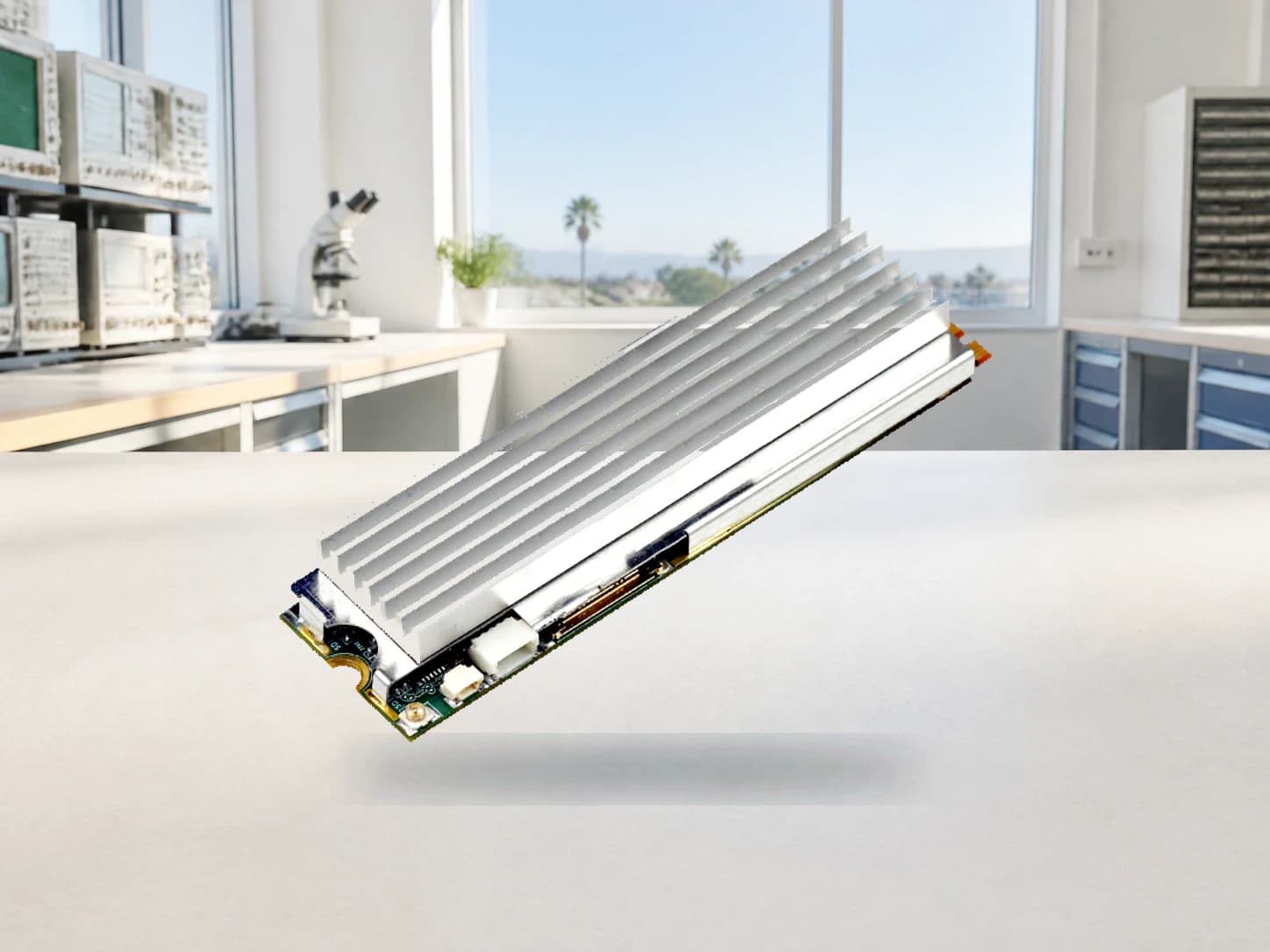

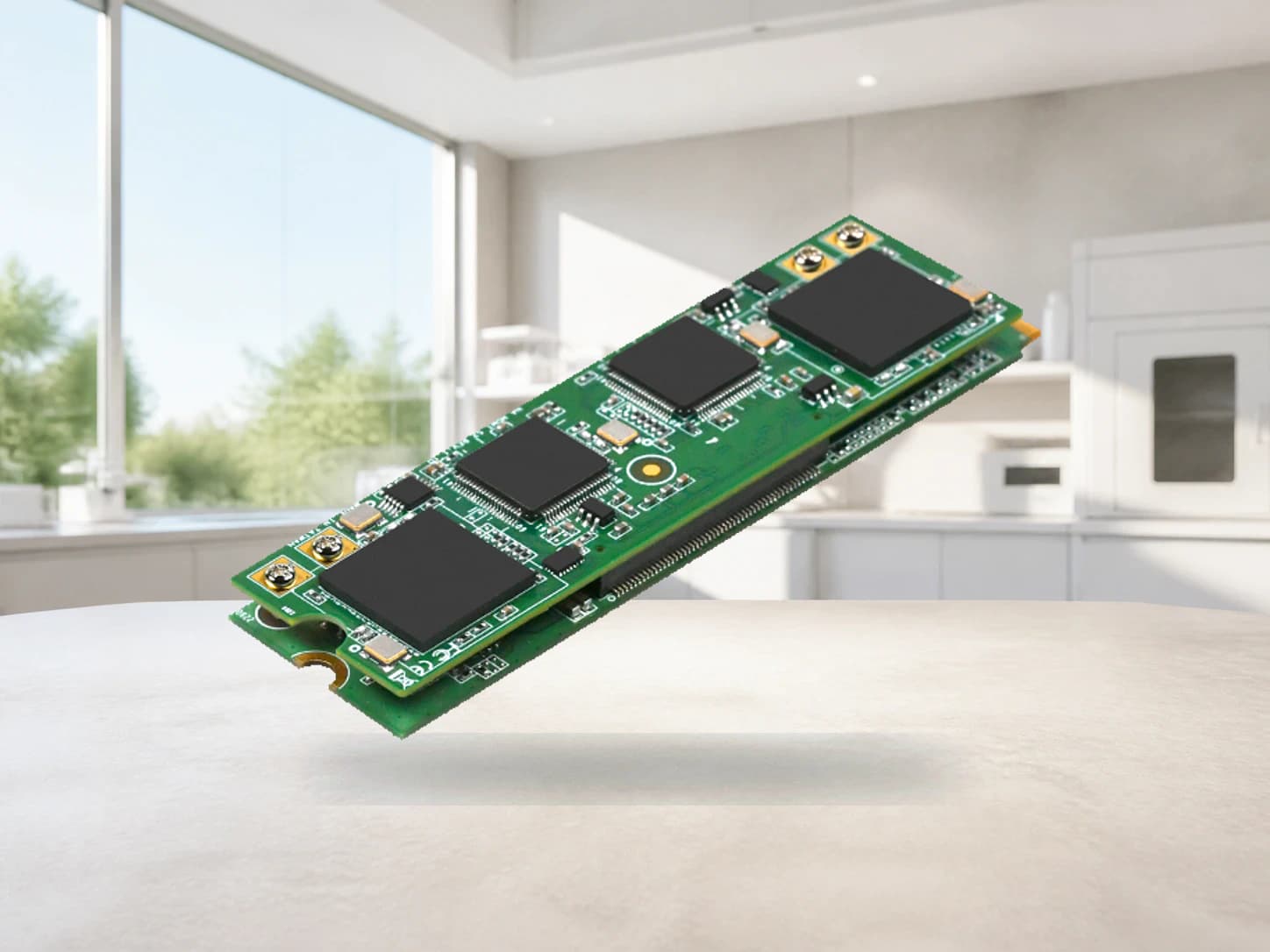

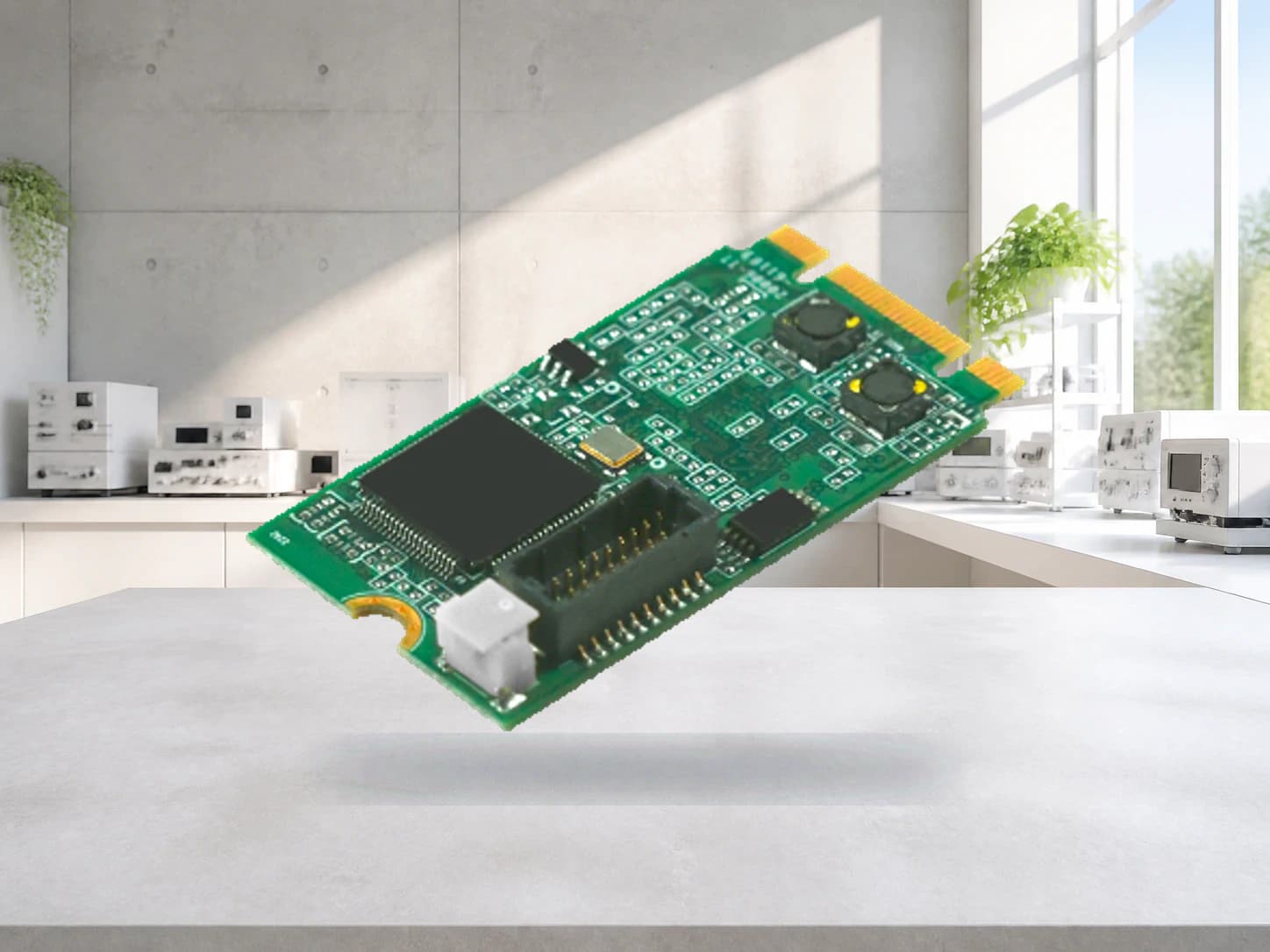

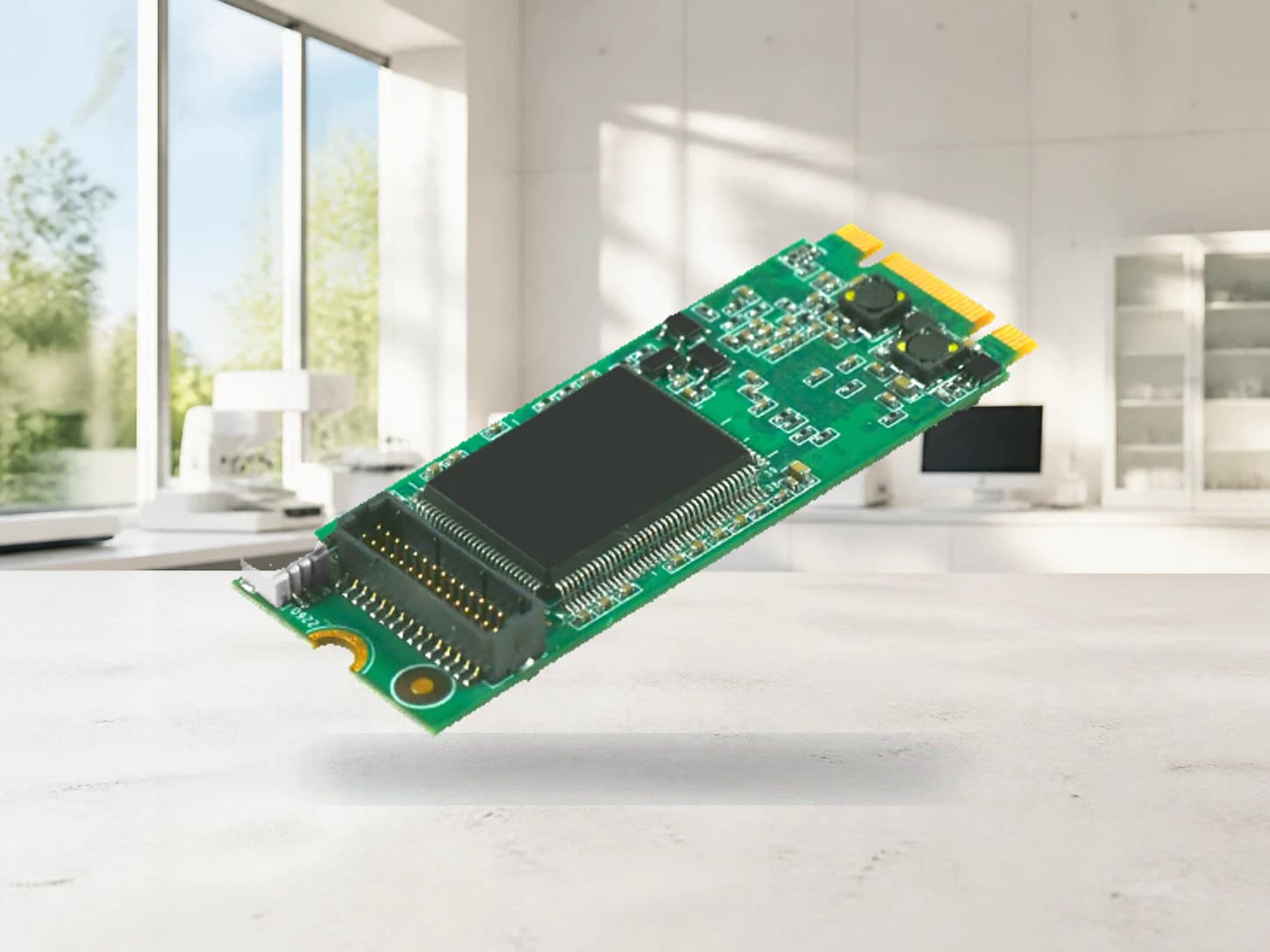

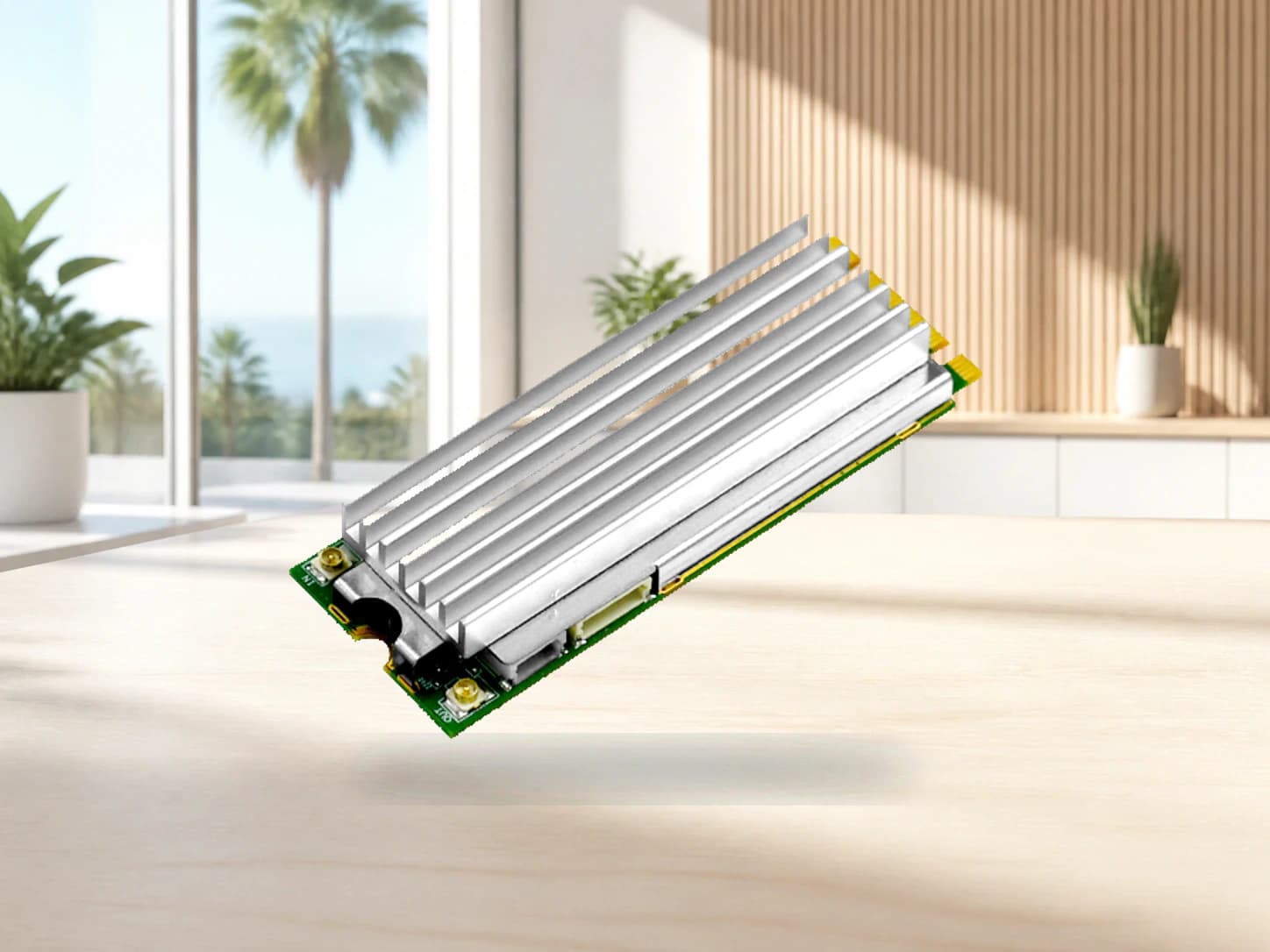

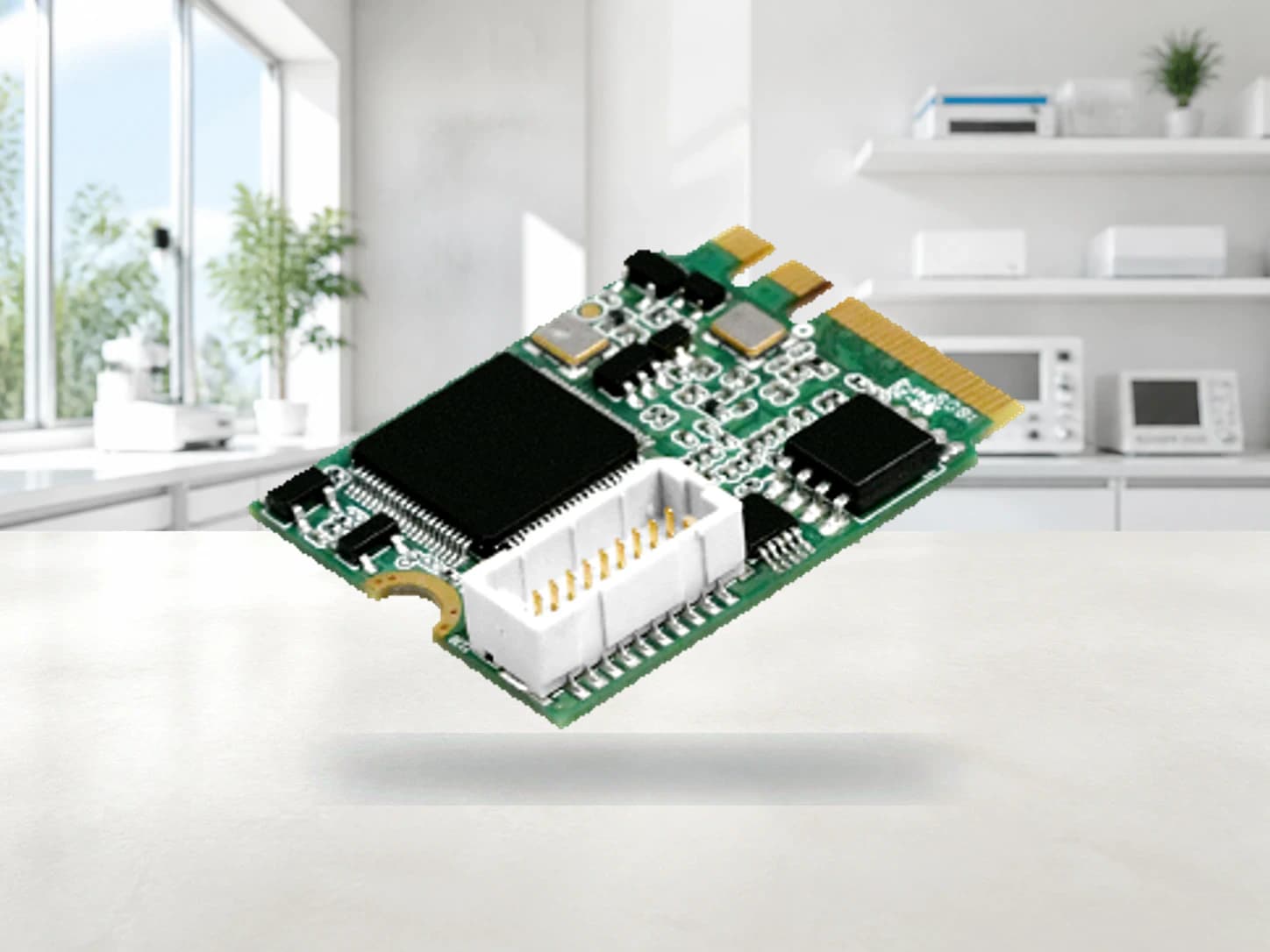

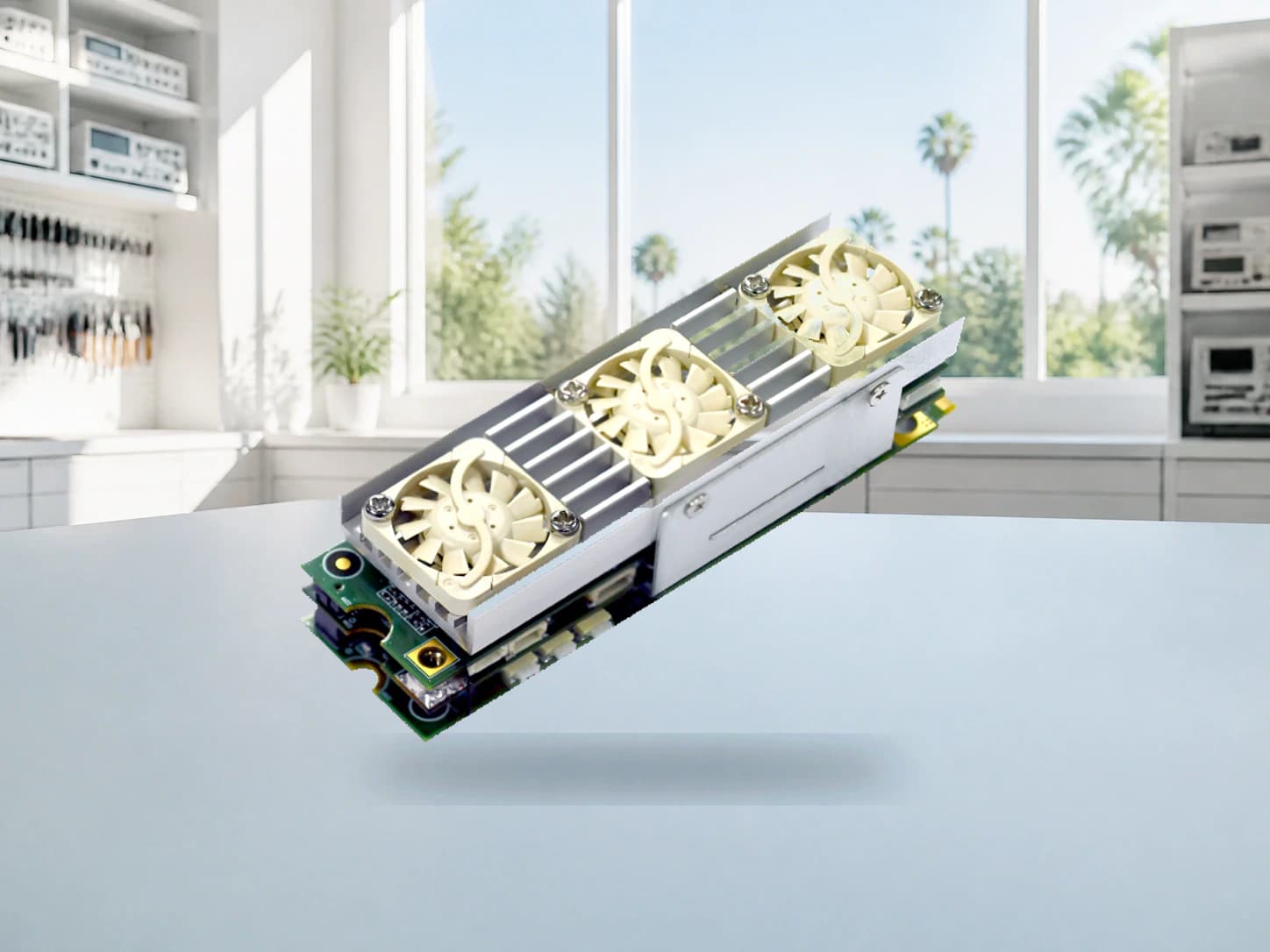

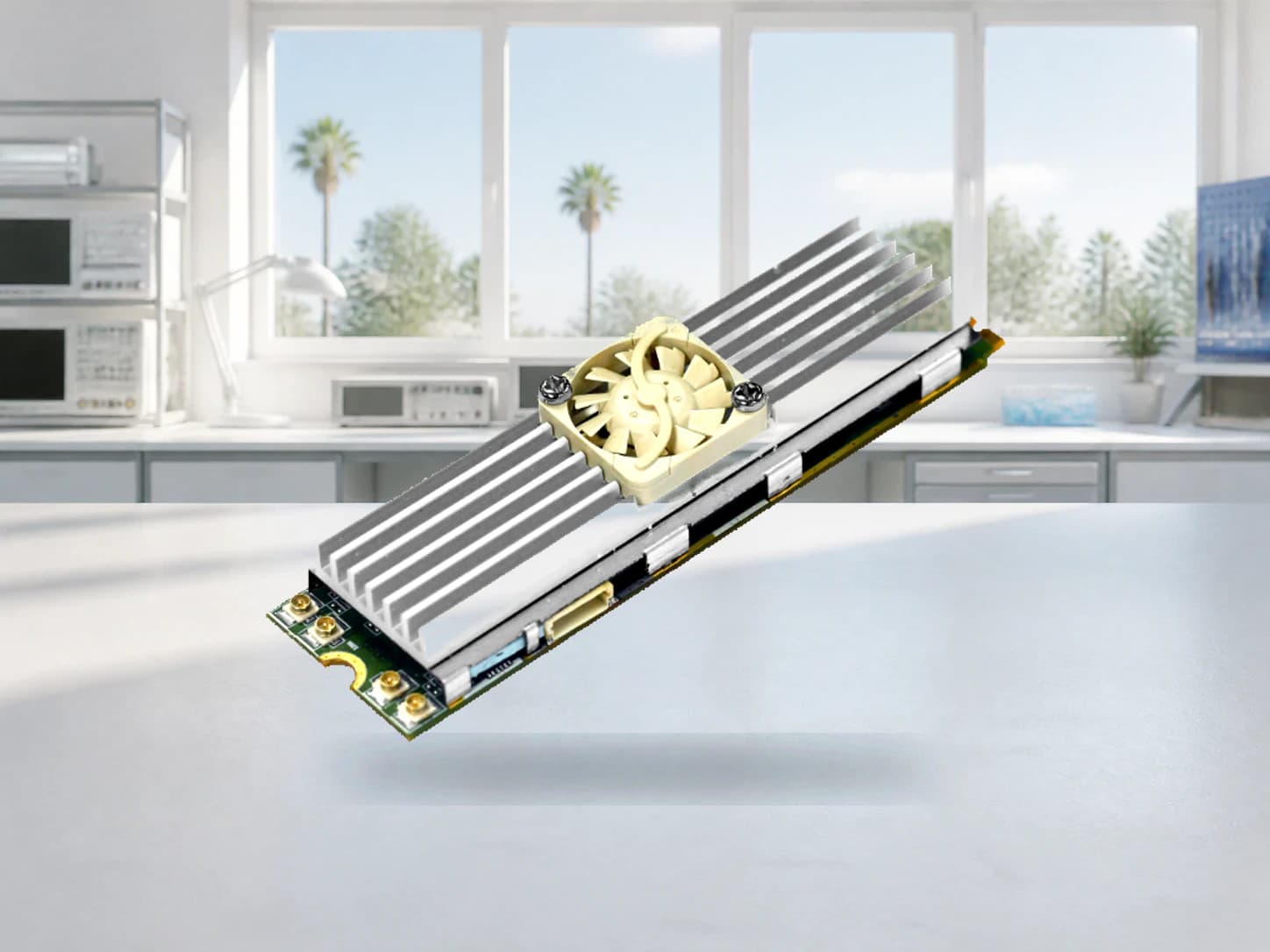

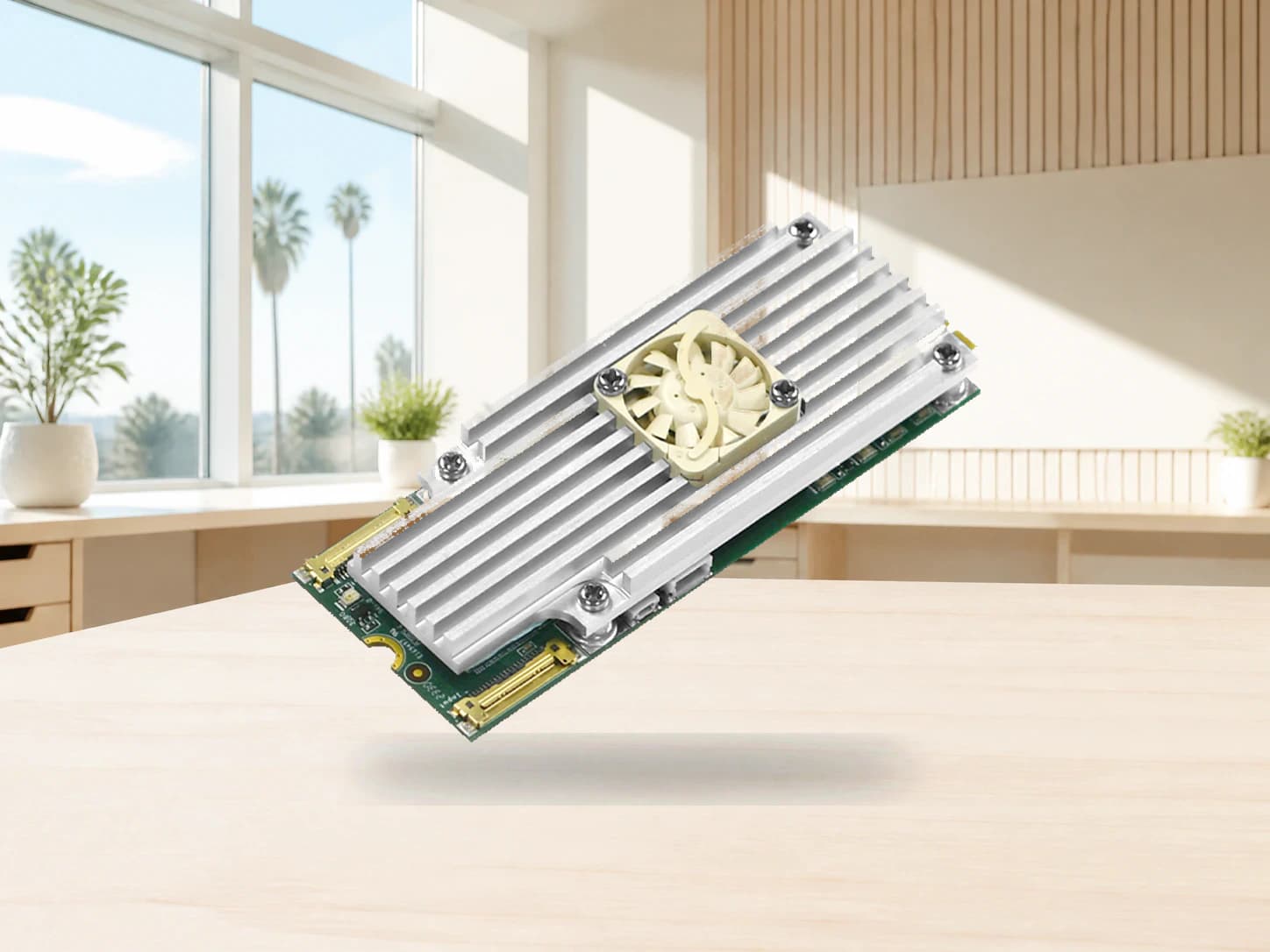

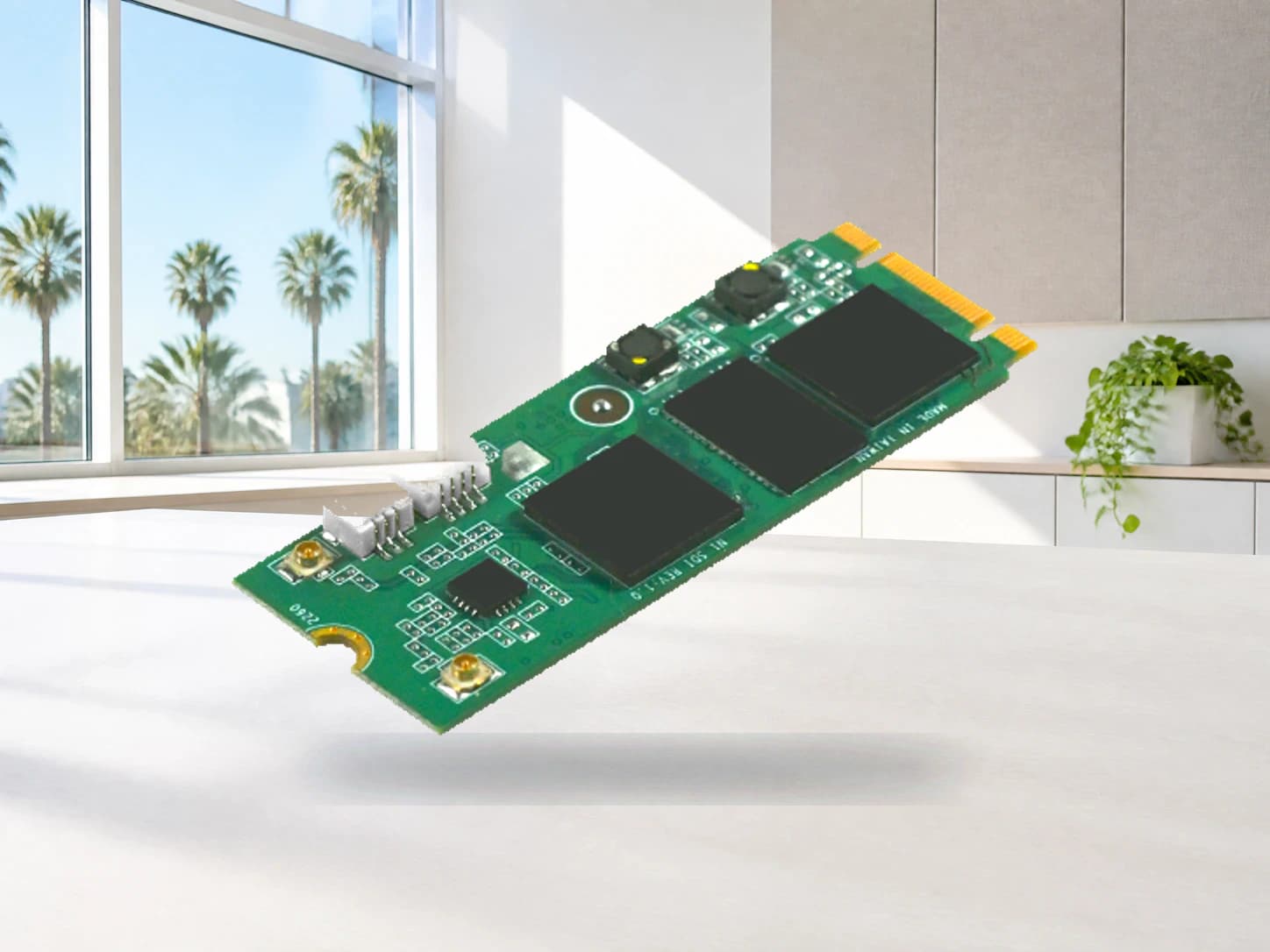

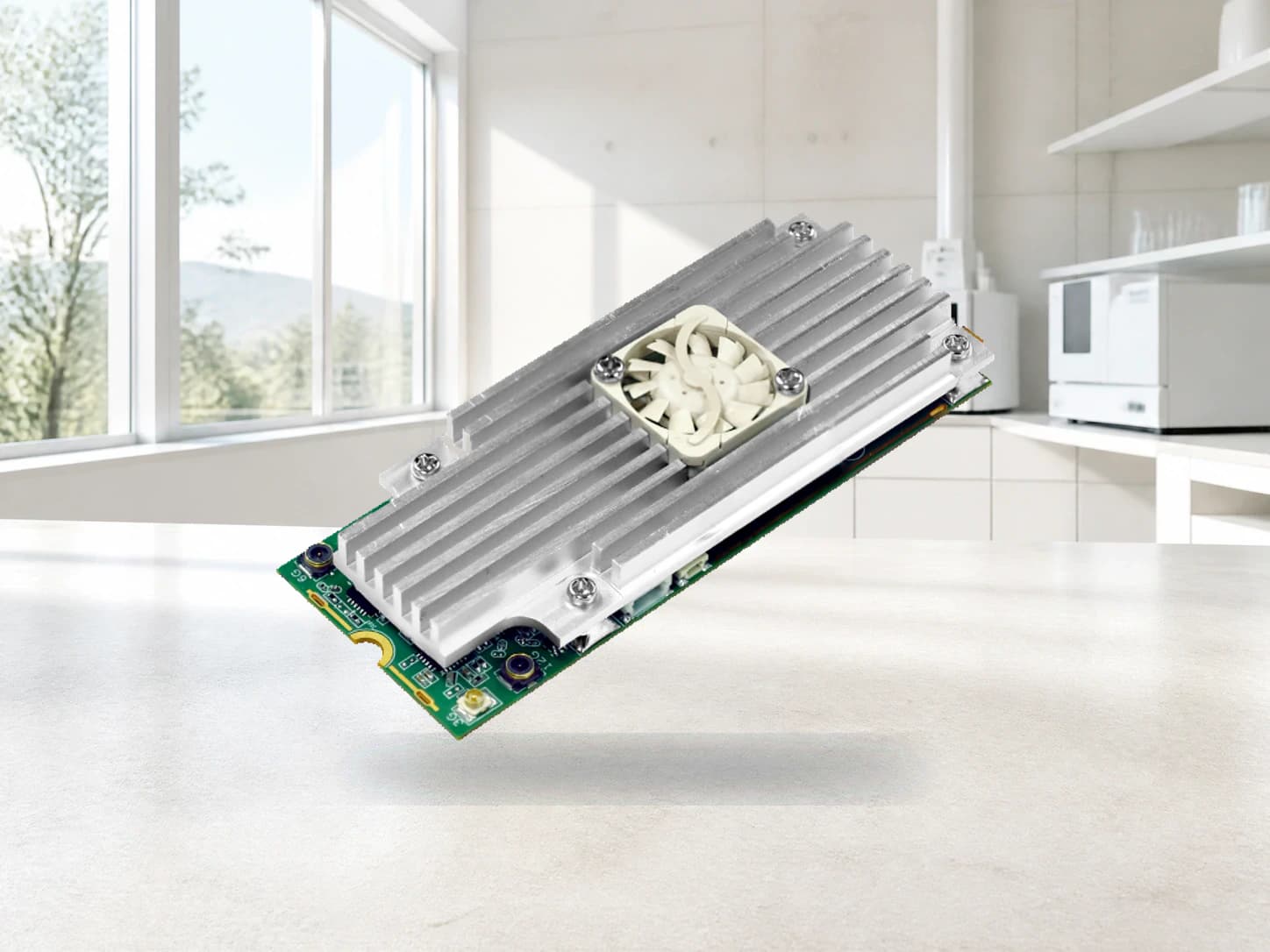

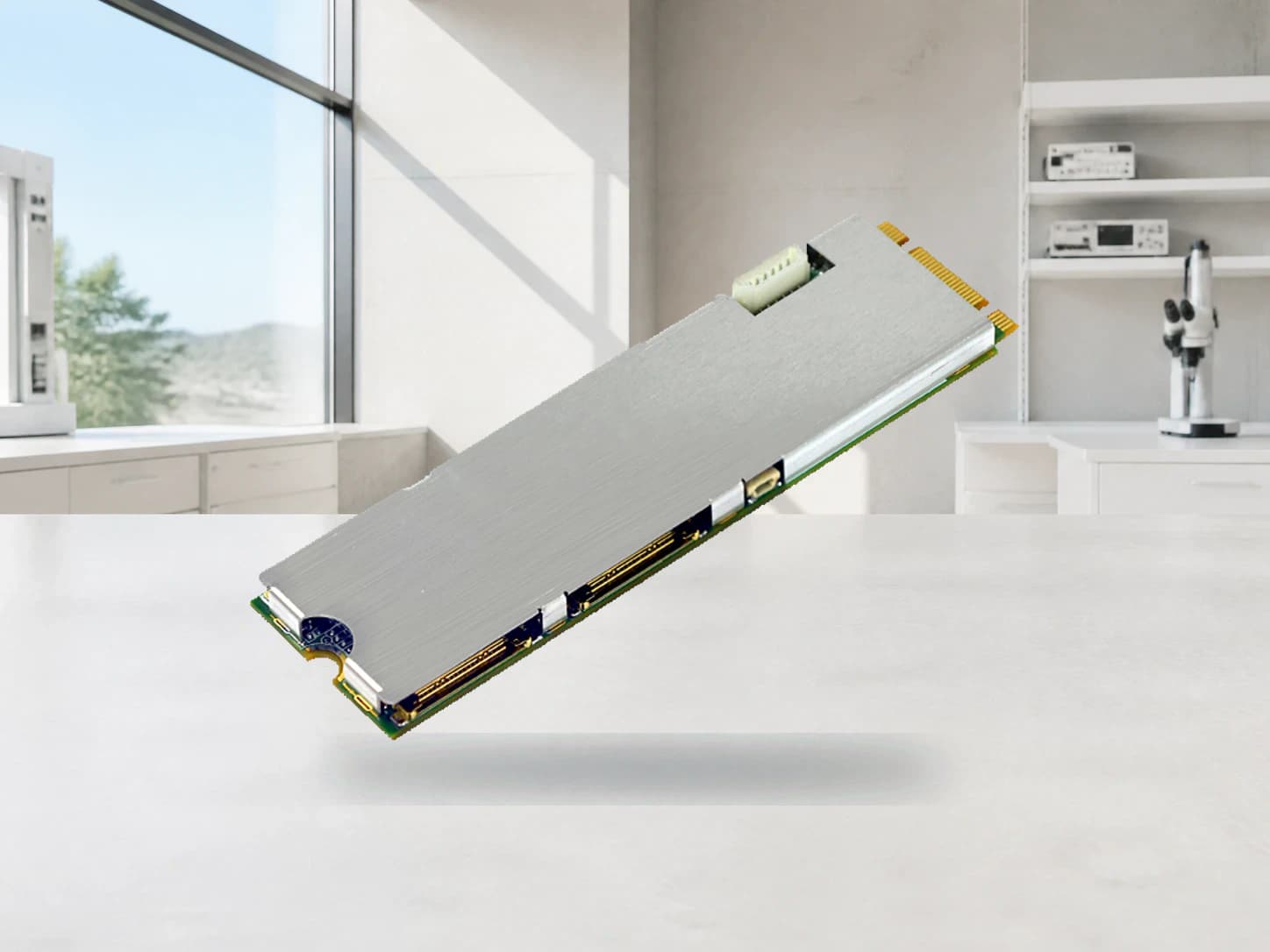

ProAV M.2 cards provide video capture in compact systems such as vehicles, drones, and embedded devices. The family includes A+E-key and B+M-key configurations plus standard- and wide-temperature options from -40 C to 85 C.
- M.2 ( PCIe×1 )
- M.2 ( PCIe×4 )
- 1920×1080p@60/50fps
- M.2 ( PCIe×2 )
- 4096×2160p@60/50fps
- 1×HDMI
Show all 32 ProAV M.2 products24 more

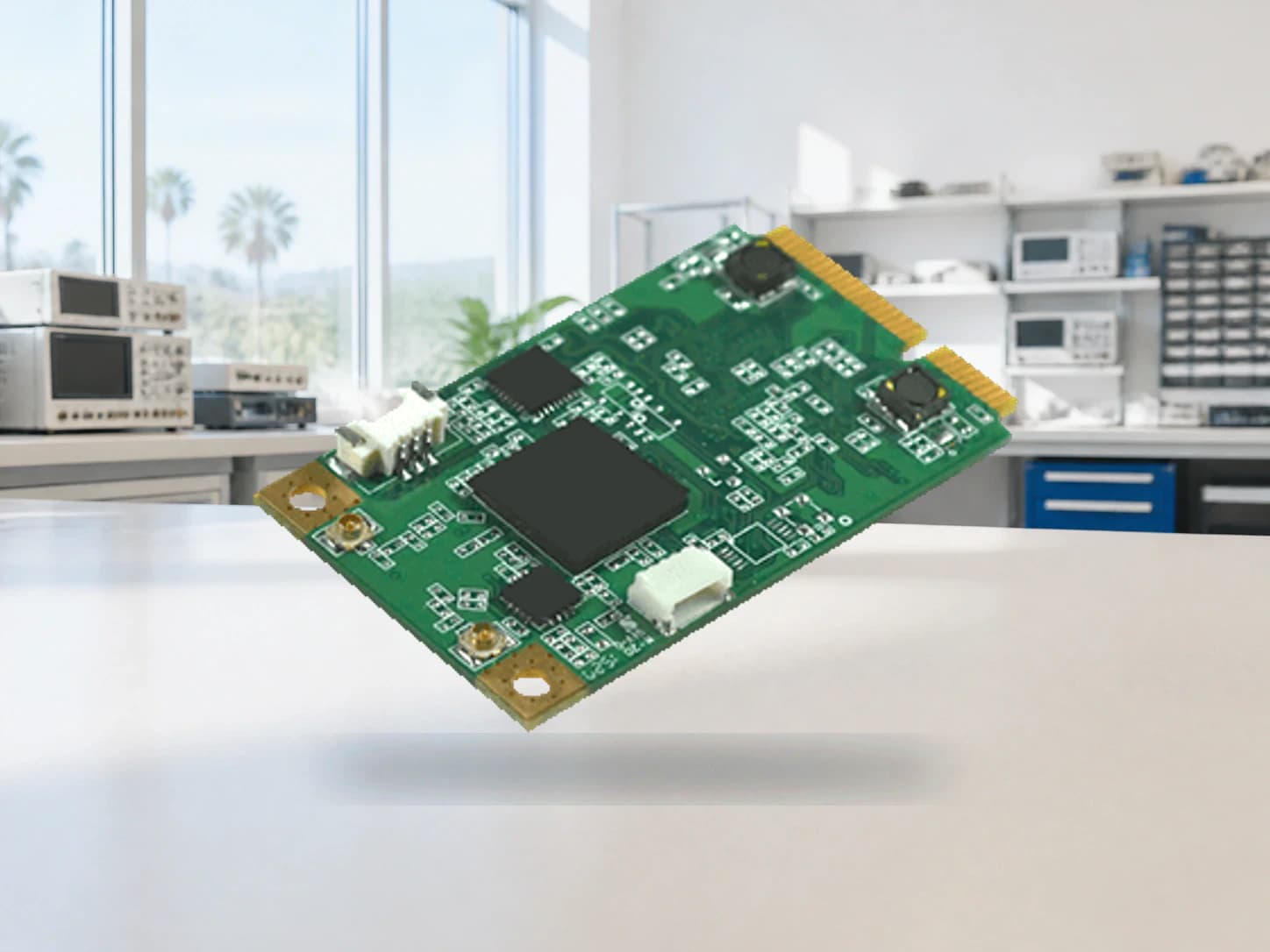

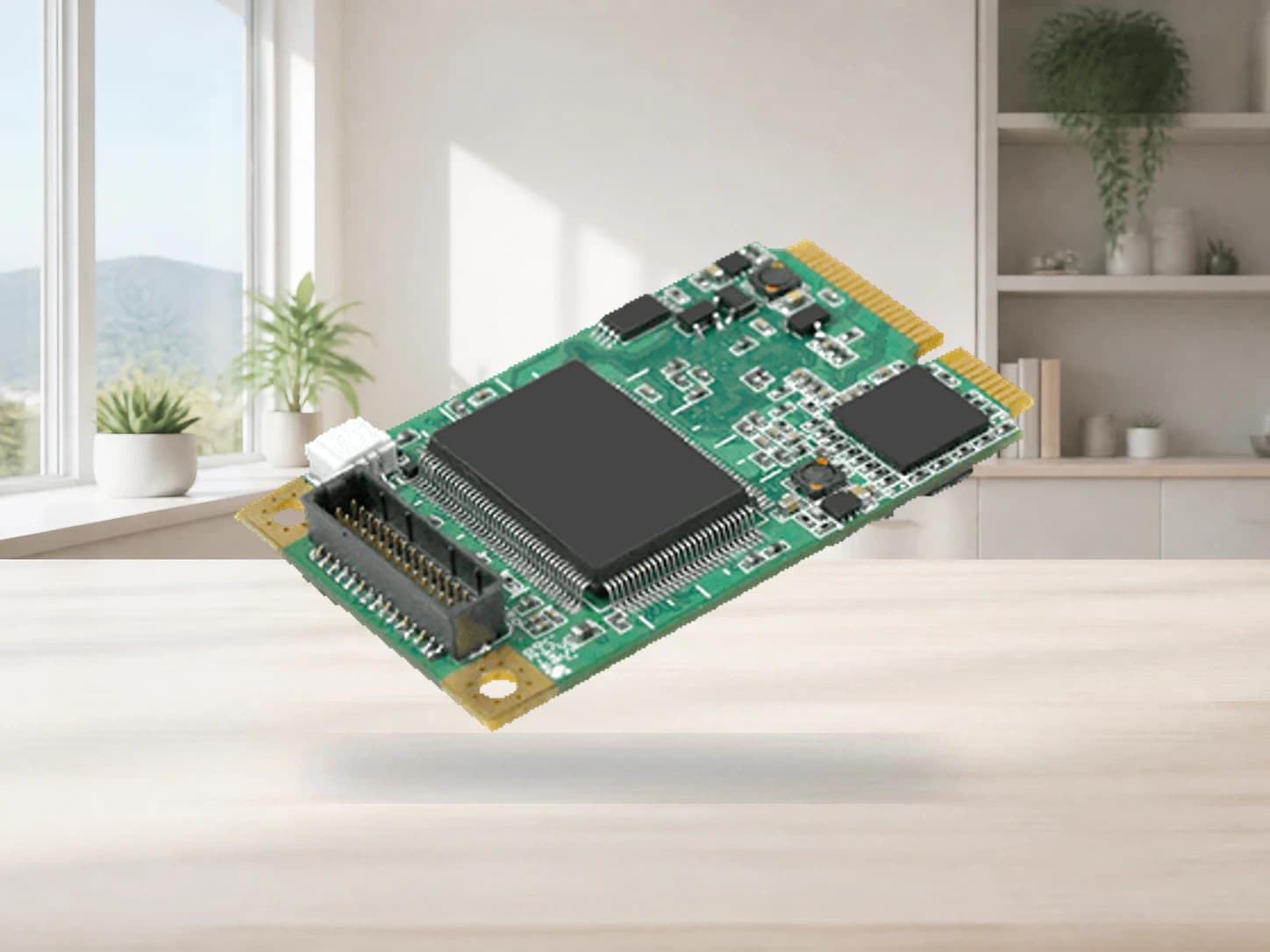

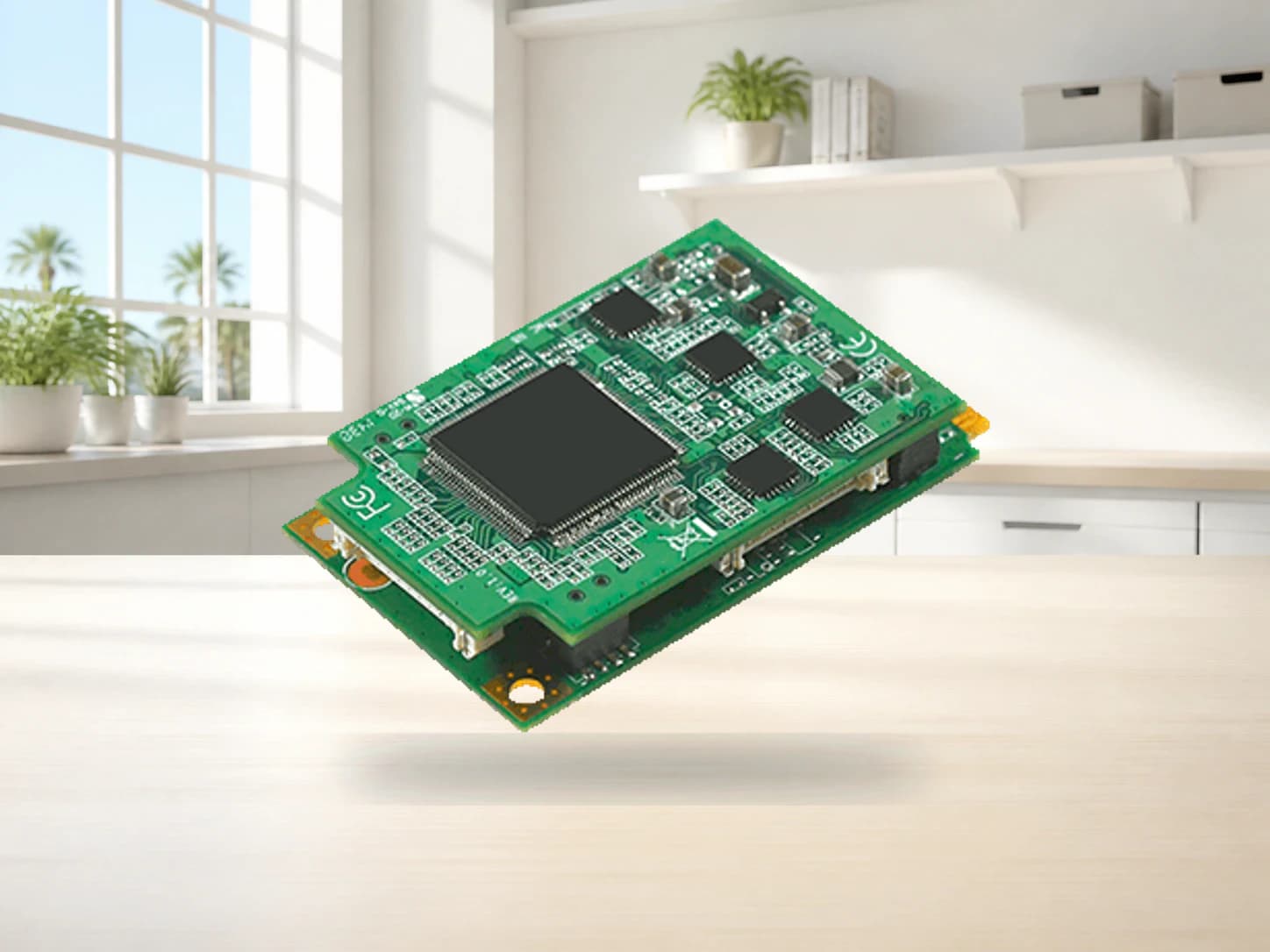

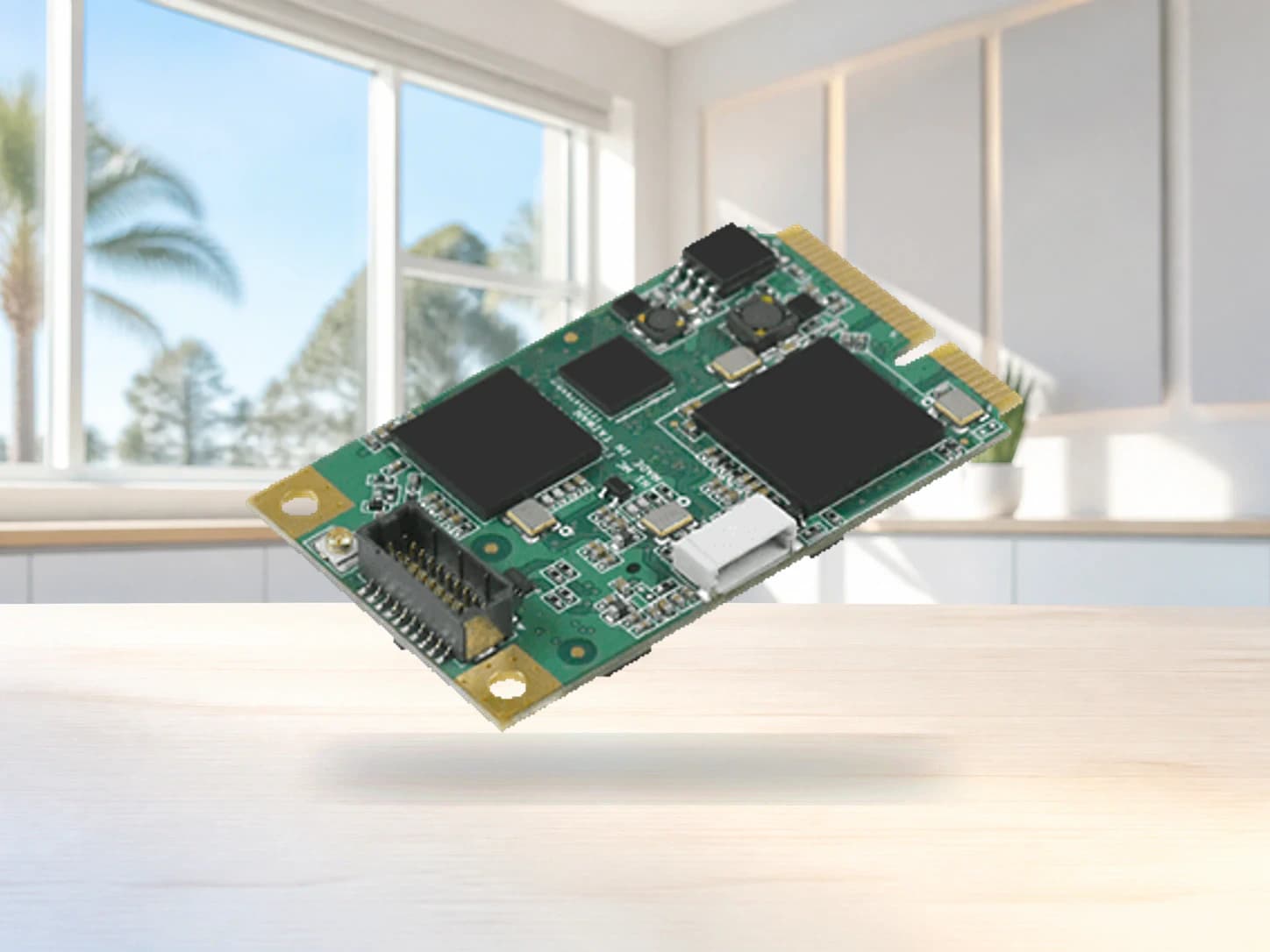

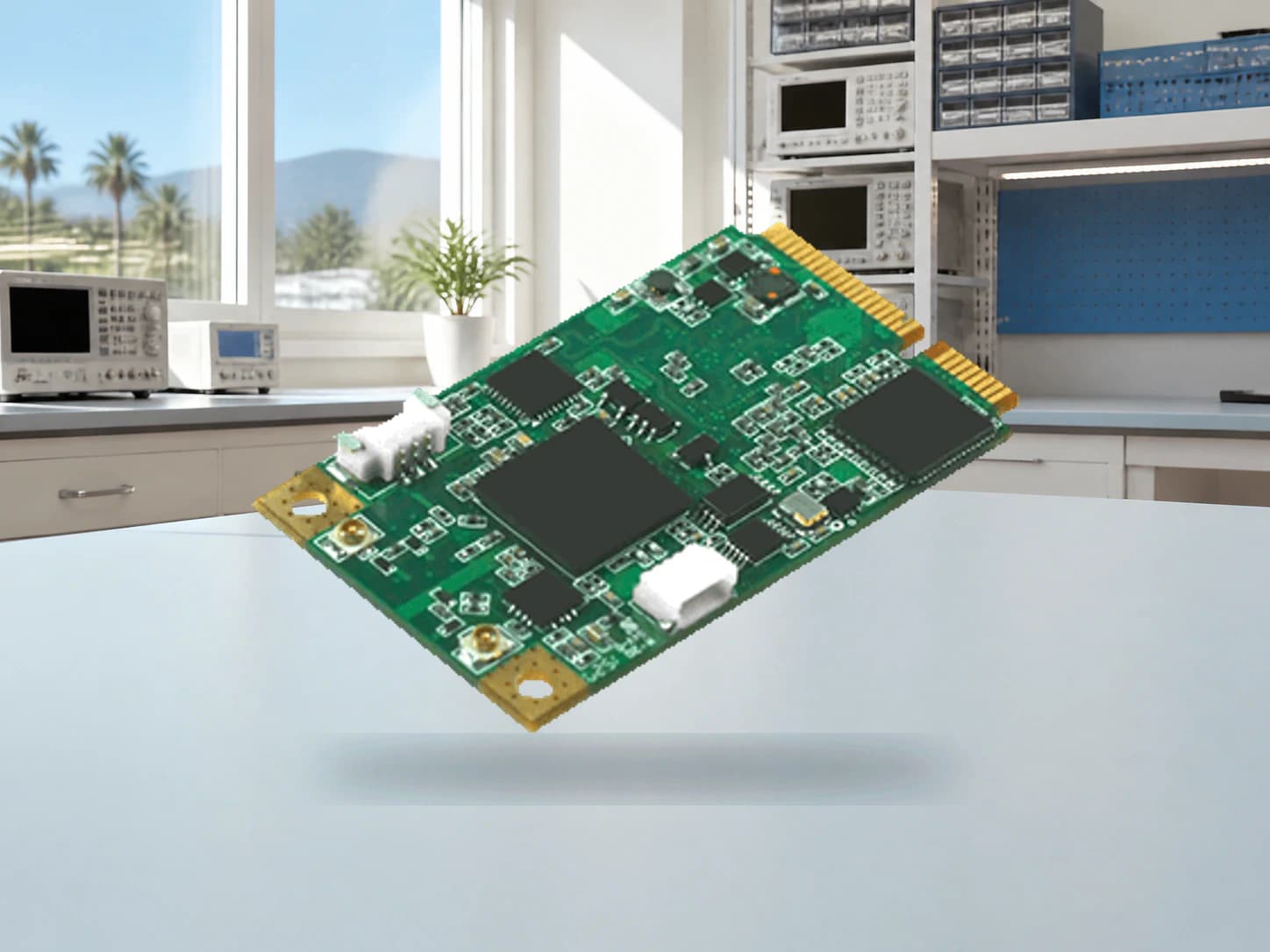

MiniPCIe

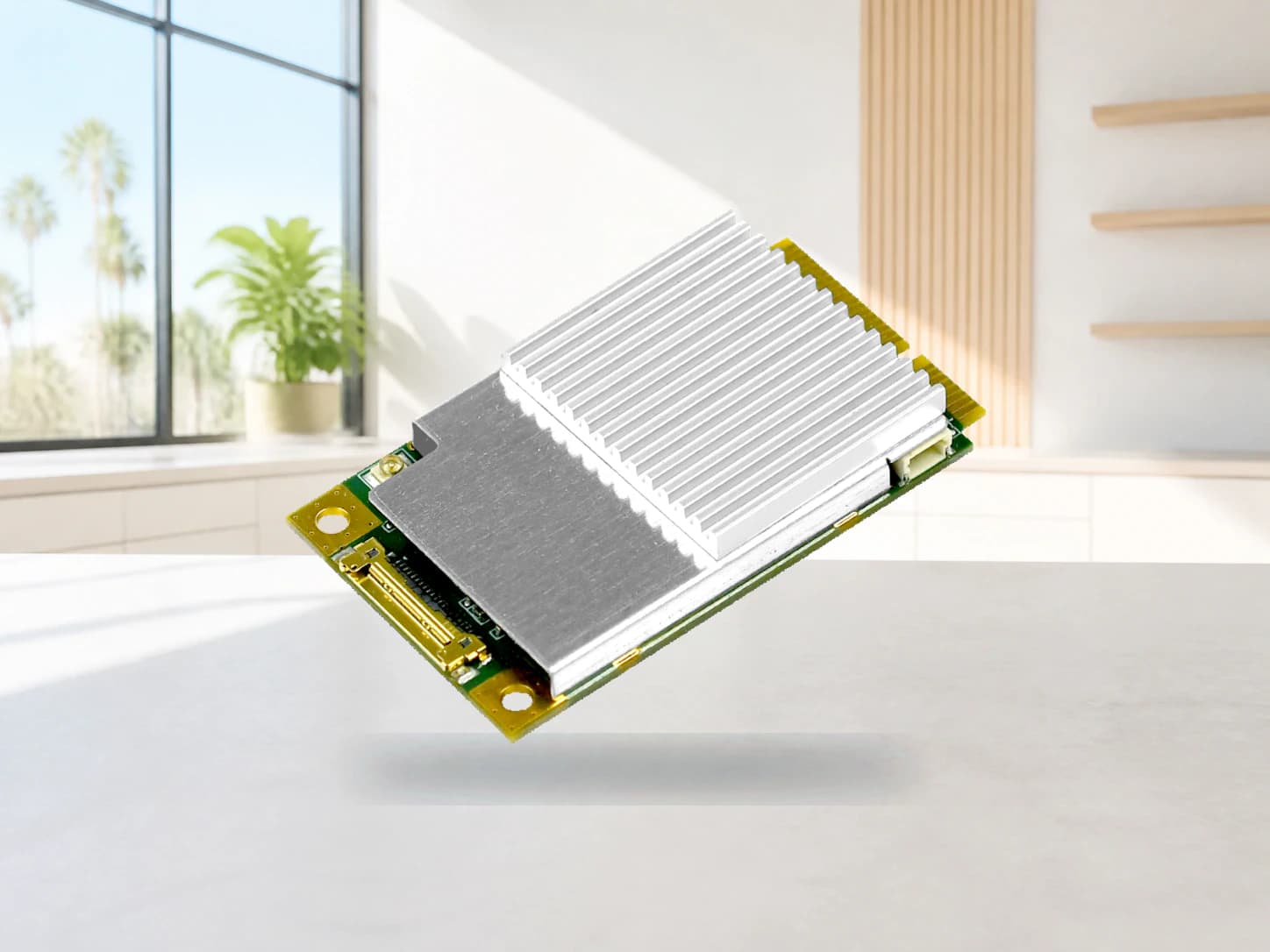

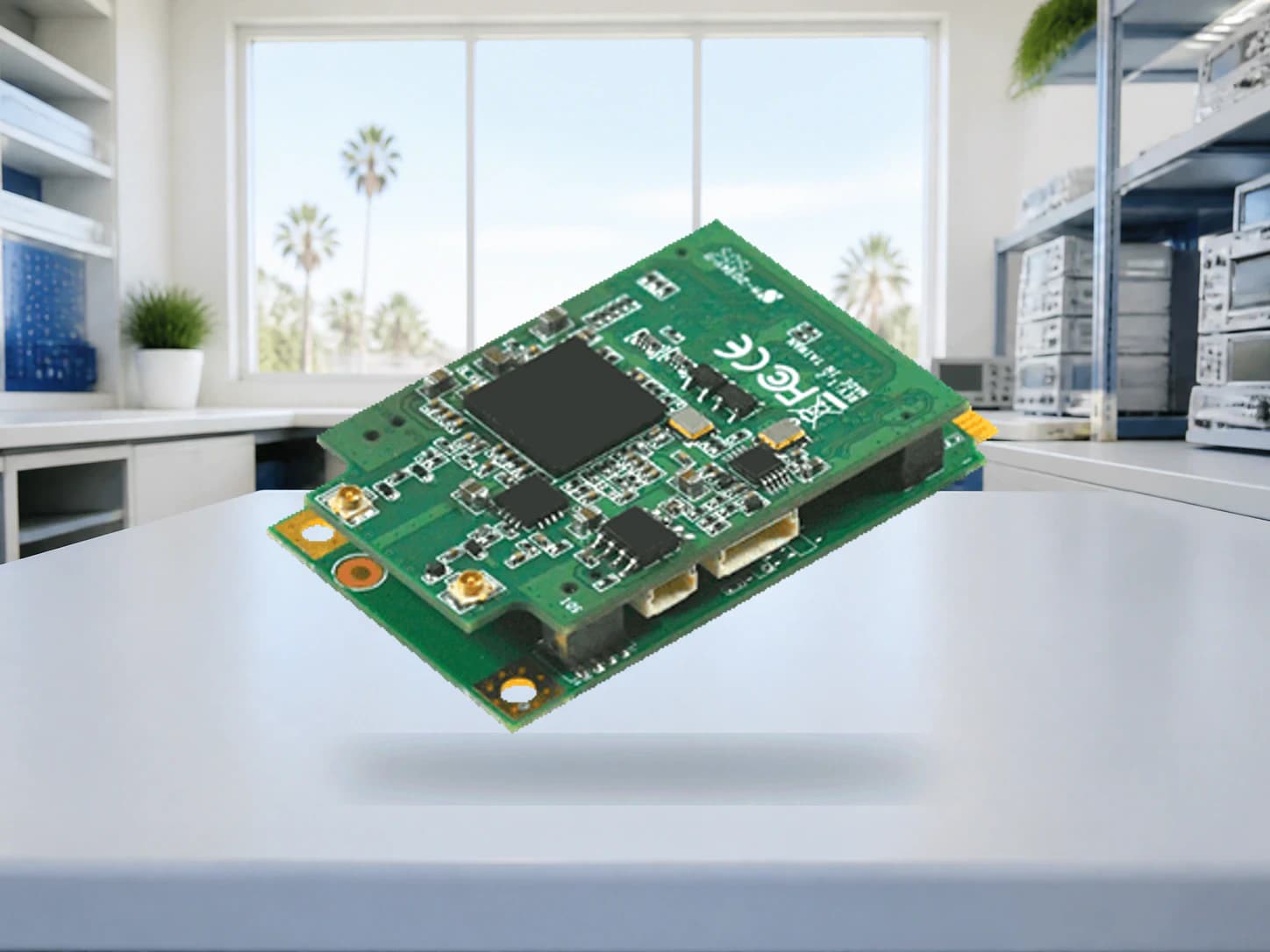

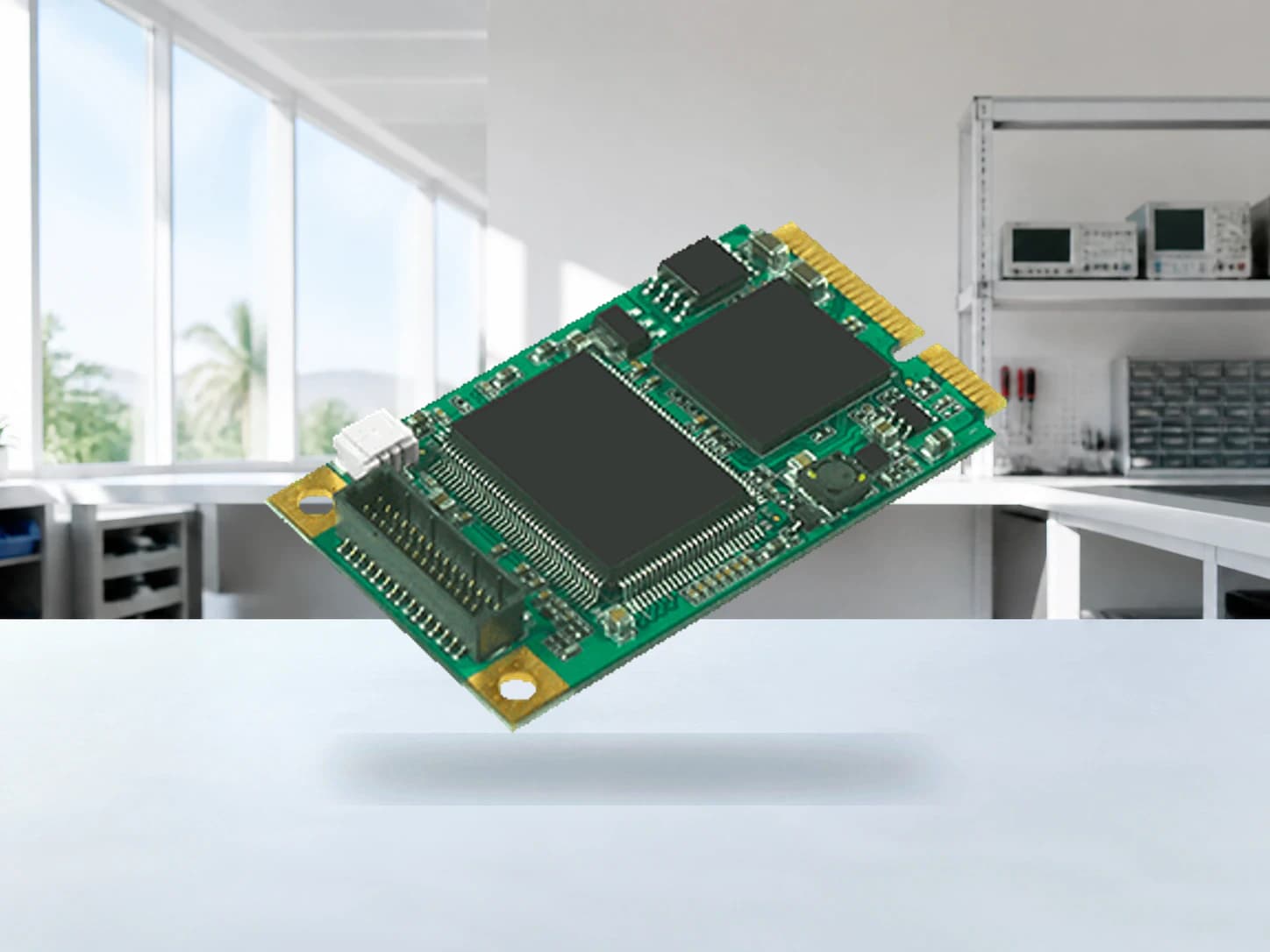

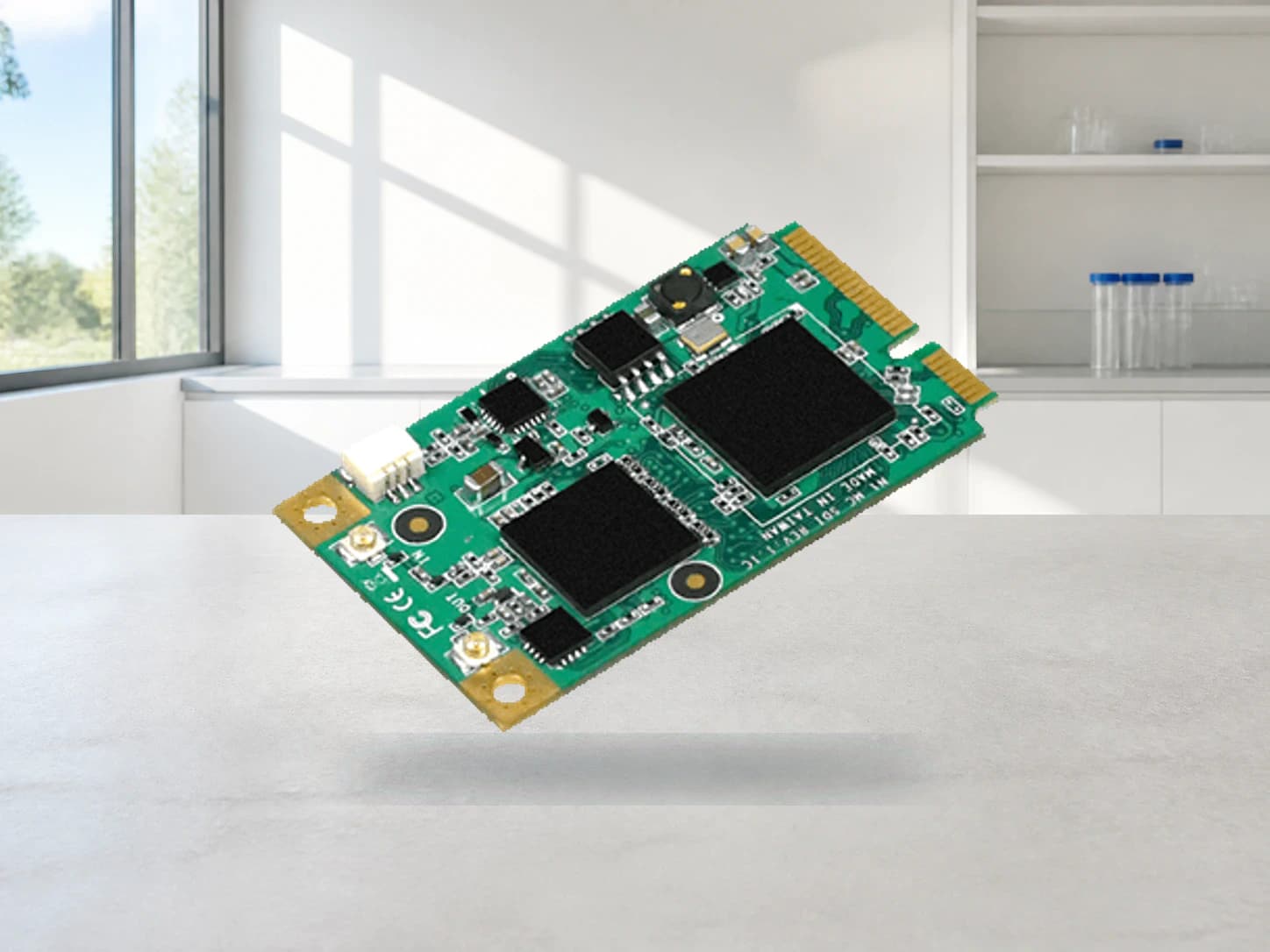

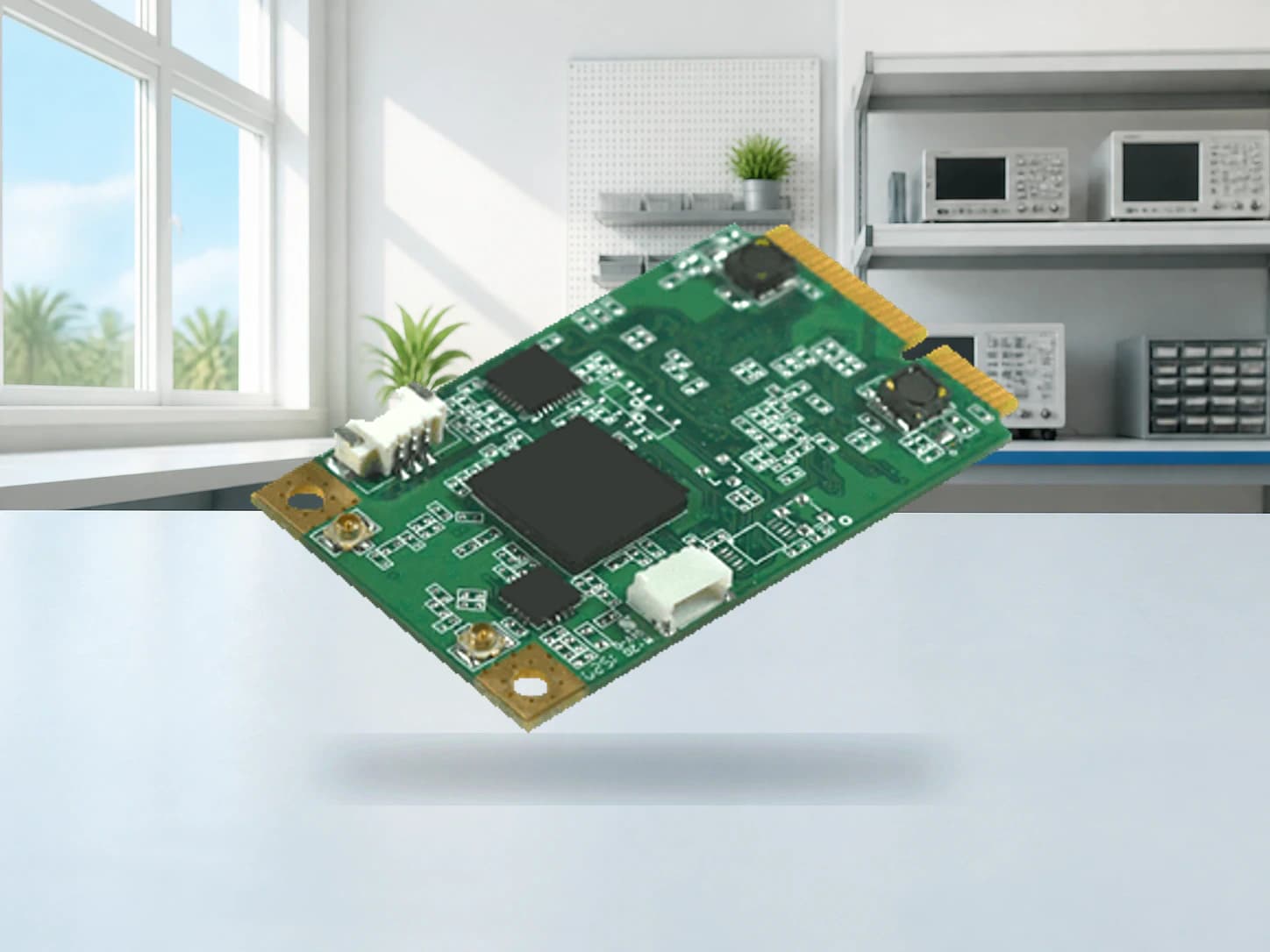

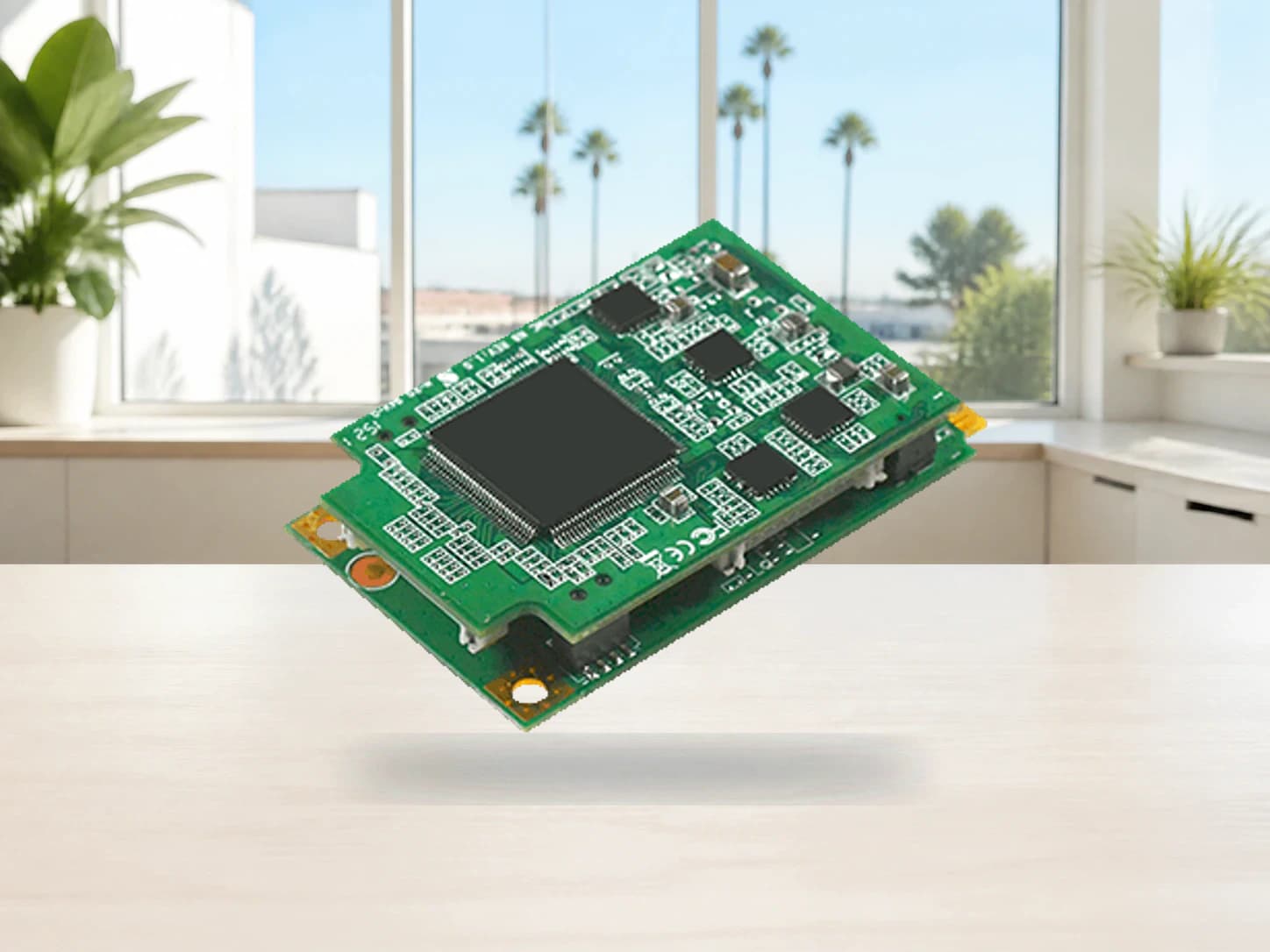

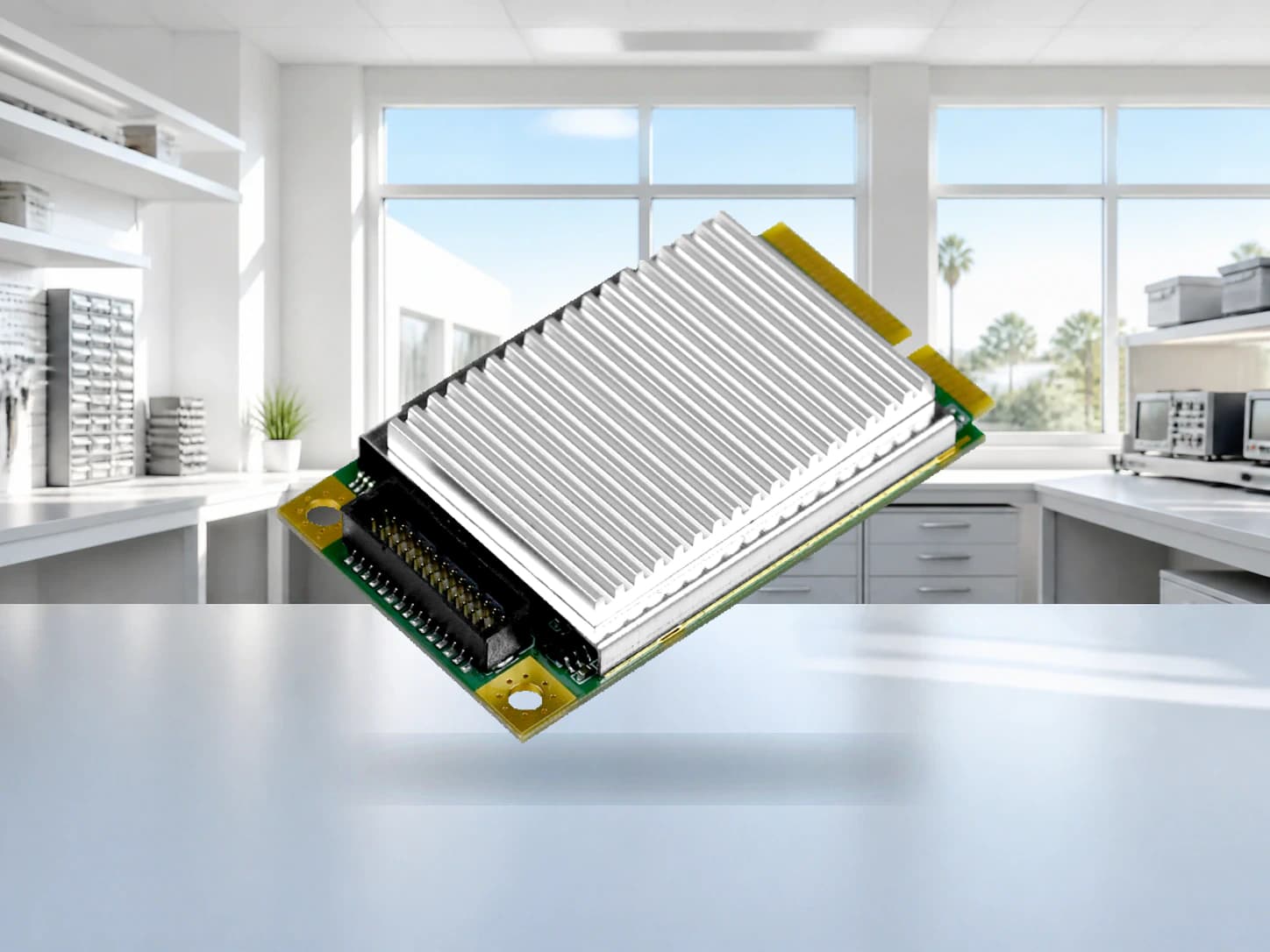

ProAV MiniPCIe cards provide low-power full-HD capture for industrial and embedded hosts. Standard- and wide-temperature models support mobile, fanless, and transportation systems that use the MiniPCIe form factor.
- MiniCard ( PCIe×1 )
- 1×SDI
- 1920×1080p@60/50fps
- 1×HDMI, 1×SDI
- 1920×1080p@30/25fps
Show all 11 ProAV MiniPCIe products3 more
Capture I/O
Pro H.26X

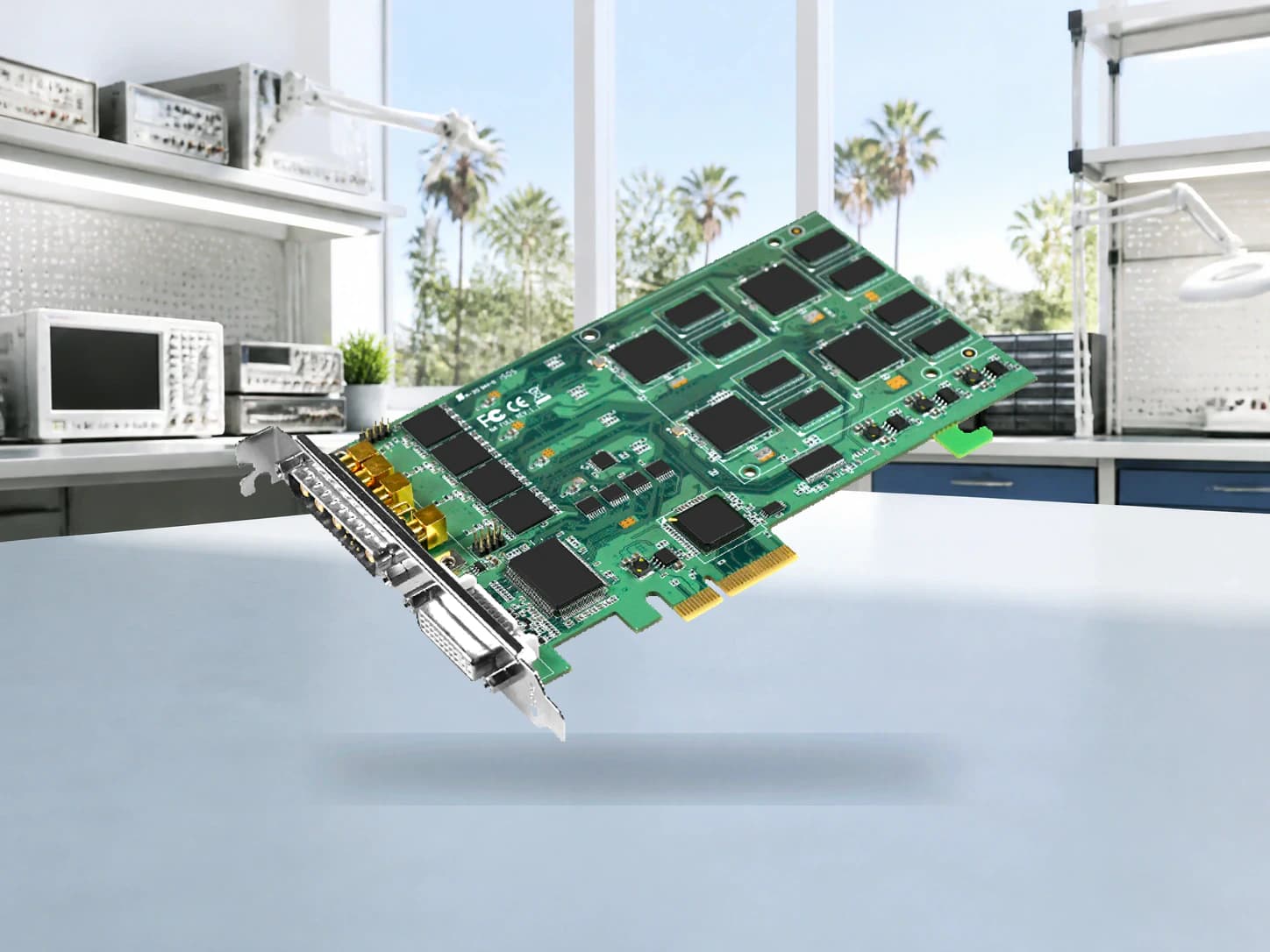

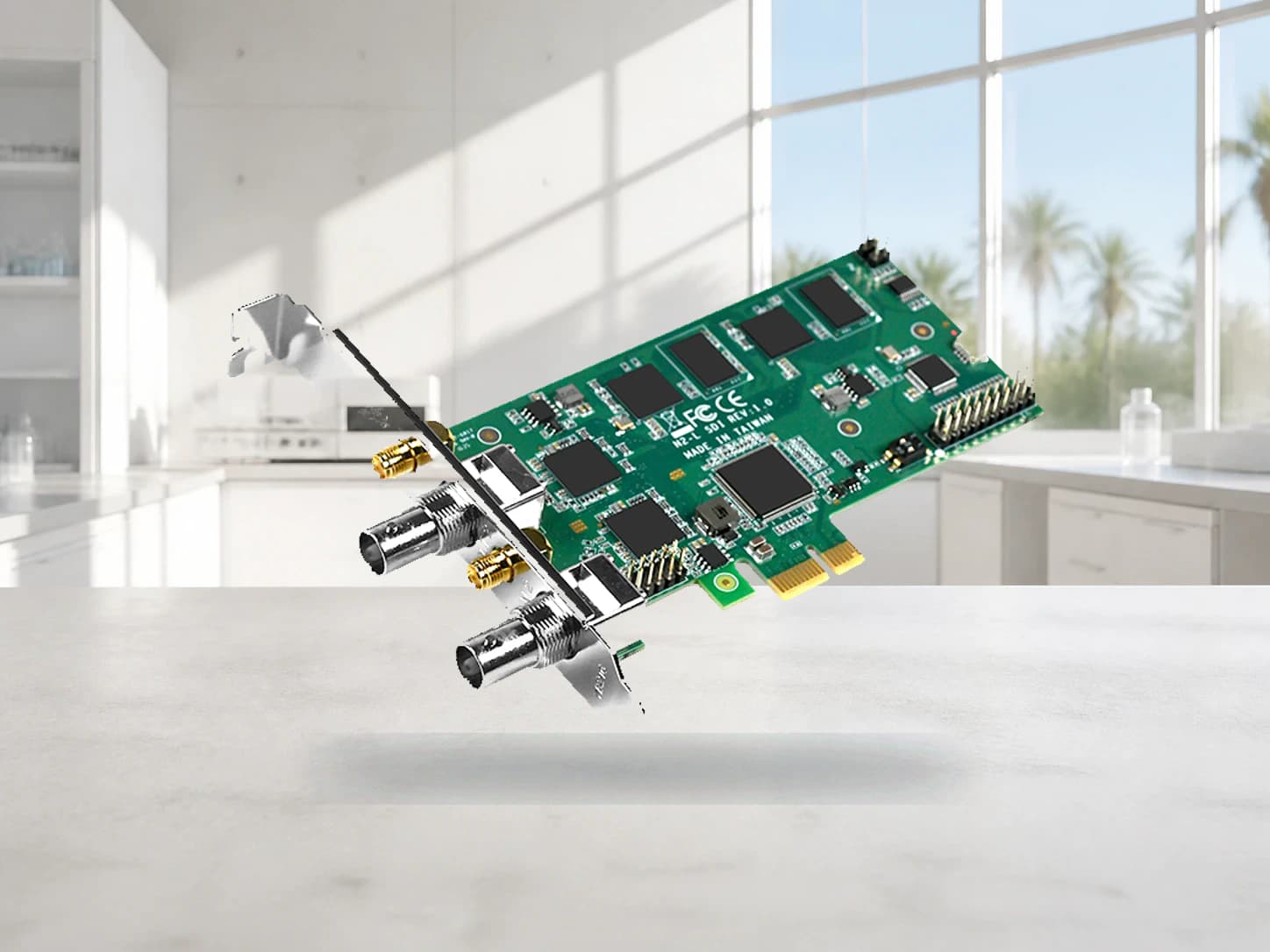

PCIe

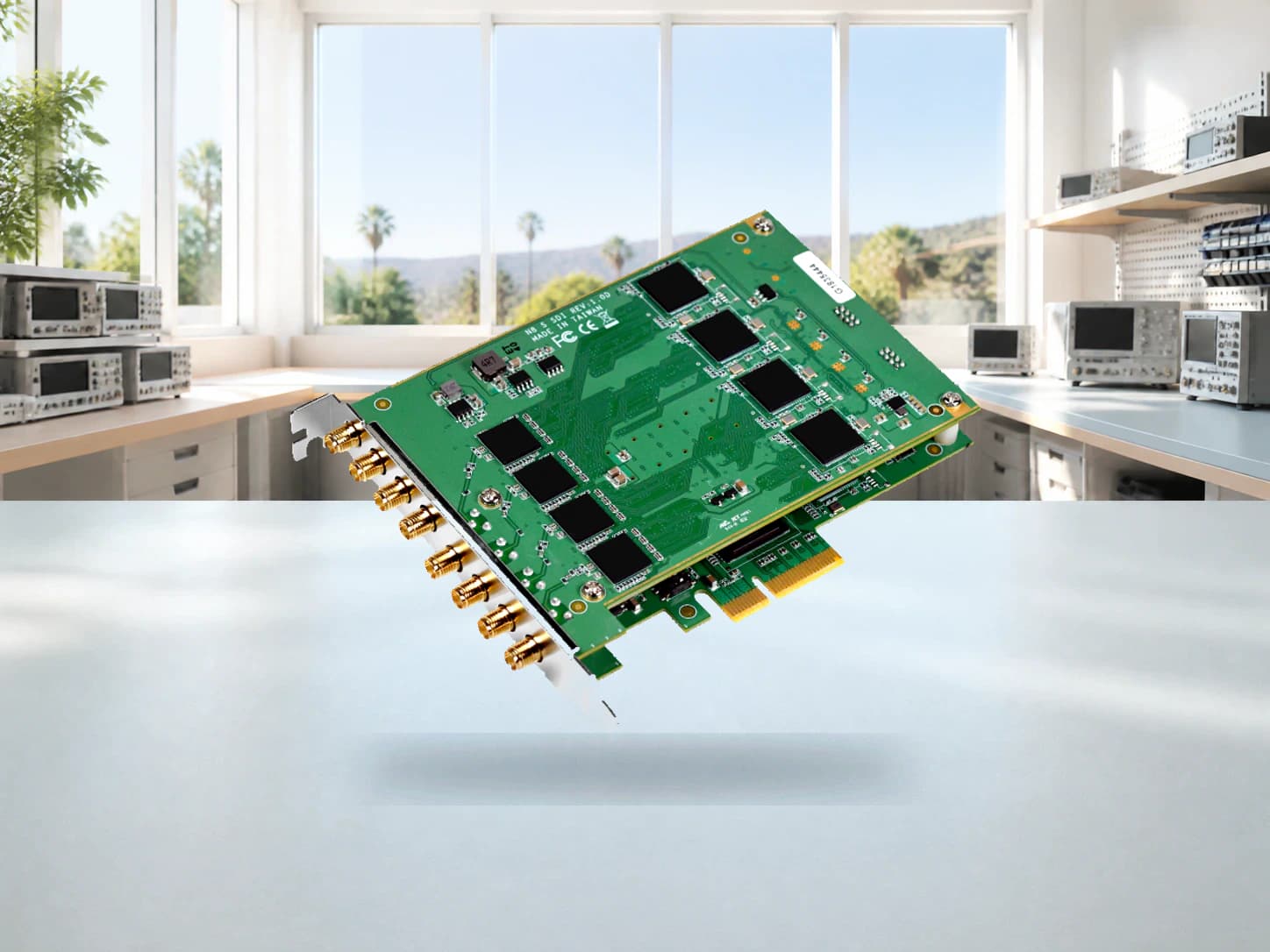

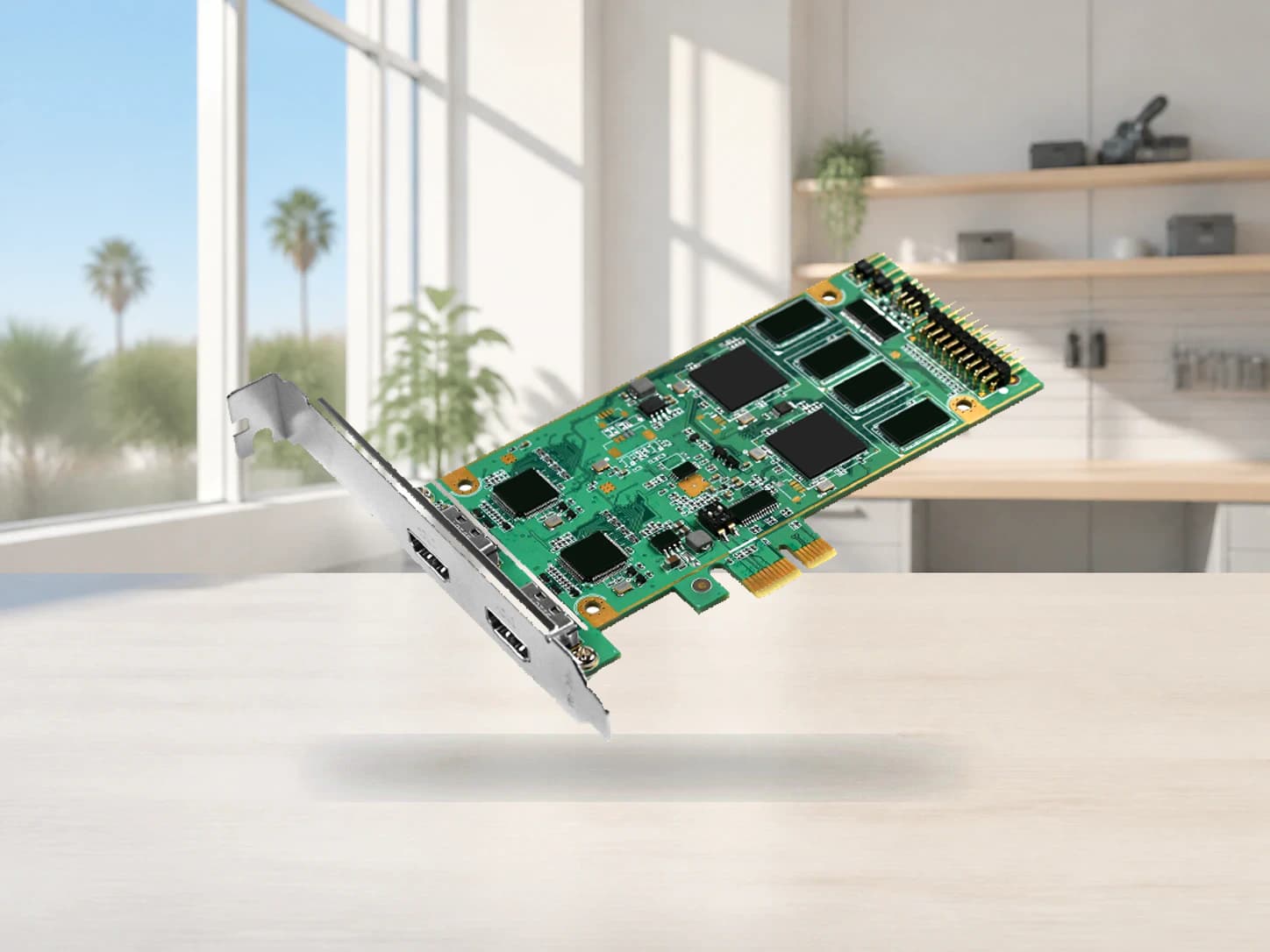

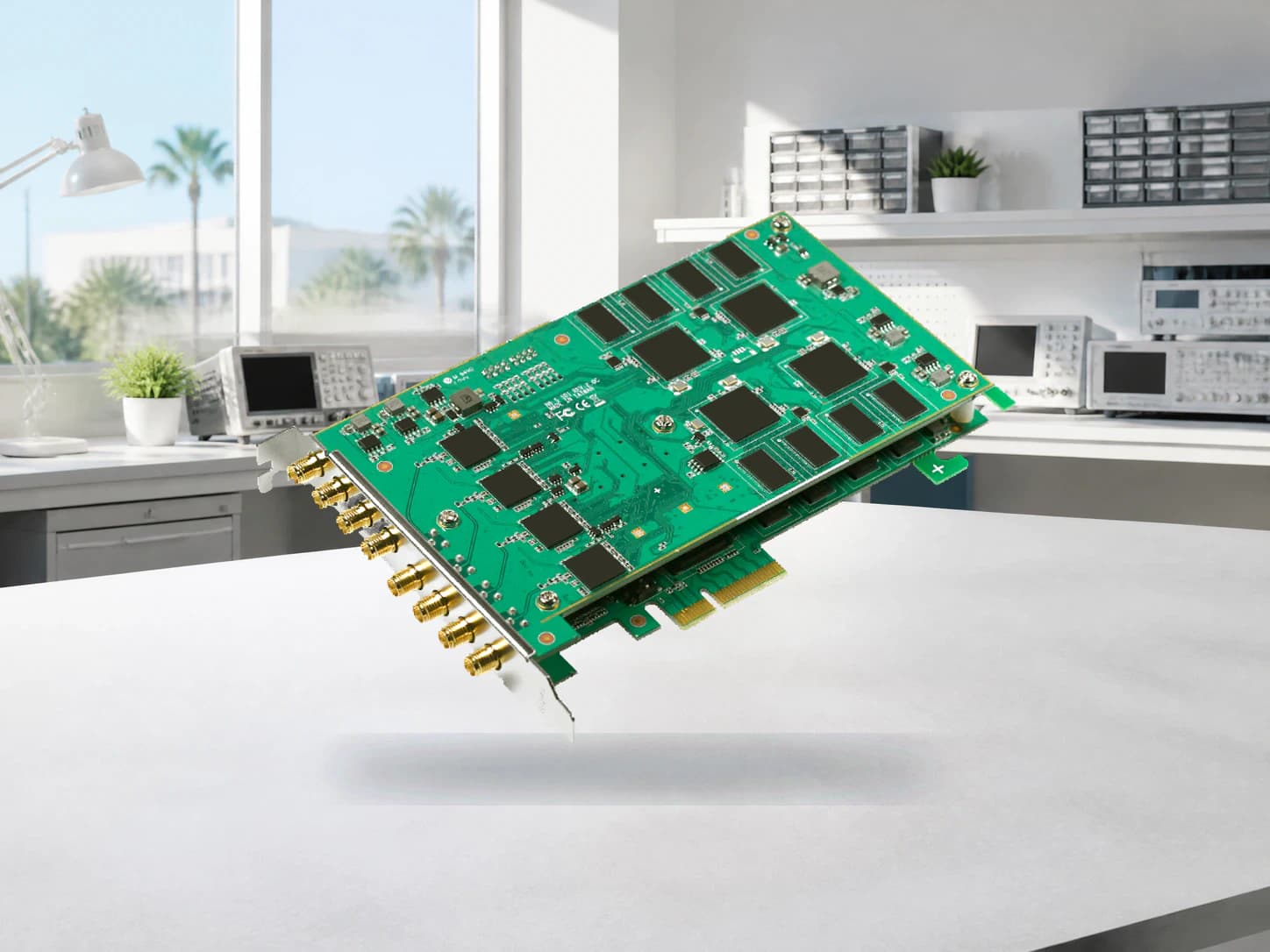

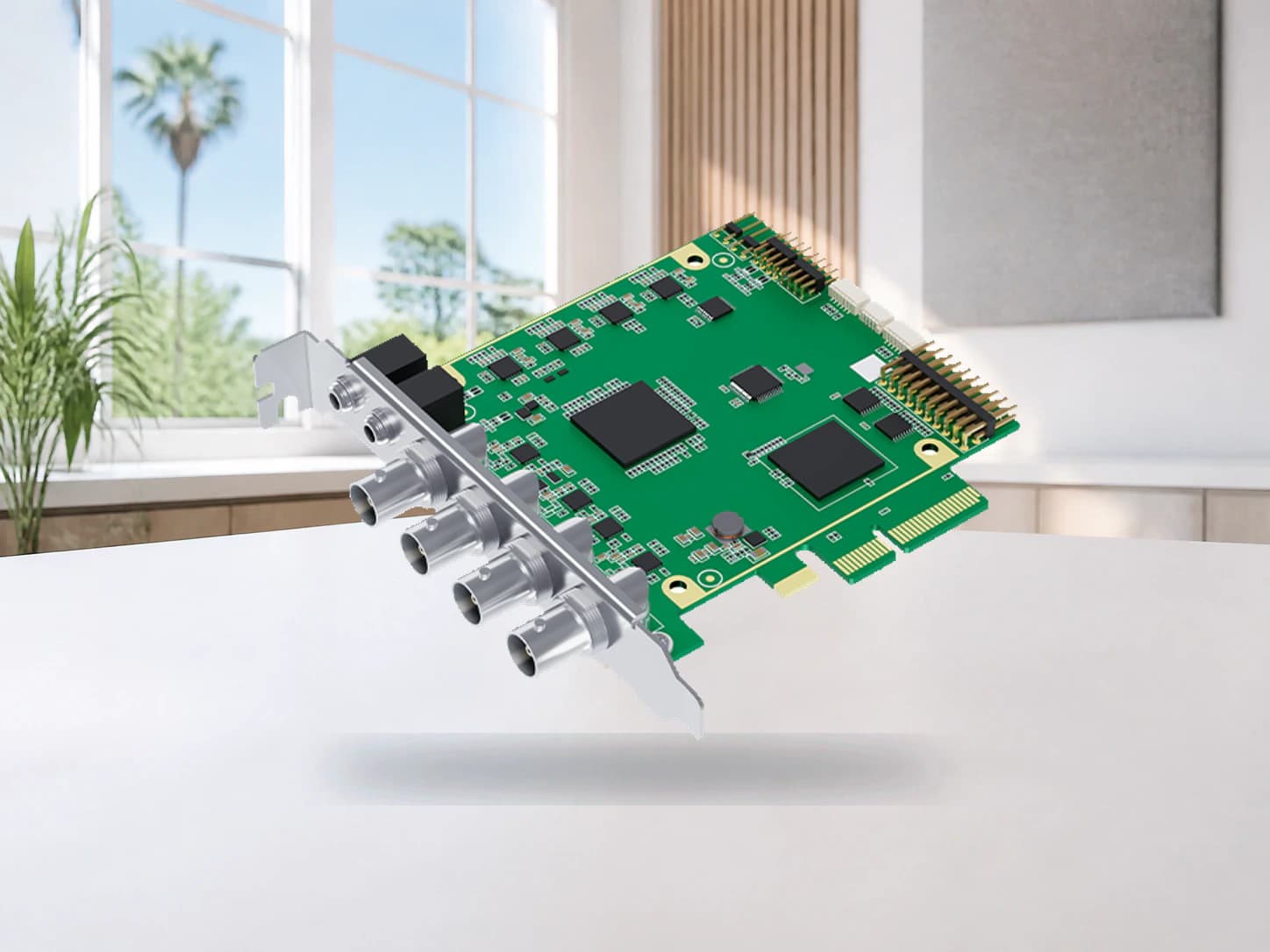

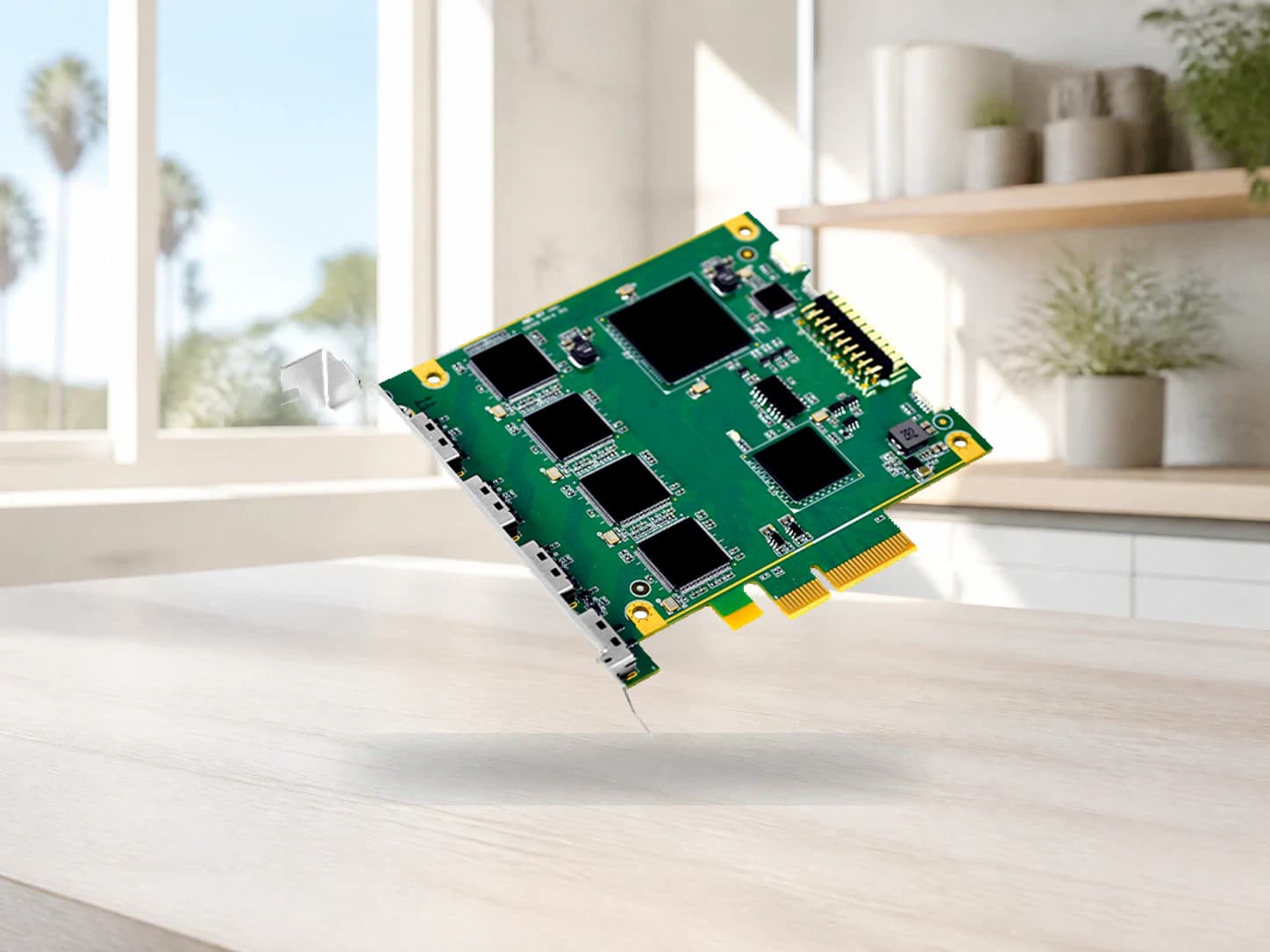

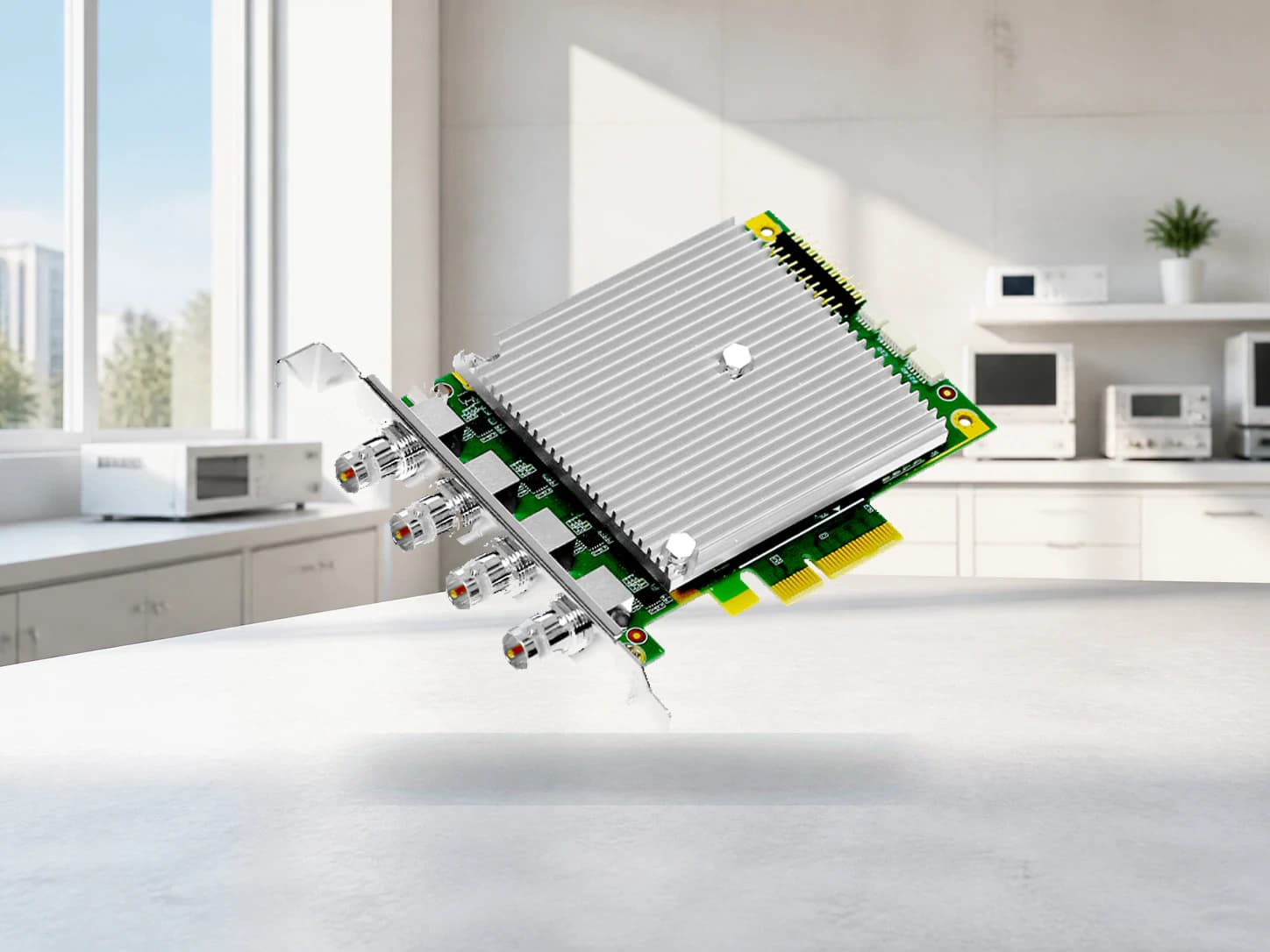

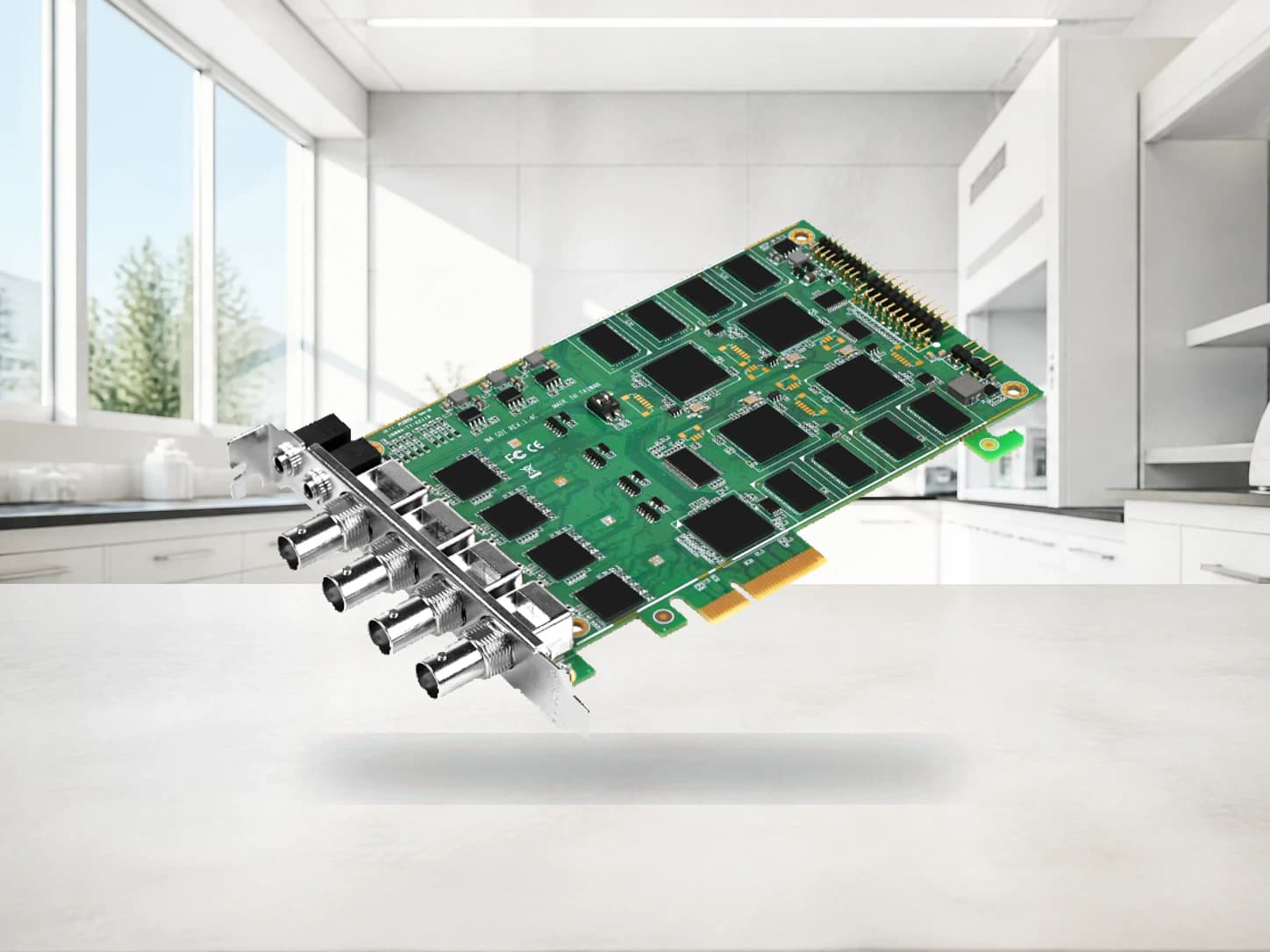

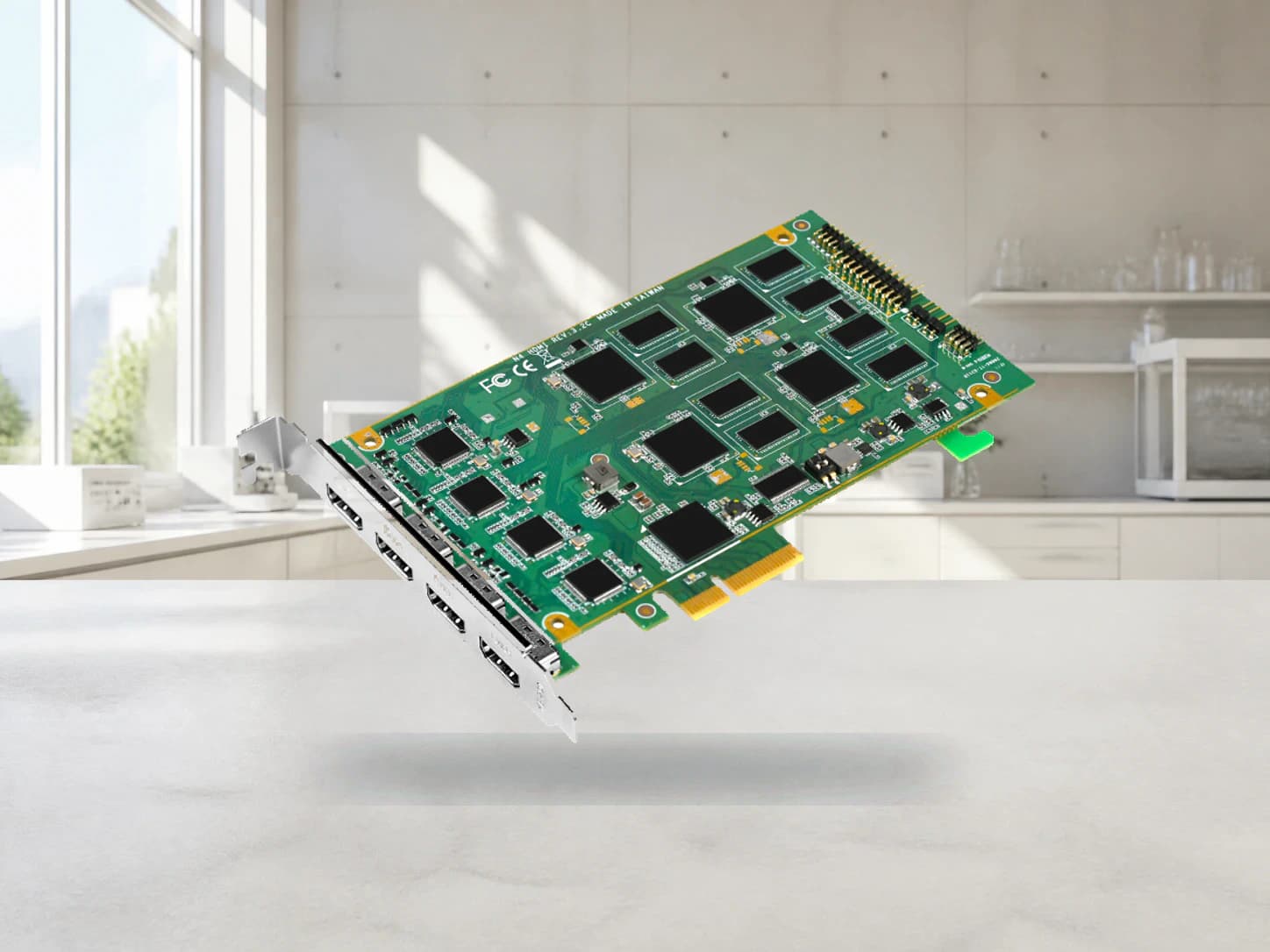

Pro H.26X PCIe cards combine multi-channel video input with onboard H.26X hardware encoding. They support recording servers, broadcast systems, and video walls that require sustained capture and compression.
- H.26X
- PCIe×4 ( Gen2 )
- PCIe×1 ( Gen2 )
- PCIe×1 ( Gen1 )
- 4×SDI
- 8×SDI
Show all 31 Pro H.26X PCIe products23 more
M.2
Pro H.26X M.2 cards combine single-channel 1080p30 capture with onboard H.26X compression in a compact form factor for embedded and industrial hosts.
- M.2 ( PCIe×1 )
- H.26X
- 1×HDMI
- 1×SDI

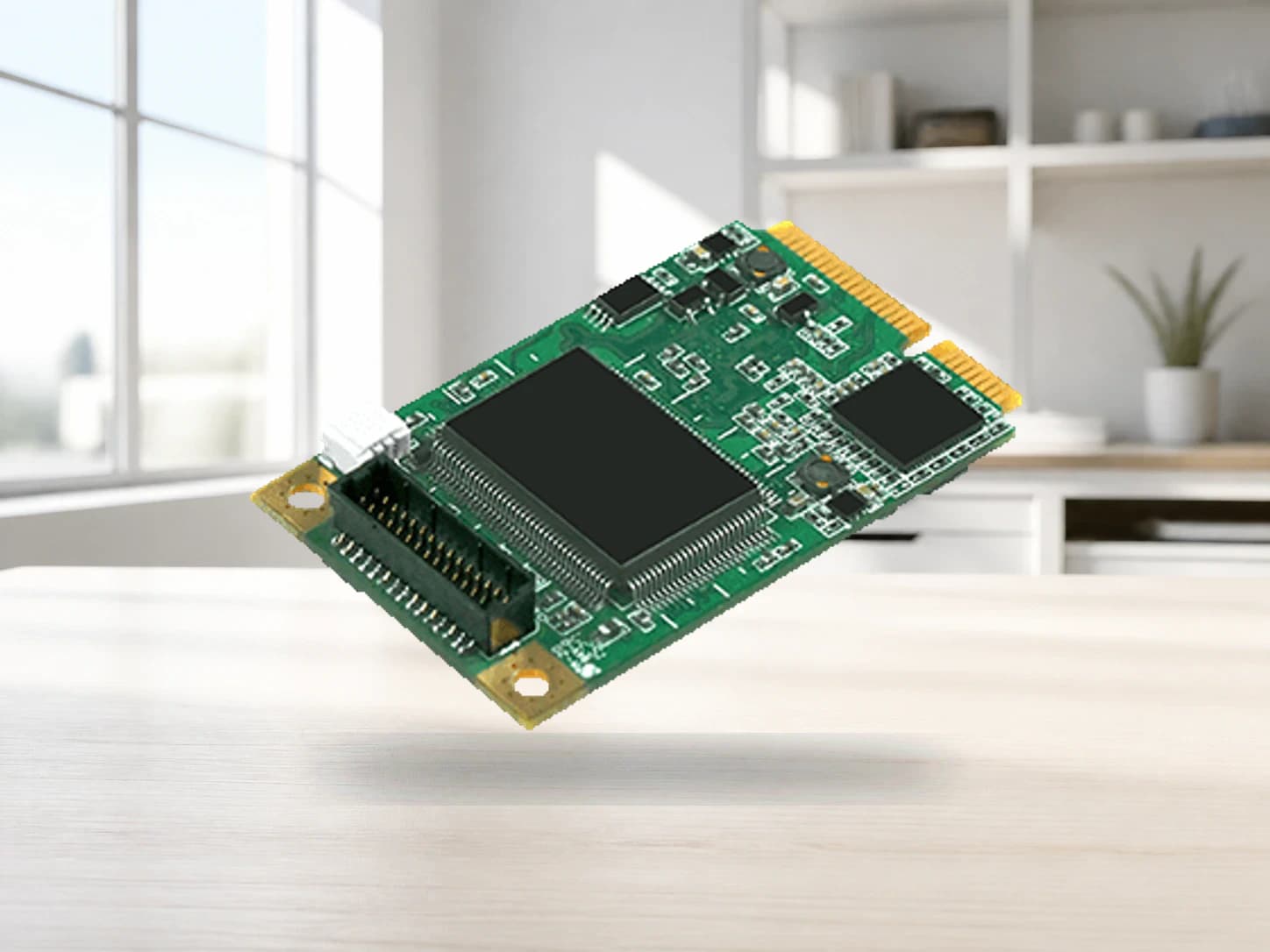

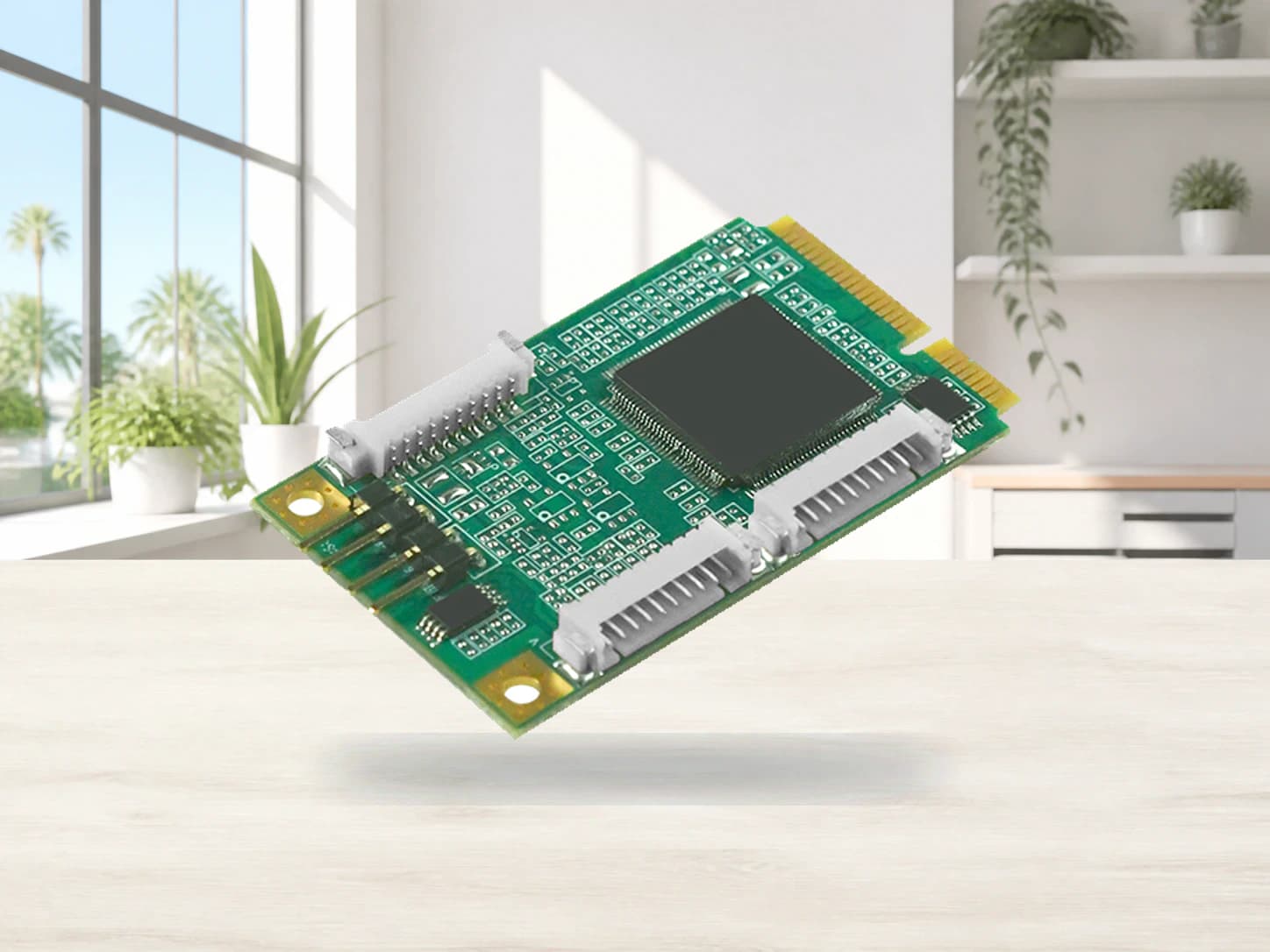

MiniPCIe

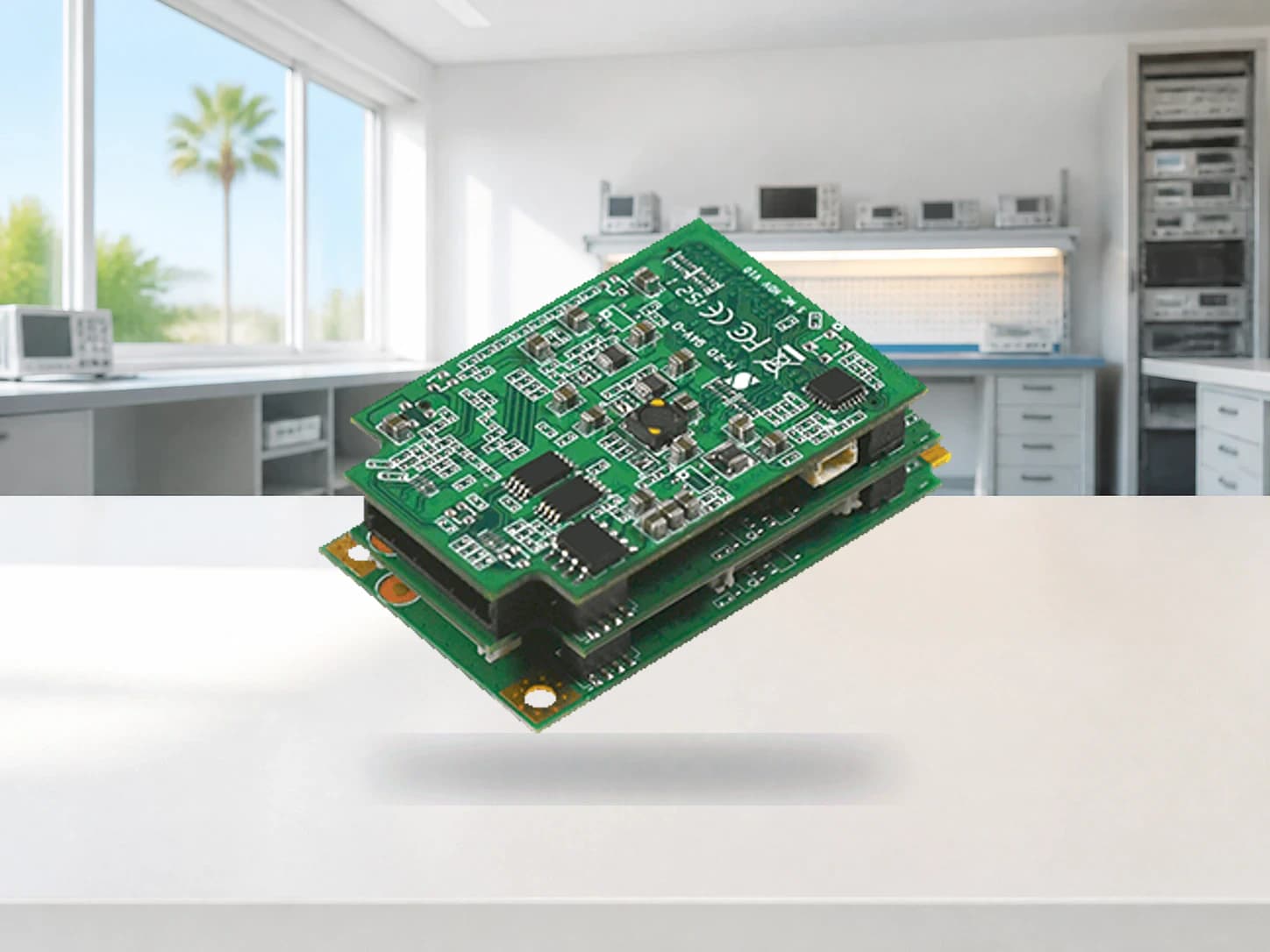

Pro H.26X MiniPCIe cards provide onboard hardware compression for video from SD through full HD in embedded systems that use the standard MiniPCIe form factor.
- H.26X
- Minicard ( PCIe×1 )
- 1×SDI
- 8×CVBS
- 4×CVBS
- Minicard (PCIe x1)
Capture I/O

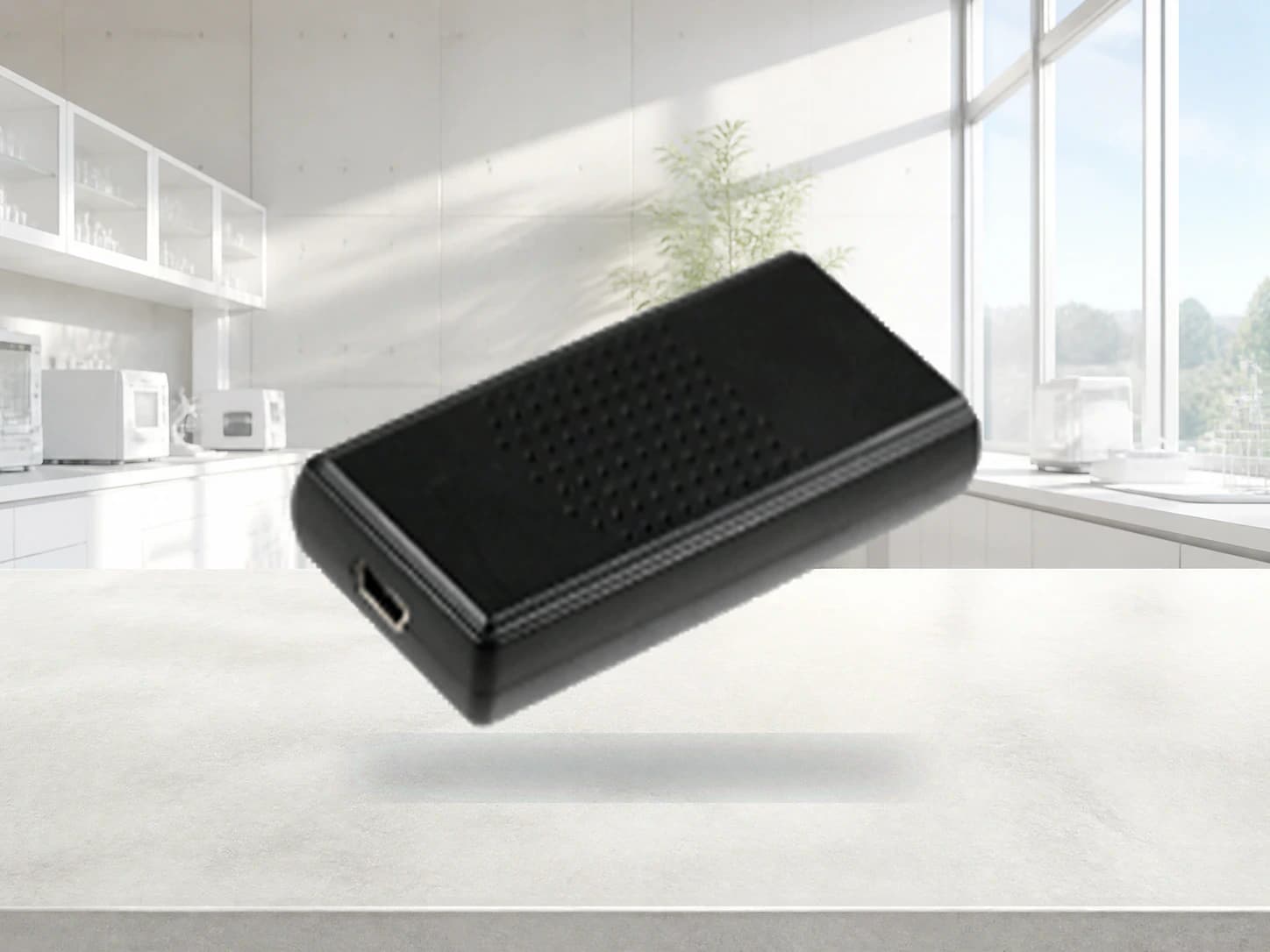

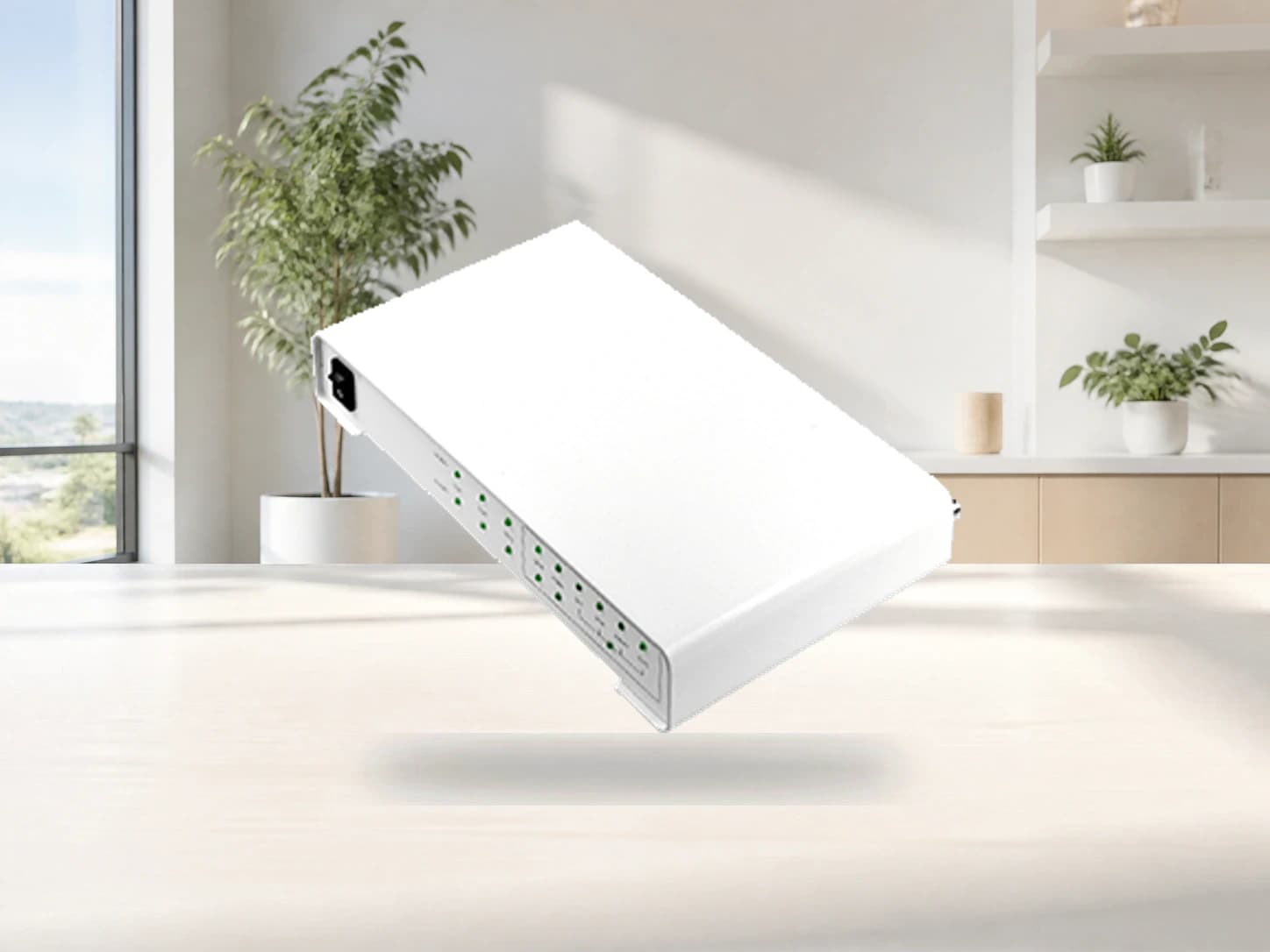

USB

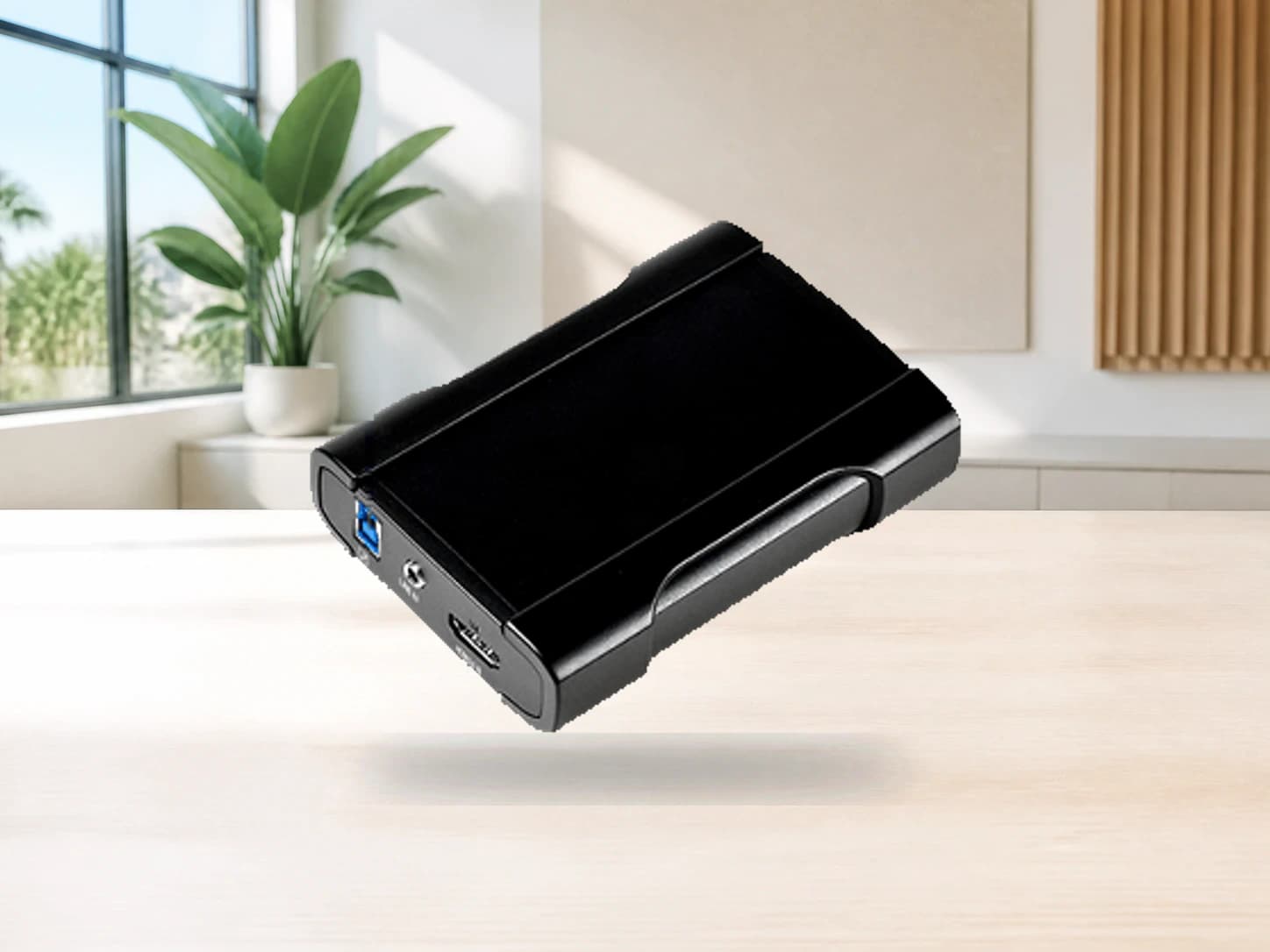

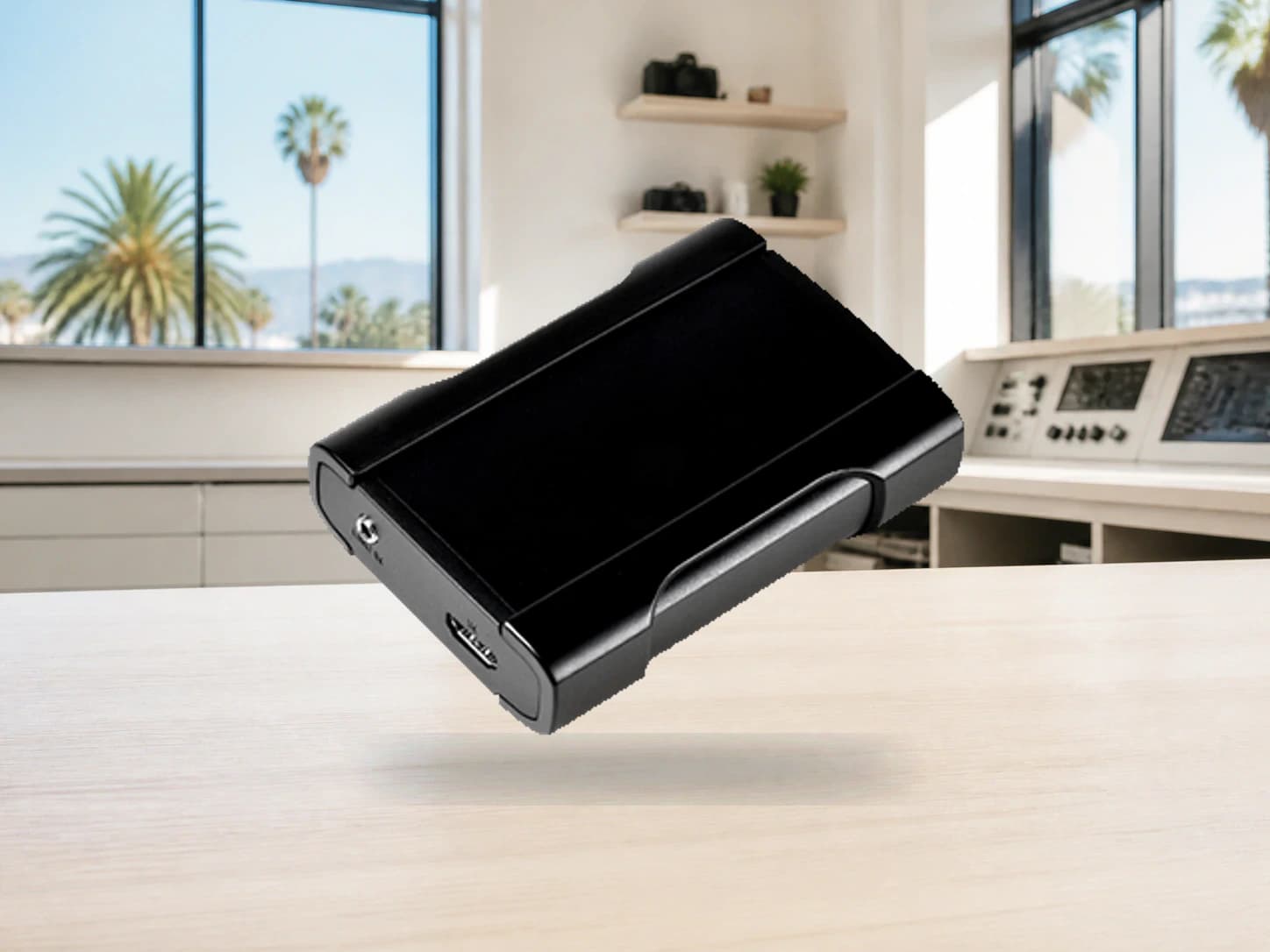

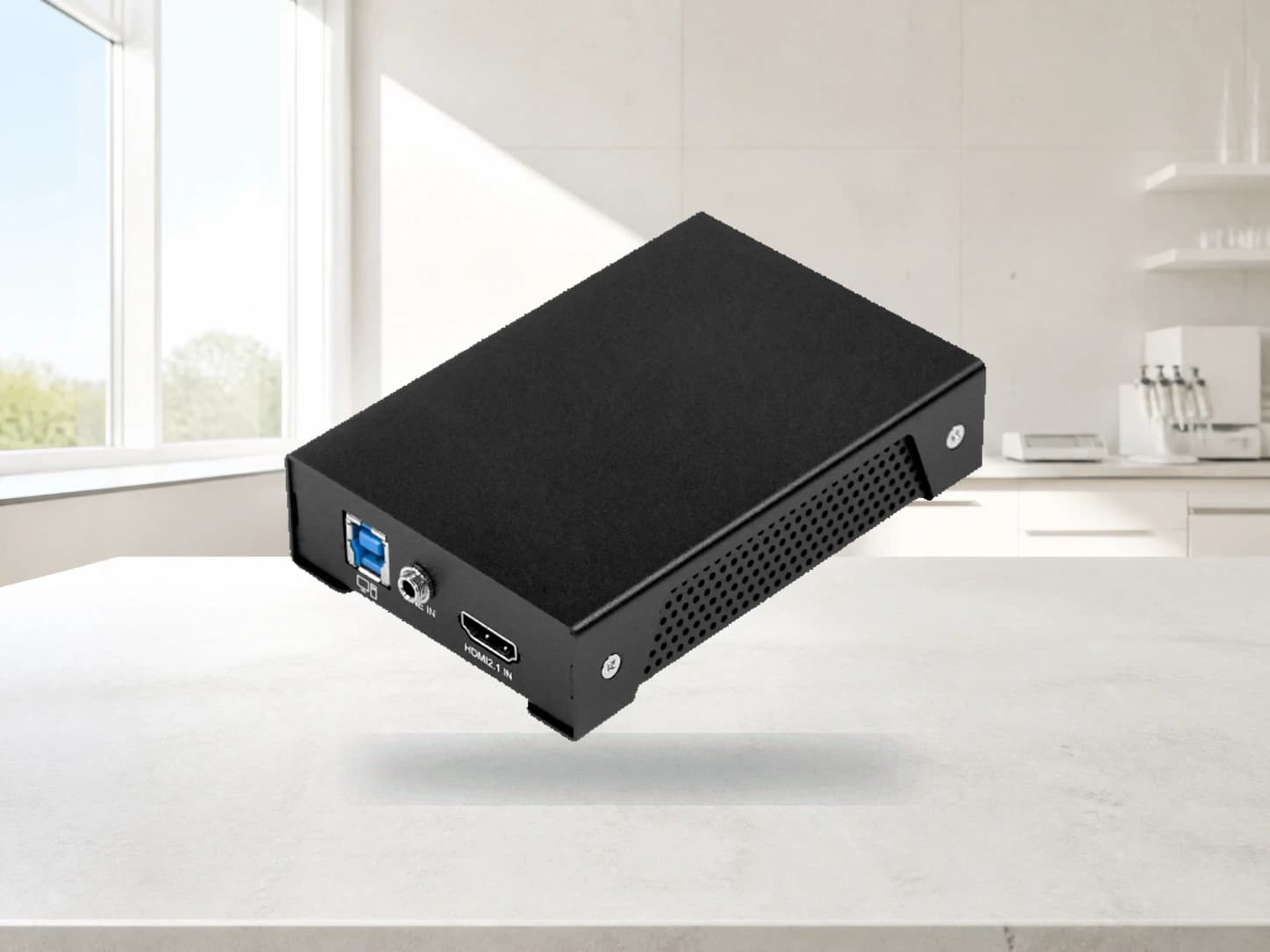

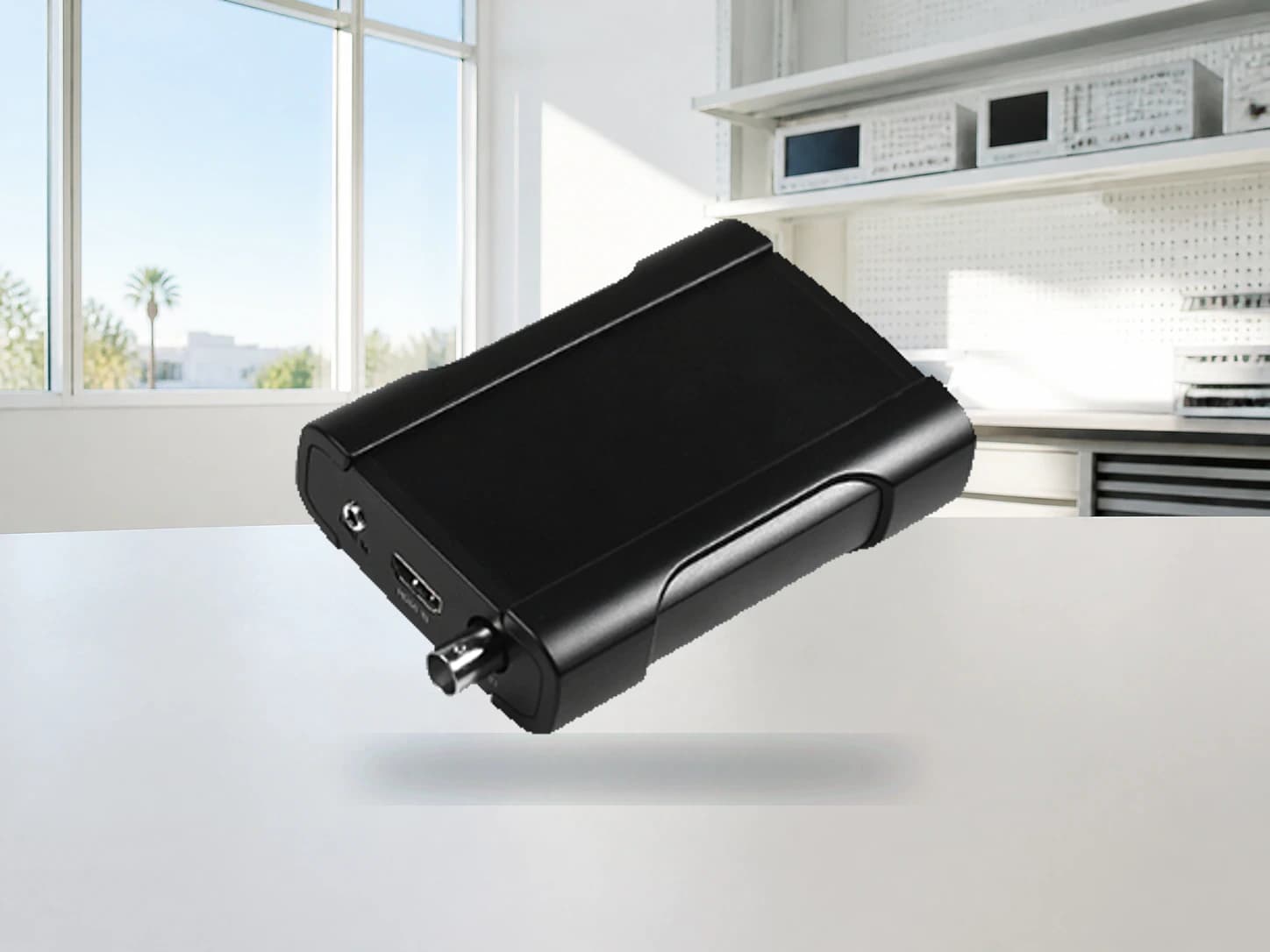

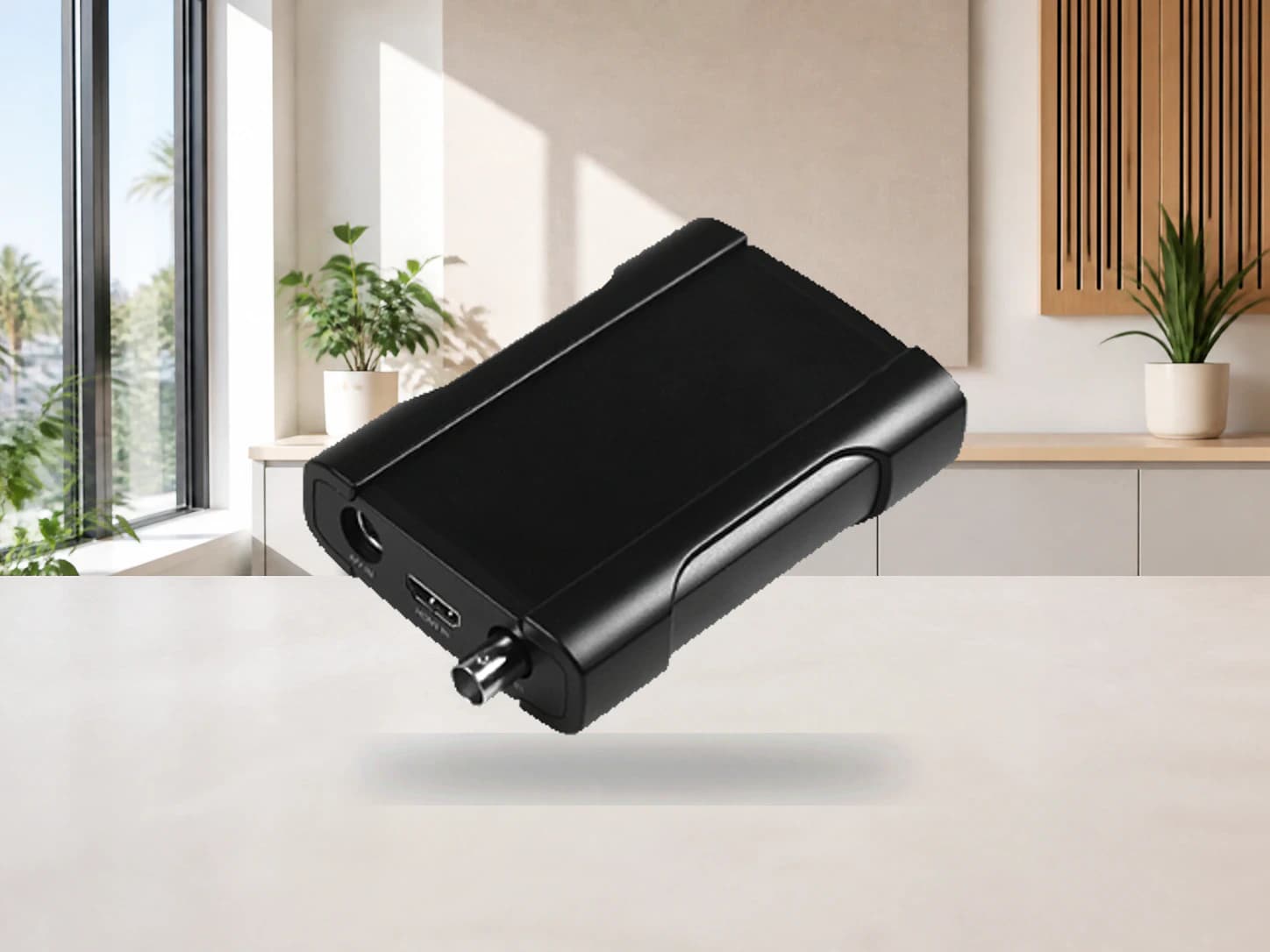

USB3.0

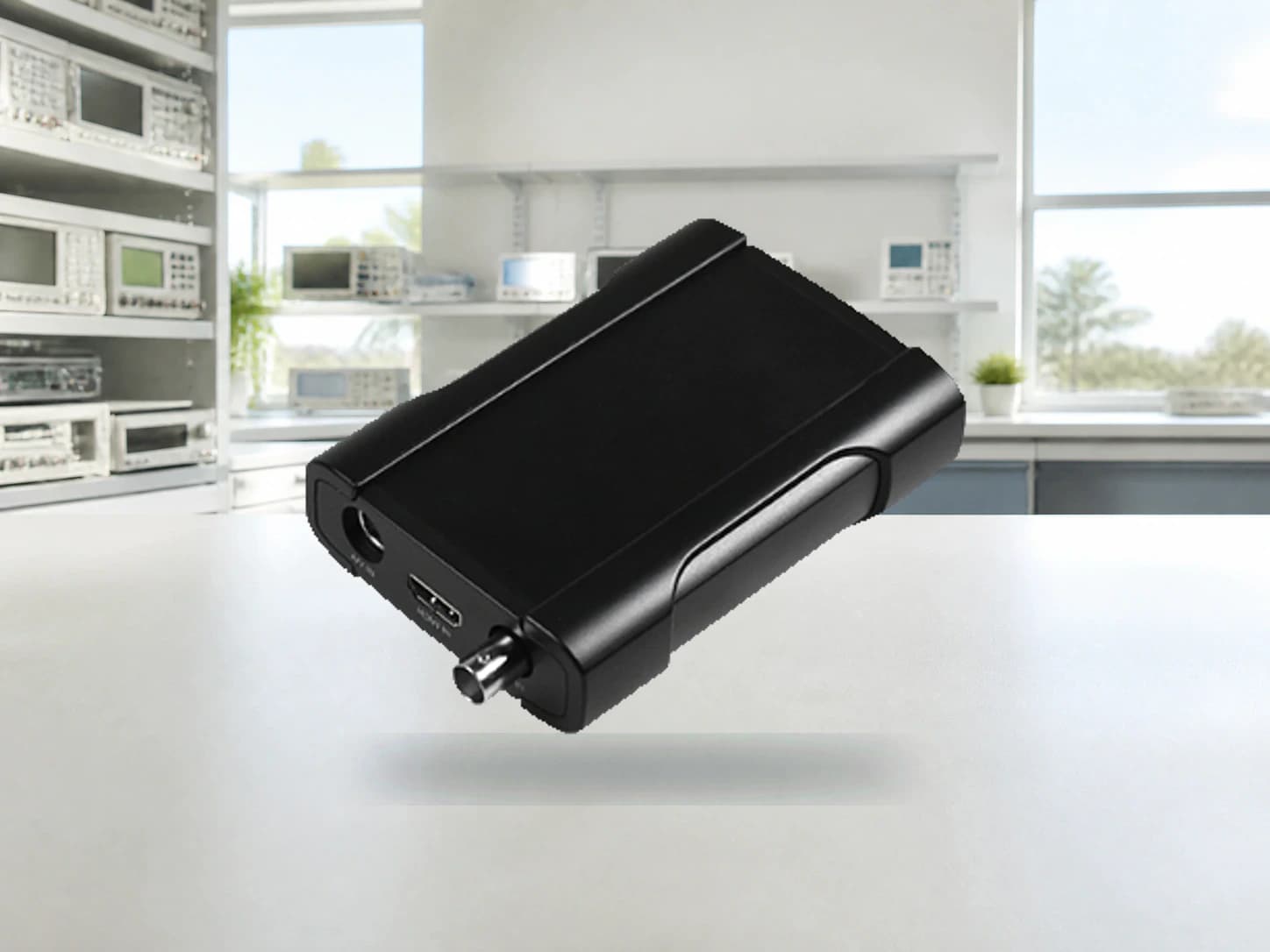

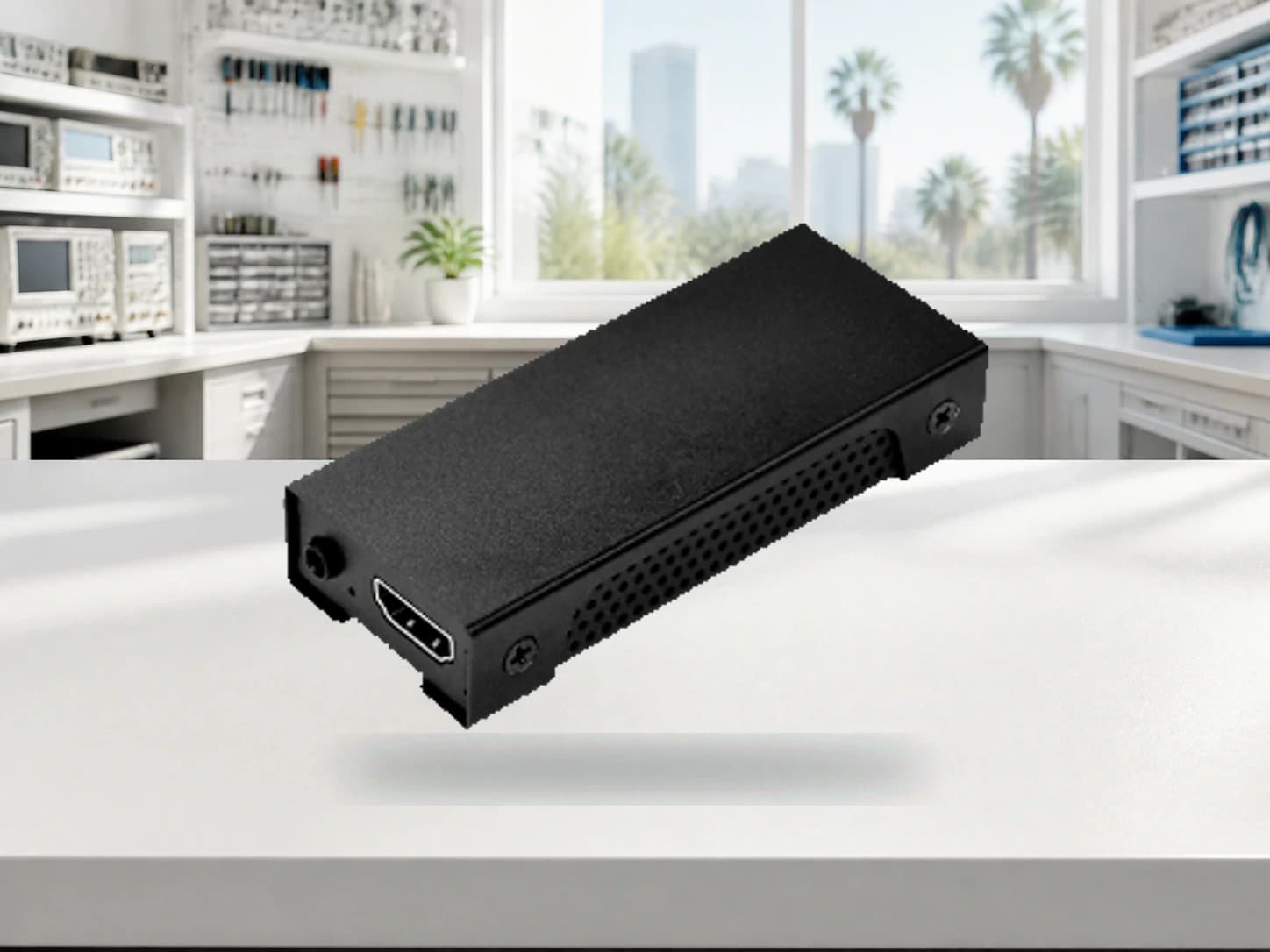

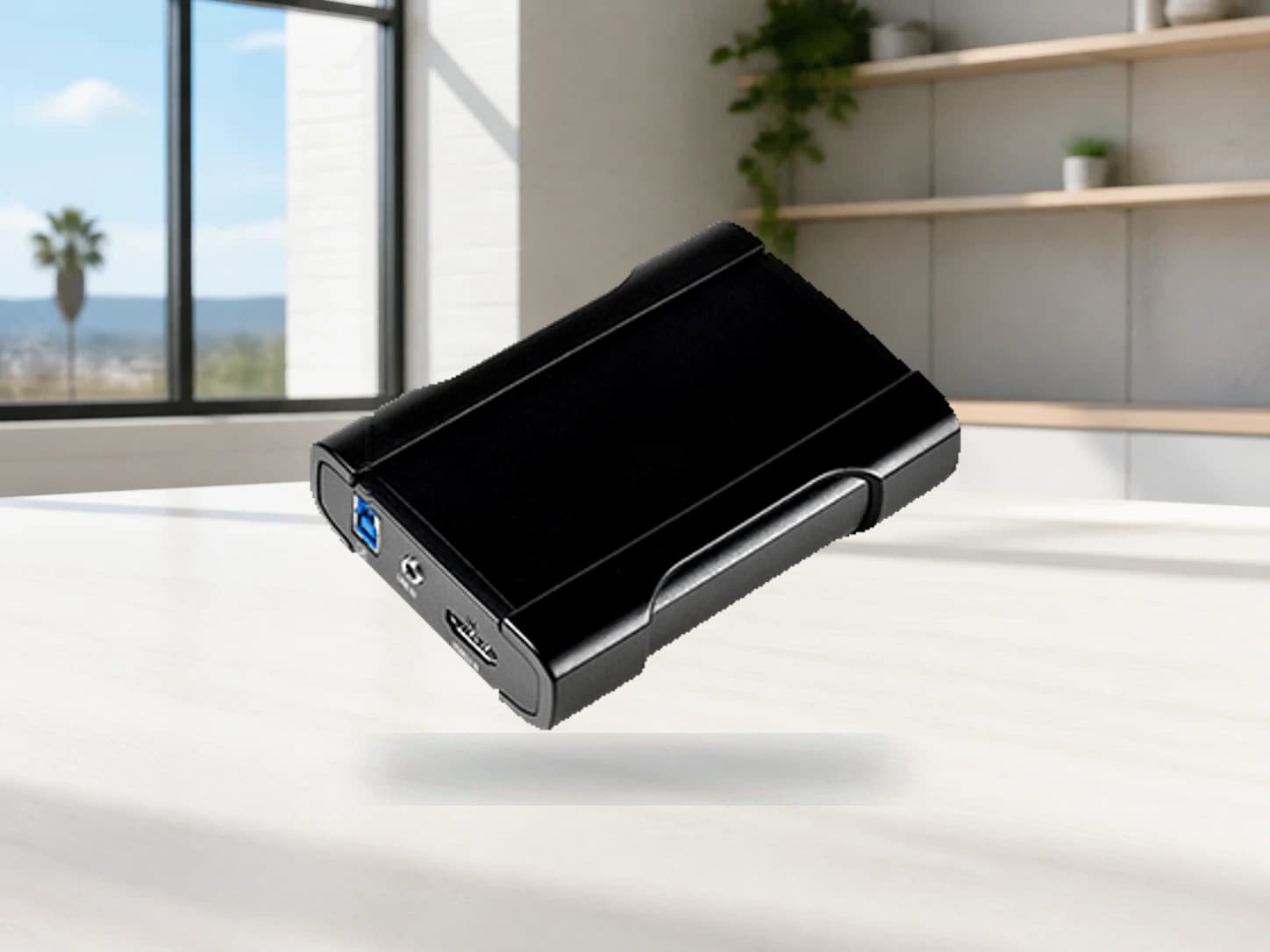

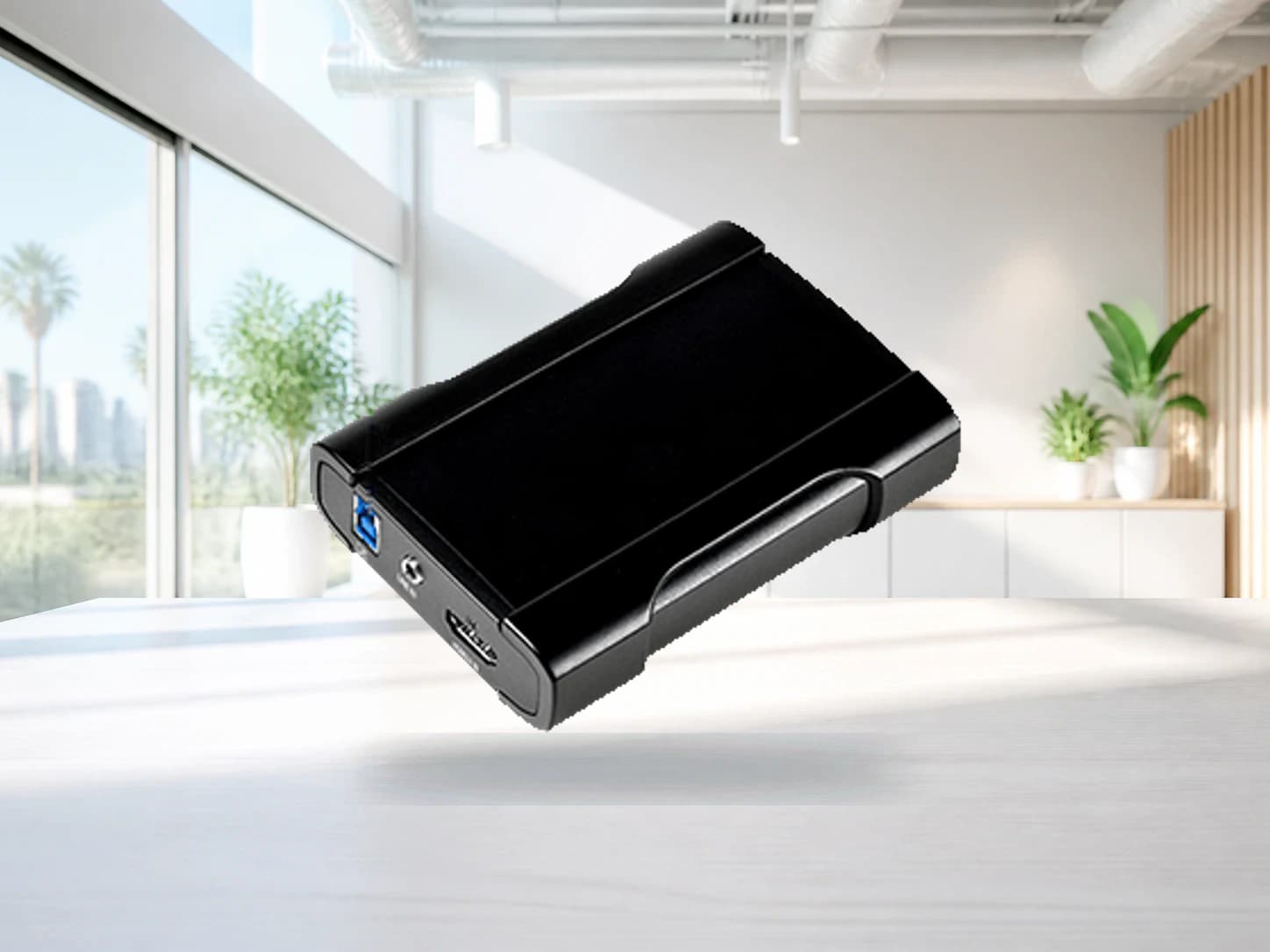

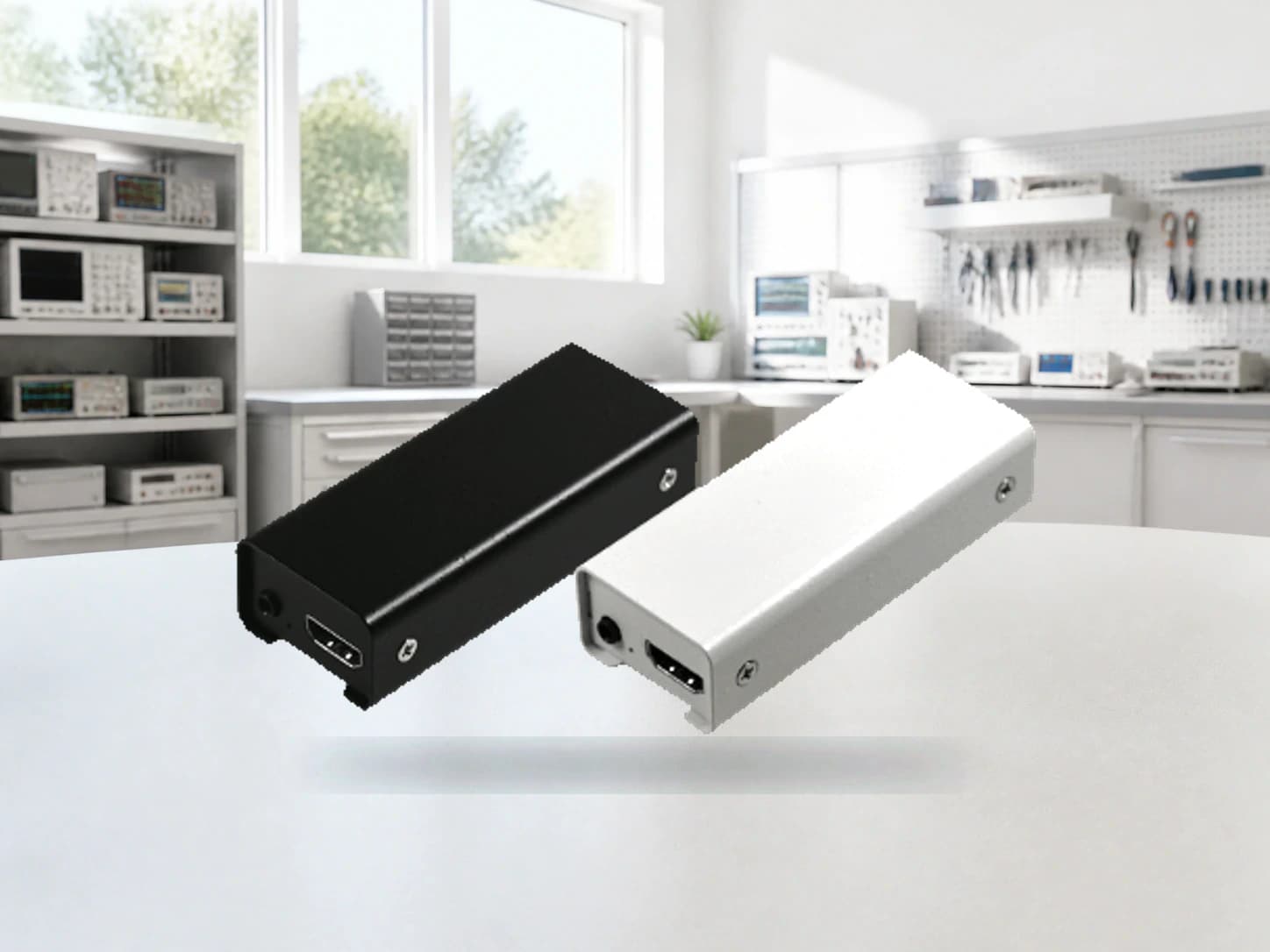

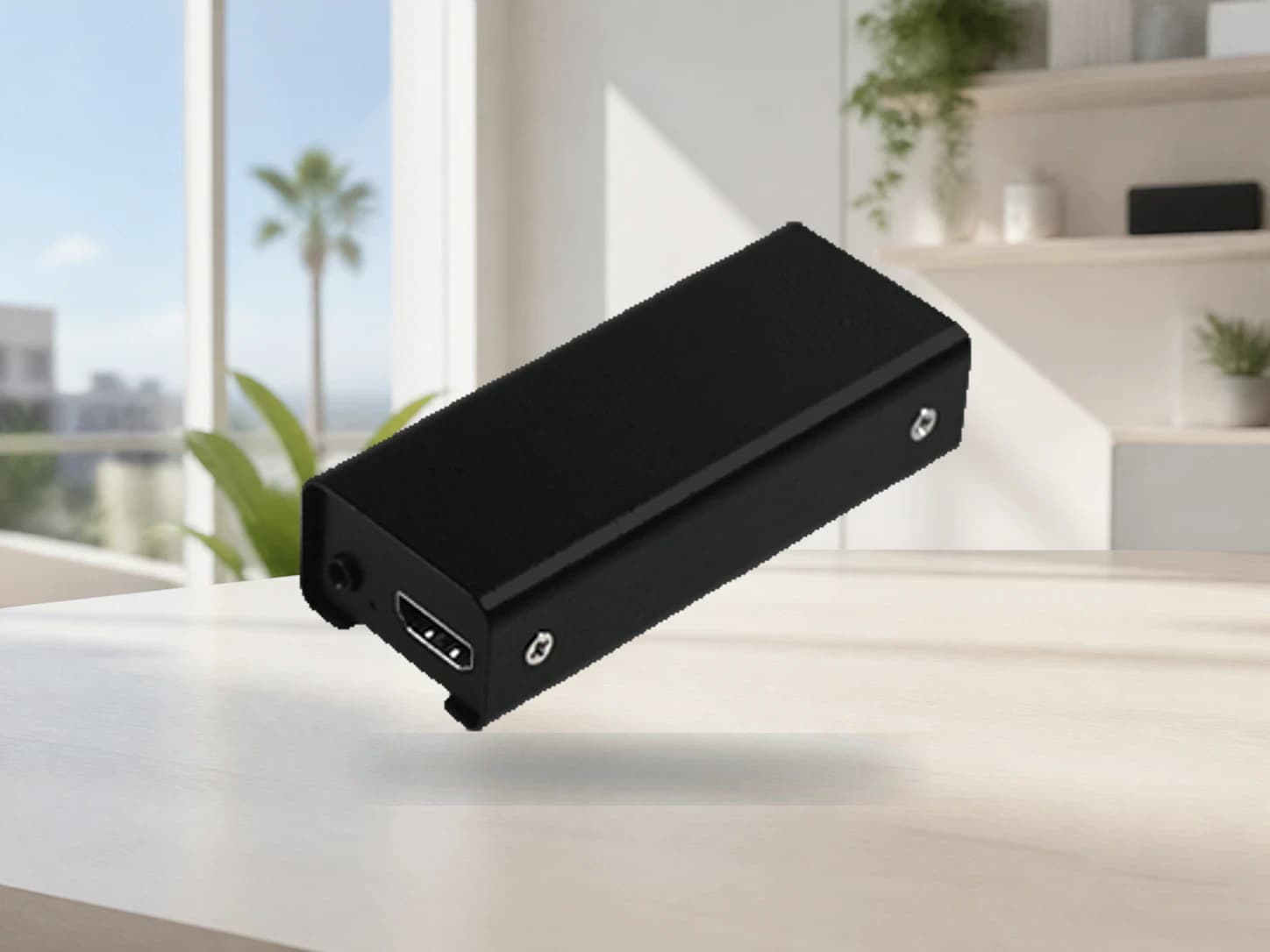

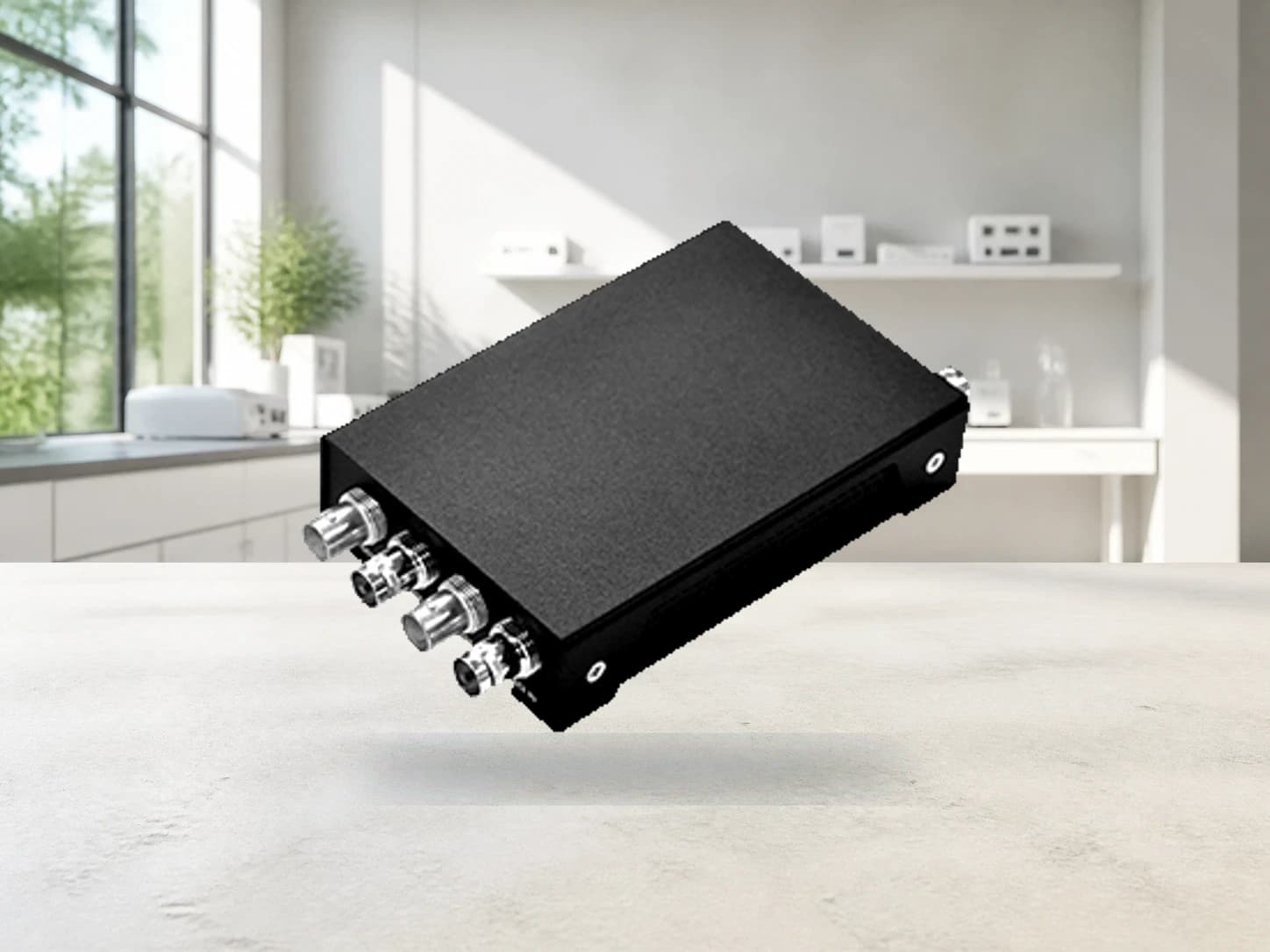

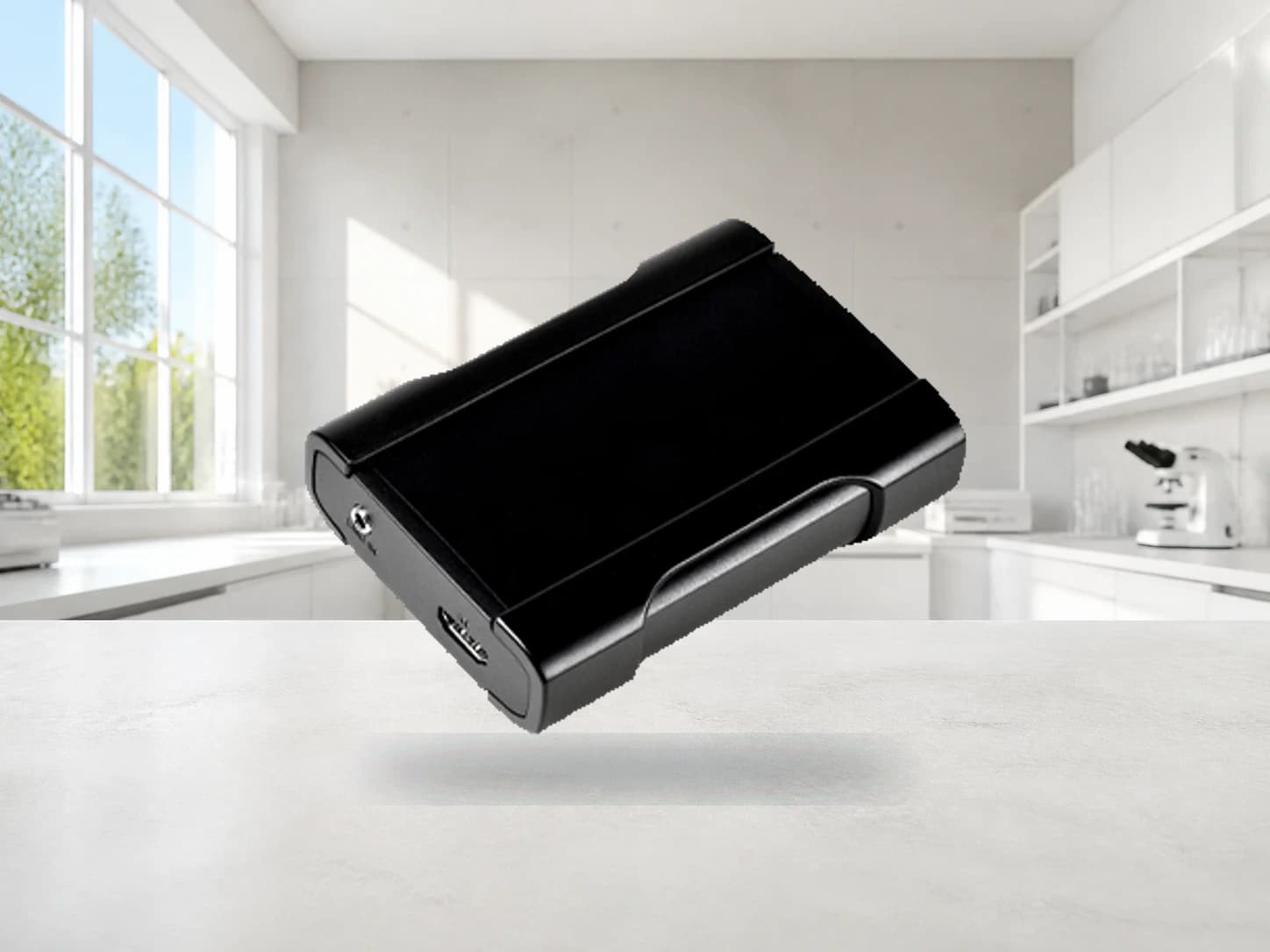

USB 3.0 and 3.2 capture devices cover resolutions through 8K60. Selected models add scaling, HDR-to-SDR tone mapping, frame-rate conversion, and USB HID control; capabilities vary by model and host bandwidth.
- 1×HDMI2.0
- 1×HDMI
- 1920x1200p @ 60/50fps
- 1920×1080p@240/200fps
- 1×HDMI2.1
- 1×SDI
Show all 18 USB3.0 products10 more

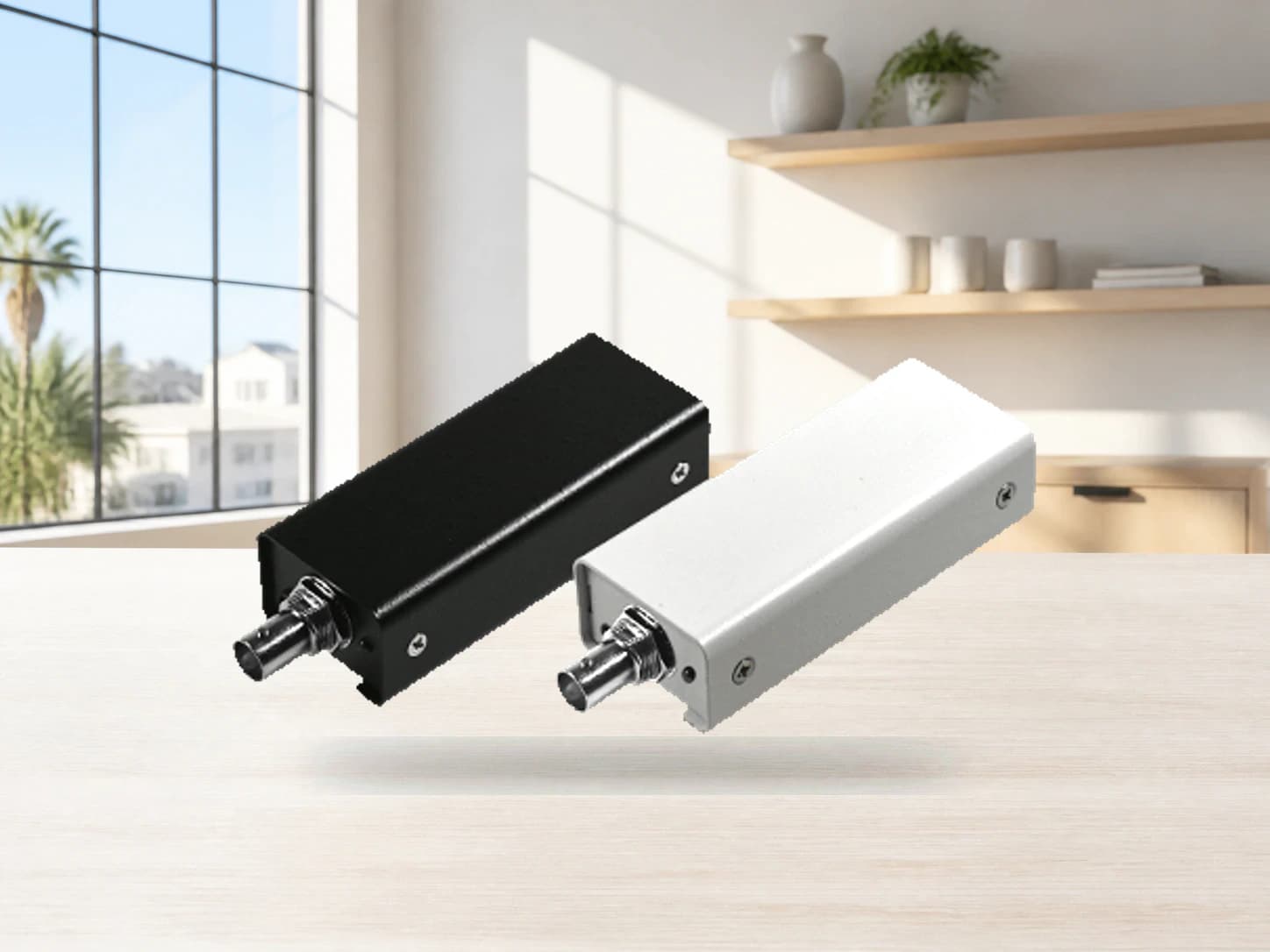

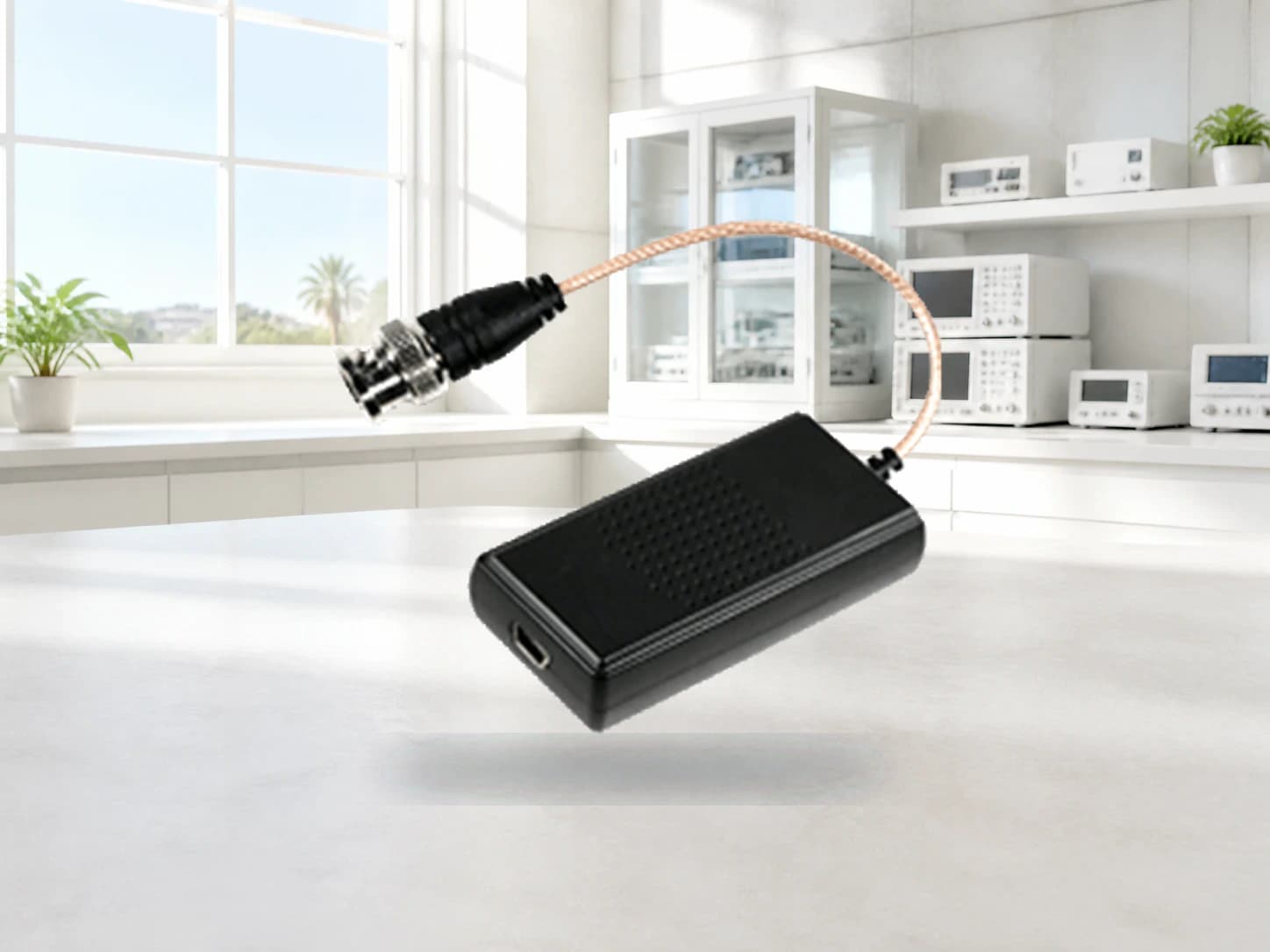

USB2.0

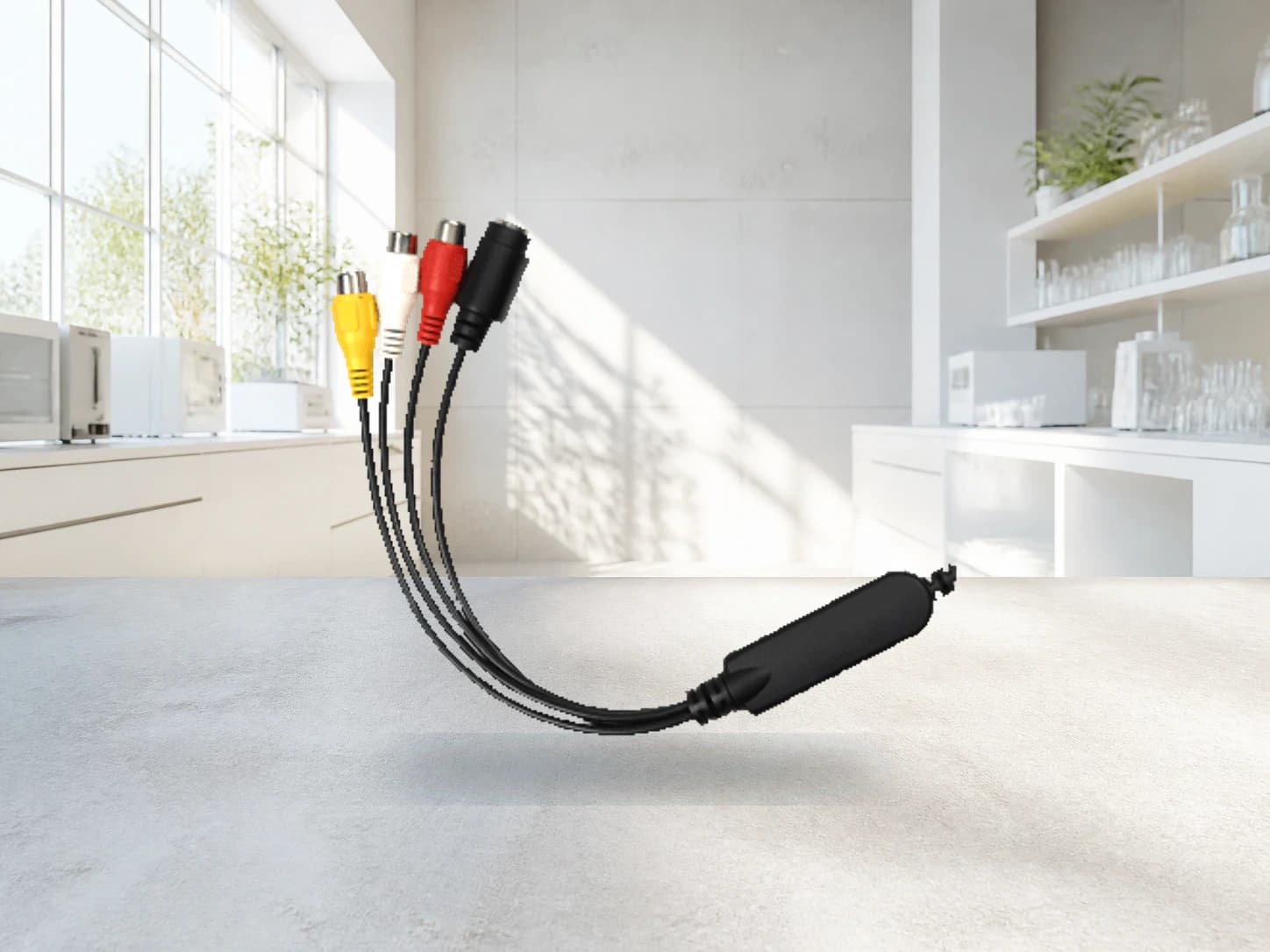

USB 2.0 capture devices support SD through full-HD workflows. The UVC-compatible family is intended for recording, archiving, and entry-level streaming where USB 2.0 bandwidth is sufficient; selected models include hardware compression.
- USB 2.0
- H.264
- 1×SDI
- 1×Composite, 1×S-Video
- 30/25fps@D1
Capture I/O
HSB
ProAV

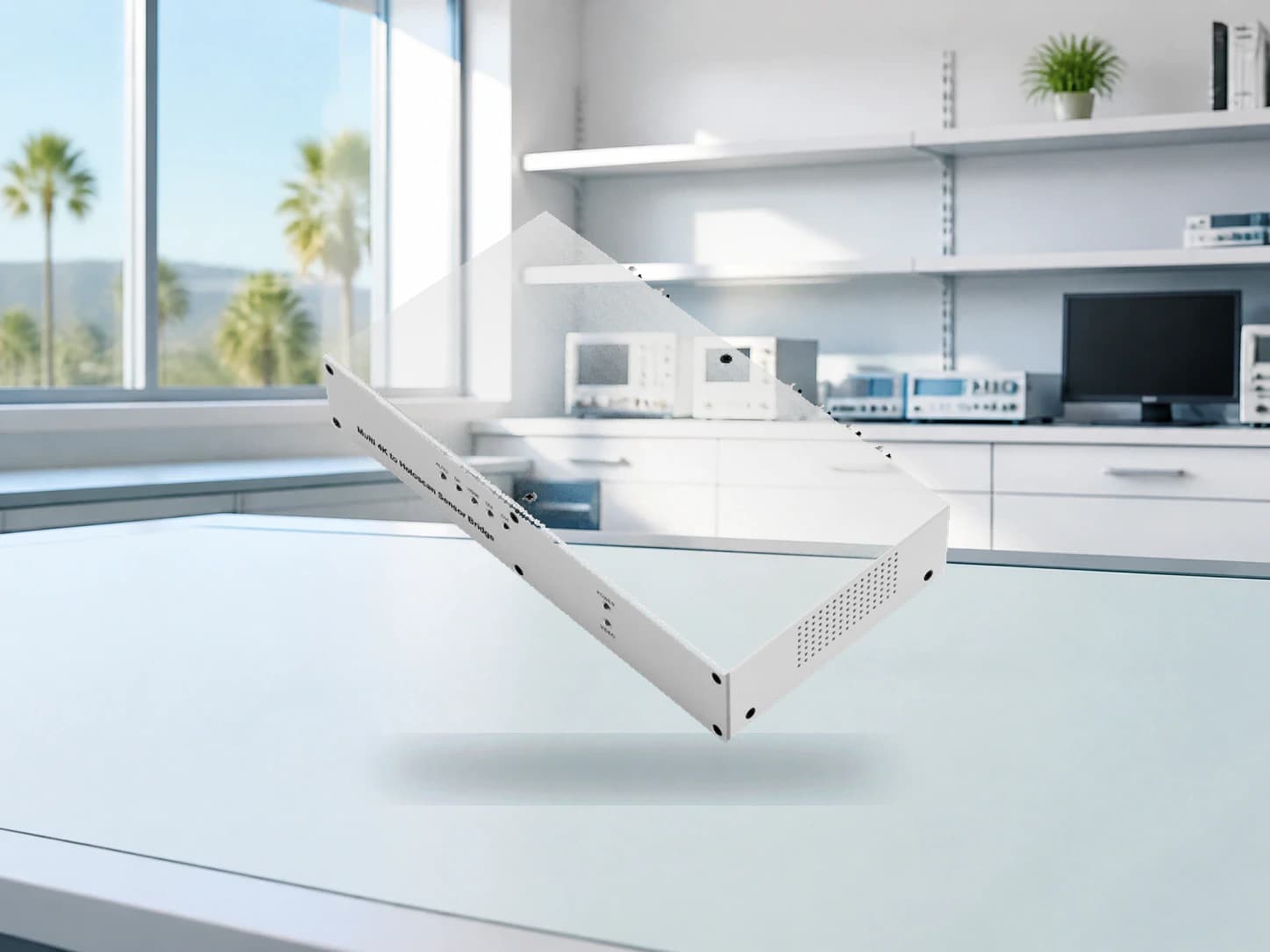

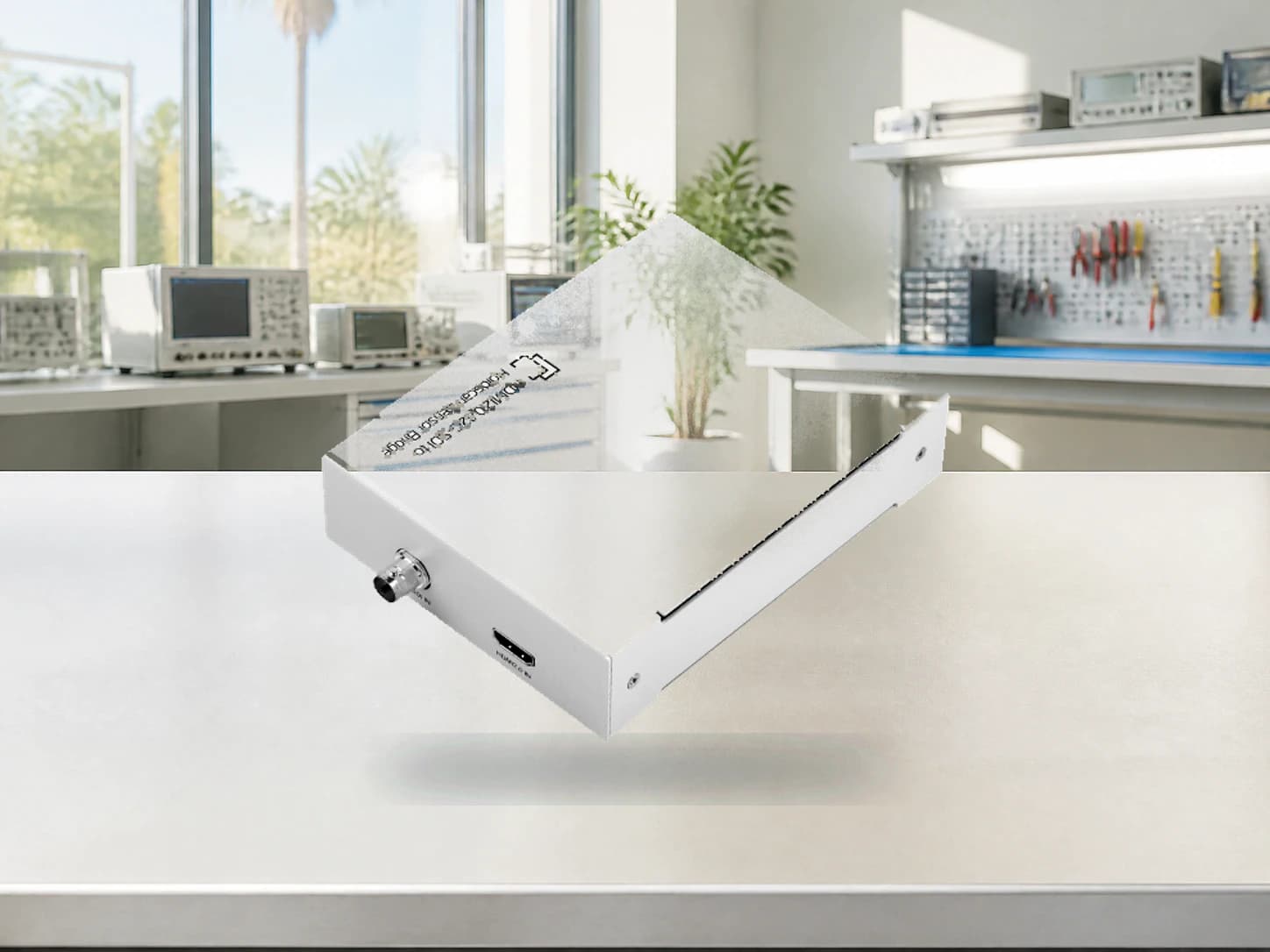

ProAV Holoscan Sensor Bridge products connect HDMI and SDI sources to NVIDIA Holoscan over optical links with direct GPU access. Medical, robotics, and other safety-relevant systems require complete-pipeline validation beyond the bridge component.
- 2×12G-SDI
- 2×HDMI2.0
- HDMI 2.0×1
- 12G-SDI×1
- 1×HDMI2.0
- 1×DVI-D Dual Link
GMSL2

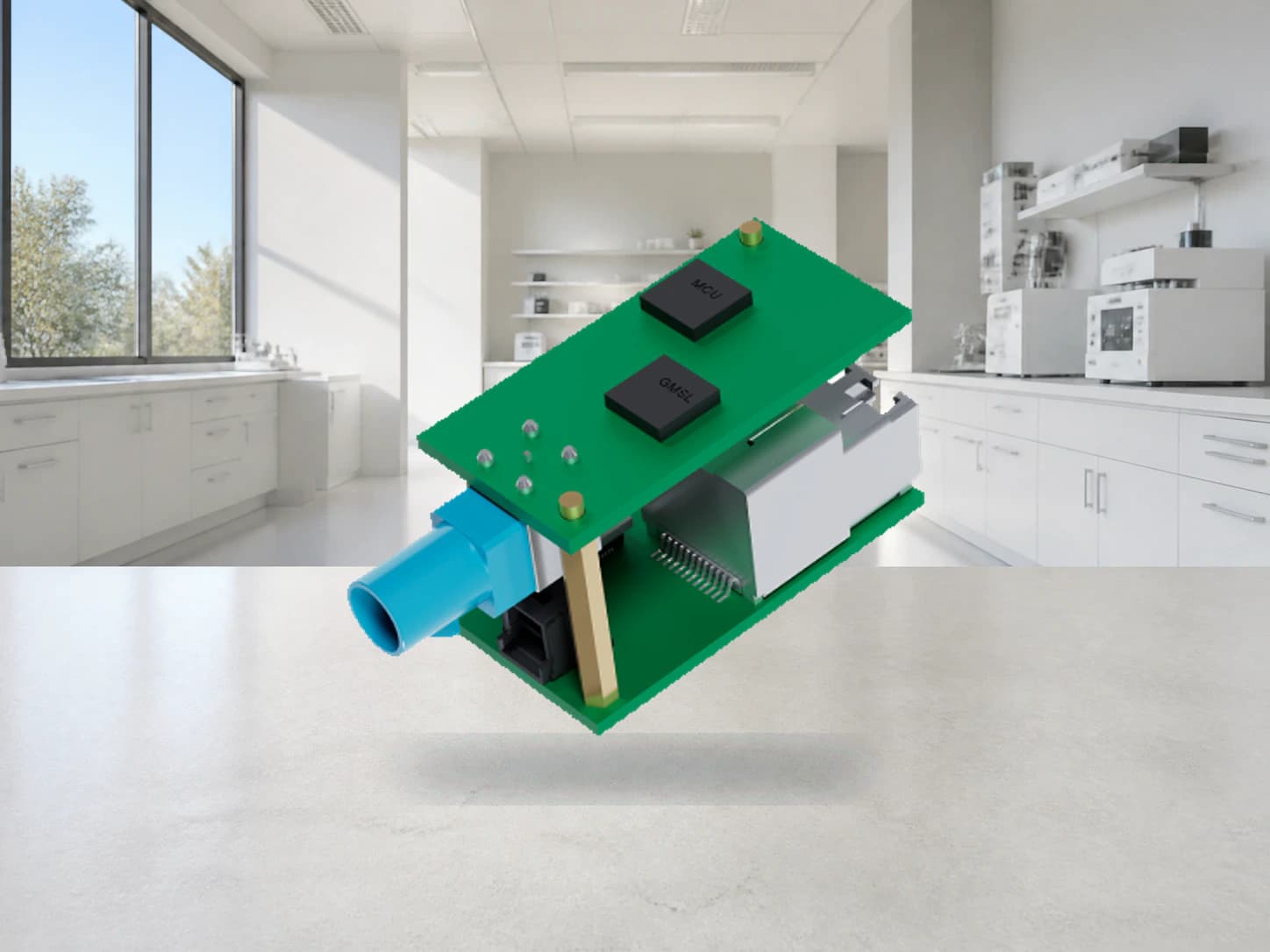

GMSL2 Holoscan Sensor Bridge products connect Fakra Z automotive-camera inputs to NVIDIA Holoscan over optical SFP+ links. The compact enclosures support robotics and vehicle integrations that require direct GPU access.
- 4×GMSL2
- 1×GMSL2
Capture I/O
I/O Card
SC750N1O1
SC750N1O1 I/O cards provide 4K60 4:4:4 video input and output on one card. Model capabilities include overlay, configured output formats, synchronized distribution, and optional passive bypass.
- 1920×1080i@60/50fps
- PCIe×4 ( Gen3 )
Capture I/O
Legacy

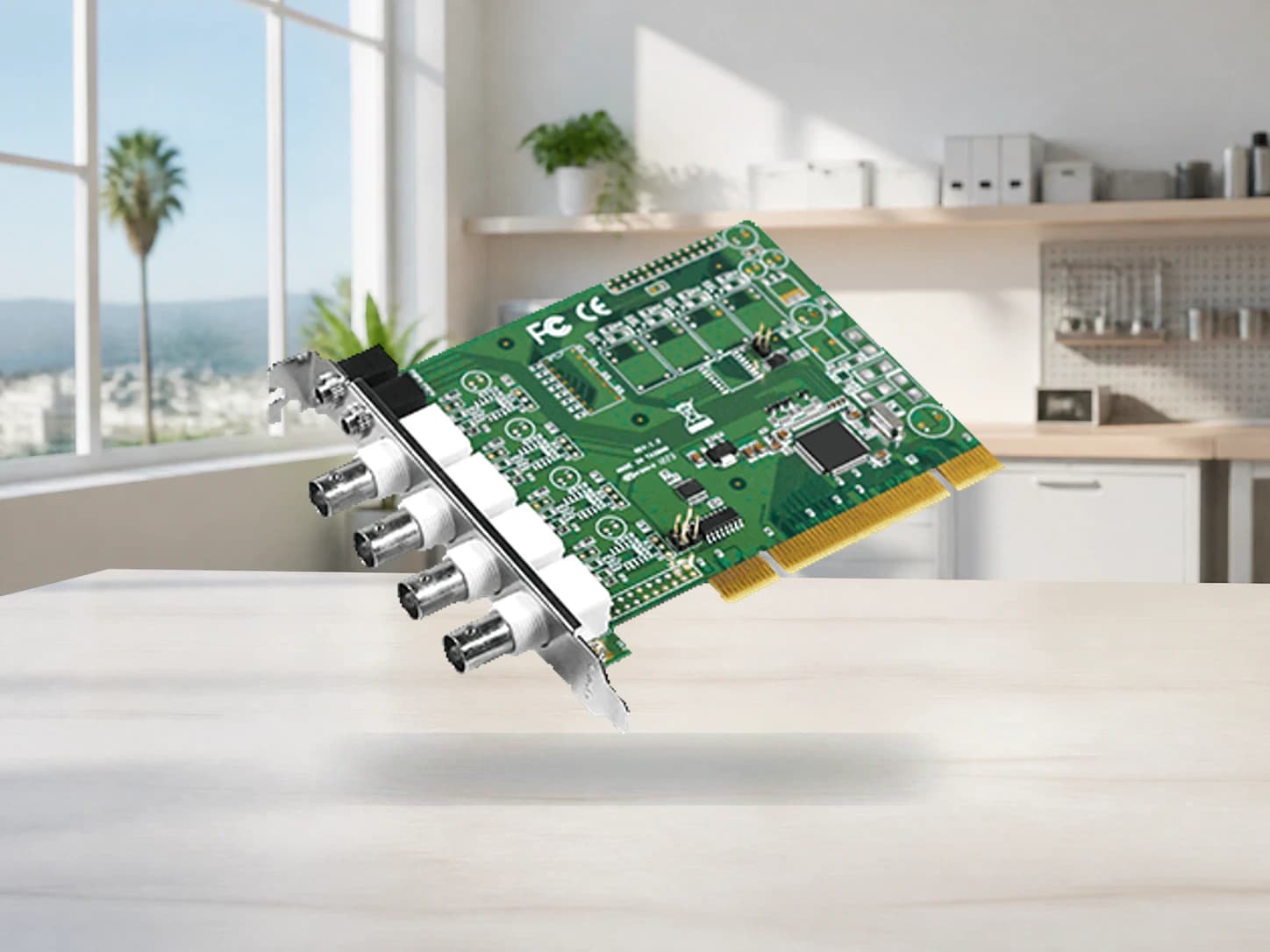

PCI

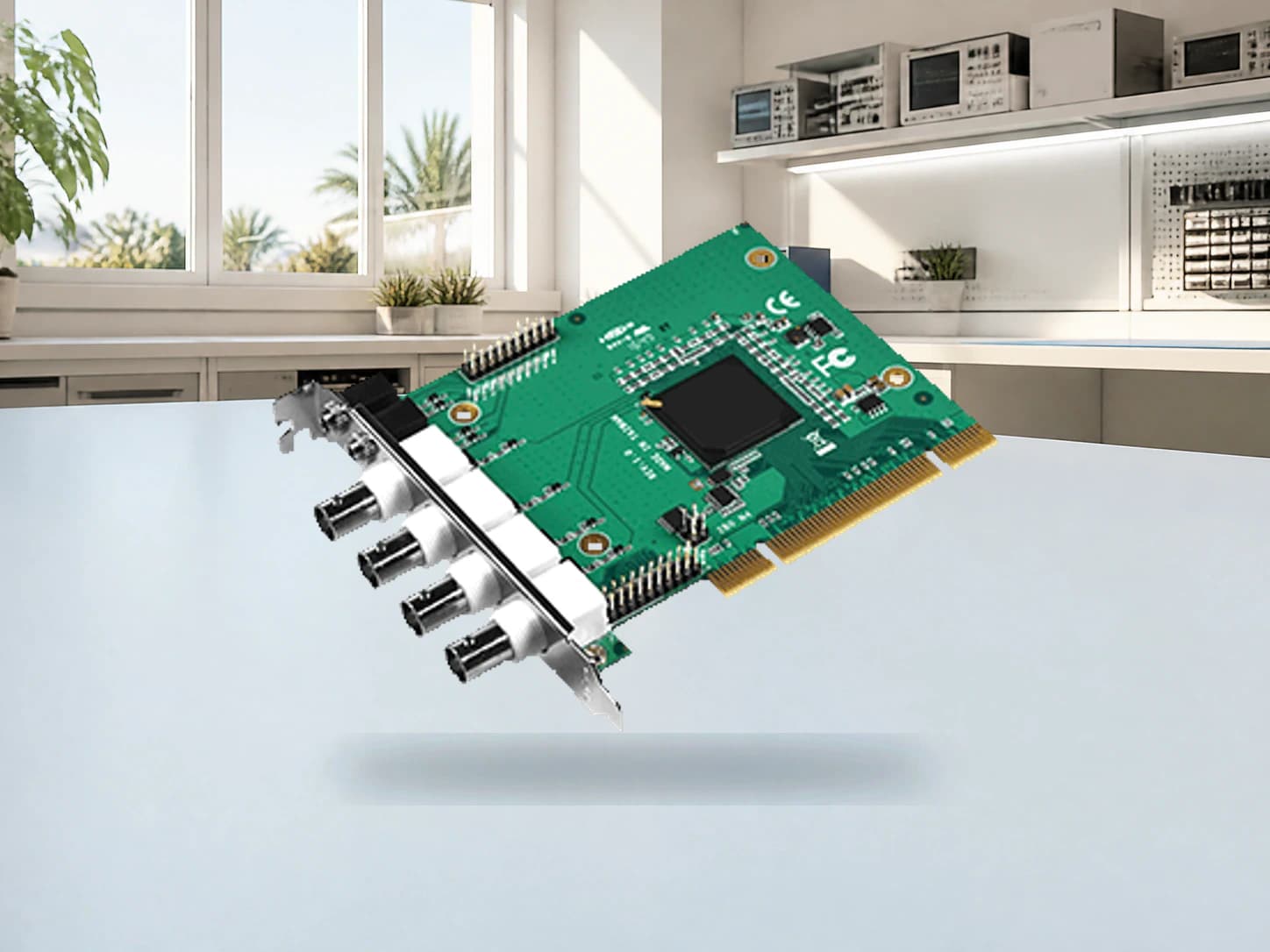

Legacy PCI capture cards add video input to industrial hosts that still use the conventional PCI bus, without requiring a platform-bus migration.
- PCI
- 120/100fps@D1
- H.264 Baseline Profile

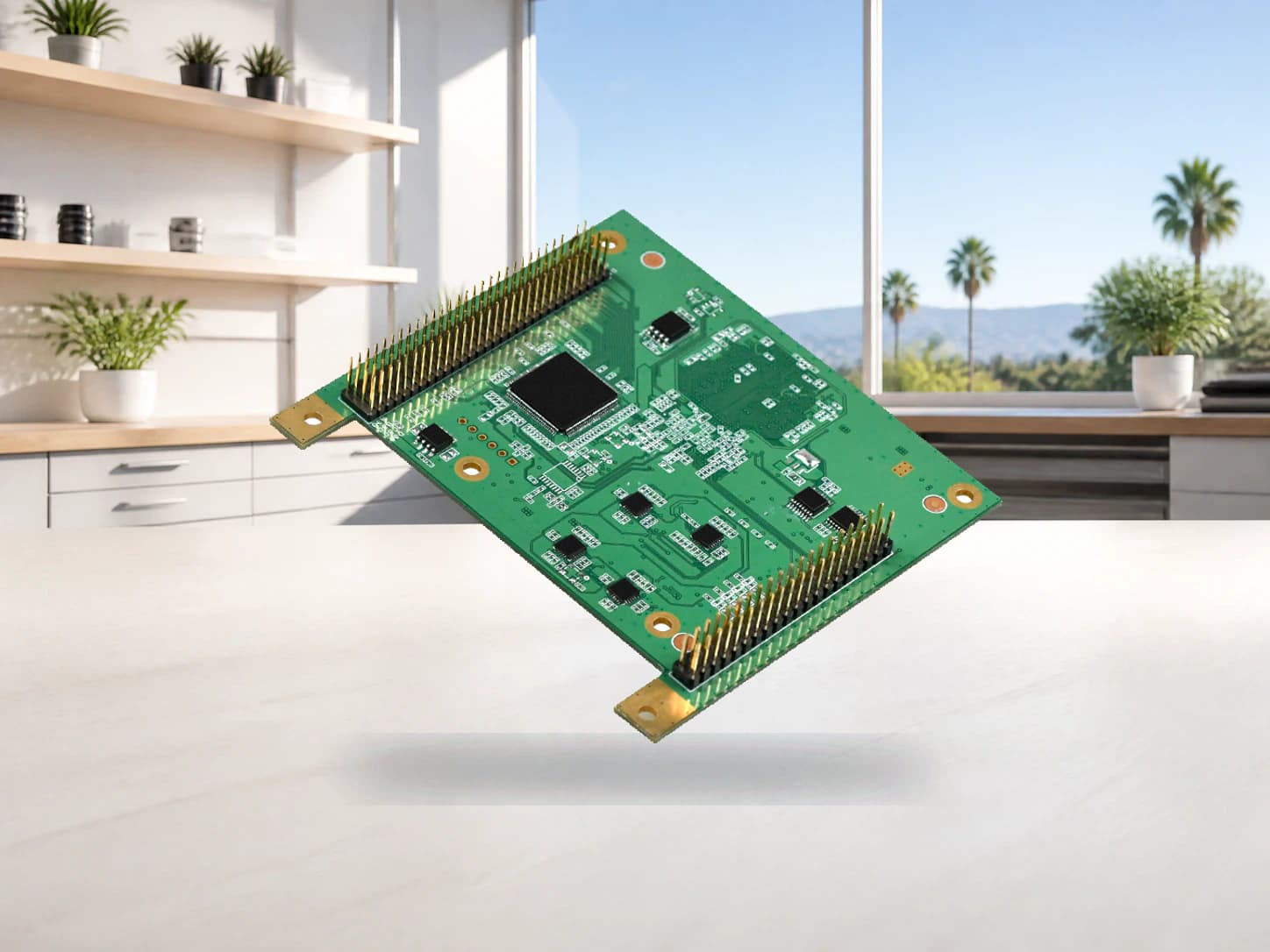

MiniPCI / PCI104

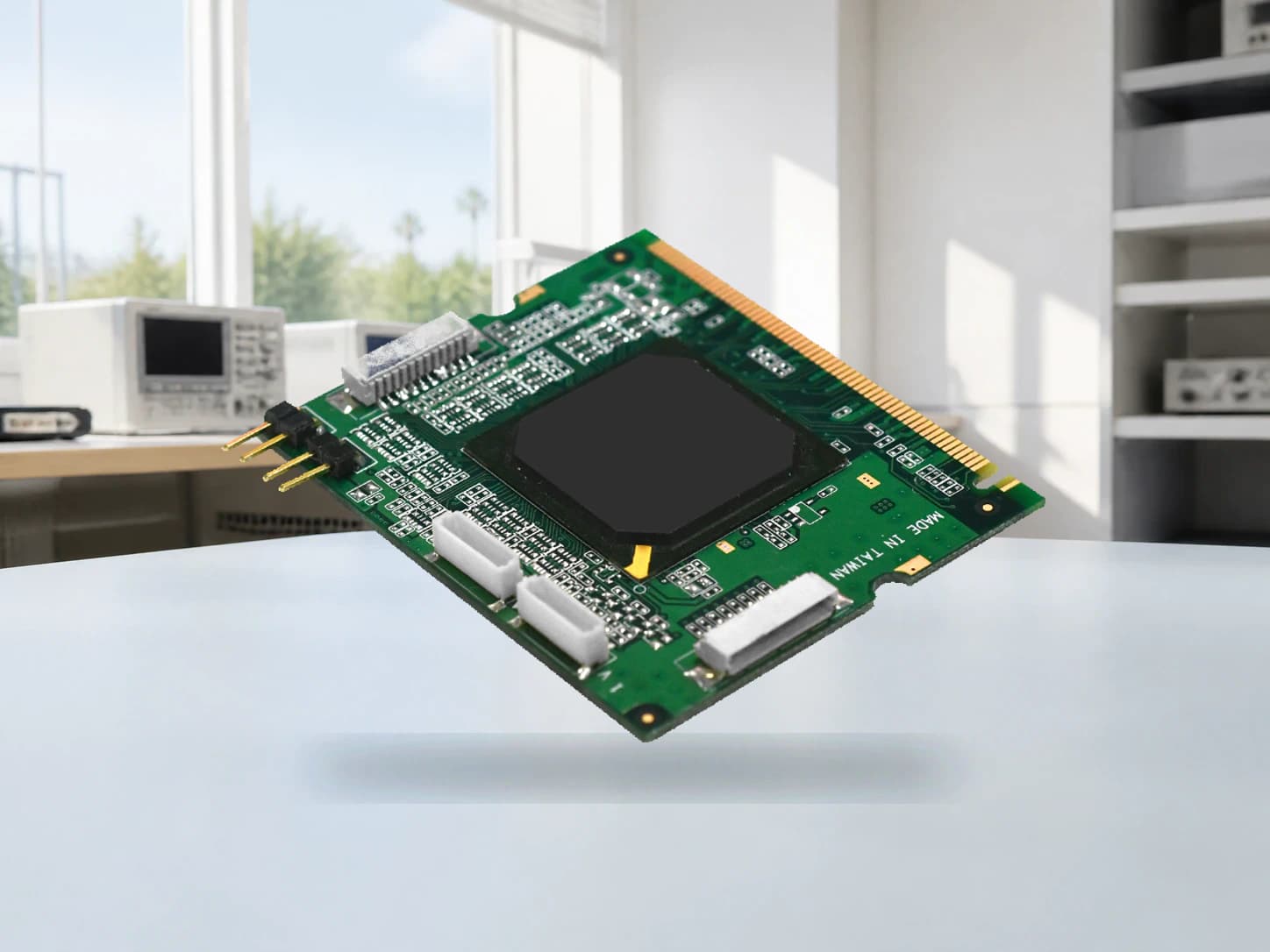

MiniPCI and PCI/PCIe-104 modules provide stackable capture options for compact embedded systems with limited space, power, or thermal capacity.
- 4×CVBS
- 120/100fps@D1
- H.264
- MiniPCI
- 8×CVBS
- PCIe 104
Capture I/O
SDK
SDK
NexVDO SDK provides Capture, Record, Stream, and Analysis modules for YUAN platforms based on NVIDIA Jetson and Intel x86. YUAN also offers hardware and software customization for project-specific integrations.
Review a Capture I/O requirement
Share the signal, host, operating system, schedule, and models you are evaluating with the YUAN USA product team.
