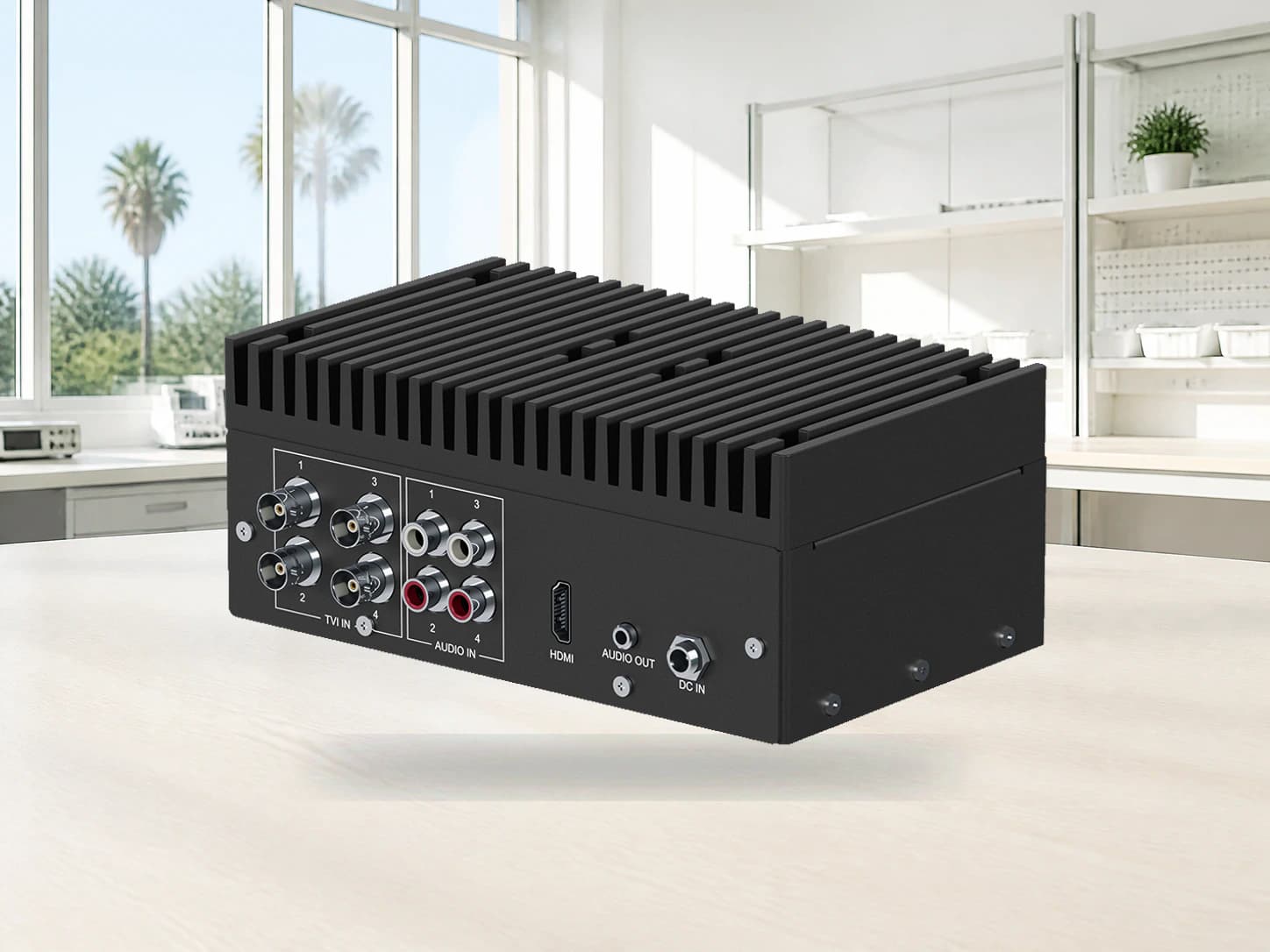

EDG6N0-C-W ONX 4TVI DIO

Card Size AI Edge with Multi AIoT Expansion

Request a quote Download datasheet

Key features

Powered by NVIDIA® Jetson Orin™ NX Super up to 157 / 117 TOPS
4×TVI In
1×M.2, Gen 4×2 M Key
2×USB3.2 Gen2
1×HDMI2.0

Technical specifications

Product specifications by category
System
SOM	NVIDIA Jetson Orin™ NX 16GB Super NVIDIA Jetson Orin™ NX 8GB Super NVIDIA Jetson Orin™ Nano 8GB Super NVIDIA Jetson Orin™ Nano 4GB Super
CPU	8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores 1024-core NVIDIA Ampere Architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores
API Performance	Up to 157 / 117 / 67 / 34 TOPS
System Memory	16GB 128-bit LPDDR5 102.4GB/s 8GB 128-bit LPDDR5 102.4GB/s 8GB 128-bit LPDDR5 102 GB/s 4GB 64-bit LPDDR5 51 GB/s
Interface
Storage	Supports External NVMe 1×Micro SD Card Slot
Display Interface	1×HDMI2.0 ( Up to 4K60 )
Ethernet	2×RJ45 for 10 / 100 / 1000Mbps Ethernet ( DHCP Client )
Expansion Slot	1×M.2 2280 M Key PCIe Gen4×2 Slot ( Nano: Gen3×2 )
USB	2×USB3.2 Gen2 ( Type-A )
Peripheral Communication	17 Pin DIO Phoenix Connector 1×RS485 4×Digital In 4×Digital Out 2×GND 2×24V
Misc. Features	Firmware Upgradable
Key Points
Input	4×TVI
Video Feature
Video Encode	AV1 ( UHP ) 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.265 ( UHP ) 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.264 ( UHP ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 1080p30 supported by 1-2 CPU cores
Video Decode	AV1 ( Main Profile ) 1×8K30 \| 2×4K60 \| 4×4K30 \| 10×1080p60 \| 20×1080p30 H.265 ( Main, Main10 ) 1×8K30 \| 2×4K60 \| 4×4K30 \| 9×1080p60 \| 18×1080p30 H.264 ( Baseline, Main, High ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 VP9 ( Profile 0, Profile 2 ) 1×4K60 \| 3×4K30 \| 7×1080p60 \| 15×1080p30 AV1 ( Main Profile ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 10×1080p30 H.265 ( Main, Main10 ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 H.264 ( Baseline, Main, High ) 1×4K30 \| 3×1080p60 \| 7×1080p30 VP9 ( Profile 0, Profile 2 ) 1×4K60 \| 2×4K30 \| 5×1080p60 \| 10×1080p30
