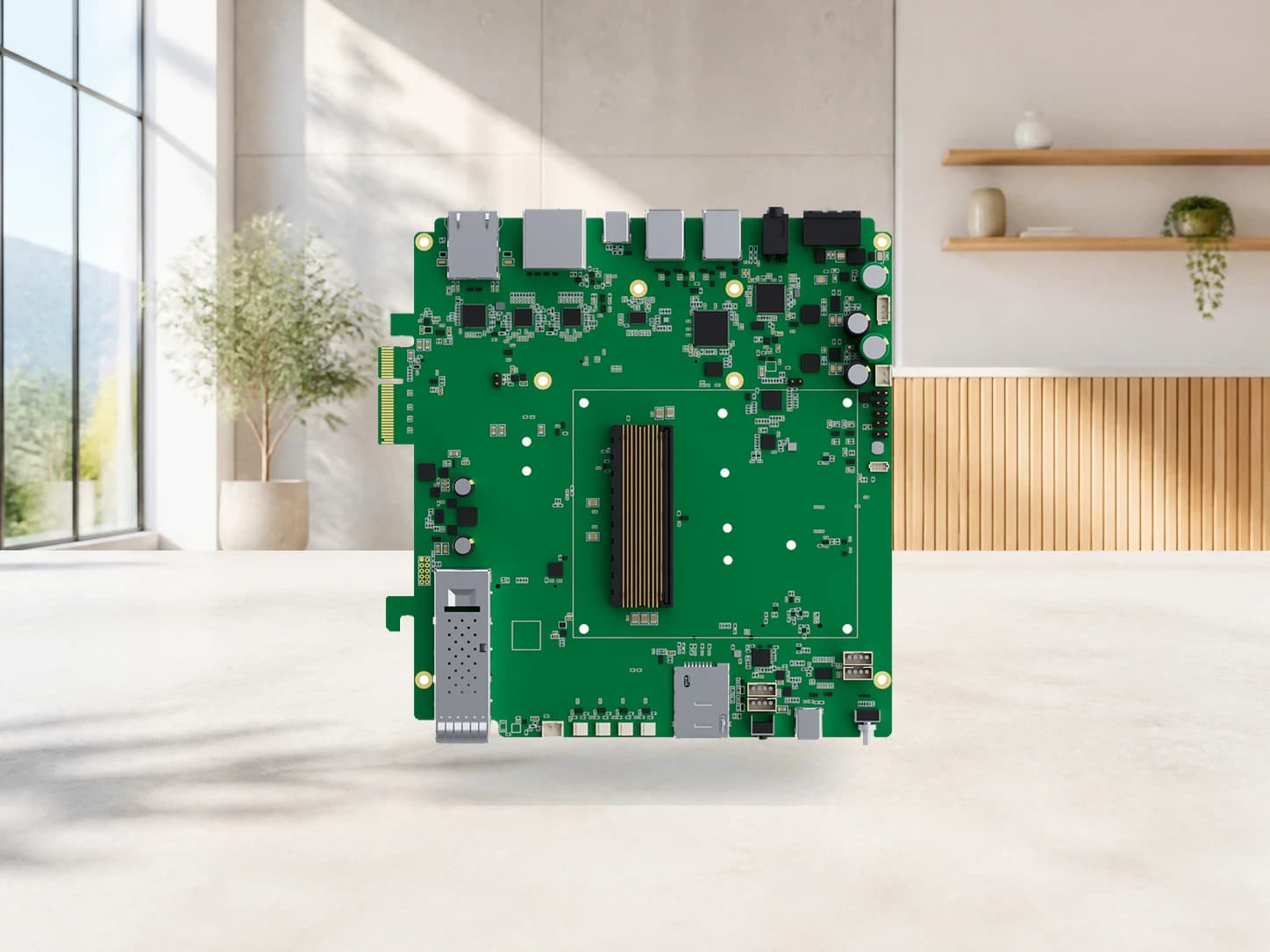

EDG6N0-S T5X MB

Jetson Thor edge-AI system with 2070 FP4 TFLOPS and two HDMI 2.0 outputs

Key features

Product specifications by category
System
SOM	NVIDIA Jetson Thor™ T5000 NVIDIA Jetson Thor™ T4000
CPU	NVIDIA Jetson Thor™ 128 / 64GB 14-Core ARM Neoverse V3AE 64-bit CPU
GPU	2560 NVIDIA CUDA cores \| 96 5th Tensor cores 1536 NVIDIA CUDA cores \| 64 5th Tensor cores
AI Performance	Up to 2070 / 1200 FP4 TFLOPs
System Memory	128 / 64GB LPDDR5X 273 GB/s
Interface
Storage	Supports External NVMe
Display Interface	1×HDMI2.0 ( Up to 4K60 ), 1×DP1.4 ( Up to 4K60 )
Ethernet	1×QSFP28 for 100Gbps Ethernet 1×RJ45 for 5Gbps Ethernet DHCP Client
Expansion Slot	PCIe 1×PCIe Gen5×4 ( Gold Finger ) M.2 1×M.2 2230 E Key PCIe Gen4×1/USB2.0/SDIO Slot 1×M.2 2280 M Key PCIe Gen5×2 Slot 1×M.2 2242/3042/3052 B Key USB3.2 Gen1 Slot
USB	4×USB3.2 Gen2 ( Type-A ) 2×USB3.2 Gen2 ( Type-C )
MIPI	16×MIPI CSI-2 Lanes ( D-PHY 2.1, 4×4 \| 3×4+2×2 \| 2×4+4×2 \| 1×4+5×2 \| 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )
Audio	1×Line In ( 3.5mm ) 1×Line Out ( 3.5mm )
Peripheral Communication	40Pin Header 1×UART ( Pin Header ) 2×GPIO ( Pin Header ) 2×CAN Bus ( Pin Header or Wafer ) 2×I2C ( Pin Header ) 1×I2S ( Pin Header ) 1×SPI ( Pin Header ) 3×PWM ( Pin Header ) 4×Fan Connector 4×CAN Bus ( Wafer, Two of them share pins with the CAN BUS on the 40-pin header. ) 40Pin Header 1×UART ( Pin Header ) 2×GPIO ( Pin Header ) 2×I2C ( Pin Header ) 1×I2S ( Pin Header ) 1×SPI ( Pin Header ) 3×PWM ( Pin Header ) 4×Fan Connector
Misc. Features	Firmware Upgradable Auto Power ( Pin Header )
